MISHIMOTO MMBCC-CSS-10APBE CHEVROLETCamaro SS Auto Baffled Oil Catch Can, 2010-2015

Description MISHIMOTO MMBCC-CSS-10APBE CHEVROLETCamaro SS Auto Baffled Oil Catch Can, 2010-2015

The L99 engines in the automatic 5th Gen Camaro SS deliver over 400 horsepower from eight cylinders. However, these engines also produce blow-by, where oil, fuel, and combustion by-products pass the piston rings with each stroke. If left unchecked, this blow-by can enter the intake and reduce engine power and efficiency.

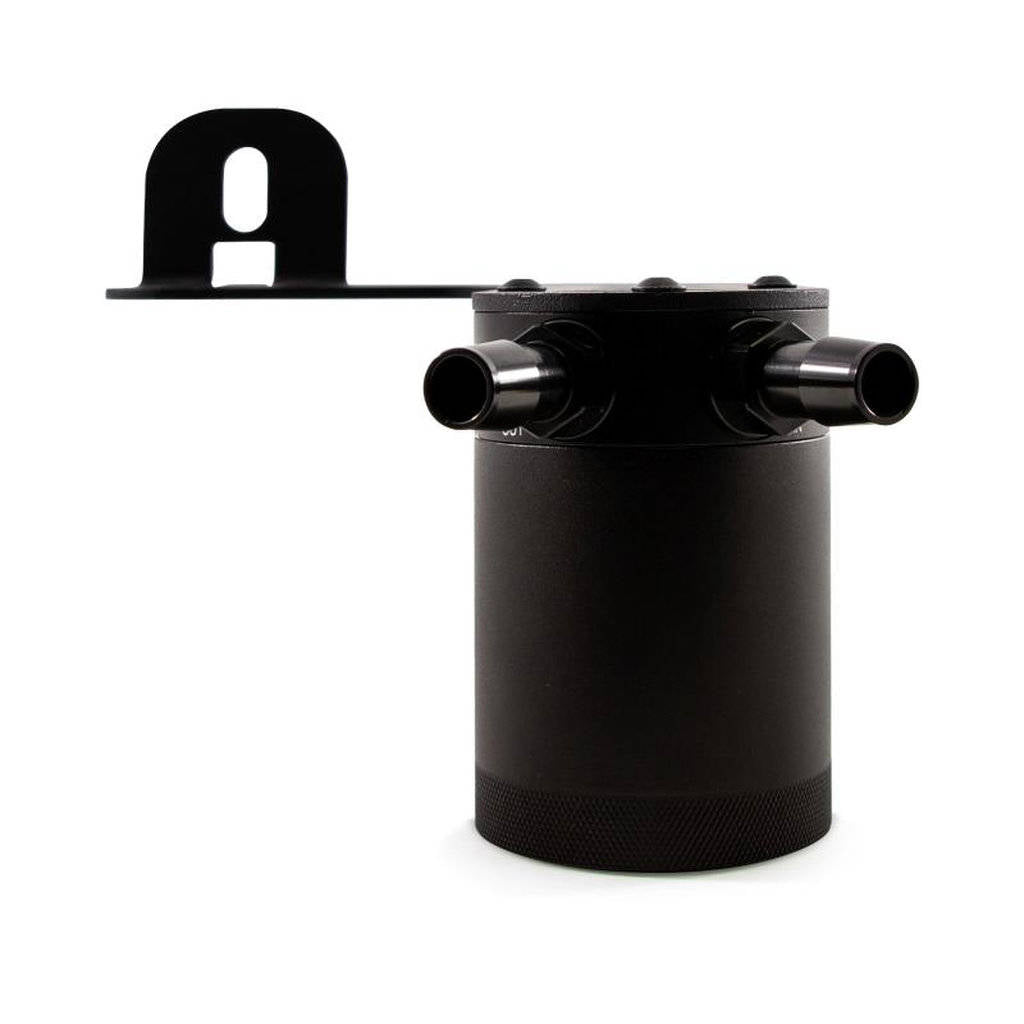

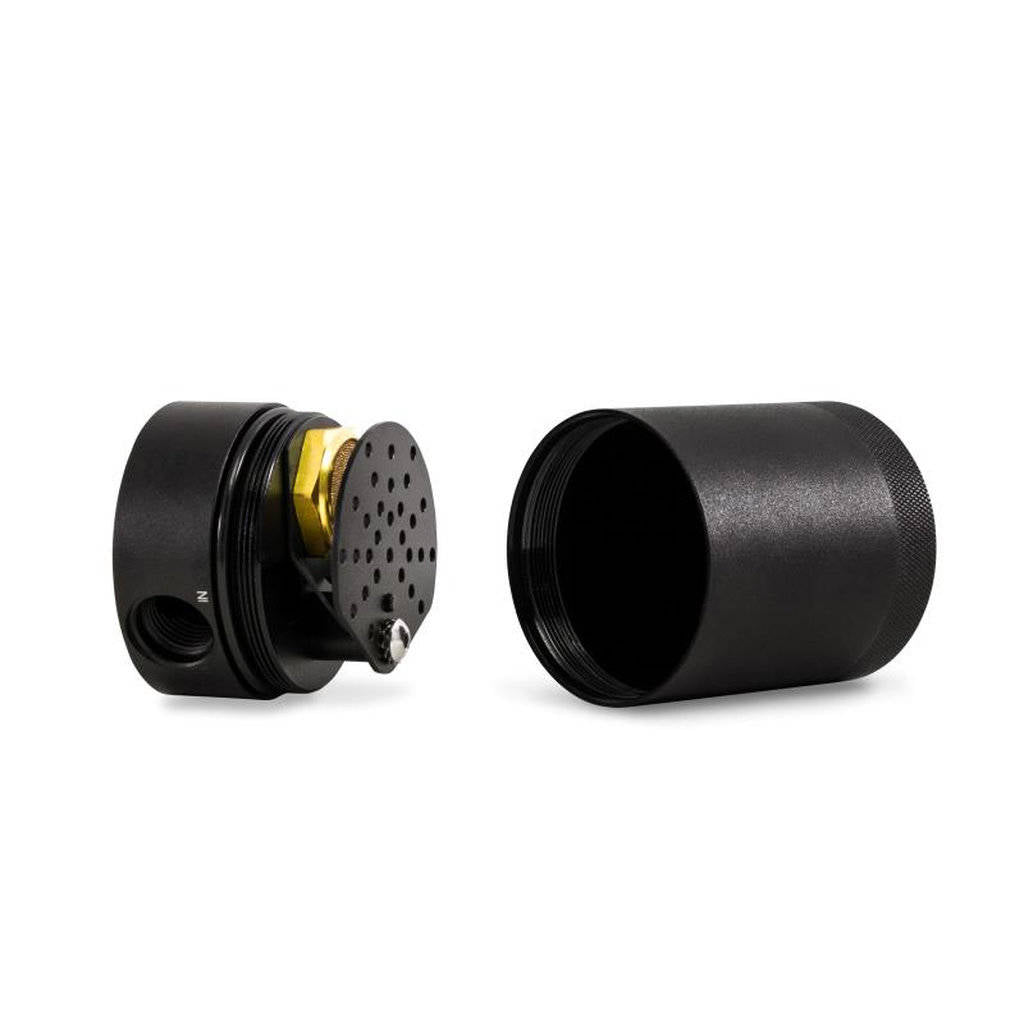

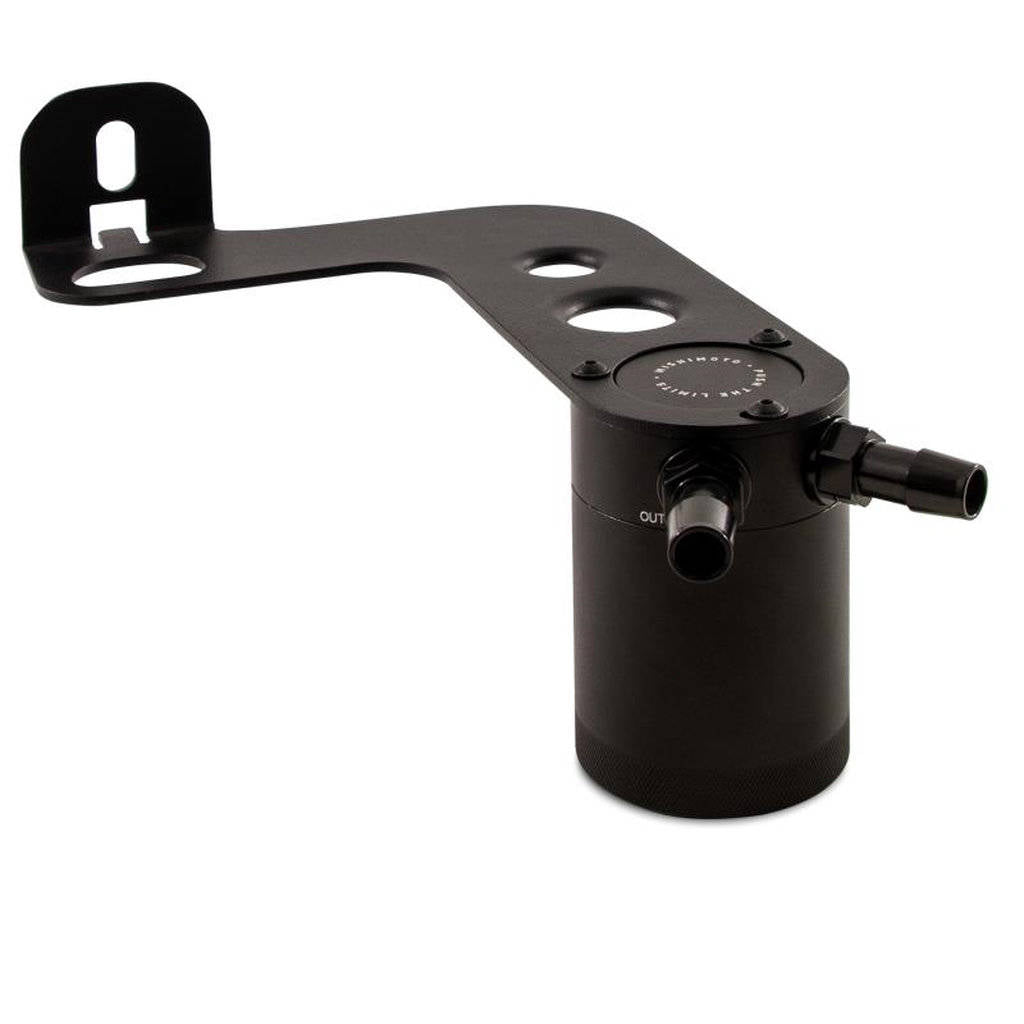

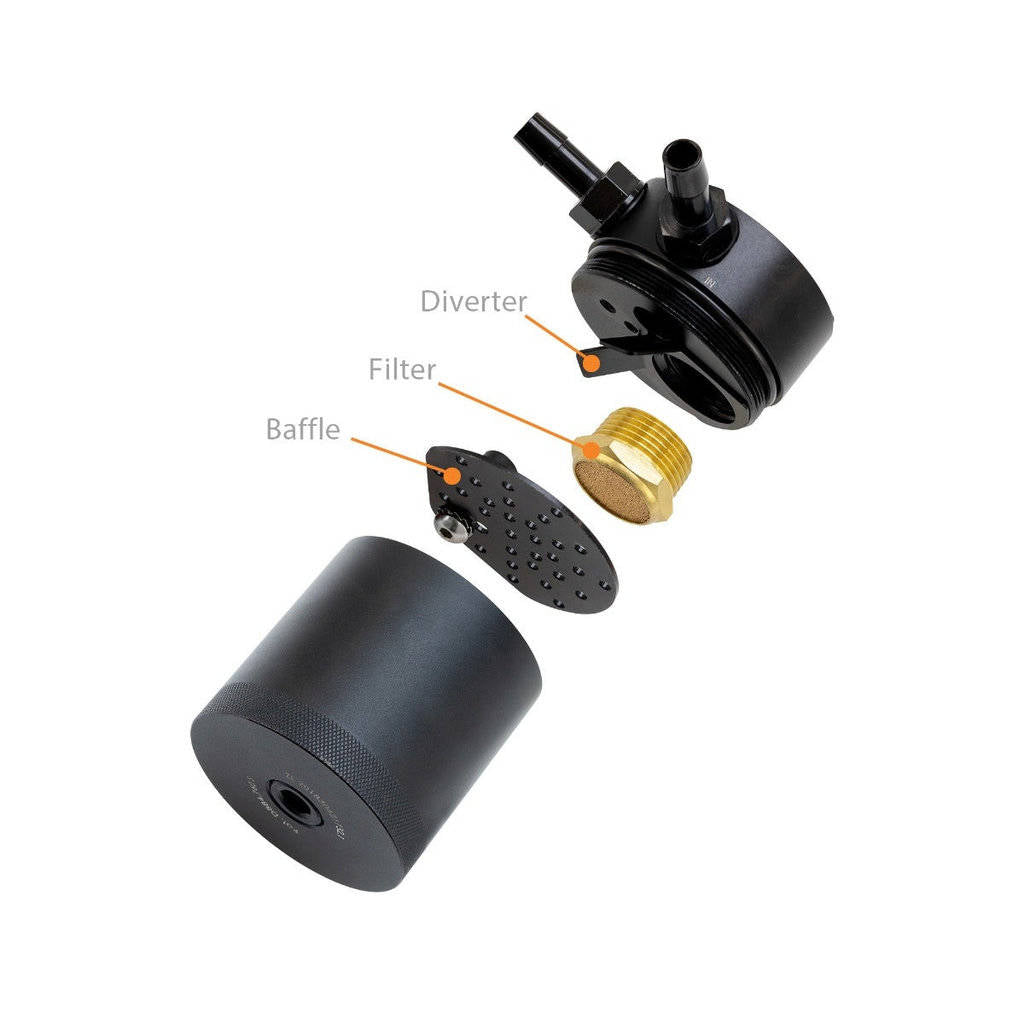

The Mishimoto 2010-15 Camaro SS L99 direct-fit catch can kit is designed to address this issue. The catch can features air diverters and an internal baffle to slow incoming air and condense oil and fuel vapors. A 50-micron bronze filter at the outlet further prevents blow-by from escaping. The kit mounts using a custom bracket that requires no drilling or cutting, and direct-fit lines with quick-disconnect fittings connect to the factory PCV system for a straightforward installation.

This catch can is not heated, allowing all blow-by, including low-octane oil vapors and contaminated fuel vapors, to condense in the can. Unlike most air-oil-separator systems that drain blow-by back into the oil pan, this catch can traps blow-by and keeps it out of the engine permanently.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

Note: For 2010 and 2011 models, GM part # 22762586 is required for the correct bushing.

Recommendation: After installation, Mishimoto recommends checking the contents of the baffled catch can every 500 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. Ensure the contents do not rise above the internal baffle.

• Direct-fit catch can kit for 2010-2015 Camaro SS L99 automatic
• Features air diverters, internal baffle, and 50-micron bronze filter
• Custom bracket and direct-fit lines for easy installation
• Traps blow-by to prevent it from entering the intake

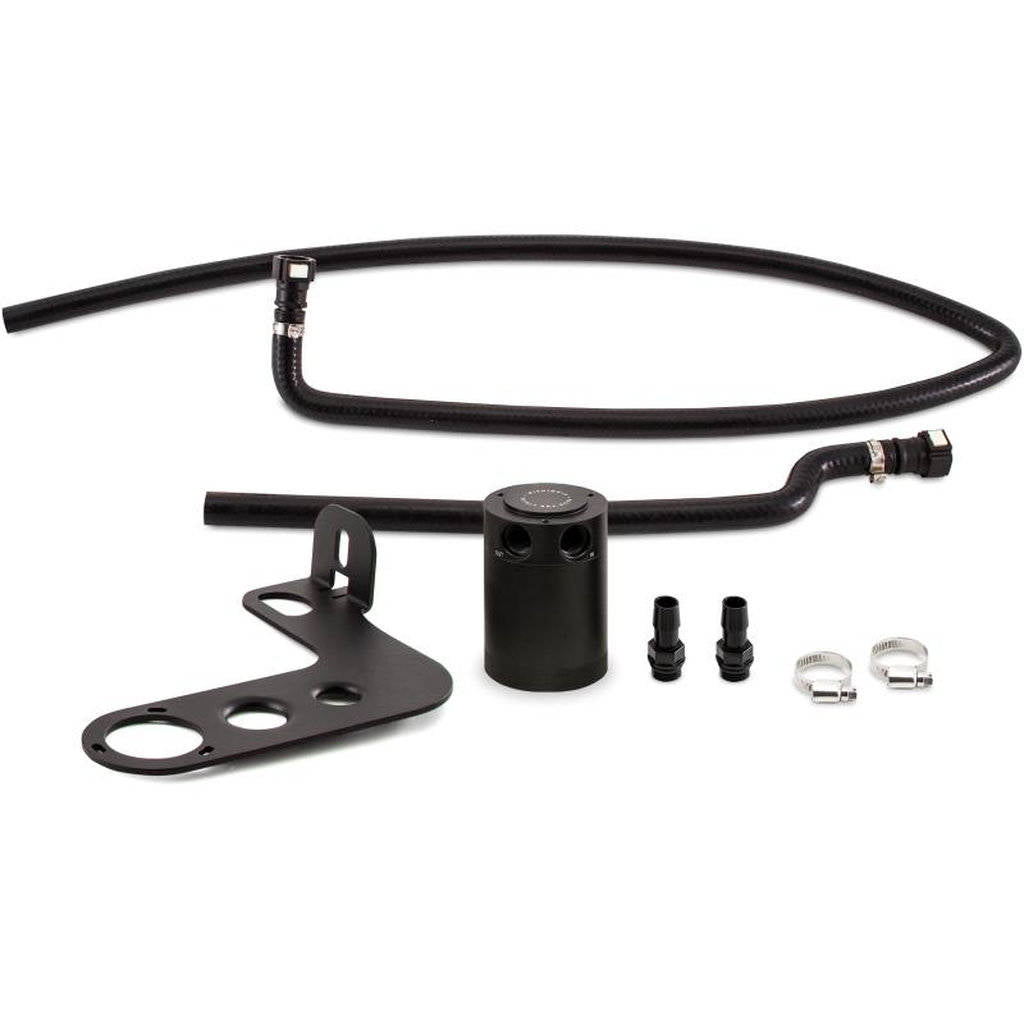

Kit comes with::

• Compact Baffled Oil Catch Can
• Application-Specific Mounting Bracket
• 2 Direct-Fit Hoses with Pre-Installed Factory Quick-Disconnect Fittings
• 2 1/2-in Aluminum Barbed Fittings
• Radiator Mounting Bushing
• 2 Worm Gear Clamps
• Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2010-2015 Chevrolet Camaro SS, automatic transmission, Engine Code: L99, Chassis Code: Zeta
