MISHIMOTO MMBCC-CF Carbon Fiber Baffled Oil Catch Can

Description MISHIMOTO MMBCC-CF Carbon Fiber Baffled Oil Catch Can

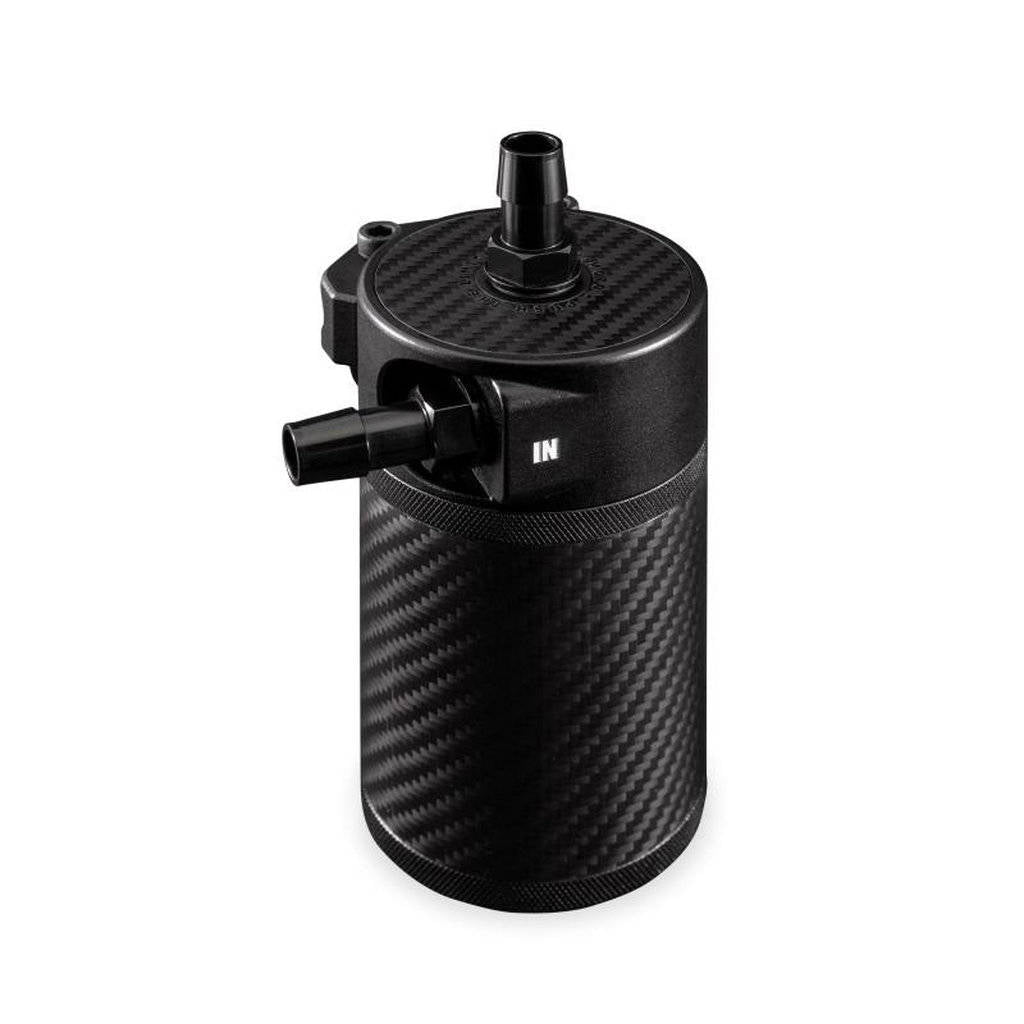

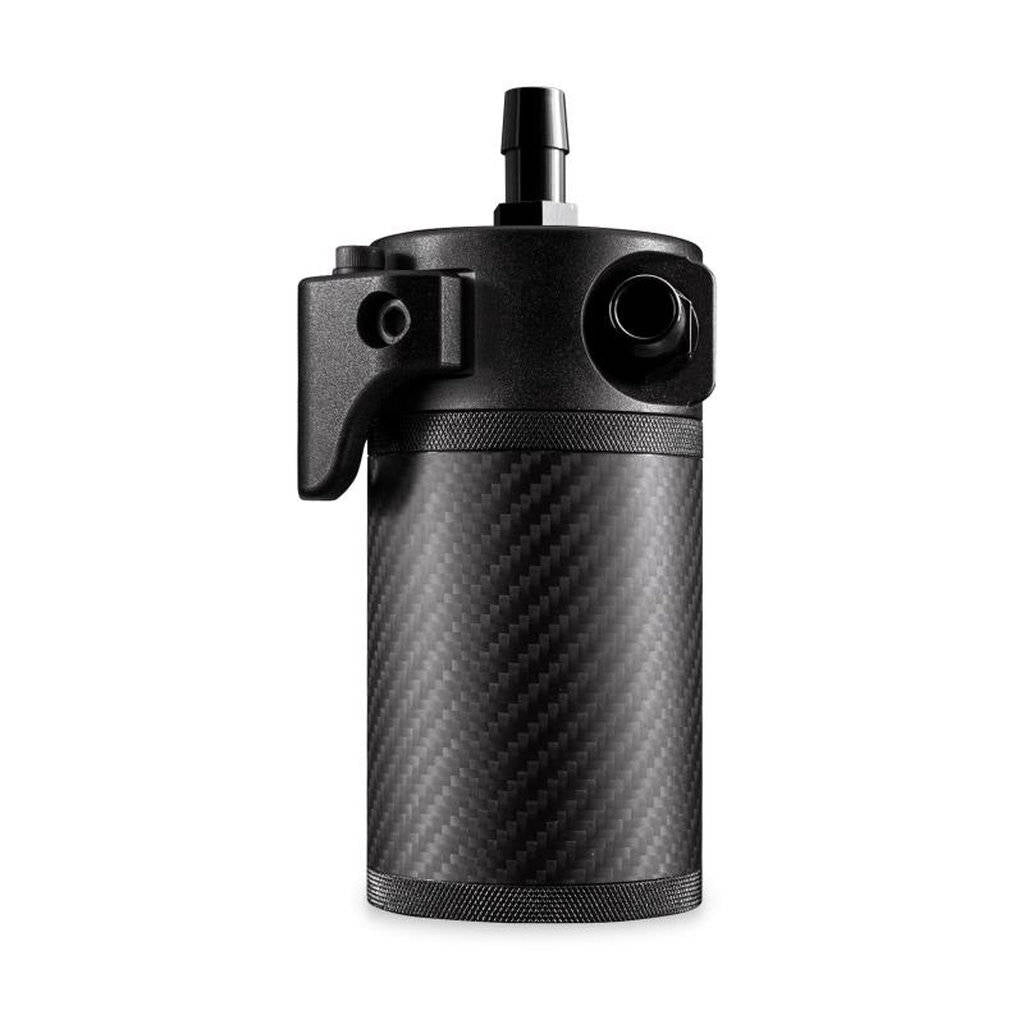

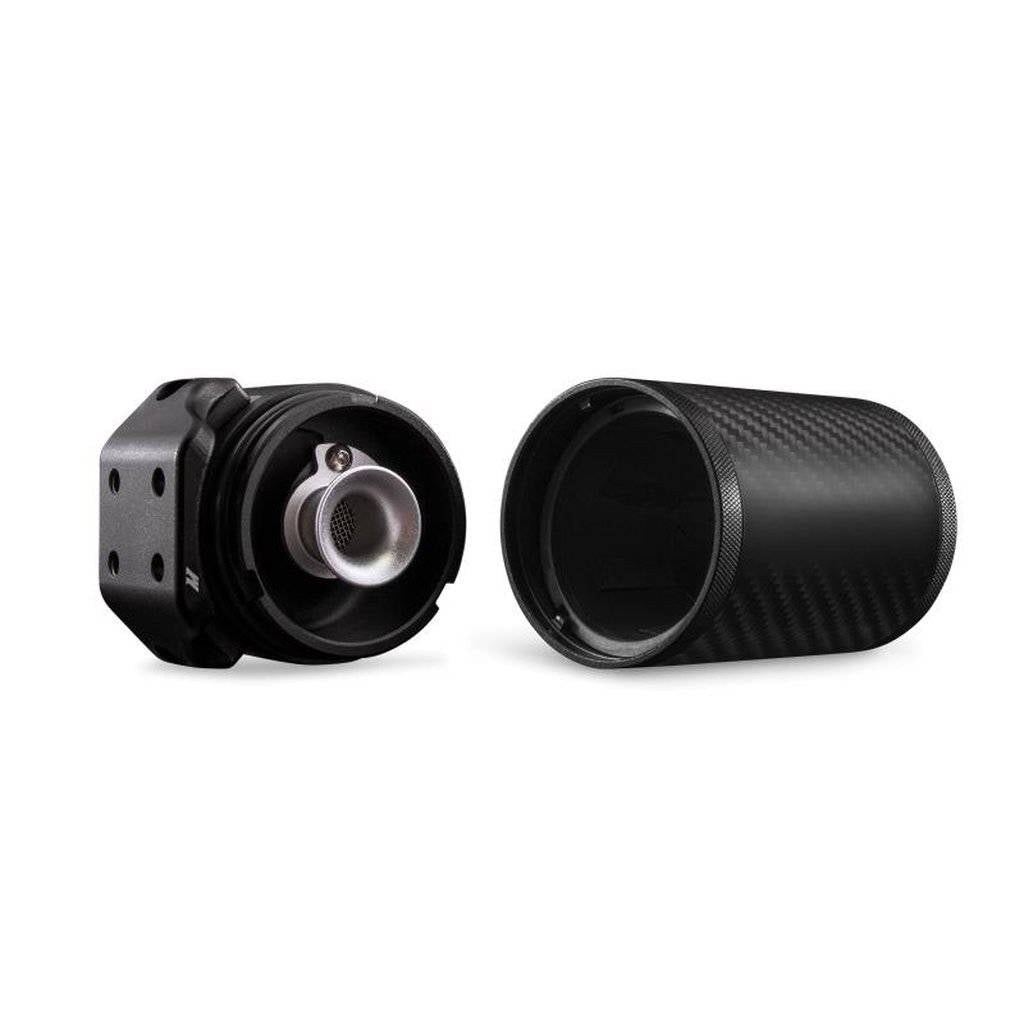

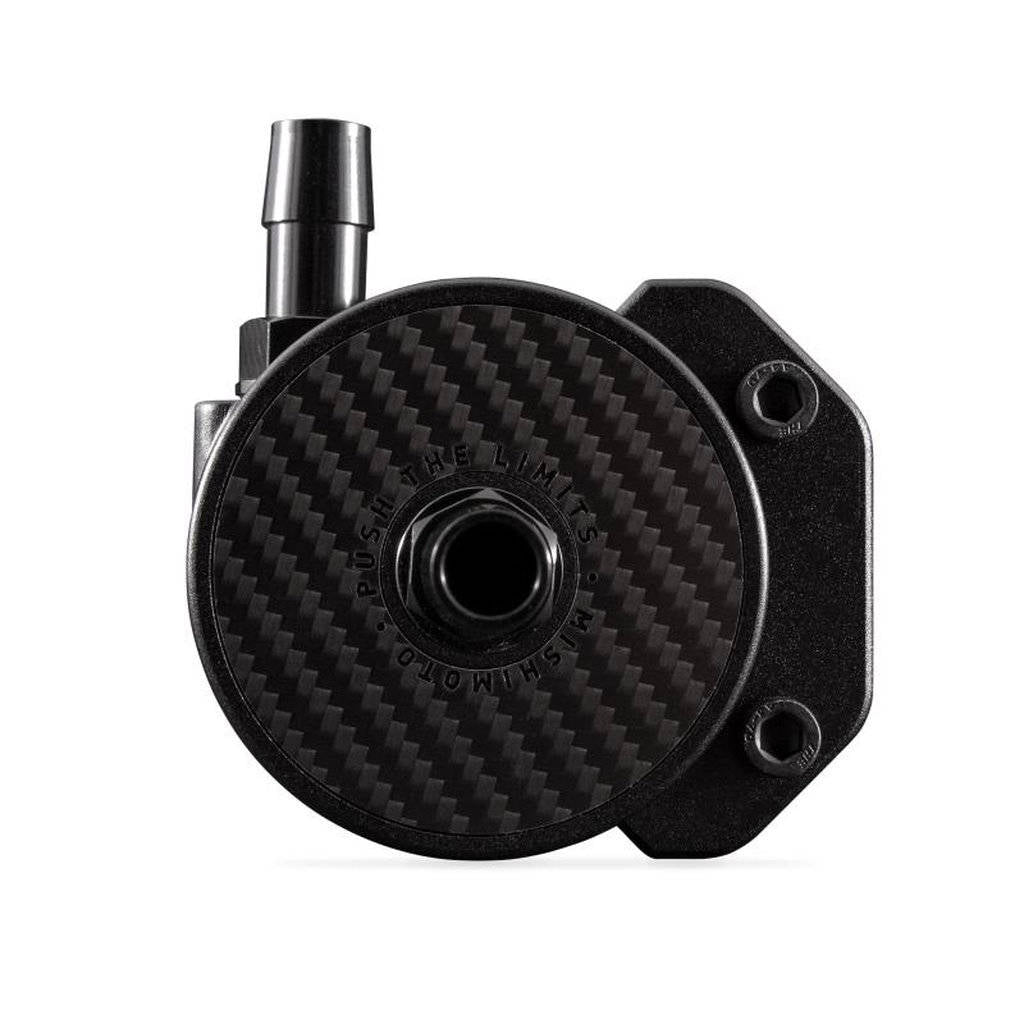

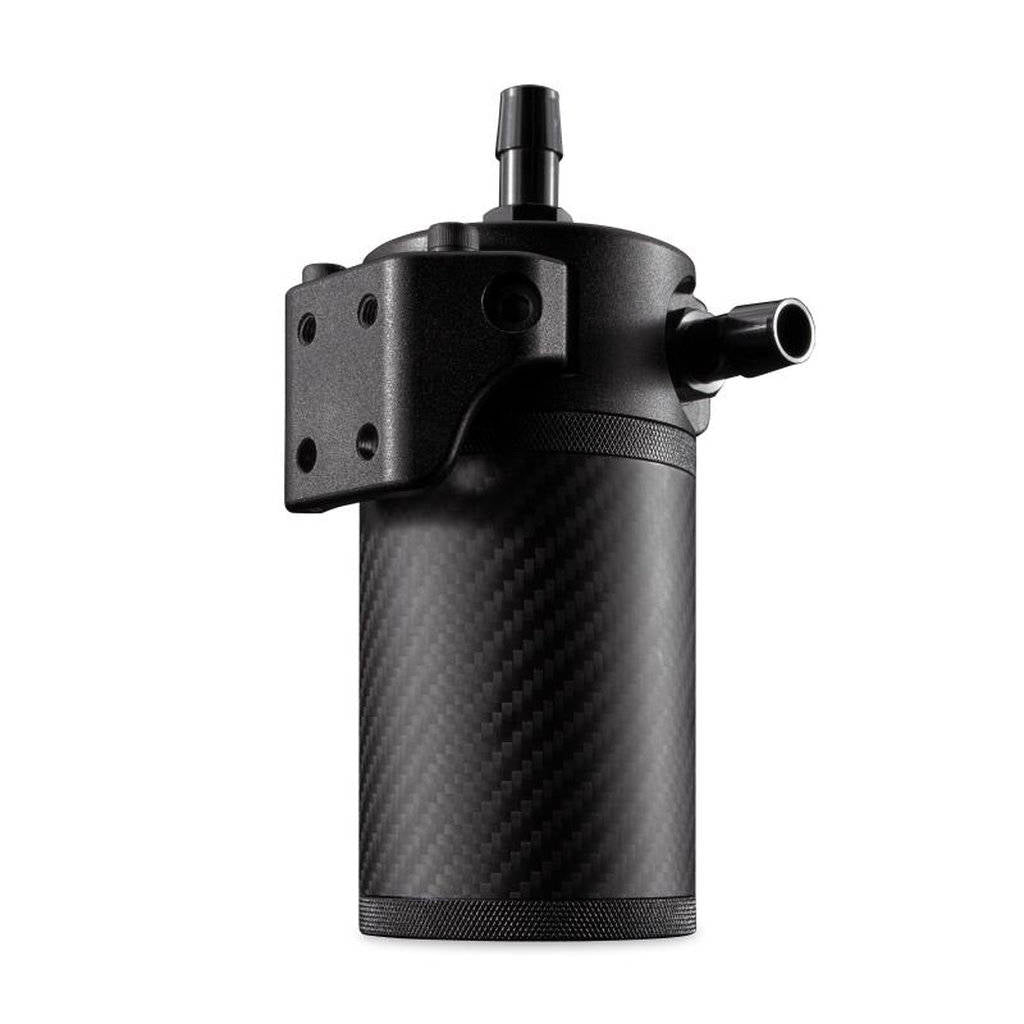

The Mishimoto carbon fiber catch can is designed with a 7.4 fluid ounce capacity and features a body constructed from 3K carbon fiber. This reduces weight while enhancing the appearance of the engine bay. The catch can includes a uniquely designed baffled insert to efficiently separate oil and blow-by contaminants from the PCV system.

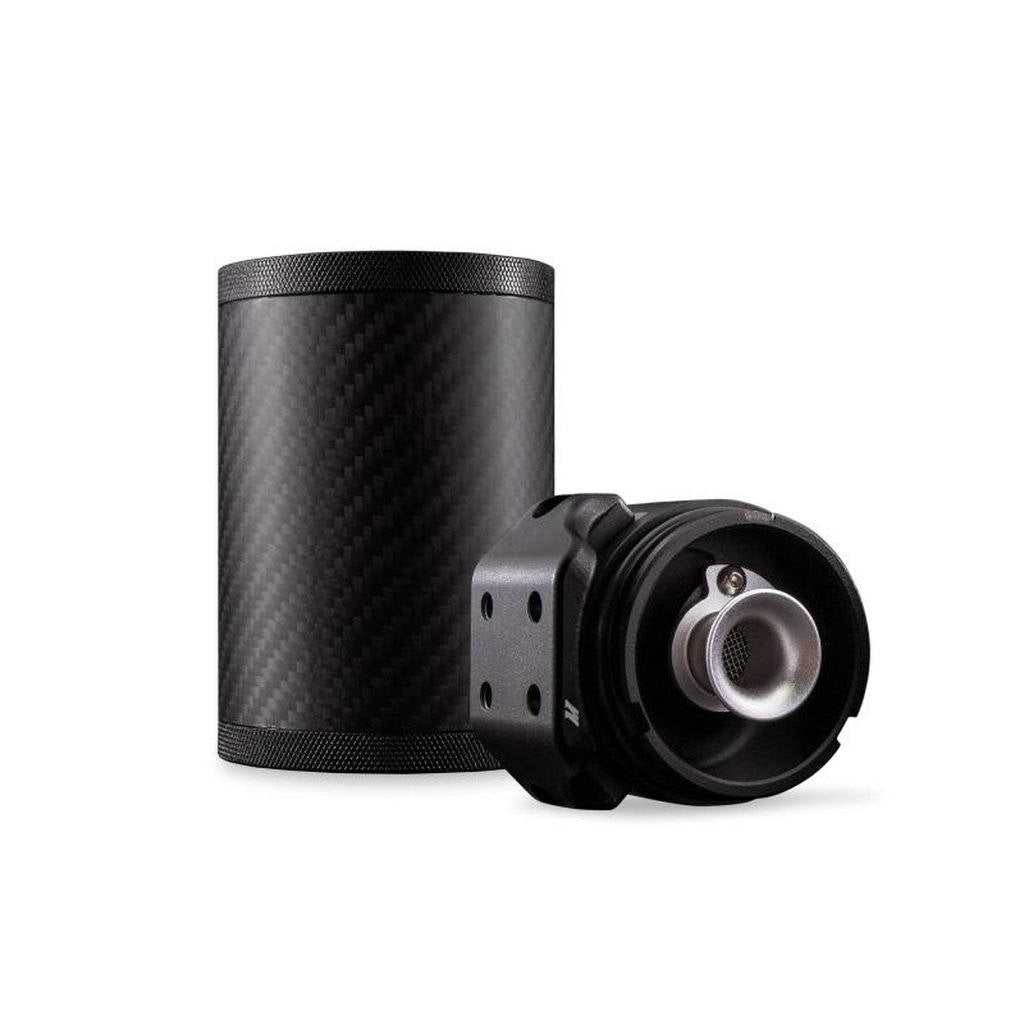

Clean air passes through a high-flow filter material, which helps prevent oil droplets from escaping without restricting airflow, even in cold conditions. The catch can is equipped with a quarter-turn lid for easy fluid level checks and servicing. Both the carbon fiber catch can and filter are fully serviceable.

Recommendation: After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

• 7.4 fluid ounce capacity for increased volume
• 3K carbon fiber body for reduced weight and improved aesthetics

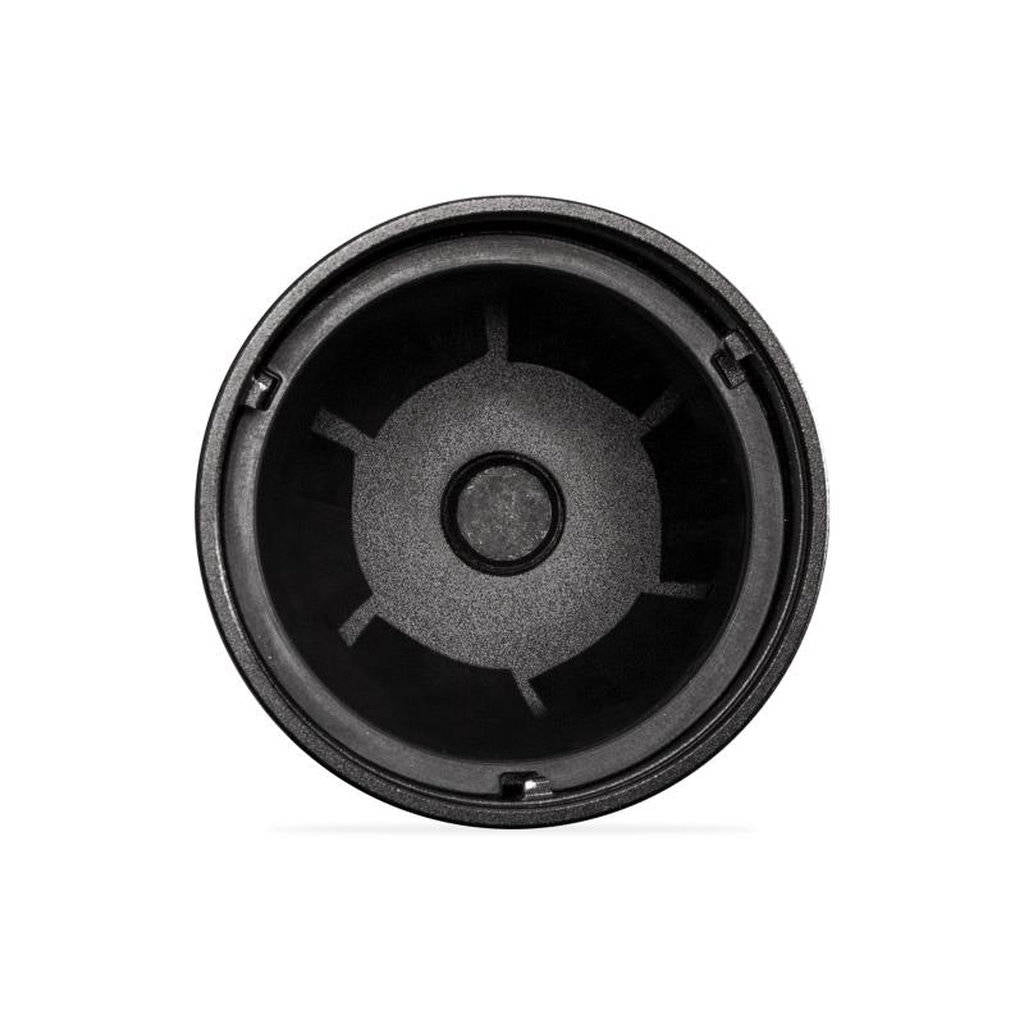

• Uniquely designed baffled insert for effective oil separation

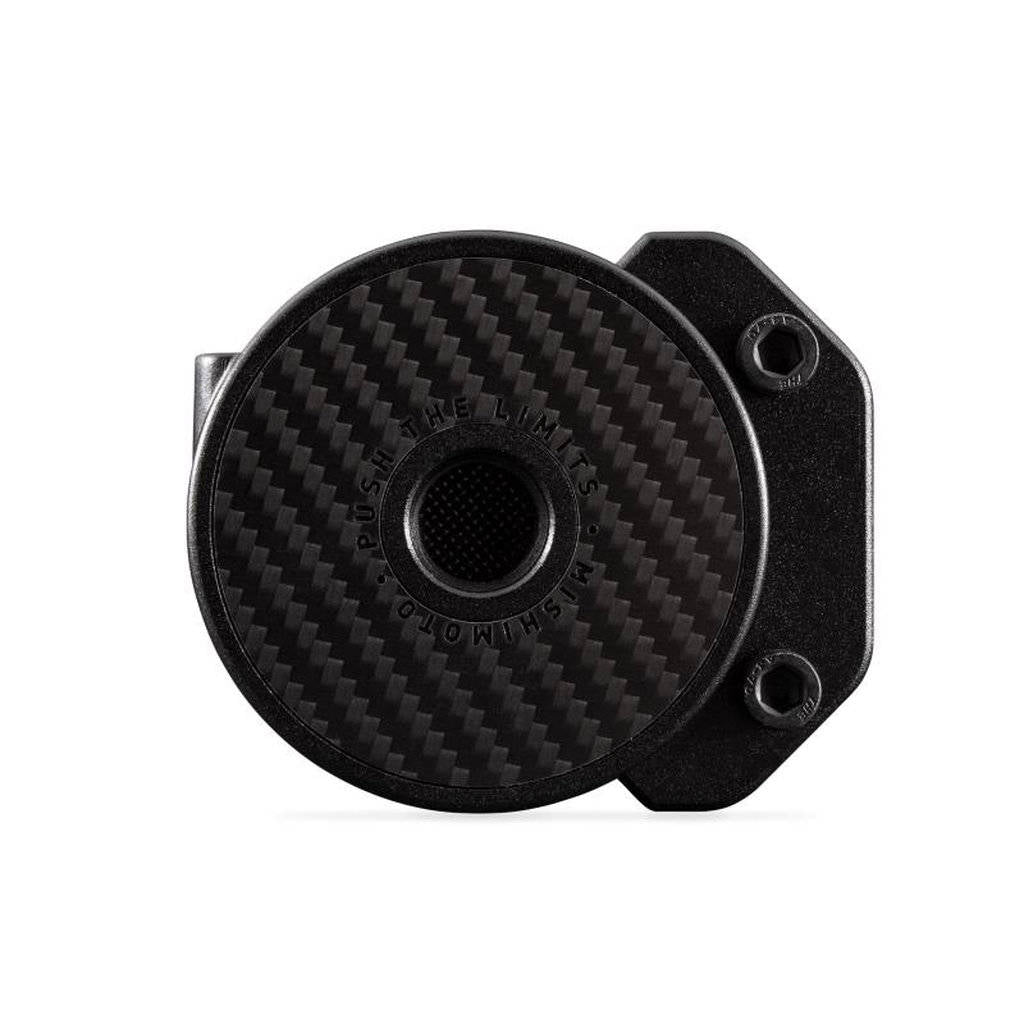

• Quarter-turn lid for easy servicing

Specifications:

• Height (in): 5.47
• Catch Can Diameter (in): 2.8
• Inlet: M16x1.5
• Outlet: M16x1.5
• Safe for pressurized applications up to 32

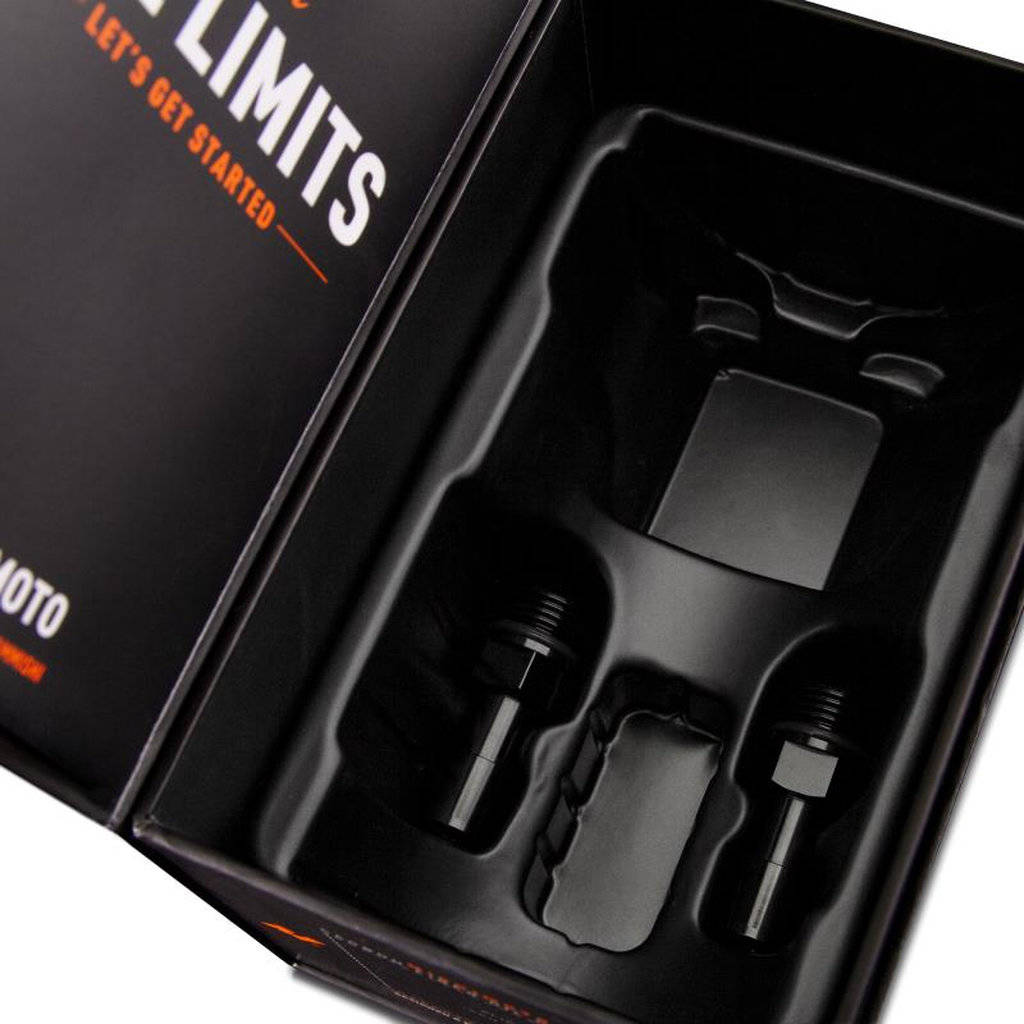

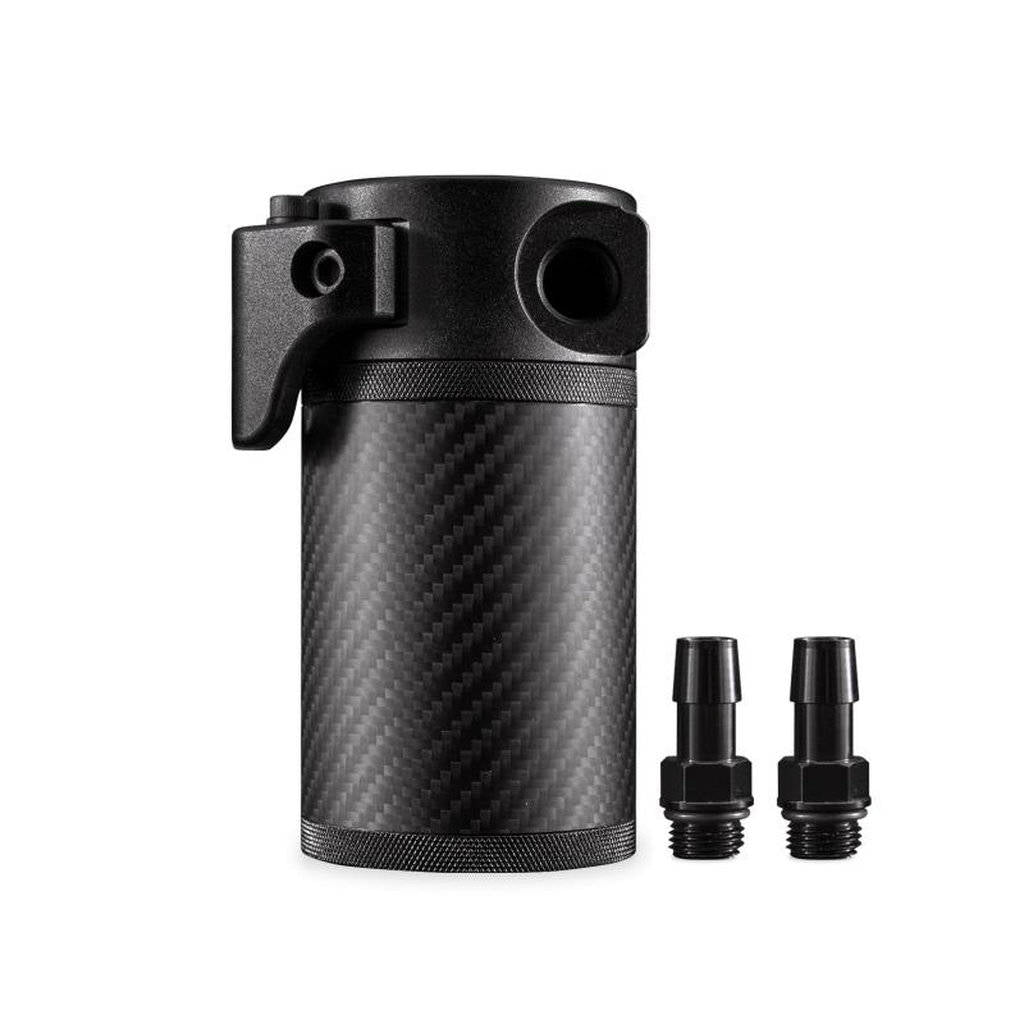

Kit comes with::

• Carbon Fiber Catch Can
• CNC-machined Aluminum Straight Fittings
• Mishimoto Lifetime Warranty
