MISHIMOTO MMBCC-CAM4-16SBE CHEVROLETCamaro 2.0T Baffled Oil Catch Can System, 2016+

Description MISHIMOTO MMBCC-CAM4-16SBE CHEVROLETCamaro 2.0T Baffled Oil Catch Can System, 2016+

This kit combines both the PCV and CCV Baffled Oil Catch Can Kits into one system for the 2016-2023 Camaro 2.0T. It is designed to protect the LTG engine from oil blow-by, helping to keep the intake, charge pipes, and turbocharger compressor free of oil. The system uses a patent-pending solution to extract blow-by from the hidden PCV valve inside the valve cover, maintaining proper octane levels and reducing the risk of detonation.

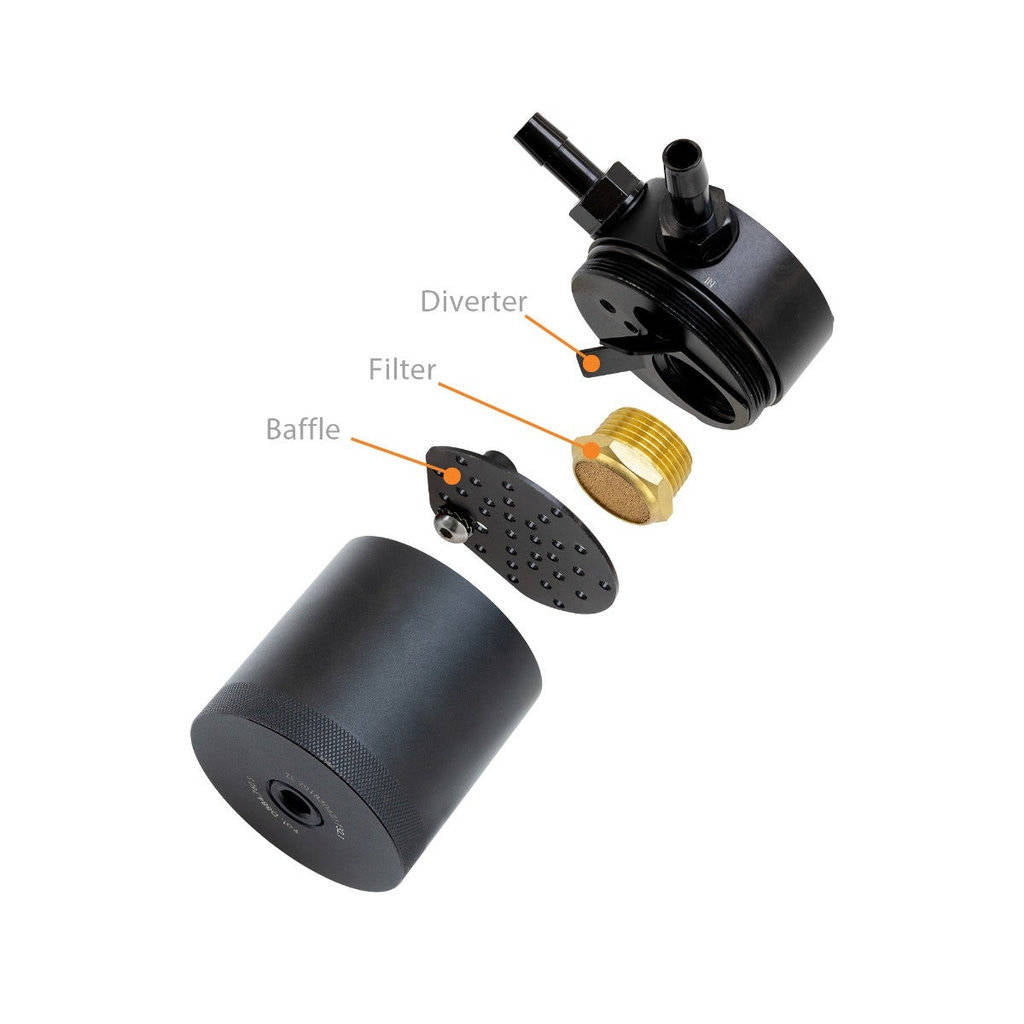

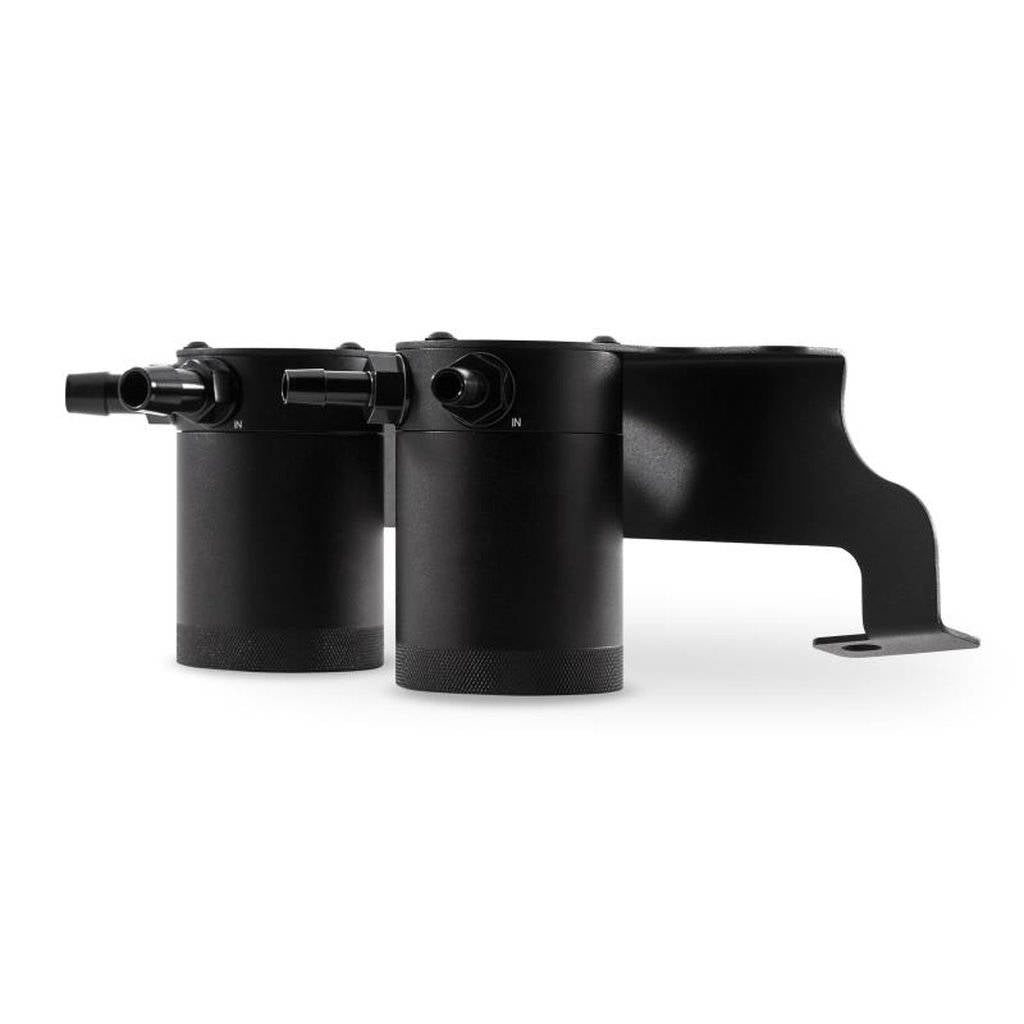

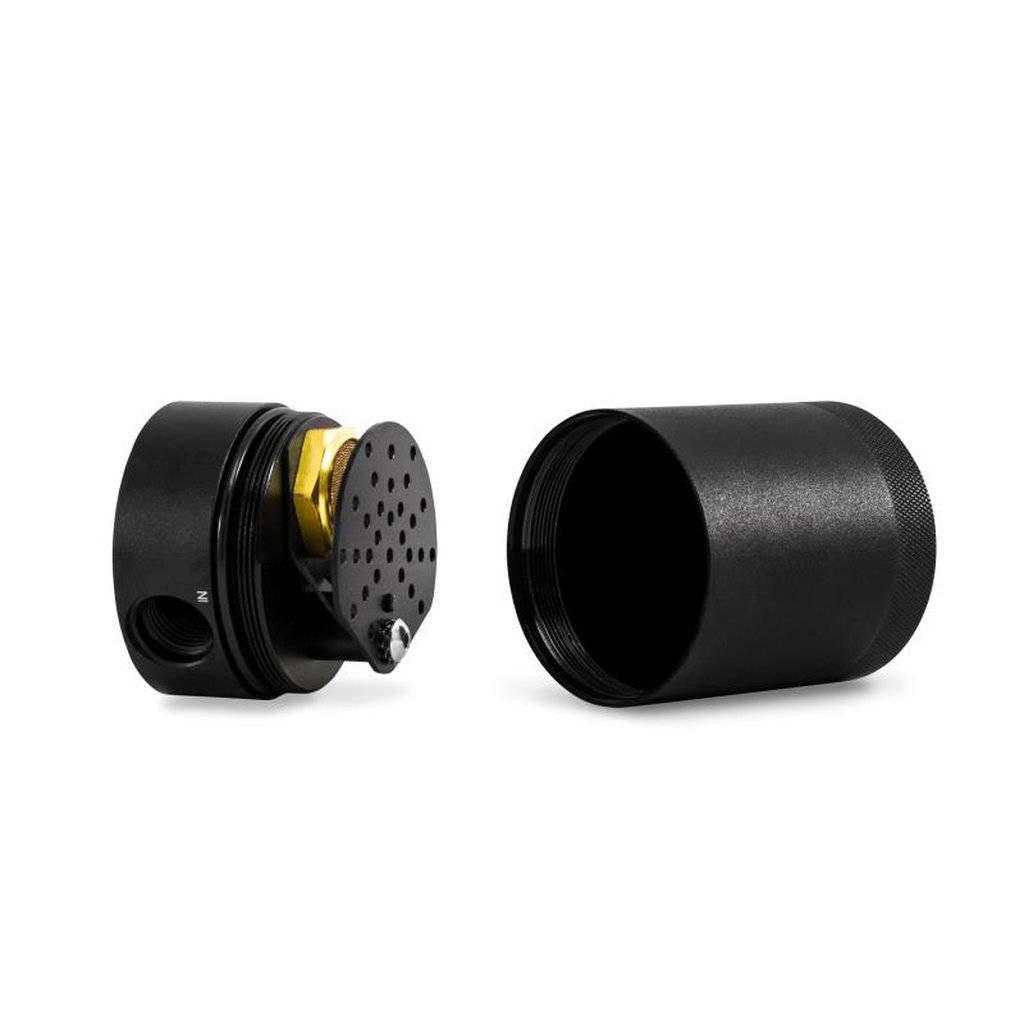

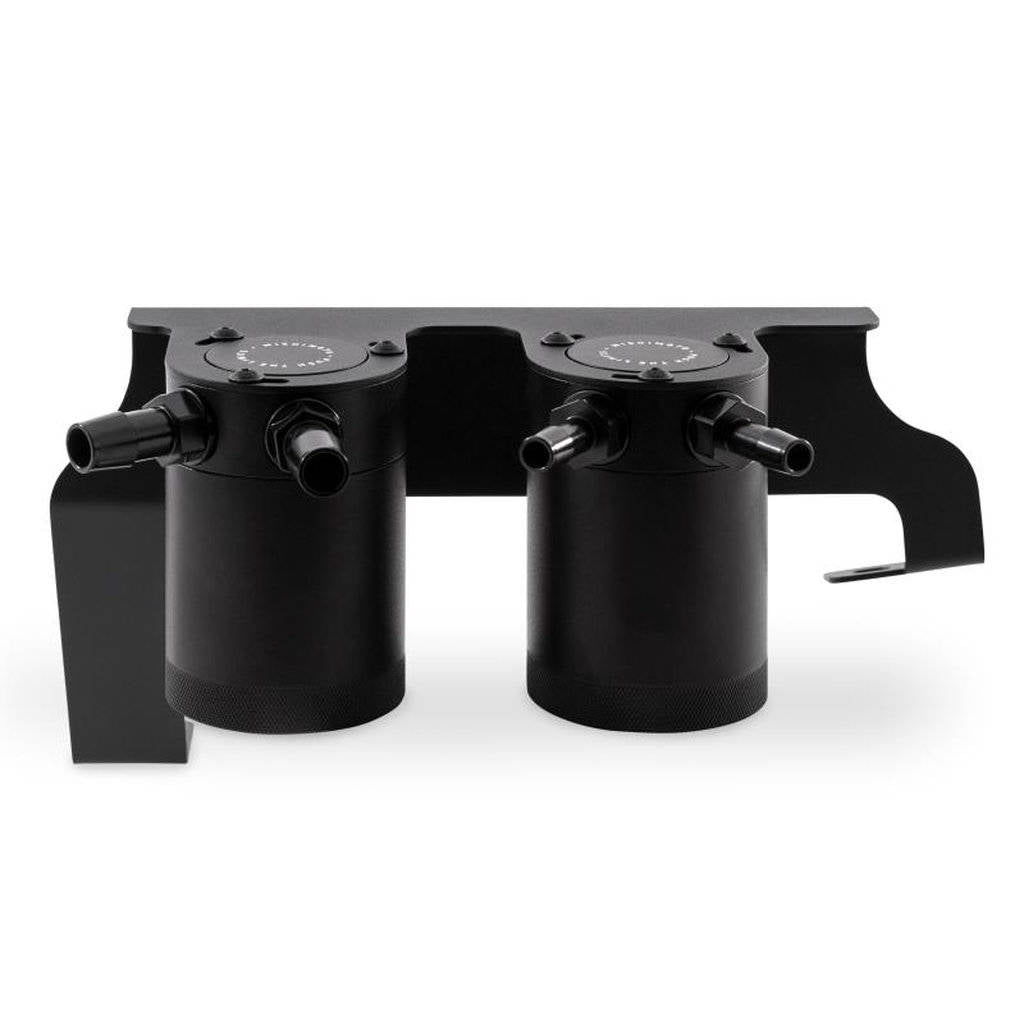

The kit features two 50-micron bronze filter-equipped catch cans installed in line with both the PCV and CCV systems. Application-specific mounts and hoses provide a direct fit with no modifications required. The dual billet 6061 aluminum catch cans mount securely under the hood and can be installed in under an hour. All mounting and installation hardware is included, and the system is covered by the Mishimoto Lifetime Warranty.

Mishimoto catch cans are not heated, allowing all blow-by, including low-octane oil vapors and contaminated fuel vapors, to condense in the can. Unlike most air-oil-separator systems that drain blow-by back into the oil pan, these catch cans trap blow-by and keep it out of the engine permanently.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

Recommendation: After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

• Combines PCV and CCV Baffled Oil Catch Can Kits in one system
• Direct-fit application with no modifications required
• Includes two 50-micron bronze filter-equipped catch cans
• Traps blow-by and keeps it out of the engine permanently

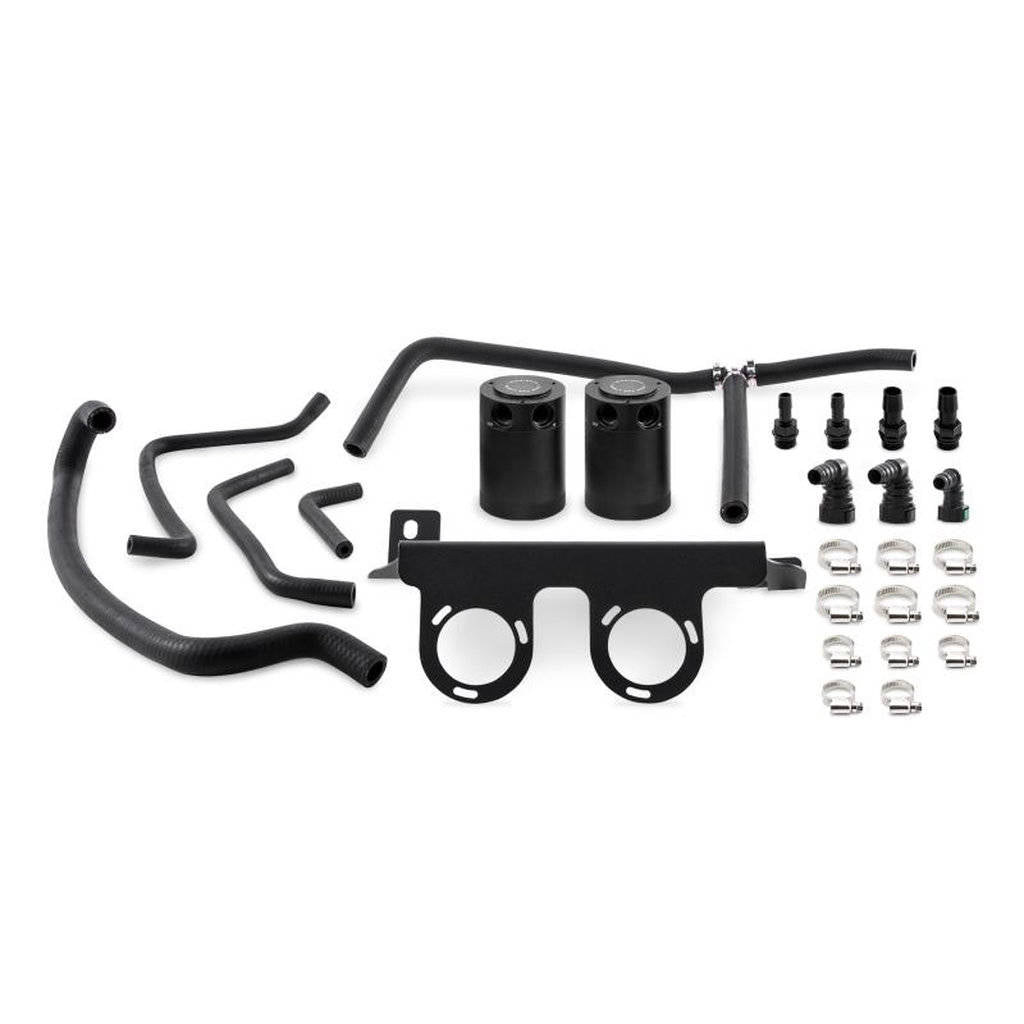

Kit comes with::

• (2) Compact Baffled Oil Catch Cans
• (2) Application-Specific Brackets

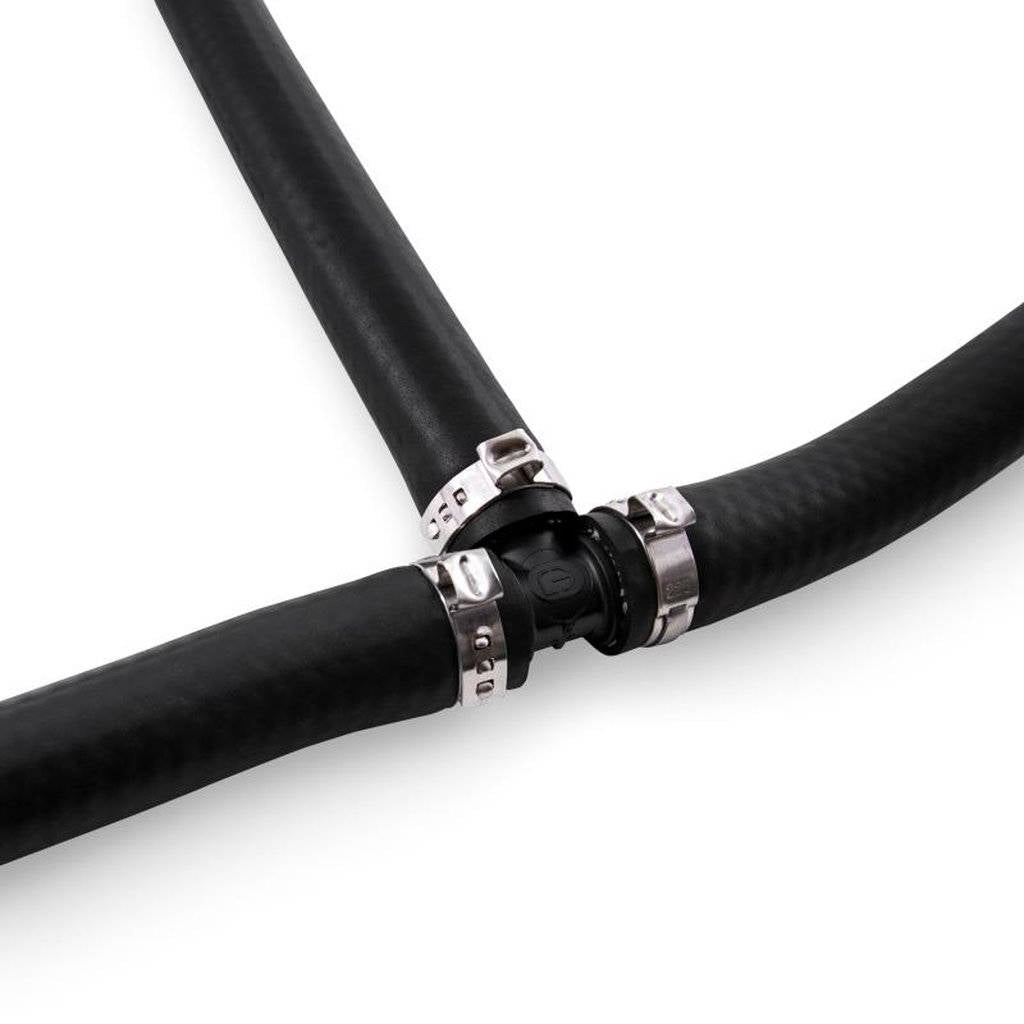

• (5) Direct-Fit Hoses
• (3) Pre-Installed Factory Quick-Disconnect Fittings
• (2) 1/2-in Aluminum Barbed Fittings
• (2) 3/8-in Aluminum Barbed Fittings

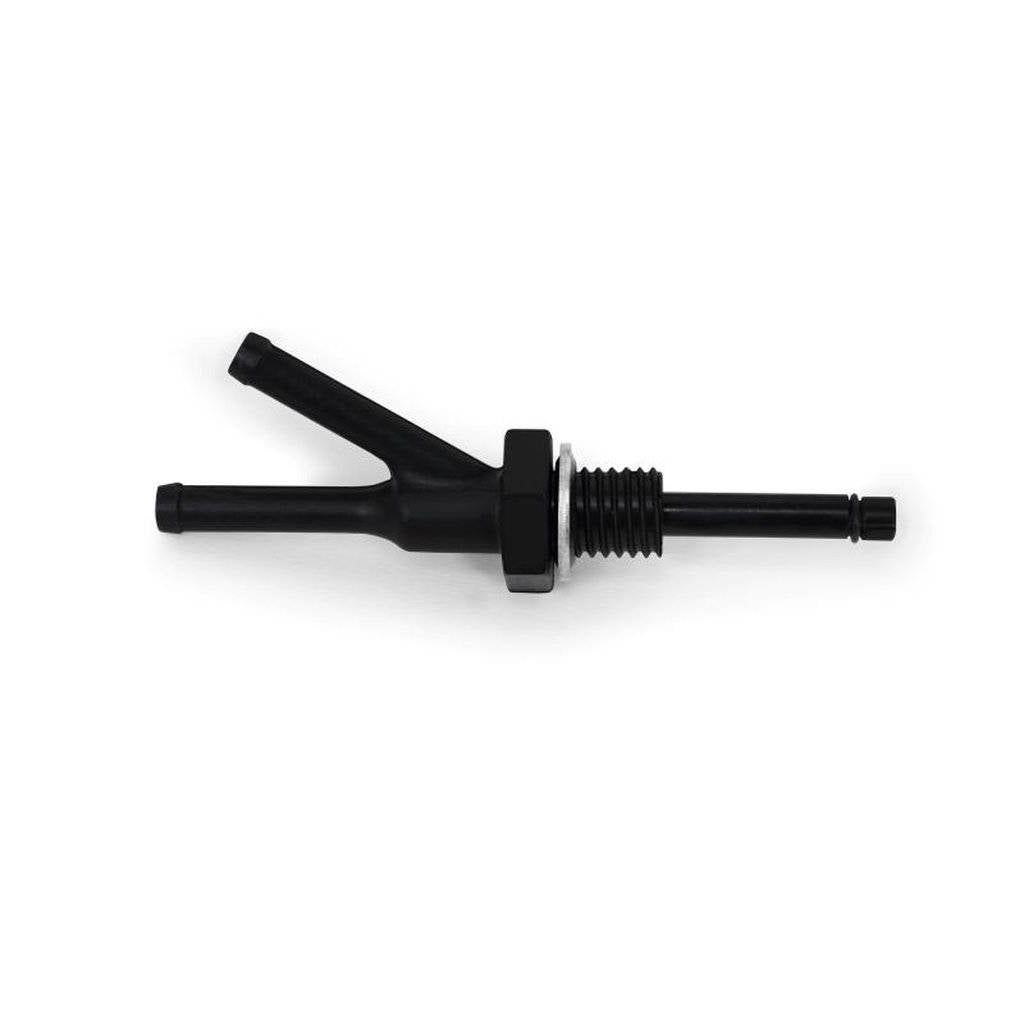

• (1) Patent Pending PCV Adapter (supplied with 2 extra O-rings)
• (1) Plastic Barbed Straight Fitting
• (11) Worm Gear Hose Clamps
• Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2016-2023 Chevrolet Camaro 2.0T L4 2.0L (Engine Code: LTG; Chassis Code: Alpha)
