MISHIMOTO MMB-F2D-003 FORD 6.7L Powerstroke EssenTIALs Bundle, 2011-2016

Description MISHIMOTO MMB-F2D-003 FORD 6.7L Powerstroke EssenTIALs Bundle, 2011-2016

This Mishimoto Essentials Bundle for the 2011-2016 Ford 6.7L Powerstroke is designed to address coolant leaks and improve cooling performance. The kit includes components to help keep the engine running cool and withstand the demands of a powerful work truck.

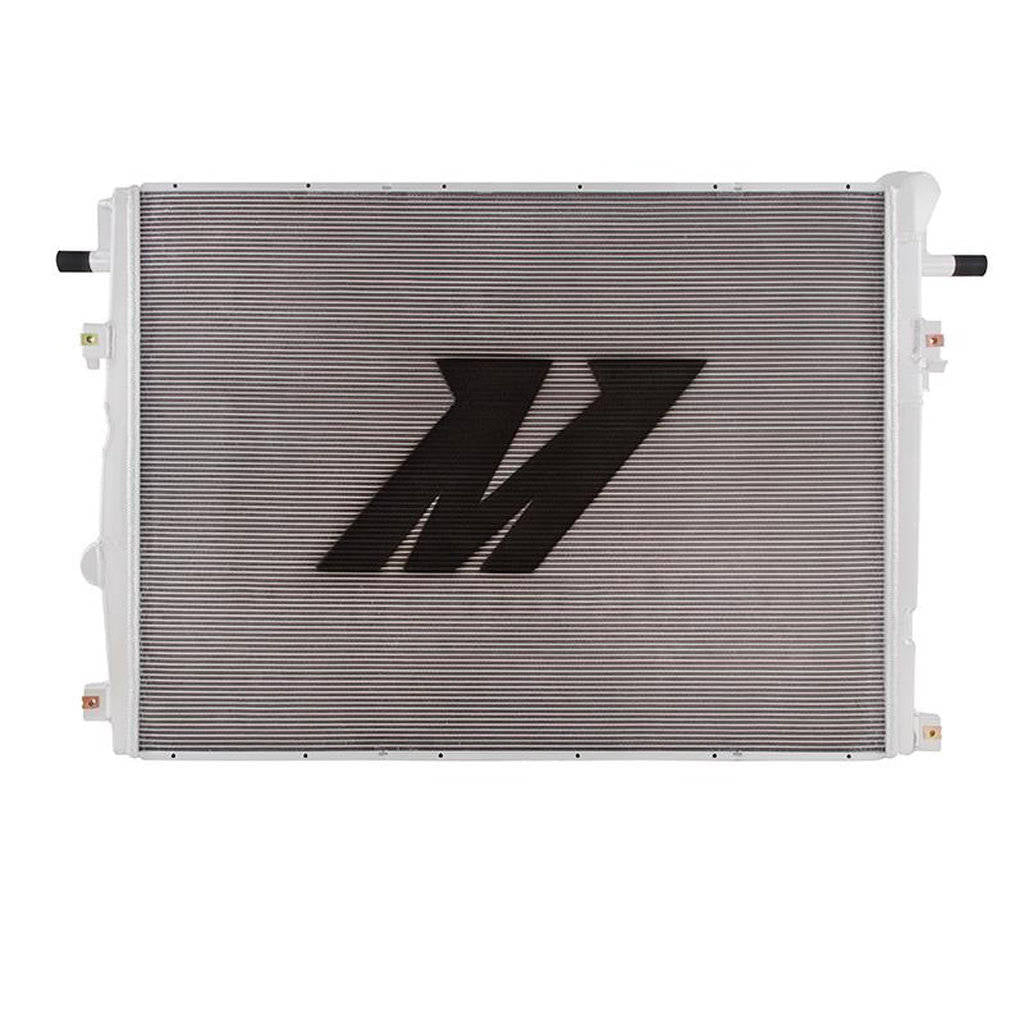

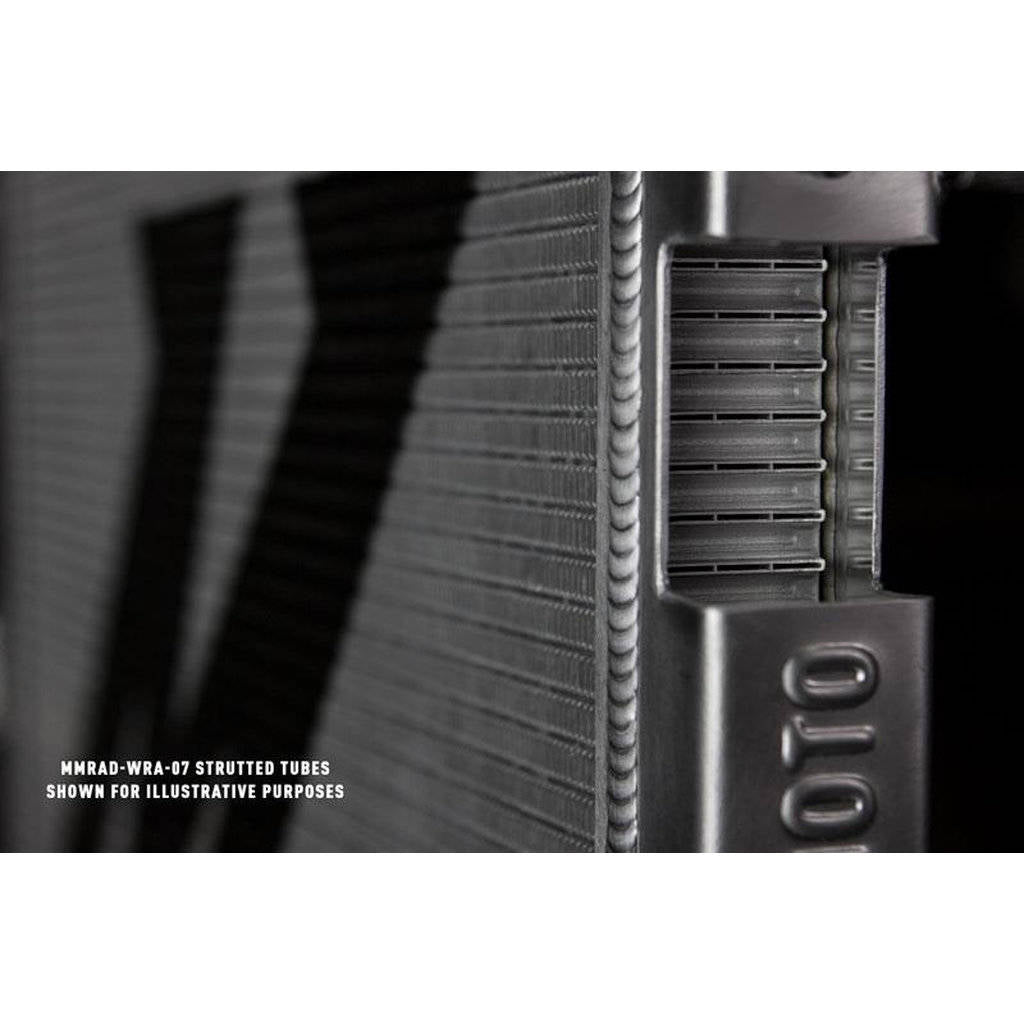

The Mishimoto all-aluminum 6.7L primary and secondary radiators are constructed from high-quality, aircraft-grade aluminum with 100% brazed aluminum cores. TIG-welded aluminum end tanks provide superior durability and longevity. The primary radiator offers a 37% increase in coolant capacity and a 20% greater surface area compared to the stock radiator. Extruded tubes with internal struts increase strength and pressure tolerance.

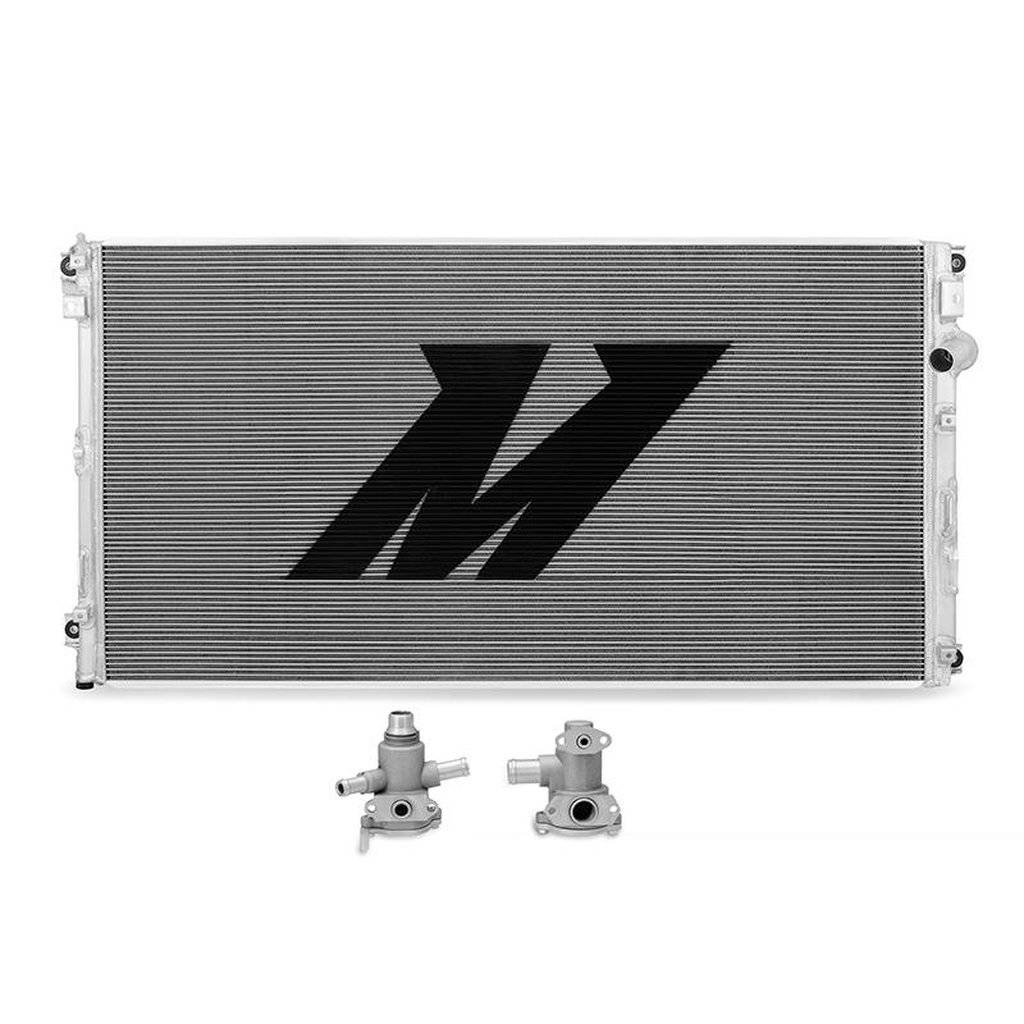

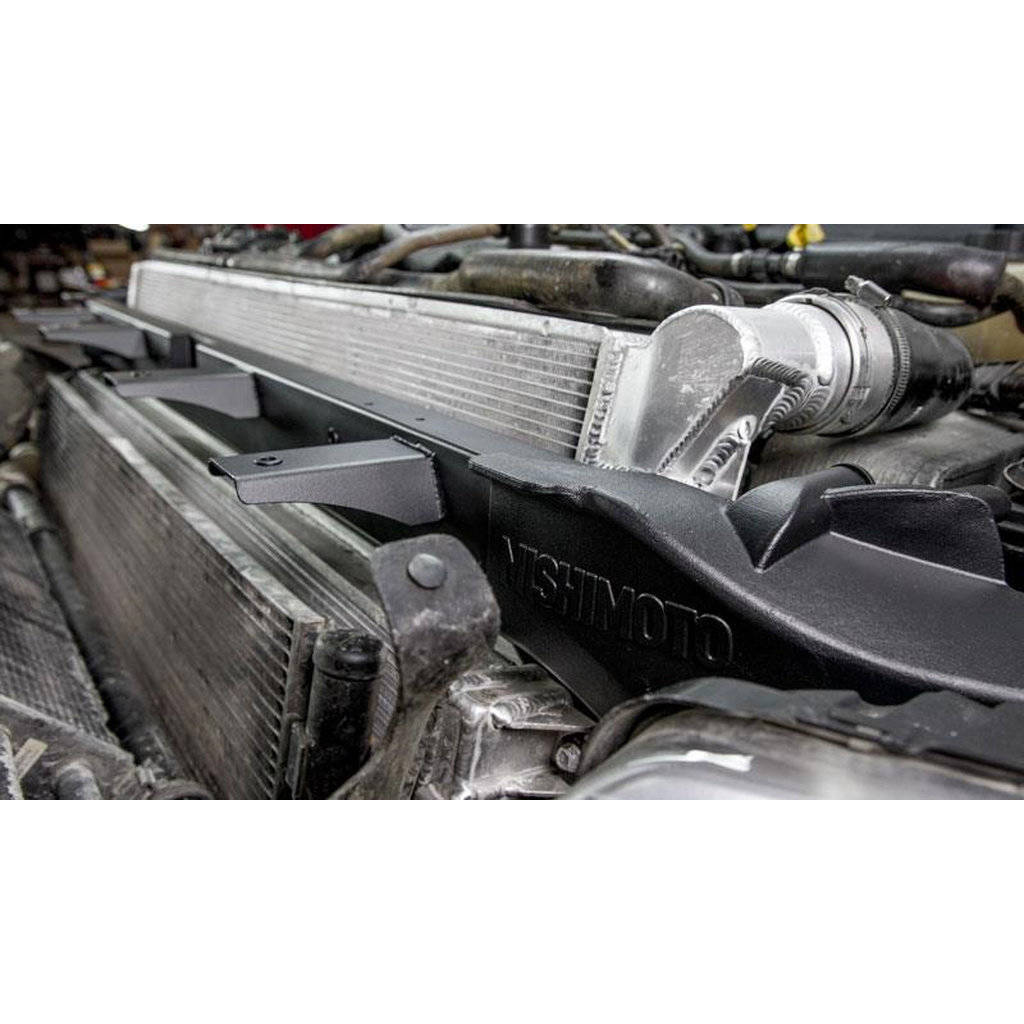

The secondary radiator features a 19% thicker core to reduce coolant temperatures by up to 7°F, which can allow the charge air cooler to run up to 6°F cooler. Both thermostat housings are included for a straightforward installation. The upper support bar, made from heavy-duty steel with cast-steel anchor points, minimizes front-end flex and improves truck rigidity. All components are backed by the Mishimoto Lifetime Warranty.

• All-aluminum primary and secondary radiators with TIG-welded end tanks
• Primary radiator increases coolant capacity by 37% and surface area by 20%
• Secondary radiator features a 19% thicker core for reduced coolant temperatures
• Heavy-duty steel upper support bar with cast-steel anchor points

Specifications:

• Drain Plug Thread Size: M12 x 1.5
• Coolant Capacity: 11.61

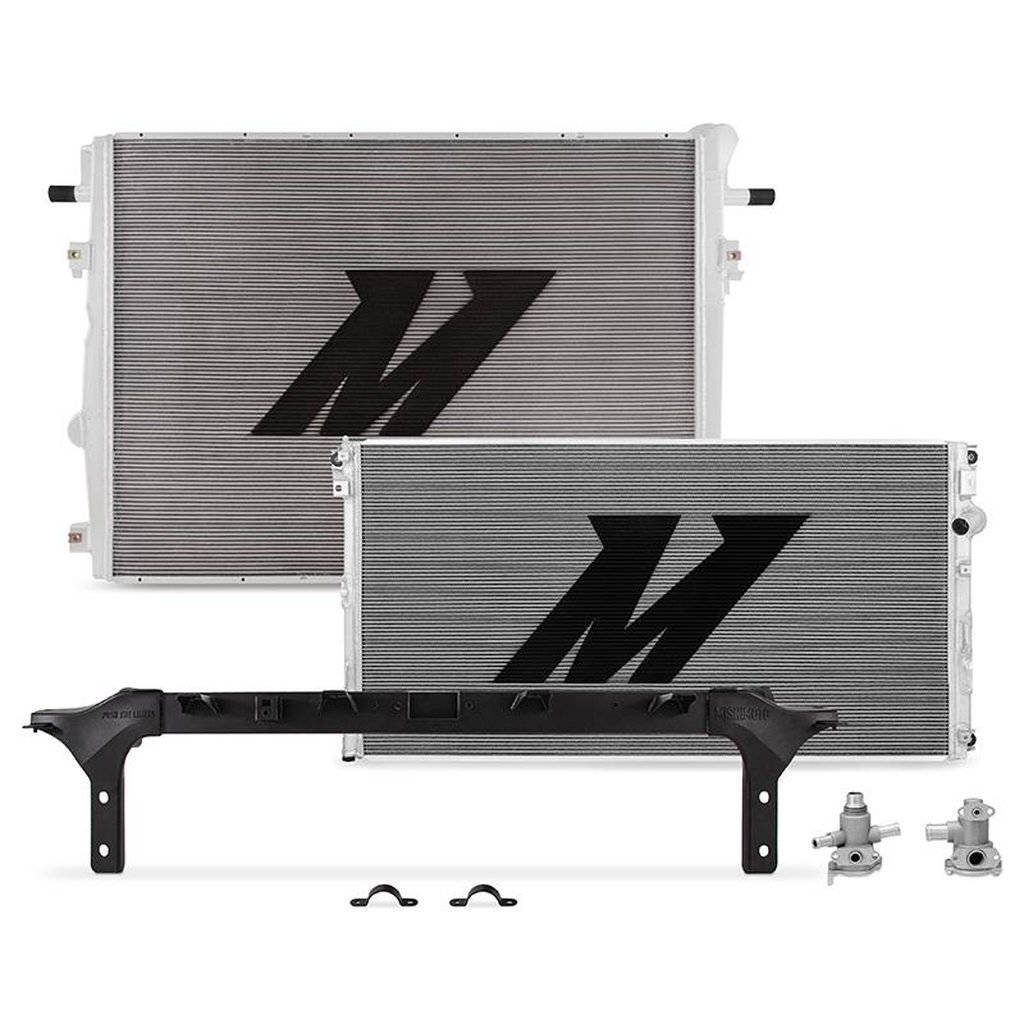

Kit comes with::

• Mishimoto 6.7L Primary Radiator
• Mishimoto 6.7L Secondary Radiator

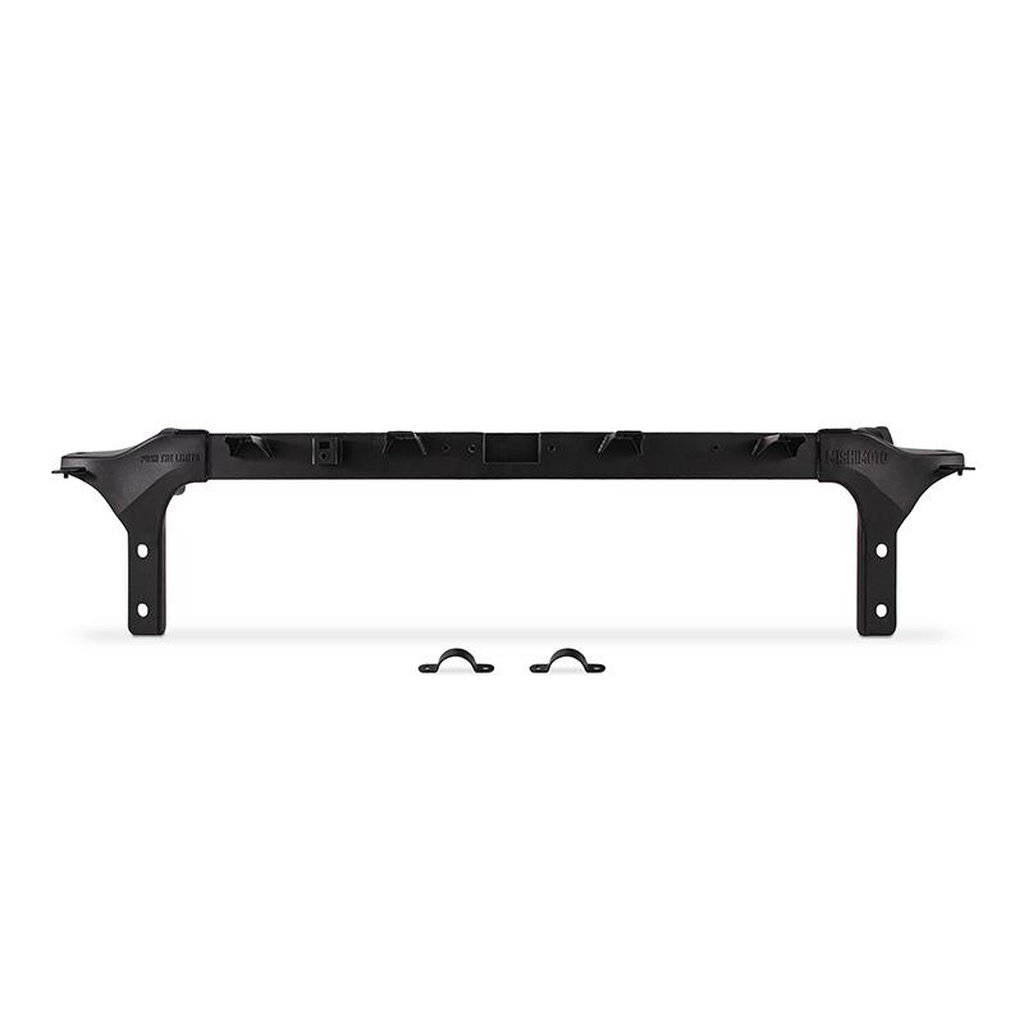

• Mishimoto Support Bar
• (2) Upper Support Bar Mounting Brackets
• (2) Cast Thermostat Housings
• (2) Magnetic Drain Plugs with Dowty Oil Seal
• (4) Rubber Bushings & Metal Collars
• (3) Hardware Packs
• (4) M6 x 1.0 x 16mm Bolts
• (12) Black Plastic Tree Clips
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2011-2016 Ford F-250 w/ 6.7L Powerstroke
• 2011-2016 Ford F-350 w/ 6.7L Powerstroke
• 2011-2016 Ford F-450 w/ 6.7L Powerstroke
• 2011-2016 Ford F-550 w/ 6.7L Powerstroke
