MHD TUNING MHD FlexFuel Kit MHD Flex Fuel Kit

Description MHD TUNING MHD FlexFuel Kit MHD Flex Fuel Kit

The MHD TUNING MHD FlexFuel Kit is designed to enable FlexFuel functionality on supported MHD tuned vehicles. The system uses a CAN Ethanol Content Analyzer to read information from the E85 sensor, convert it to CAN format, and send it to the engine computer DME.

The FlexFuel function allows the engine computer parameters to adjust on the fly based on ethanol content information from the ECA. Correct tuning for the E85 blend used is required, as an incorrect tune can cause improper engine operation and possible engine damage.

The kit is designed as a plug-and-play installation with connectors and fuel hoses. It does not require wire splicing or soldering. The included hoses are tested at 10 bars of static pressure, equal to 145 Psi.

• Enables FlexFuel functionality on supported MHD tuned cars
• CAN Ethanol Content Analyzer reads data from the E85 sensor
• Converts ethanol content data to CAN format for the DME
• Supports on-the-fly engine parameter adjustment based on ethanol content
• Plug-and-play installation with connectors and fuel hoses
• No wire splicing or soldering required
• Fuel hoses tested at 10 bars of static pressure
• Each unit is tested before shipping

Specifications:

• Analyzer Type: CAN Ethanol Content Analyzer
• Sensor Input: E85 sensor
• Output Format: CAN
• Engine Computer: DME
• Supported Vehicles: F22, F25, F3x, F1x, F4x, F8X with N55 and S55 engines
• Supported Vehicles: F series Gen1 B58B30M0 engine with automatic transmission
• Supported Vehicles: G30 5 Series, G01 X3 Series Gen1 B58 engine with automatic transmission
• Supported Vehicles: G20, Supra MKV, G01 X3 Series, G30 5 Series Gen2 B58 engine with automatic transmission
• Supported Vehicles: X3M, X4M, M3 G80, M4 G82 with S58 engines and automatic transmission
• Manual Vehicle Option: Open Wire with PosiTap option
• Installation Type: Plug-and-play
• Wiring Requirement: No splicing or soldering required
• Hose Pressure Test: 10 bars static pressure / 145 Psi

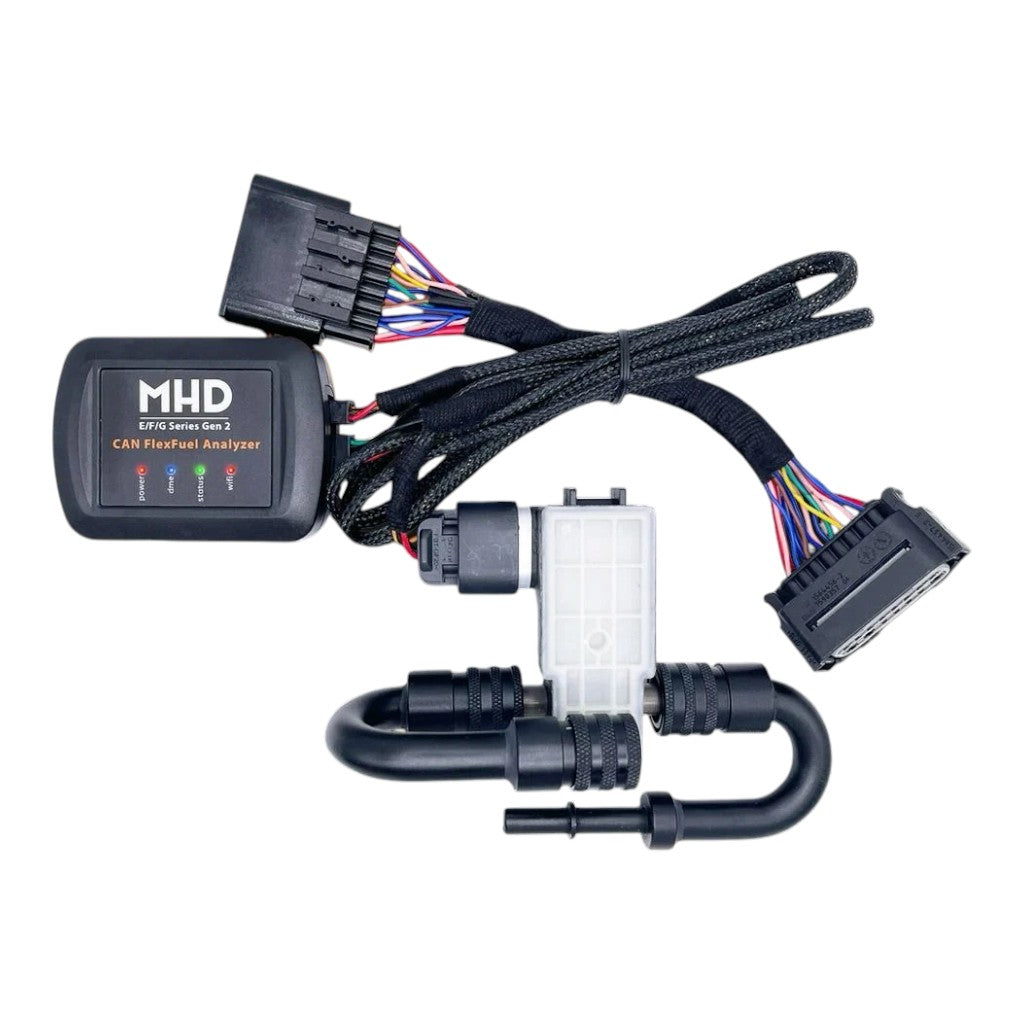

• Included Components: Ethanol Analyzer Module, Ethanol Sensor, Custom P&P Piggy Harness, Custom P&P Hoses from Precision Raceworks, Eye Protecting Glasses, Hand Protecting Gloves
