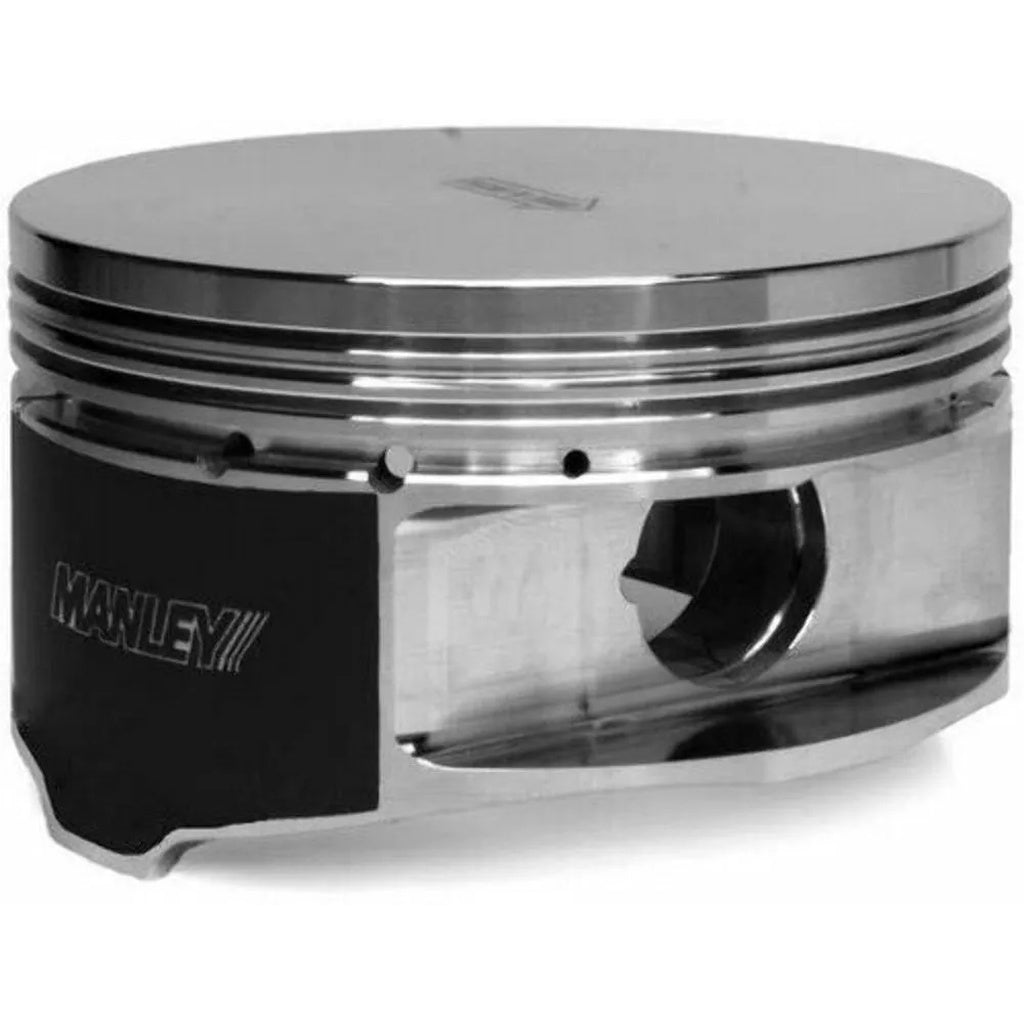

Signature “Platinum Series” pistons feature 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings on select part numbers. Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability.
- 2618 Alloy Forgings: Use domestic 2618 alloy forgings, ensuring superior strength and performance.
- Exacting Ring Lands and Grooves: Adhere to strict standards for piston ring lands and grooves, resulting in enhanced ring seal and more power.
- Cam and Barrel Profiles: Pistons boast cam and barrel (skirt) profiles that generate substantial power while being gentle on cylinder walls.
- Unique Fixturing: Manley’s unique fixturing allows for skirt turning and ring groove machining in a single operation, ensuring ultimate ring groove to skirt squareness.
Specifications
- Bore Diameter: 95.50 MM
- Compression Height: 1.350 IN
- Piston Volume: -1.50 CC
- Weight: 449 GR
- Piston Series: Platinum Series
- Engine Stroke: 88.40 MM
- Bore Oversize: Stock – Grade 2
- Piston Head Type: Flat Top
- Compression Ratio: 9.25:1 CC
