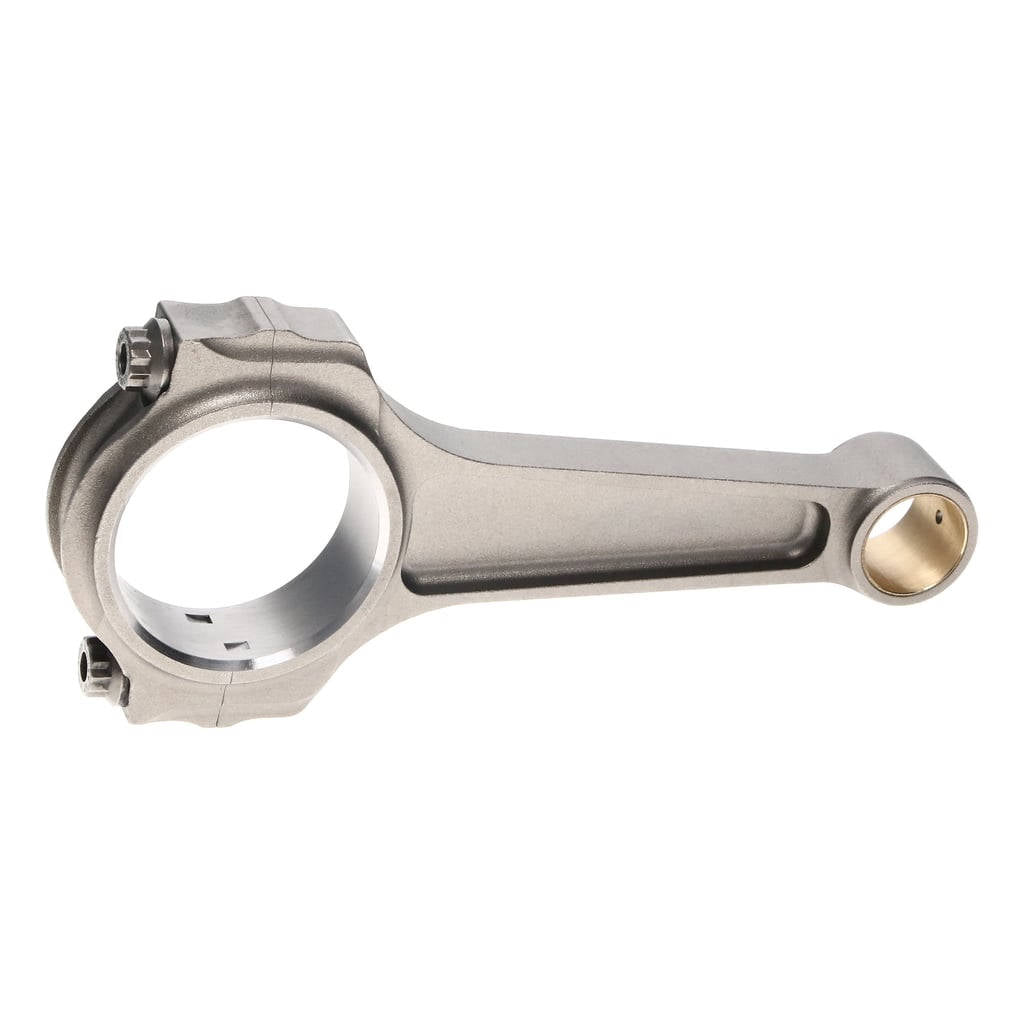

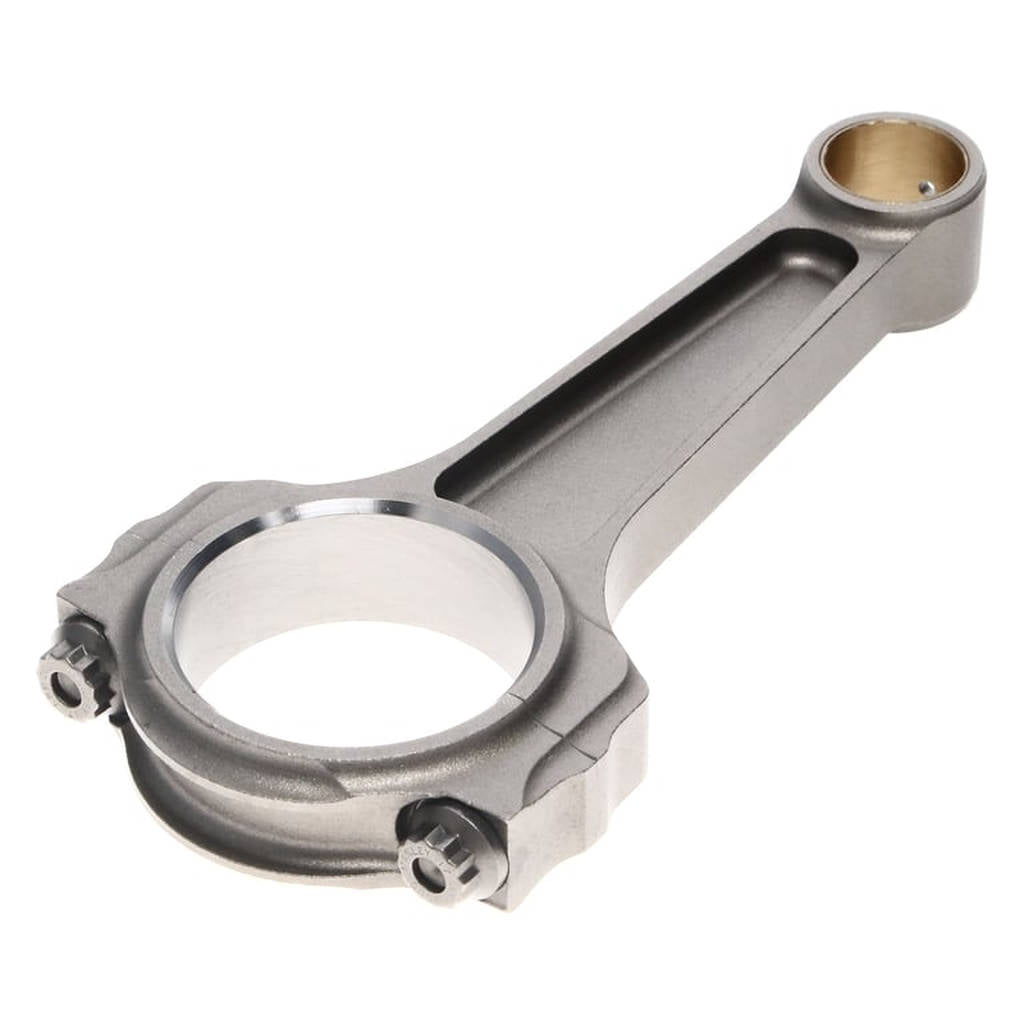

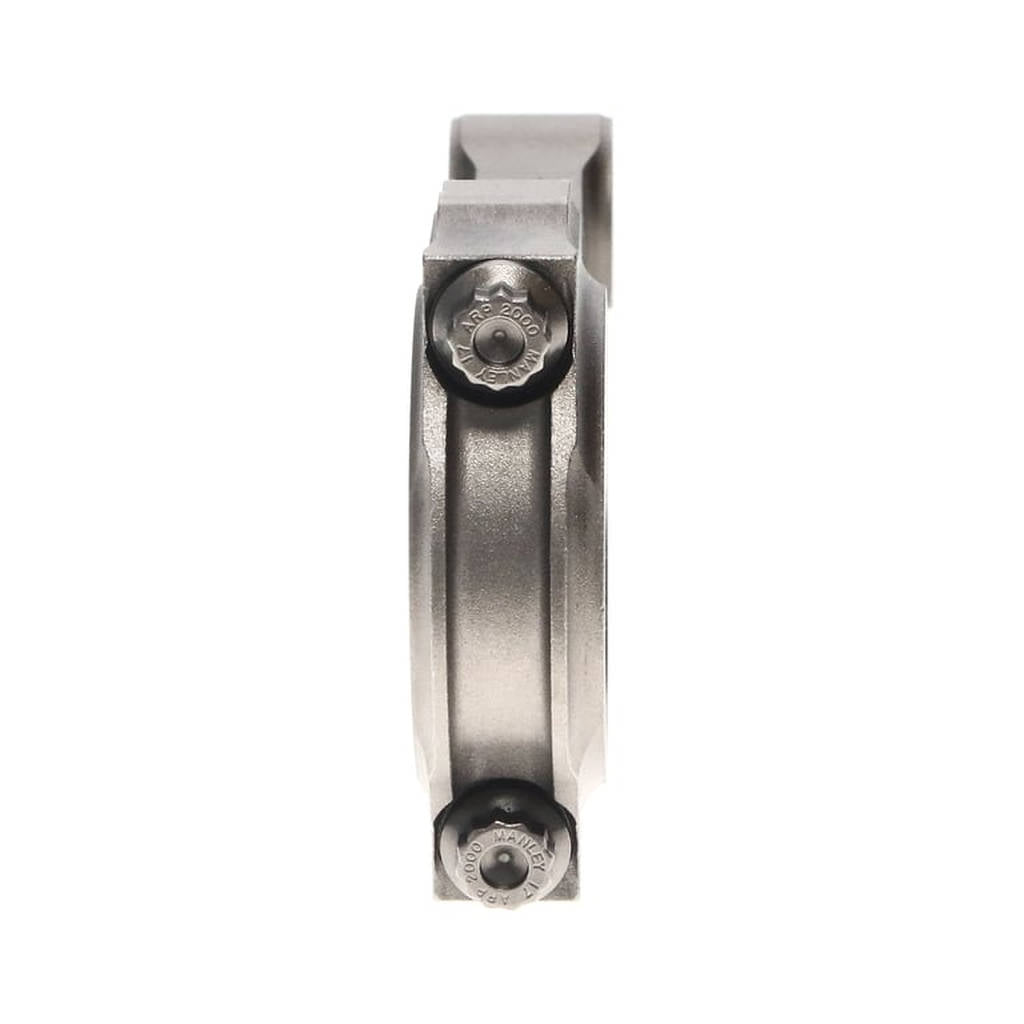

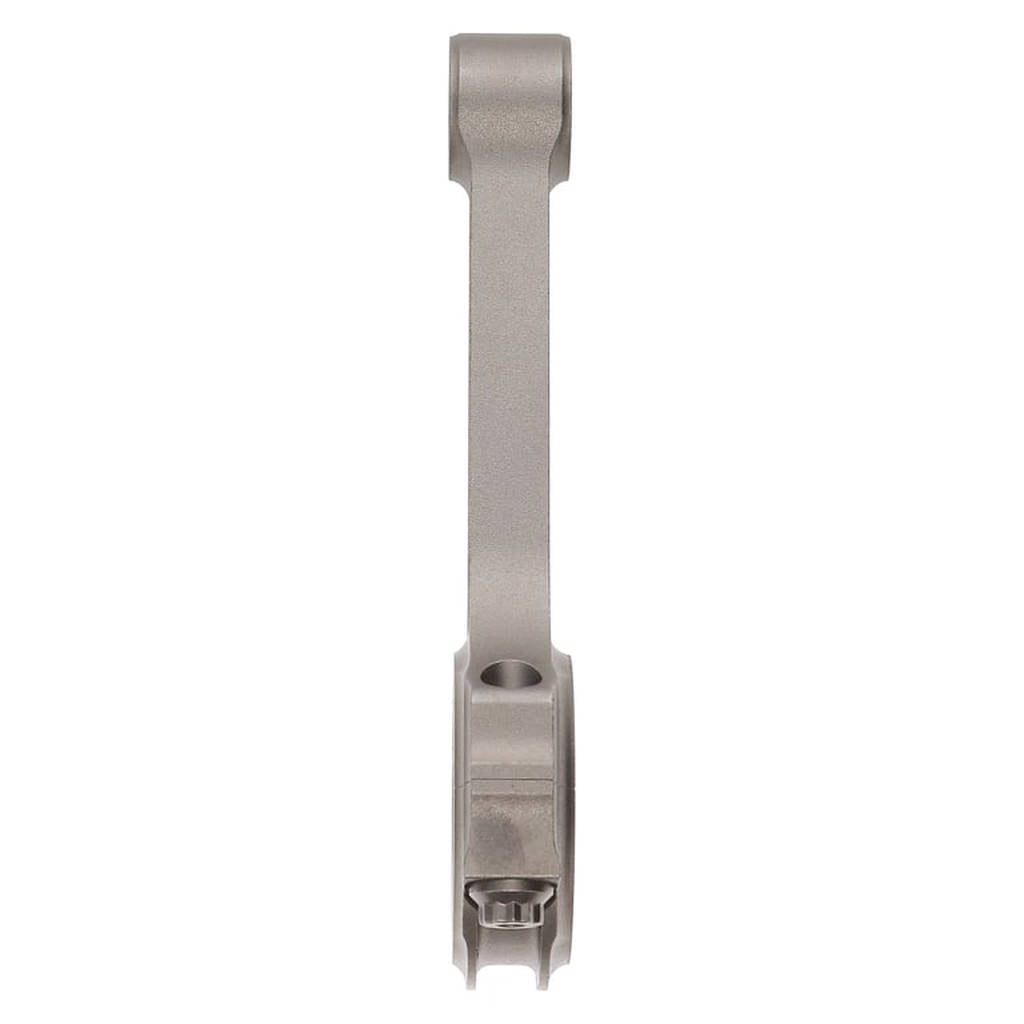

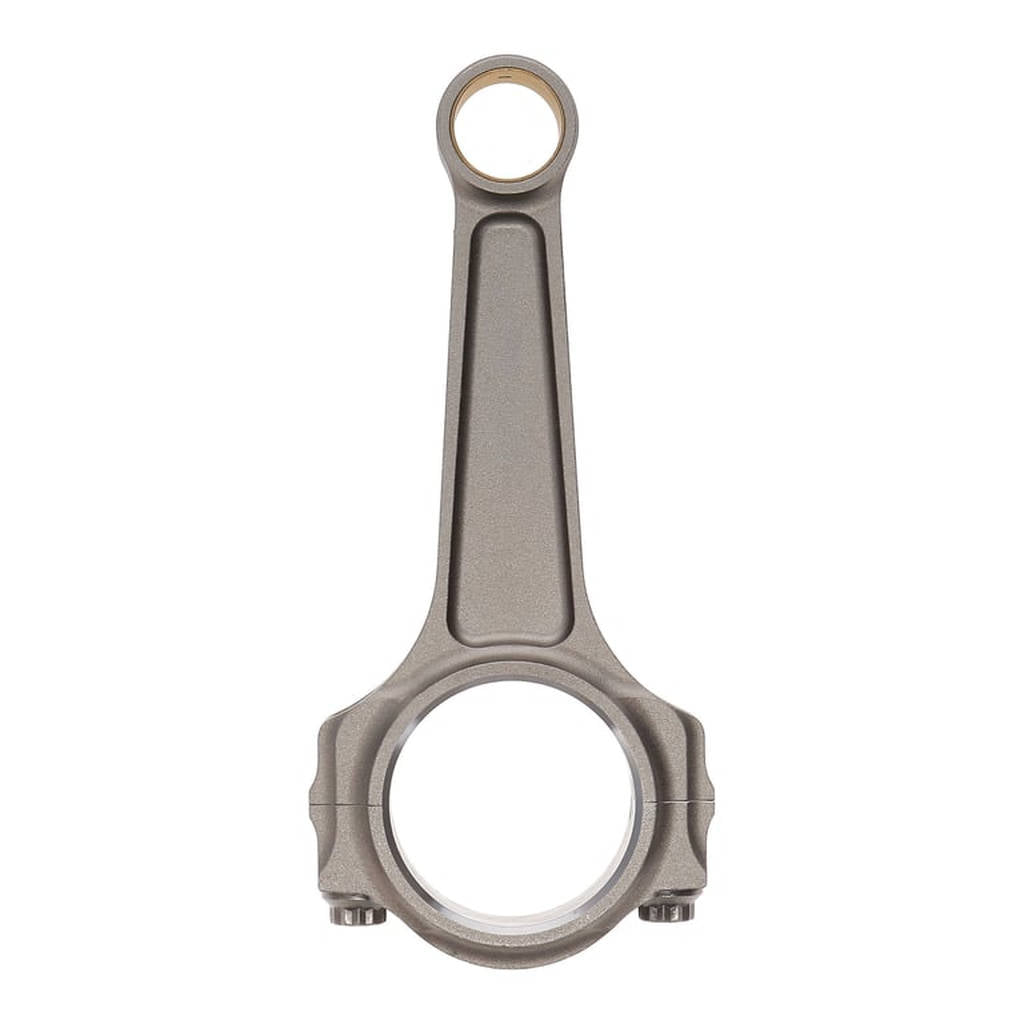

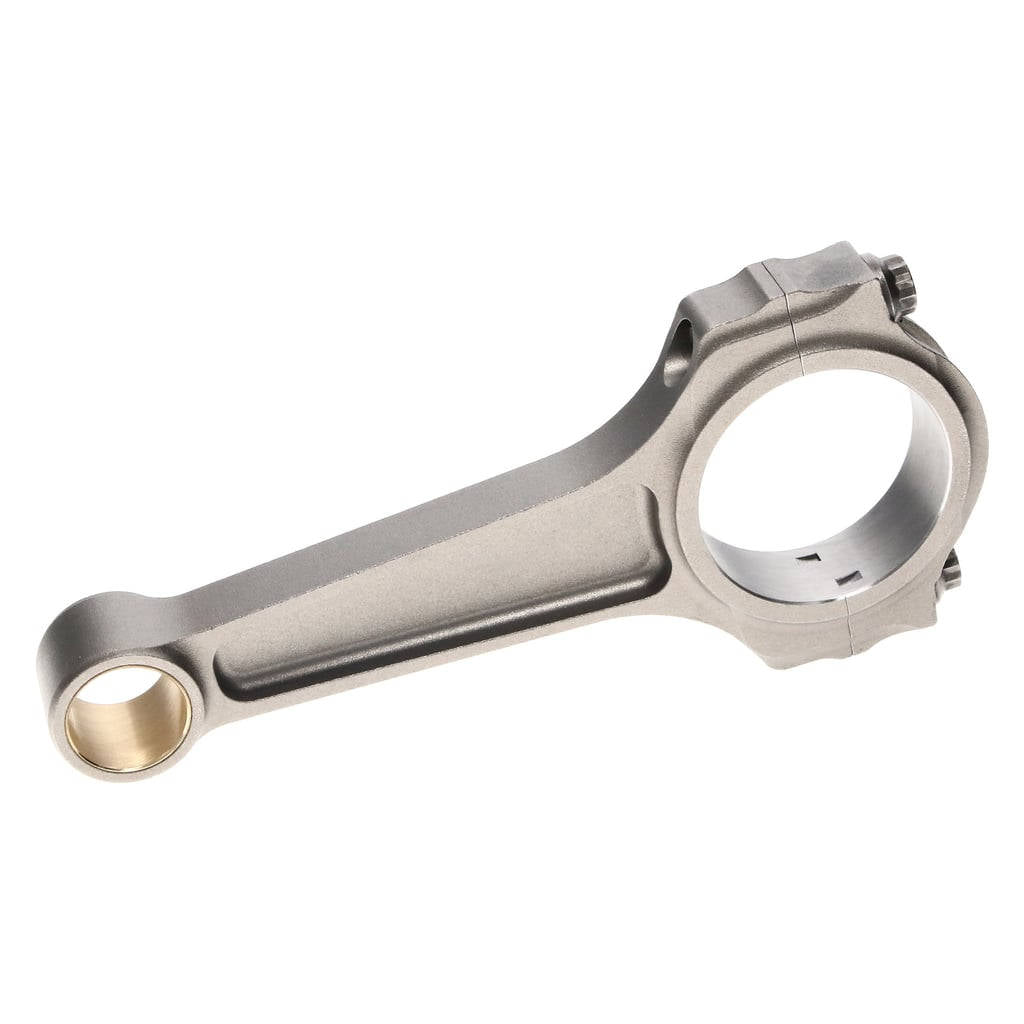

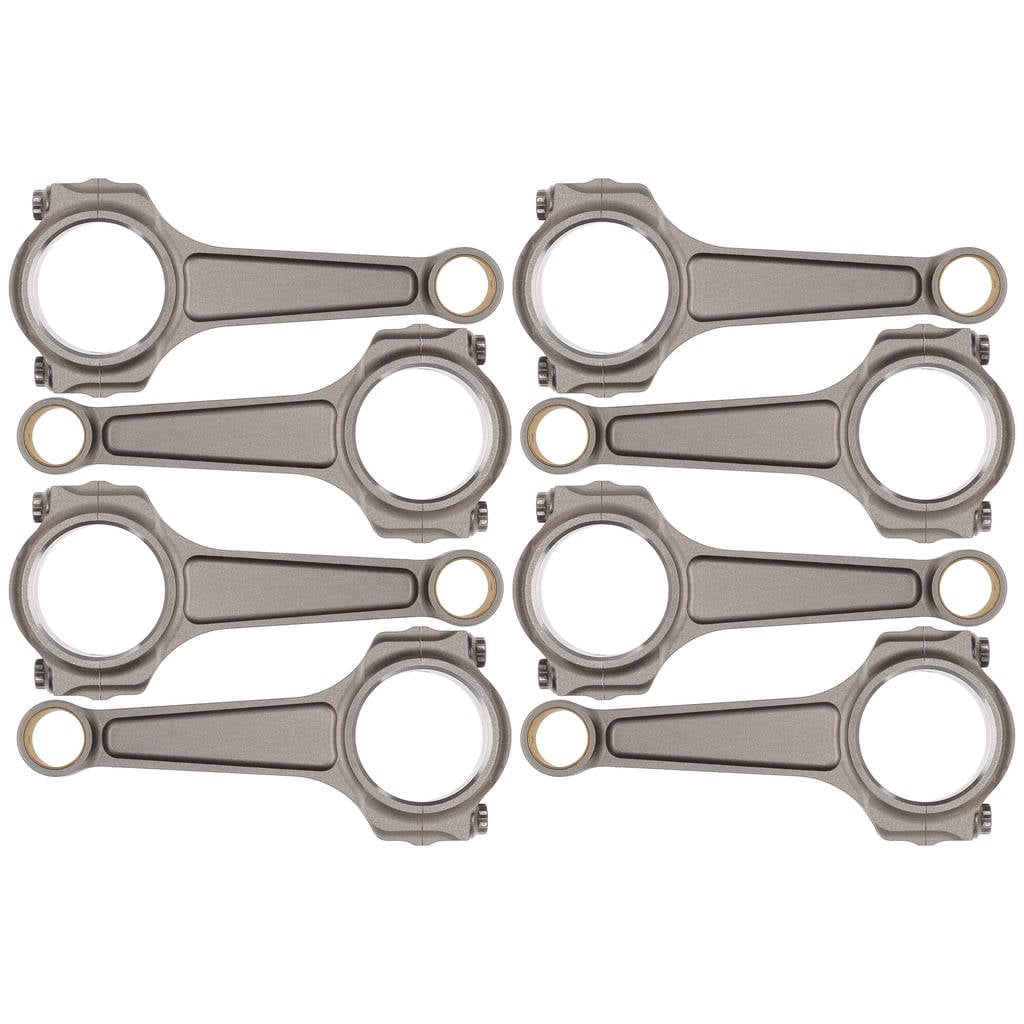

MANLEY 14345C-8 I-Beam Connecting Rod Set Tour Lite Pro Series for CHEVROLET Small Block

Description MANLEY 14345C-8 I-Beam Connecting Rod Set Tour Lite Pro Series for CHEVROLET Small Block

Manley’s Pro Series I-Beam Connecting Rods represent precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are designed for high-performance engine applications.

Pro Series rods are designed for ultimate performance.

• Available in forged 4340 or 300M vacuum-degassed steel alloys.
• Certain Pro Series I-Beam SKUs are NHRA Legal for Stock and Super Stock racing categories.
• Available in Tour Lite, Lightweight, Standard Weight, and Heavy Weight options.

Specifications:

• Product Market: Domestic
• Average Gram Weight: 545 GR
• Big End Bore: 2.008 IN
• Center To Center Length: 6.125 IN
• Emissions Code: 3
• Journal Size: 1.8885 IN
• Length: .425 longer
• Pin End Bore: 0.9281 IN
• Wrist Pin Diameter: 0.927 IN
• Additional Info: 1.8500 IN Journal Size with CB1664 Bearing, 2.015 IN Big End Bore with CB1663 Bearing
• Connecting Rod Series: Pro Series I-Beam
• Connecting Rod Sub-Series: Tour Lite
• Product Type: Engine Connecting Rod Set
• Rod Quantity: 8
• Rod Bolt Material: ARP 2000
• Connecting Rod Type: I-Beam
• Pin End Width: 1.000 IN
• Connecting Rod Material: 4340
