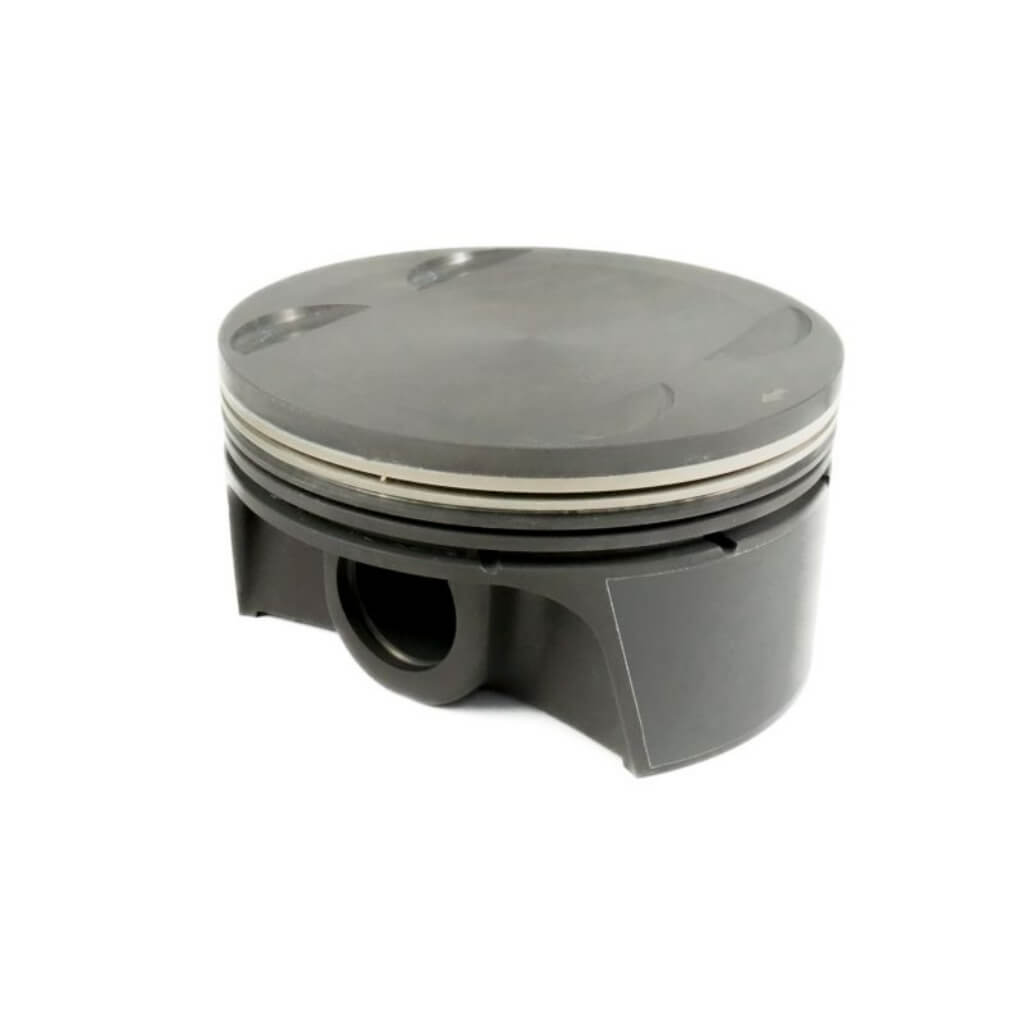

MAHLE 928989386 Pistons Kit TOYOTA 2JZ-GTE (Supra) 3.0 L 86.00mm x 34.0mm CH, 86.0mm Stroke, 142.0mm Rod, 22mm Pin, -14.2cc, 329g, 8.6CR, 2618

Forged Performance Pistons for Toyota 2JZ-GTE Engine

The Mahle PowerPak piston and ring kit is engineered exclusively for the Toyota 2JZ-GTE engine, delivering exceptional durability and performance for turbocharged applications. Each piston features a dished crown with four valve reliefs and a +14.20 cc volume, designed to optimize combustion efficiency in high-output builds. This complete set includes forged aluminum pistons, gas nitrided stainless steel rings, floating wrist pins, and retainers—ideal for demanding street and track use.

• Engineered specifically for Toyota 2JZ-GTE high-performance and forced induction setups
• Forged aluminum construction ensures high strength and resistance to thermal stress
• Includes premium piston rings with gas nitrided and phosphate coated surfaces
• Sold as a complete set of six for full engine replacement

Specifications:

• Bore: 3.385 in. (86.000 mm)
• Stroke: 86.00 mm
• Rod Length: 142.000 mm
• Compression Height: 1.338 in.
• Piston Head Volume: +14.20 cc
• Piston Material: Forged aluminum
• Piston Style: Dish, with four valve reliefs
• Wrist Pin Diameter: 0.866 in.
• Piston Ring Thickness: 1.20 mm x 1.20 mm x 2.80 mm
• Top Ring Material: Stainless steel, gas nitrided
• Second Ring Material: Cast iron, phosphate coated
• Oil Ring Material: Stainless steel, chrome faced
• Oil Ring Tension: Standard
• Quantity: Sold as a set of 6
