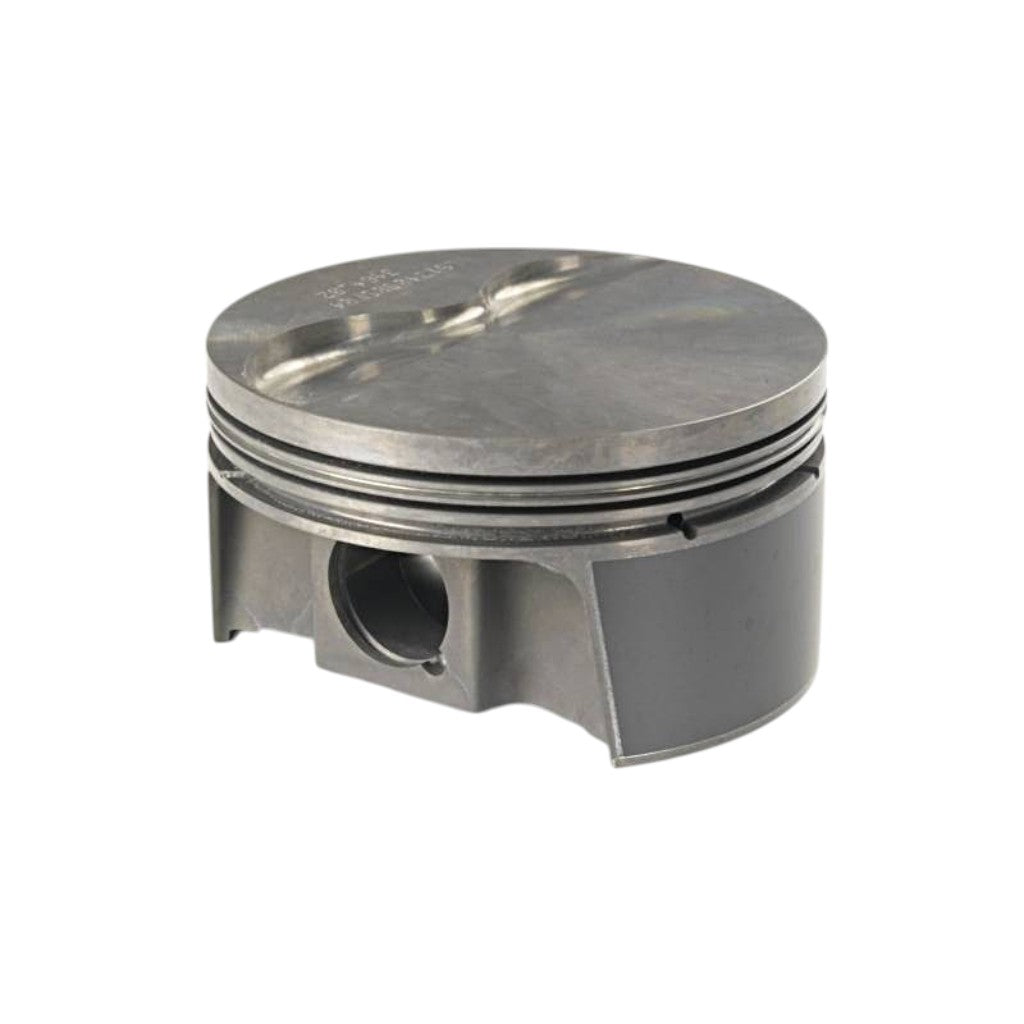

MAHLE 928989305 Pistons Kit TOYOTA 2JZ-GTE (Supra) 3.0L 86.50mm x 34.0mm CH, 86.0mm Stroke,142.0mm Rod, 22mm Pin, -14.2cc, 337g, 8.6CR, 2618 Photo-0

MAHLE 928989305 Pistons Kit TOYOTA 2JZ-GTE (Supra) 3.0L 86.50mm x 34.0mm CH, 86.0mm Stroke,142.0mm Rod, 22mm Pin, -14.2cc, 337g, 8.6CR, 2618

AED 3,713.60

Tax included. Shipping calculated at checkout

MAHLEP/N: 928989305
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 20.11.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

MAHLE 928989305 Pistons Kit TOYOTA 2JZ-GTE (Supra) 3.0L 86.50mm x 34.0mm CH, 86.0mm Stroke,142.0mm Rod, 22mm Pin, -14.2cc, 337g, 8.6CR, 2618

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

MAHLE 928989305 is a forged piston kit engineered for high-performance TOYOTA 2JZ-GTE 3.0L engines. Made from 2618 aluminum alloy with an anodized top ring groove to withstand extreme load conditions.

  • Bore: 86.50 mm
  • Compression Height (CH): 34.0 mm
  • Stroke: 86.0 mm
  • Rod Length: 142.0 mm
  • Dish Volume: -14.2 cc
  • Compression Ratio: 8.6:1 (with 46 cc chamber)
  • Piston Pin: 22 mm, steel, 103 g
  • Piston Weight: 337 g
  • Material: Forged 2618 aluminum
  • Ring Grooves: 1.2 / 1.2 / 2.8 mm

Application: TOYOTA 2JZ-GTE (Supra) 3.0L — ideal for turbocharged and racing builds.
