LINK ECU 101-0165 MAP Sensor 4 bar, Plug and pins Photo-0

LINK ECU 101-0165 MAP Sensor 4 bar, Plug and pins

AED 870.93

Tax included. Shipping calculated at checkout

Link ECUP/N: 101-0165
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

LINK ECU 101-0165 MAP Sensor 4 bar, Plug and pins

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Details

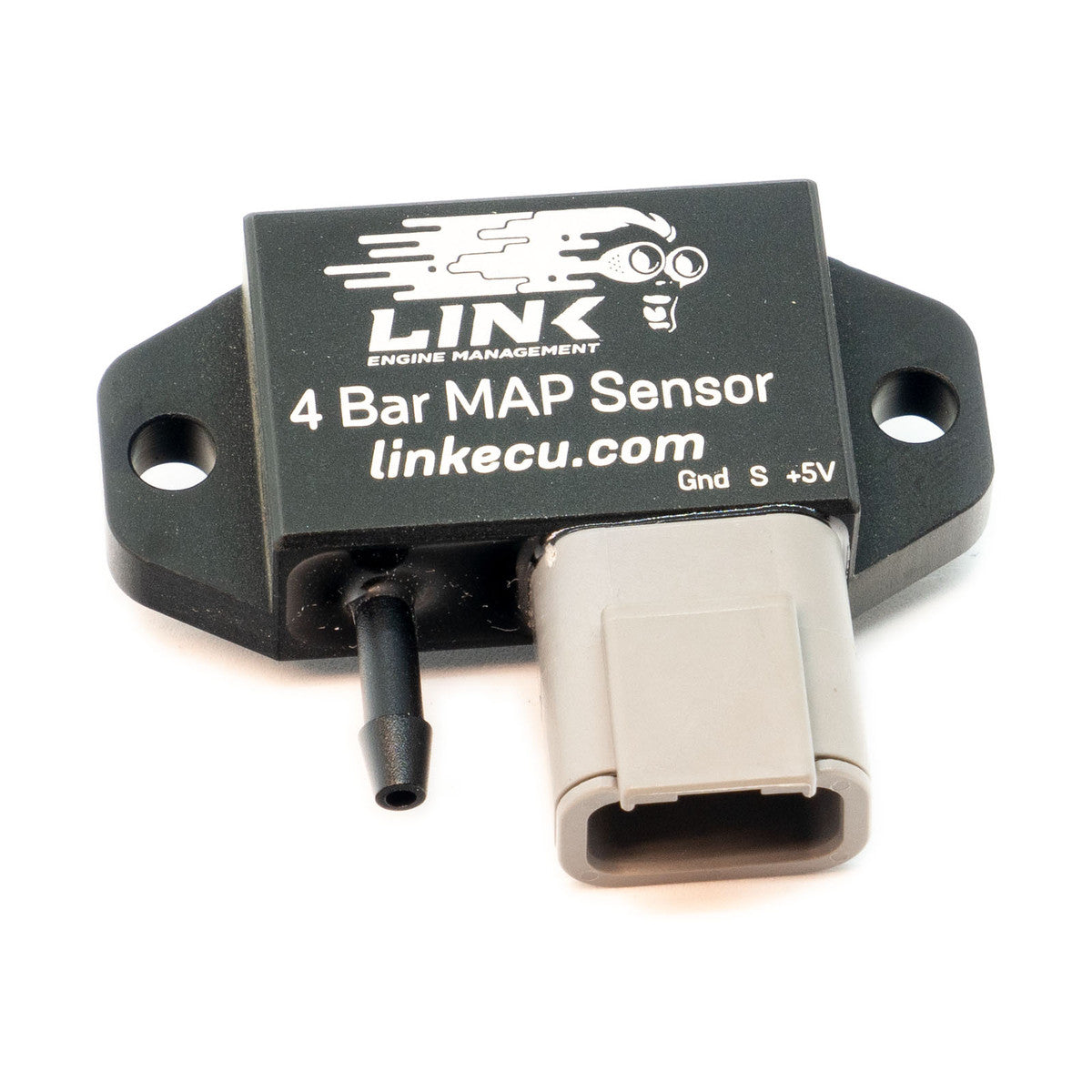

The Link 4 Bar MAP sensor reads up to 4 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 3.0 Bar (or 44psi) of boost pressure. The wiring pinout for this sensor is marked directly on the sensor.

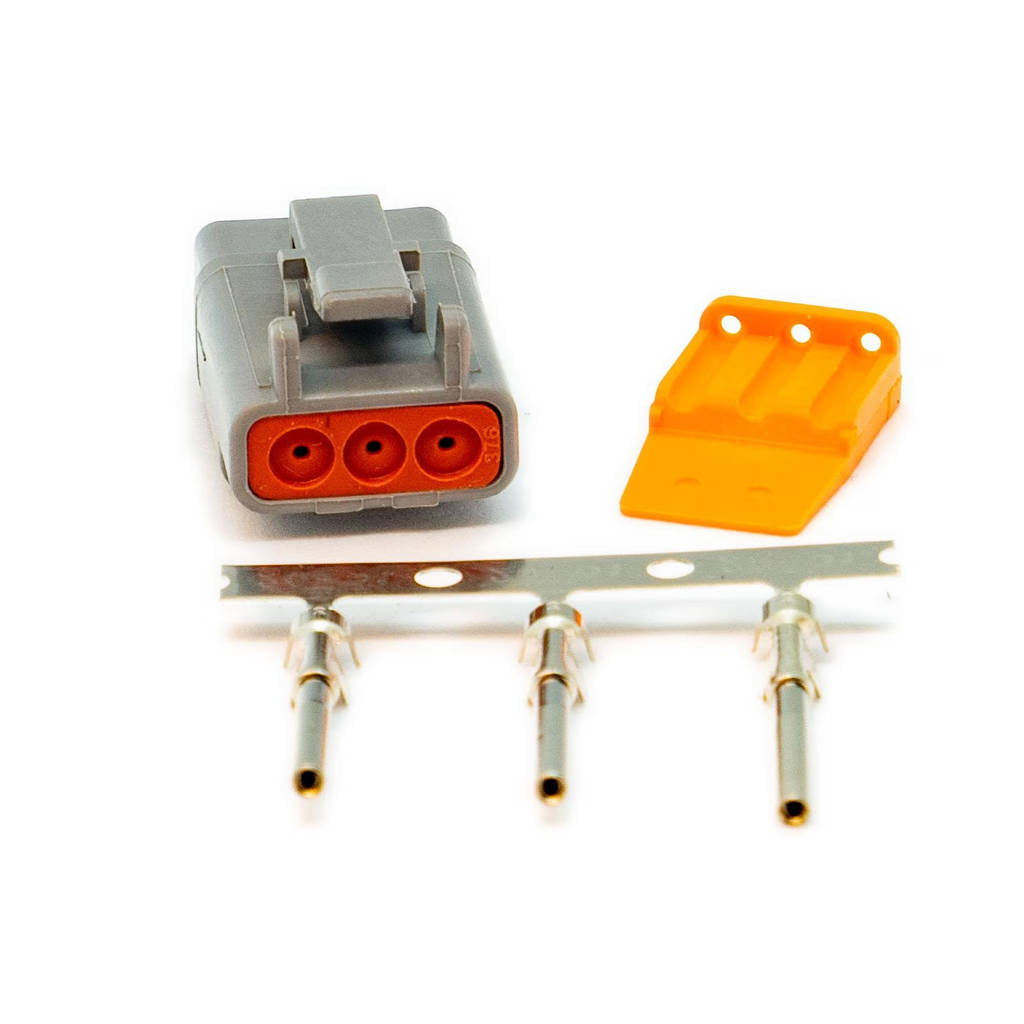

  • Includes 3-pin Deutsch DTM connector kit
  • Easy to mount via 2 bolt holes. Note that the sensor should be mounted higher than the intake manifold port that the hose connects to.
  • Compact aluminium enclosure
  • Mechanical connection via 4mm (3/16″) hose connector nipple.
  • Using Link G4/G4+/G4X ECU’s just select the MAP sensor type in PC Link as ‘Link 4 Bar’
