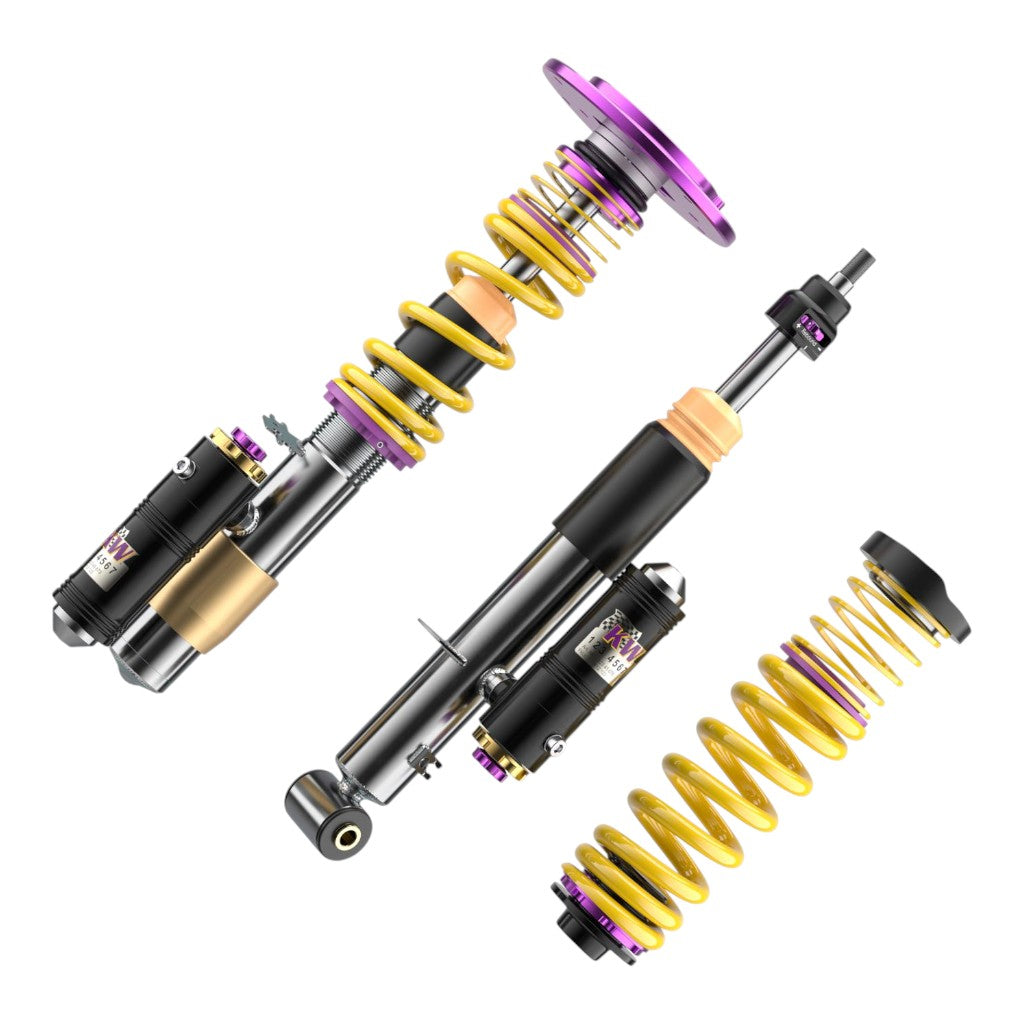

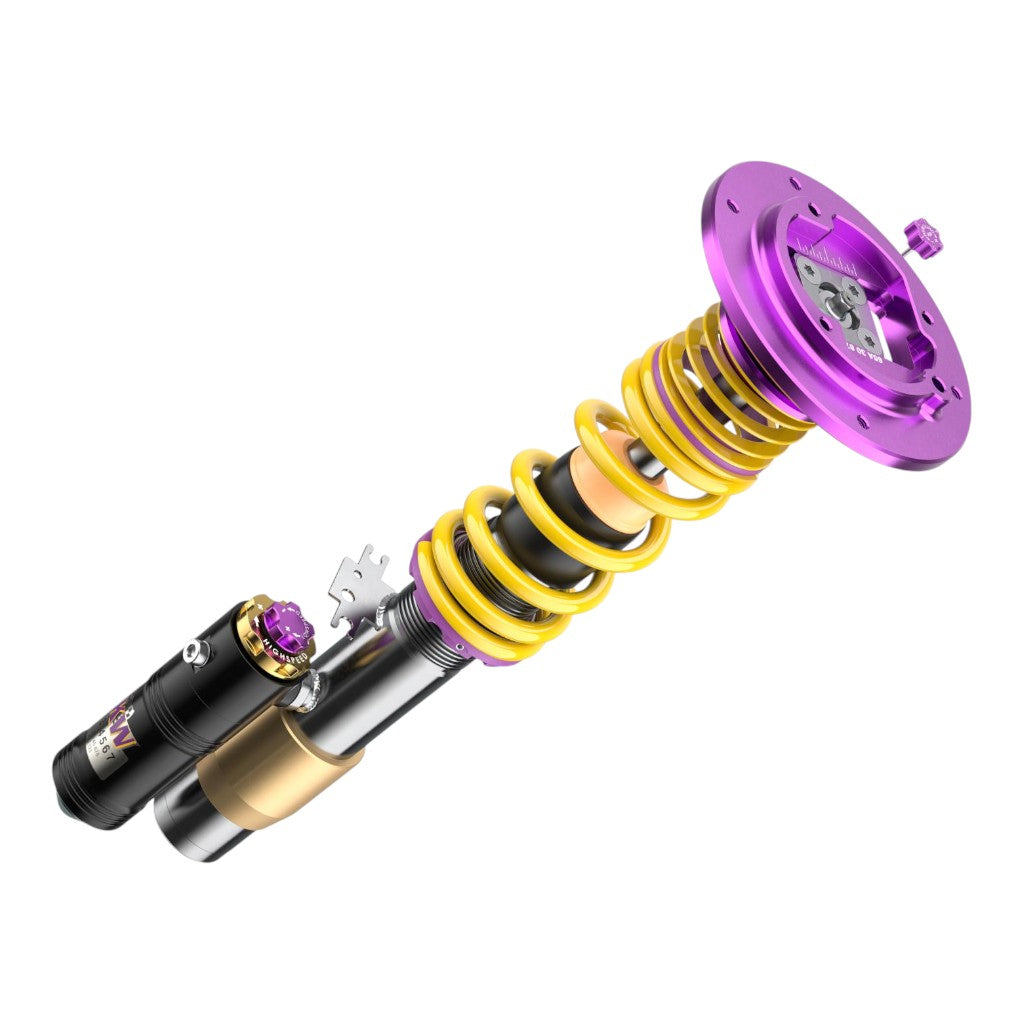

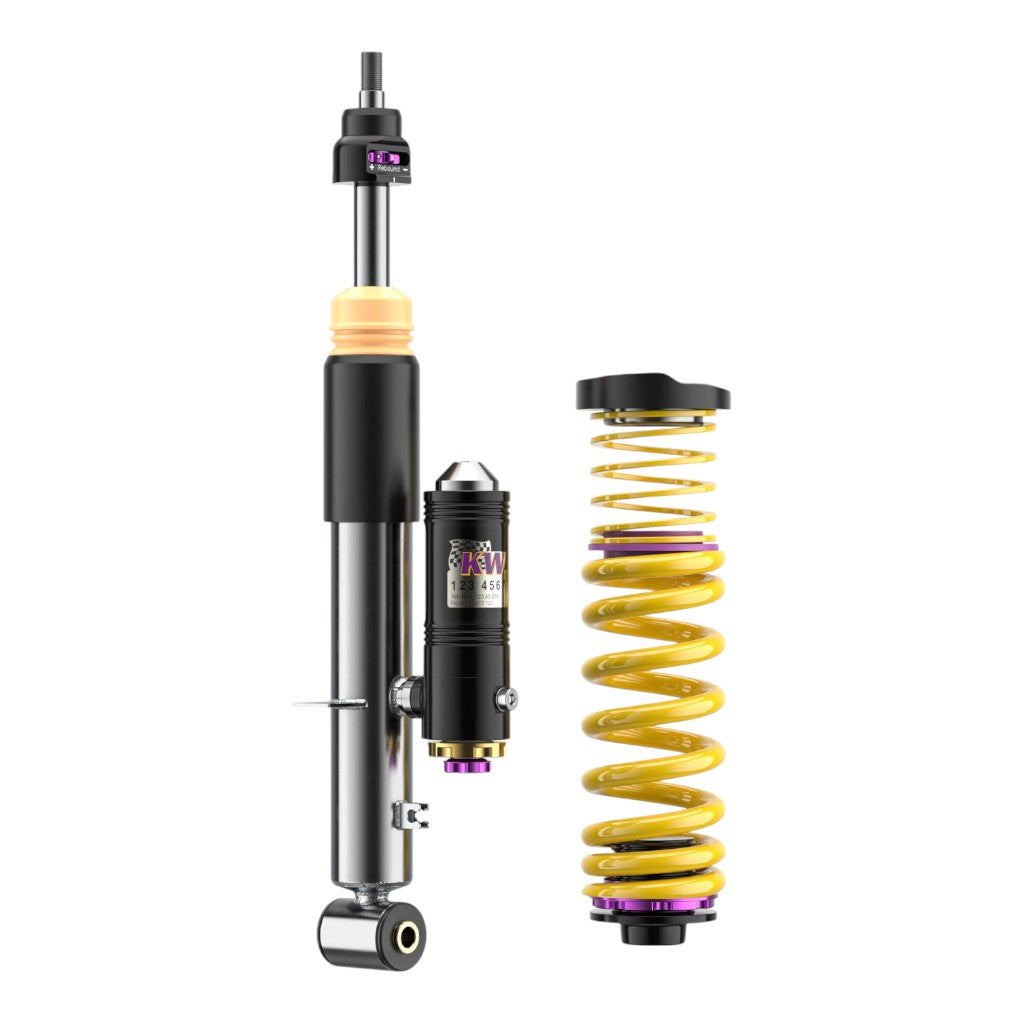

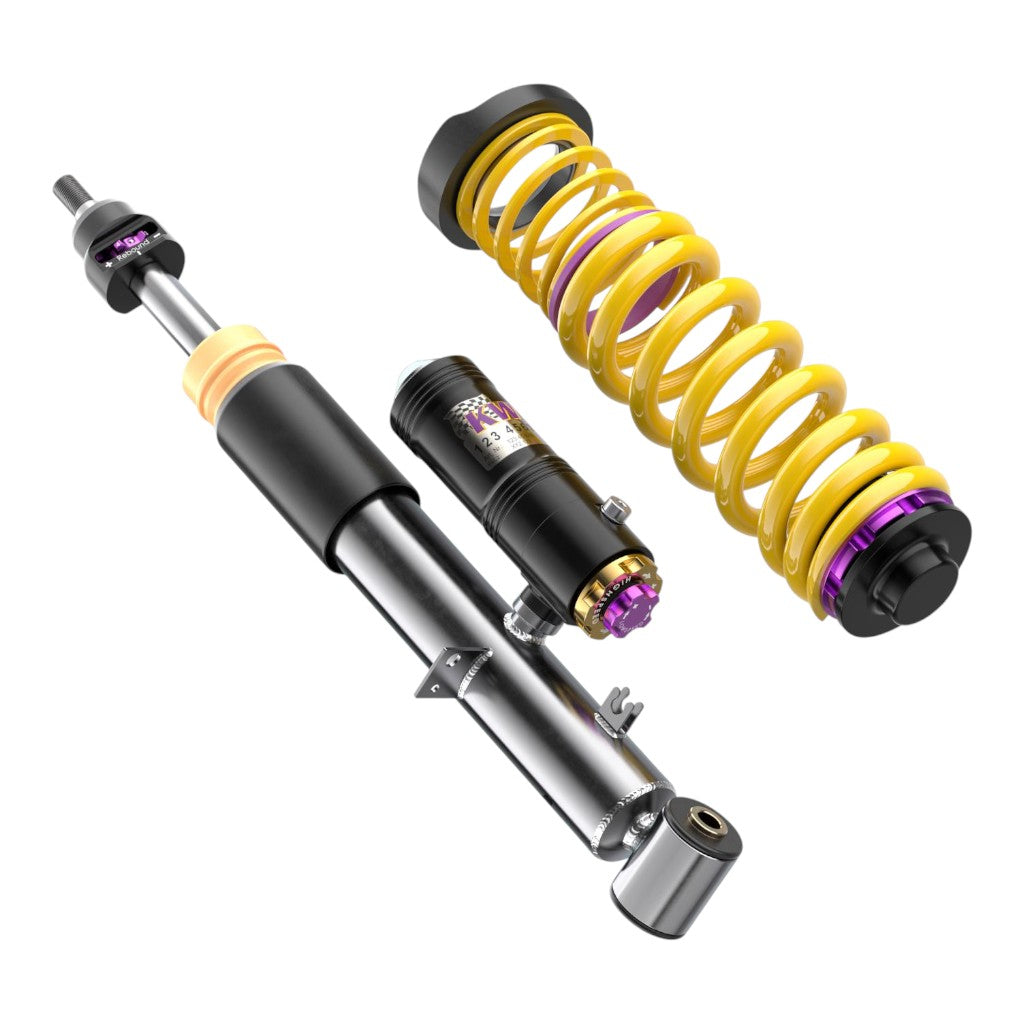

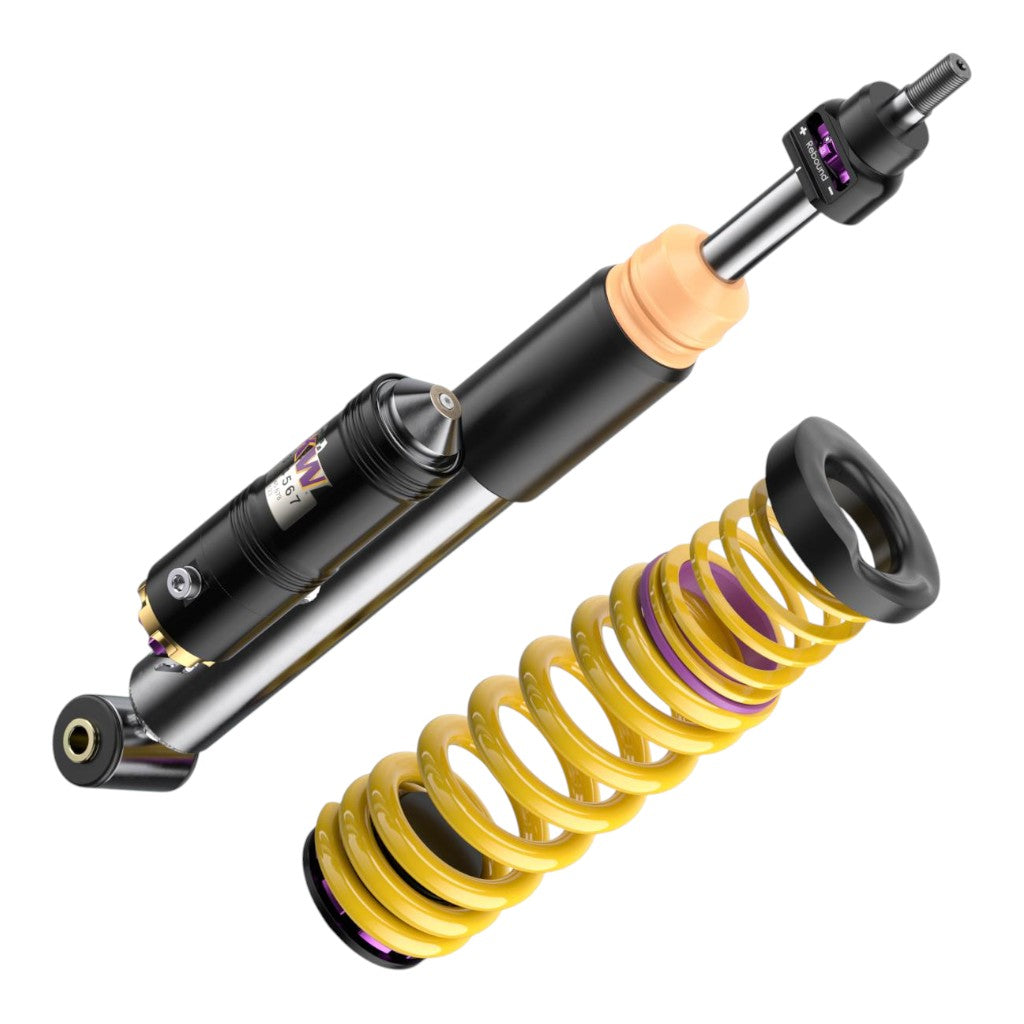

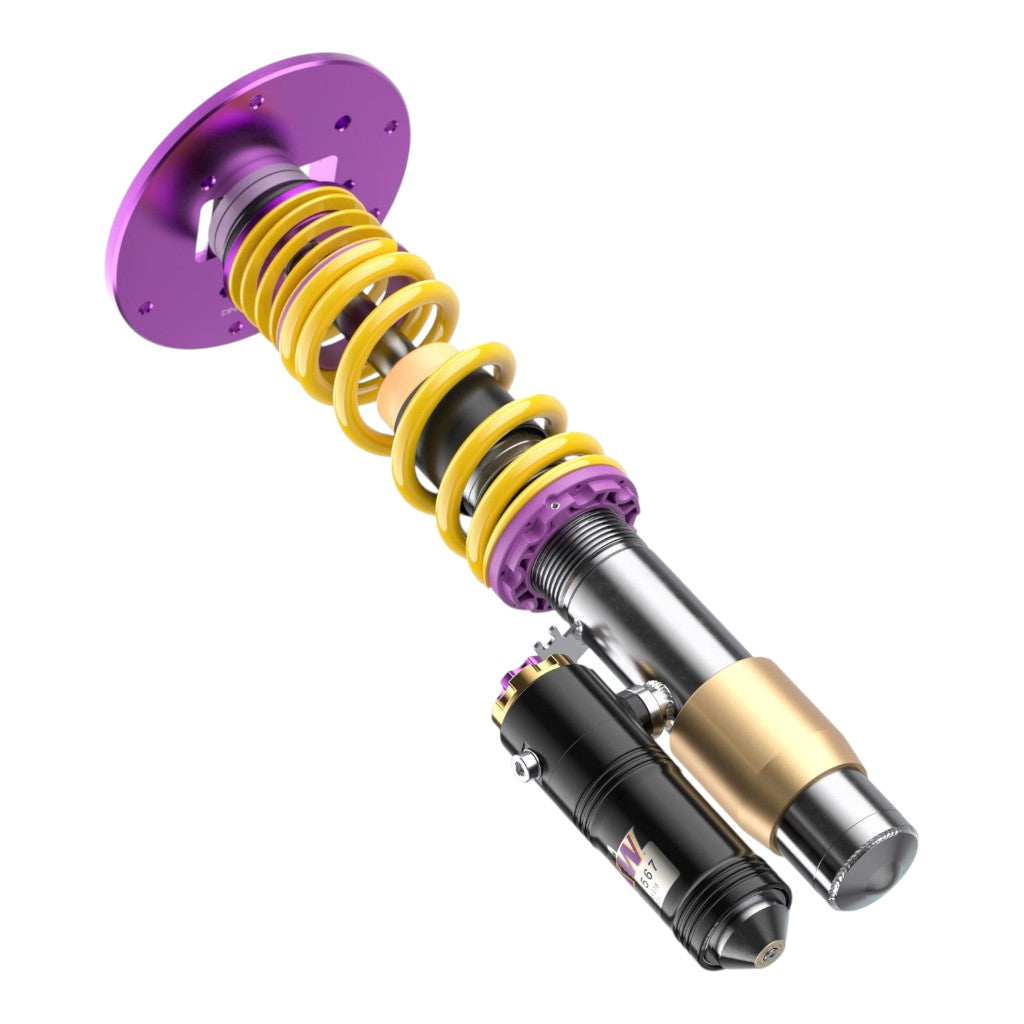

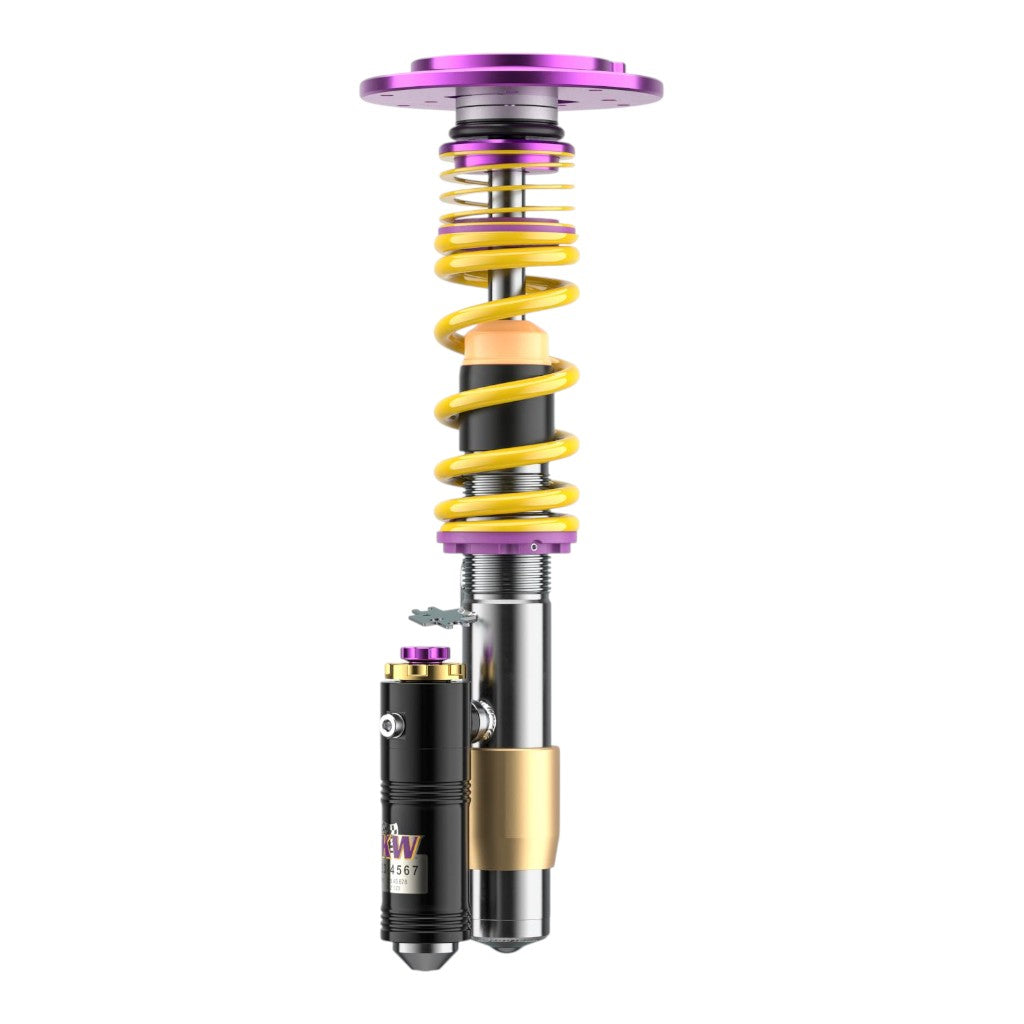

KW 39756226 Coilover Kit V4 Clubsport (incl. Front Axle Top Mounts) for TOYOTA GR Corolla (GZEA14)

Description KW 39756226 Coilover Kit V4 Clubsport (incl. Front Axle Top Mounts) for TOYOTA GR Corolla (GZEA14)

The KW V4 Clubsport Coilover Suspension is developed on the Nürburgring Nordschleife for road and track use. It brings motorsport engineering to track cars.

Every component and click adjustment is designed to provide maximum control and precise feedback. The vehicle-specific basic setup is performance-optimized for the challenges of the Nordschleife, including jumps, curbs, and chicanes.

The KW V4 Clubsport Coilover Suspension, formerly KW Clubsport 3-way, uses patented KW 2-valve Damper technology. Optional features are available for achieving the best lap times.

Conditions / Notes: Front axle and rear axle height adjustable (front axle threaded Struts, rear axle springs with height adjustment and Dampers).

Conditions / Notes: The Dampers feature easy-to-use adjustment knobs. Due to their design, Rebound damping adjustment is only possible when the piston rod is accessible.

Conditions / Notes: Clubsport Suspension with Strut mounts: only available with front axle Strut mounts.

Conditions / Notes: Without parts certificate / TTG.

• Rebound damping adjustment with 16 clicks.
• Low-speed Compression damping adjustment with 6 clicks and high-speed Compression damping adjustment with 14 clicks.
• Adjustments are made directly on the reservoir using purple and gold adjustment dials.
• Stepless Lowering within the tested adjustment range.

Specifications:

• Product line: Track Performance
• Version: V4 Clubsport
• Lowering front/rear axle: 25-40/25-45
• Damper setting: Rebound damping and Compression damping
• Material: Stainless steel
• Front/rear axle adjustment: Thread/thread
• Approval: Without

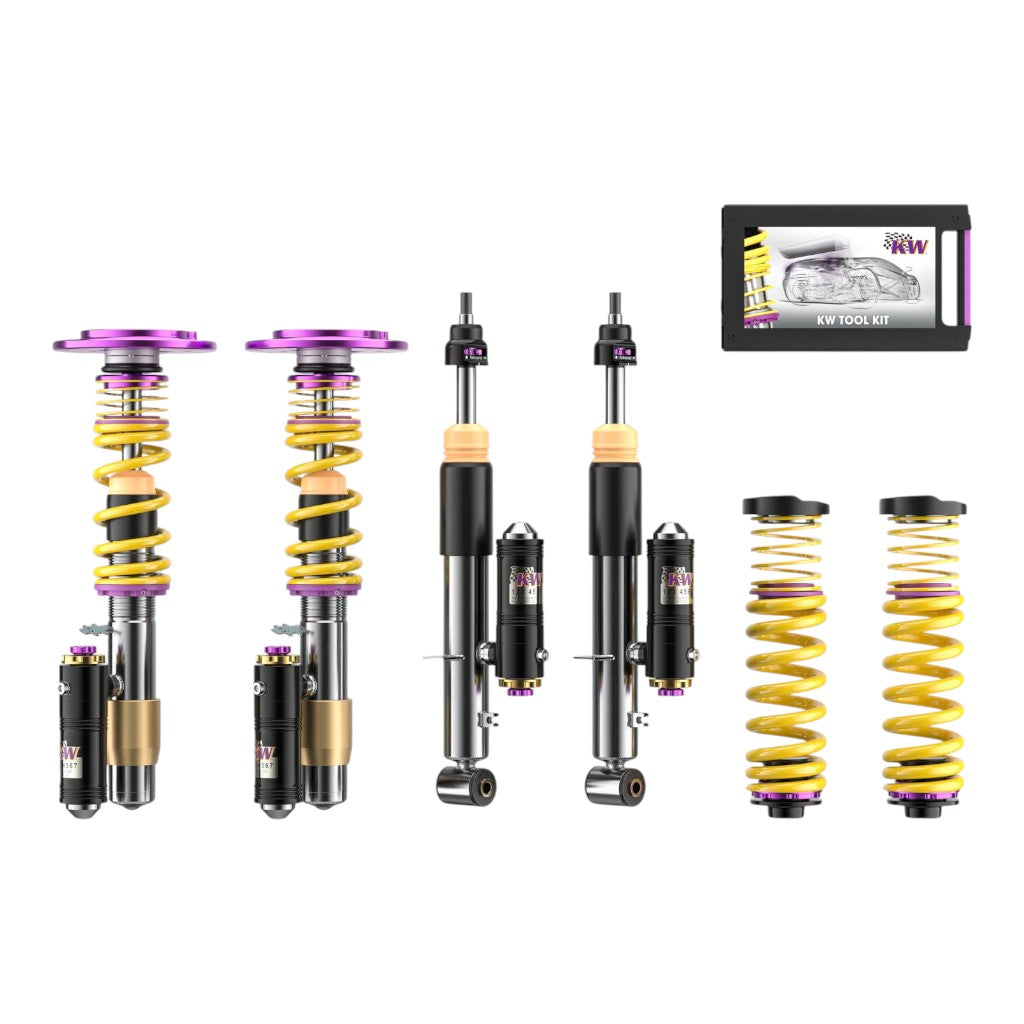

Kit comes with:

• Set of front axle threaded Struts including Top mounts
• Rear axle springs with height adjustment and Dampers

Vehicle Compatibility:

• 2023- TOYOTA COROLLA (_E21_, ZE_) 1.6 GR 4WD (GZEA14), 224 kW, 1618 ccm, 3 cyl., all-wheel drive
