K&N 69-3539TB Performance Air Intake System TYPHOON; FORD FOCUS RS L4-2.3L F/I, 2016-2017

Description K&N 69-3539TB Performance Air Intake System TYPHOON; FORD FOCUS RS L4-2.3L F/I, 2016-2017

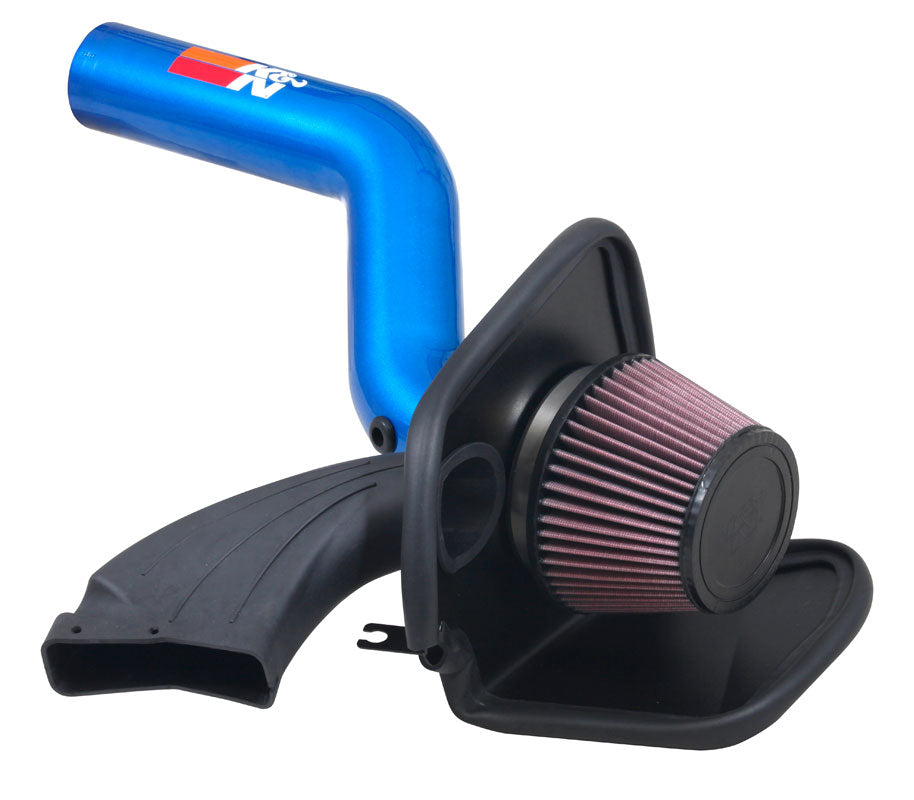

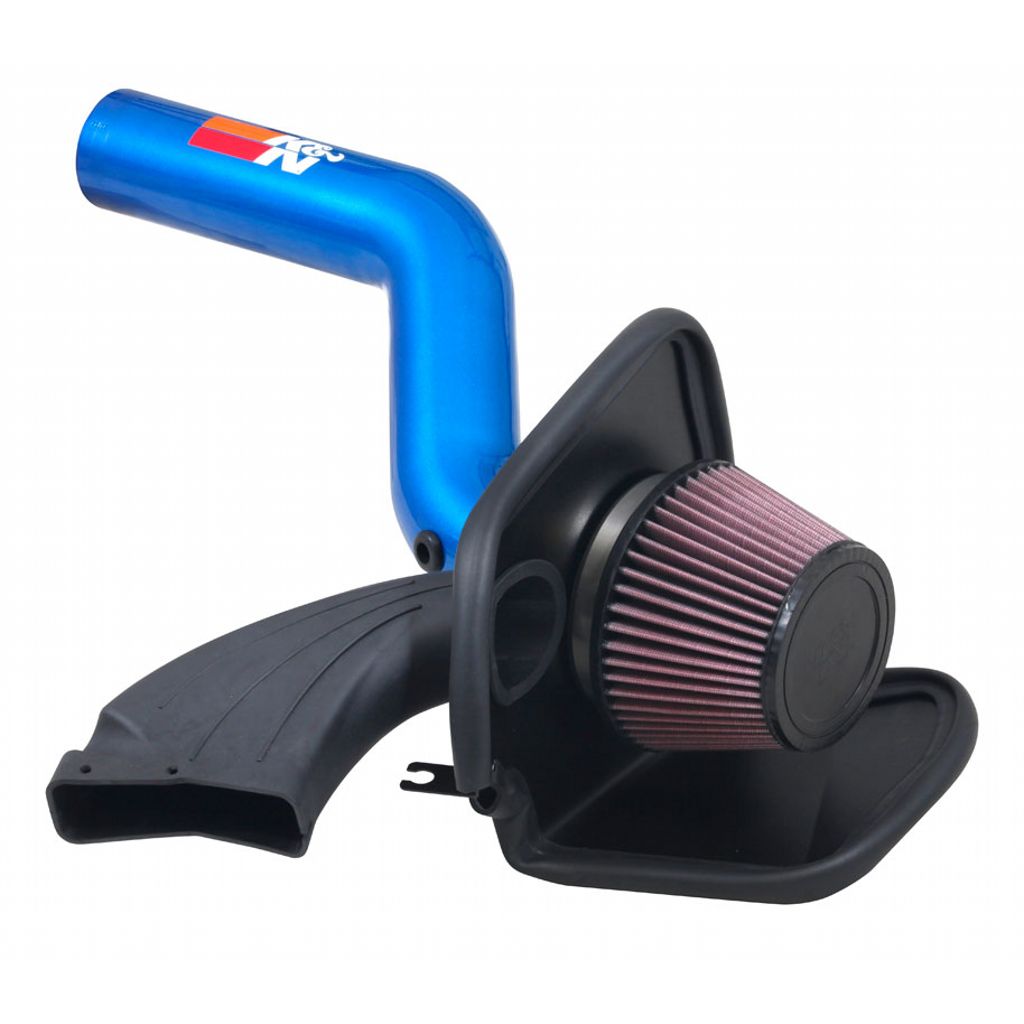

The K&N 69-3539TB Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed for select Ford Focus models. The restrictive factory air filter and intake housing are replaced by the K&N Typhoon air intake, which is engineered to reduce air flow restriction by smoothing and straightening the air flow.

This system allows the engine to draw in a larger volume of air compared to the factory intake, resulting in increased usable power and acceleration across the RPM range. The 69-3539TB includes a black rubber-topped K&N high-flow air filter and a heat shield that mounts using factory locations. A molded scoop directs outside air toward the filter, and air is then routed through the intake tube into the throttle body for a guaranteed power gain.

The intake tube features a blue powder-coat finish and accommodates the factory air pressure sensor. The oversized cone-shaped air filter can be used for up to 100,000 miles before servicing is required, depending on driving conditions. Installation is straightforward, typically taking 90 minutes or less with common tools and existing factory mounting points.

• Guaranteed to increase horsepower
• Designed to improve throttle response and engine sound
• Low restriction aluminum tube
• Easy to install, usually in 90 minutes or less

Specifications:

• Estimated Horsepower Gain: 33.01 HP @ 4904 RPM
• Replacement Filter: RU-5163
• Air Filter Color: Red
• Air Filter Material: Cotton Gauze
• Air Filter Outlet Shape: Round
• Clamps Included: 3
• Clamp Material: Stainless Steel
• Clamp Style: Worm Gear
• Couplers Included: 1
• System Type: Complete Cold-Air Intake System
• Estimated Torque Gain: 31.4 lbft
• Product Style: 69 Series Typhoon Kits
• Intake Pipe Color / Finish: Candy Blue Powder Coating
• Intake Pipe Material: Aluminum
• CARB EO Number: D-269-70
• Street Legal In All US States: Legal for use in all 50 states
• TUV Approved (Europe): No
• Weight: 9.4 lb (4.3 kg)
• Product Box Height: 12.5 in (318 mm)
• Product Box Length: 22.25 in (565 mm)
• Product Box Width: 14.25 in (362 mm)
• Mounting Hardware Included: Yes
• Warranty: No-Hassle Lifetime Limited
