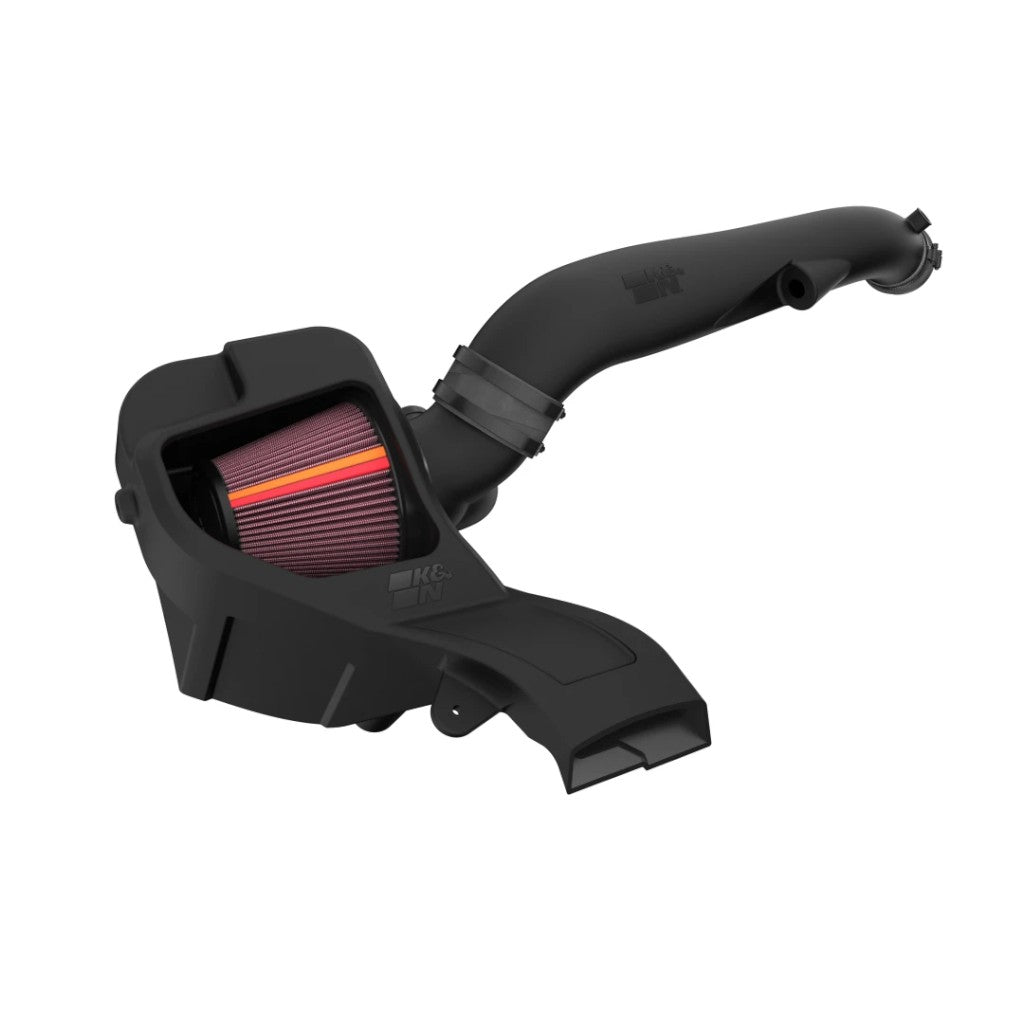

K&N 50-2628 Cold Air Intake System for FORD Ranger Raptor 2024

Description K&N 50-2628 Cold Air Intake System for FORD Ranger Raptor 2024

The K&N 50-2628 NextGen cold air intake system is engineered for the 2024 Ford Ranger Raptor equipped with the 3.0L V6 engine. The rotationally molded HDPE intake tubes deliver significant airflow gains—42.6% CFM on the driver side and 55.9% CFM on the passenger side—resulting in measured increases of 27.38 horsepower and 27.57 lb-ft of torque without requiring ECU tuning. A washable, reusable High-Flow LIFETIME Air Filter™ with oiled cotton media supports extended service intervals, while the oversized conical filter design allows up to 100,000 miles between cleanings under normal highway use. The NextGen airbox helps protect the intake charge from elevated engine bay temperatures, and installation can typically be completed in less than one hour.

• Dyno-proven horsepower and torque gains on the stock engine calibration
• NextGen hybrid airbox with enlarged fresh air inlet for improved airflow and lower intake temperatures
• Oversized air filter with expanded surface area and radius-entry geometry
• Large-diameter CAD-engineered intake tubes with optimized air channels
• Precision-designed components to enhance fitment, airflow, and engine bay appearance
• Simplified installation with Quick-Lock™ filter attachment and reduced mounting hardware
• Developed using over 50 years of K&N filtration expertise

Specifications:

• Estimated Horsepower Gain: 27.38 HP @ 5151 RPM
• Estimated Torque Gain: 27.57 lb-ft @ 3506 RPM
• Air Filter Color: Red
• Air Filter Material: Cotton Gauze
• Air Filter Outlet Shape: Round
• Clamps Included: 7
• Couplers Included: 2
• Replacement Filter: RU-5303
• Clamp Material: Steel
• Clamp Style: Regular
• Intake Pipe Material: High-Density Cross-Linked Polyethylene
• Intake Pipe Color / Finish: Black
• Mounting Hardware Included: Yes
• Weight: 17.6 lb (8 kg)
• Product Box Height: 14.25 in (362 mm)
• Product Box Length: 36.13 in (918 mm)
• Product Box Width: 22.13 in (562 mm)
• Intake CFM Gain: 42.6
• Product Style: 50 Series GEN3
