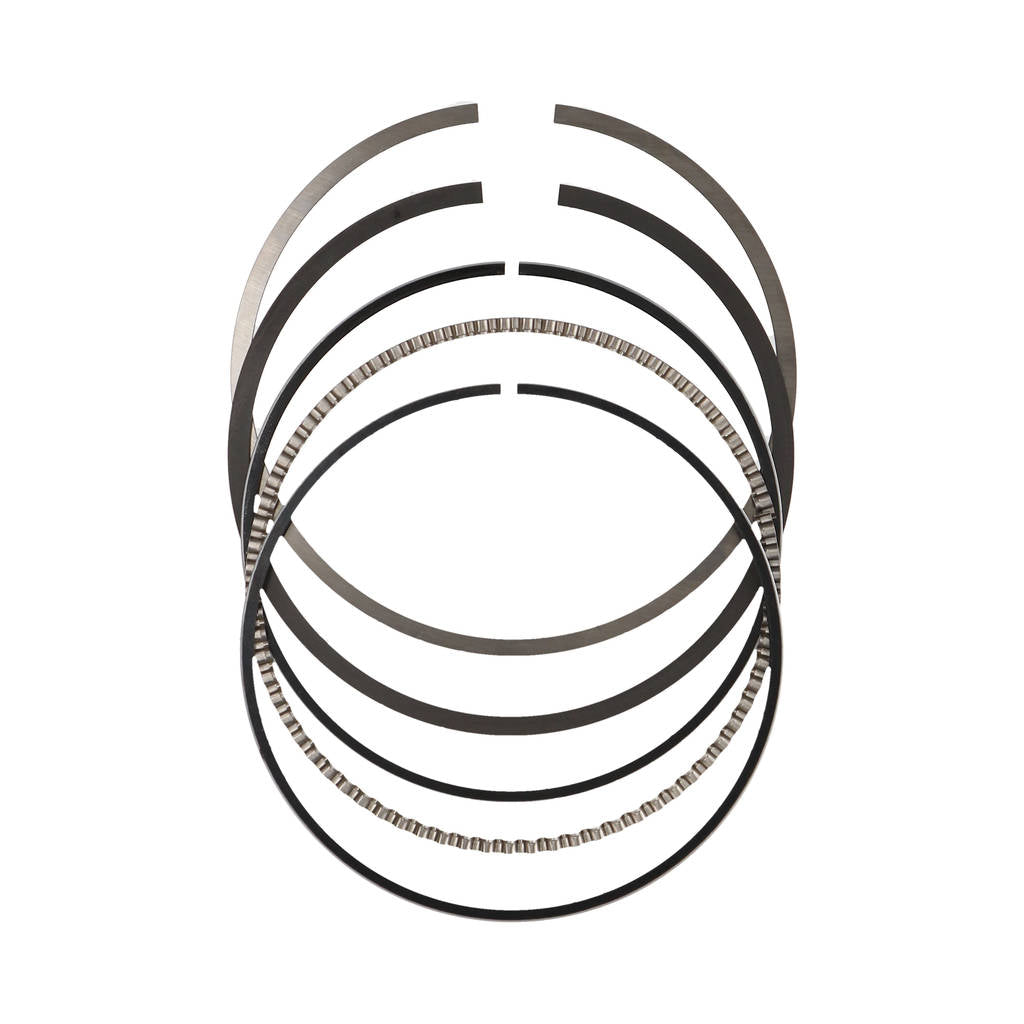

Description JE XH9700 Piston Ring Set (3.819 in. Bore, 0.0472 in. Top / 0.0591 in. 2nd / 0.158 in. Oil, 1 Cyl.)
JE Piston Rings are designed to maximize Horsepower / HP through precision sealing of combustion pressure. They are available in a wide selection of sizes, materials, and thicknesses to suit various engines.
JE Pistons also offers custom Piston Ring services, including back cutting, Dykes cutting, lapping, grinding, and PVD coating. Used by top NHRA Pro Stock and NASCAR teams, these services are available to the public and provide increased durability, power through reduced friction, and improved Piston Ring sealing.
Specifications:
- Bore Diameter: 3.819 in / 97.00 mm
- Ring Type: 3 Ring
- File Fit: Yes
- Top Ring Axial Height: 0.95 mm
- Top Ring Radial Width: 0.147 in
- Top Compression Ring Thickness: 0.0472 in
- Top Ring Facing Material: Chrome
- Top Ring Material: Carbon Steel
- Top Ring Shape: Barrel Face, Back Cut, Neutral
- Second Ring Axial Height: 1.50 mm
- Second Ring Radial Width: 0.171 in
- Second Compression Ring Thickness: 0.0591 in
- Second Ring Facing Material: Phosphate
- Second Ring Shape: Taper Face, Back Cut, Neutral
- Oil Ring Axial Height: 4.00 mm
- Oil Ring Radial Width: 0.138 in
- Oil Ring Thickness: 0.158 in
- Third Ring Facing Material: Carbon Steel
- Third Ring Material: Carbon Steel
- Third Ring Shape: SS50U Style
- Ring Set Thickness: 0.0472 in Top x 0.0591 in 2nd x 0.158 in Oil
- Product Type: Engine Piston Ring Set
