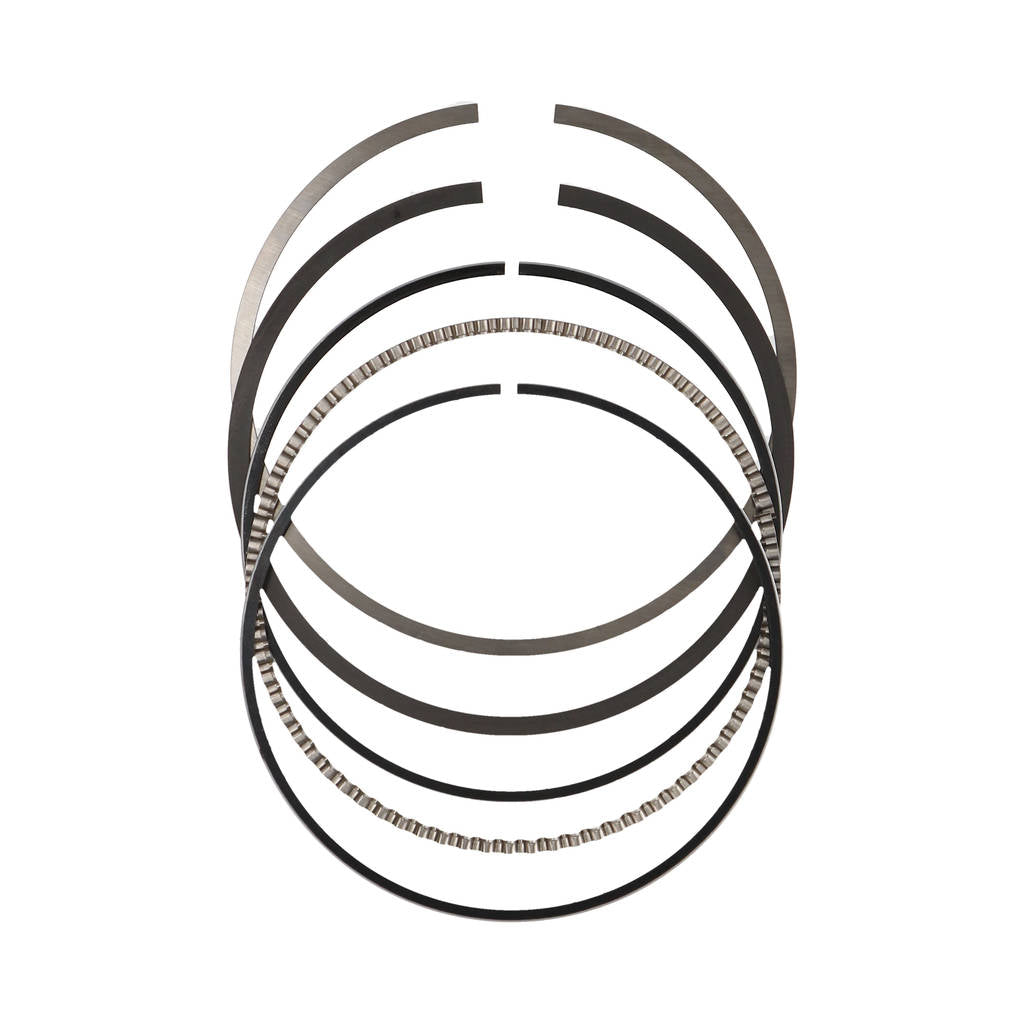

JE JG4801-3023 Piston Ring Set (3.203 in. Bore, 0.0315 in. Top / 0.059 in. Oil, 1 Cyl.)
This item is considered special order and is not available for immediate pickup or dispatch. Please note that no returns, cancellations, or refunds allowed on special orders.
The product can be delivered at the specified price provided that it is shipped together with other goods from this manufacturer. Such consolidation may require additional delivery time—typically about 2 extra weeks beyond the standard timeframe, and in some cases up to 4 weeks.
If you need the product urgently, a paid express delivery option is available. Please contact our sales assistants for additional information.
JE JG4801-3023 Piston Ring Set (3.203 in. Bore, 0.0315 in. Top / 0.059 in. Oil, 1 Cyl.)
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ATOMIC-SHOP UAE (RABDAN Motorsport)
14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Please note that no returns, cancellations, or refunds allowed on special orders.
The product can be delivered at the specified price provided that it is shipped together with other goods from this manufacturer. Such consolidation may require additional delivery time—typically about 2 extra weeks beyond the standard timeframe, and in some cases up to 4 weeks.
If you need the product urgently, a paid express delivery option is available. Please contact our sales assistants for additional information.
This item is considered special order and is not available for immediate pickup or dispatch. Please note that no returns, cancellations, or refunds allowed on special orders.
The product can be delivered at the specified price provided that it is shipped together with other goods from this manufacturer. Such consolidation may require additional delivery time—typically about 2 extra weeks beyond the standard timeframe, and in some cases up to 4 weeks.
If you need the product urgently, a paid express delivery option is available. Please contact our sales assistants for additional information.
Description JE JG4801-3023 Piston Ring Set (3.203 in. Bore, 0.0315 in. Top / 0.059 in. Oil, 1 Cyl.)
JE Piston Rings are designed to maximize Horsepower / HP through precision sealing of combustion pressure. They are available in a wide selection of sizes, materials, and thicknesses to suit various engines.
JE Pistons also offers custom Piston Ring services, including back cutting, Dykes cutting, lapping, grinding, and PVD coating. Used by top NHRA Pro Stock and NASCAR teams, these services are available to the public and provide increased durability, power through reduced friction, and improved Piston Ring sealing.
Specifications:
- Bore Diameter: 3.203 / 81.36 mm
- Ring Type: 2 Ring
- File Fit: Yes
- Top Ring Axial Height: 0.80 mm
- Top Ring Radial Width: 0.110 in
- Top Compression Ring Thickness: 0.0315 in
- Top Ring Facing Material: Nitride
- Top Ring Material: Stainless Steel
- Top Ring Shape: Barrel Face, Back Cut
- Oil Ring Axial Height: 1.50 mm
- Oil Ring Radial Width: 0.104 in
- Oil Ring Thickness: 0.059 in
- Third Ring Facing Material: Stainless Steel
- Third Ring Shape: Flex Vent
- Ring Set Thickness: 0.0315 in Top x 0.059 in Oil
- Product Type: Engine Piston Ring Set
