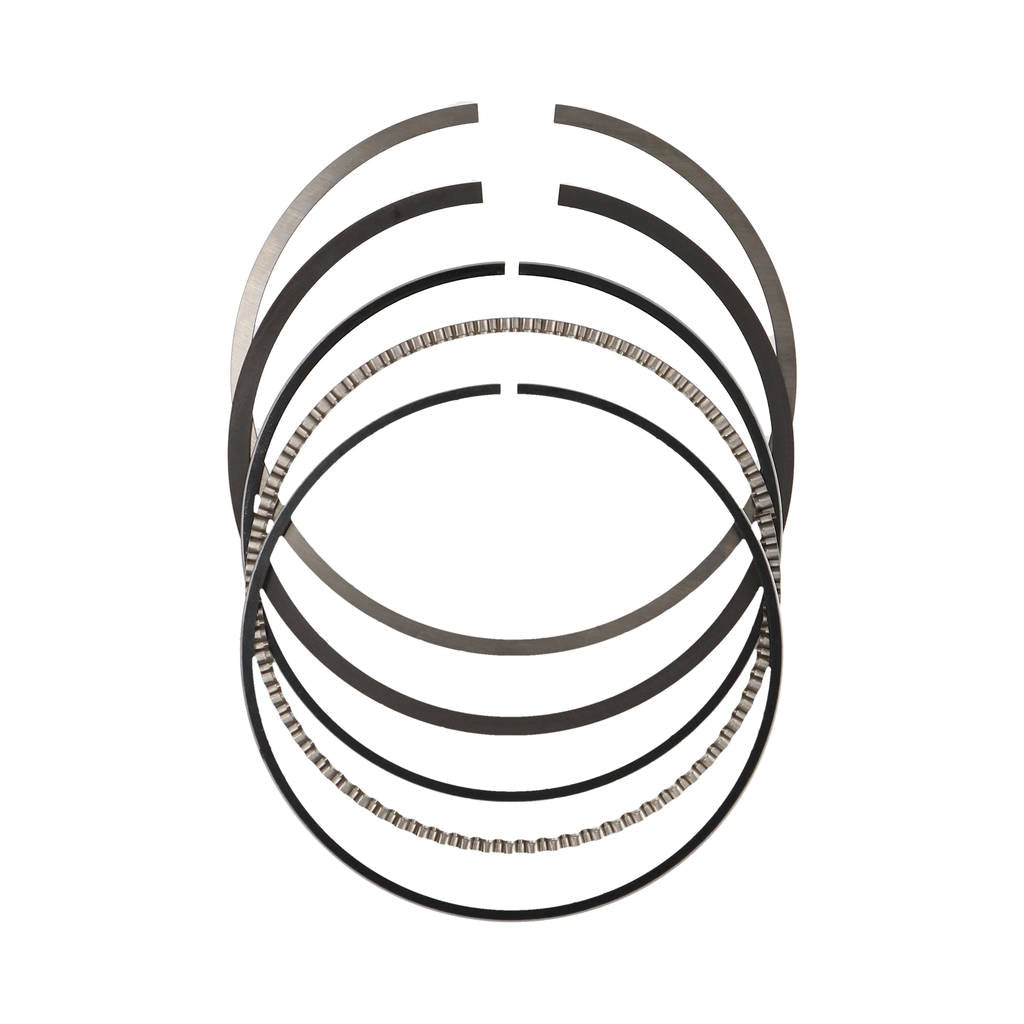

JE JG2004-3504 Piston Ring Set (3.504 in. Bore, 0.0591 in. Top / 0.0591 in. 2nd / 0.158 in. Oil, 4 Cyl.) Photo-0

JE JG2004-3504 Piston Ring Set (3.504 in. Bore, 0.0591 in. Top / 0.0591 in. 2nd / 0.158 in. Oil, 4 Cyl.)

AED 772.38

Tax included. Shipping calculated at checkout

JE PISTONSP/N: JG2004-3504 GTIN: 193564228055
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE JG2004-3504 Piston Ring Set (3.504 in. Bore, 0.0591 in. Top / 0.0591 in. 2nd / 0.158 in. Oil, 4 Cyl.)

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description JE JG2004-3504 Piston Ring Set (3.504 in. Bore, 0.0591 in. Top / 0.0591 in. 2nd / 0.158 in. Oil, 4 Cyl.)

JE Piston Rings are designed to maximize Horsepower / HP through precision sealing of combustion pressure. They are available in a wide selection of sizes, materials, and thicknesses to suit various engines.

JE Pistons also offers custom Piston Ring services, including back cutting, Dykes cutting, lapping, grinding, and PVD coating. Used by top NHRA Pro Stock and NASCAR teams, these services are available to the public and provide increased durability, power through reduced friction, and improved Piston Ring sealing.

Specifications:

  • Bore Diameter: 3.504 | 89.00 MM
  • Ring Type: 3 Ring
  • File Fit: Yes
  • Top Ring Axial Height: 1.50 MM
  • Top Ring Radial Width: 0.135 IN
  • Top Compression Ring Thickness: 0.0591 IN
  • Top Ring Facing Material: Nitride
  • Top Ring Material: Carbon Steel
  • Top Ring Shape: Barrel Face, Back Cut, Neutral
  • Second Ring Axial Height: 1.50 MM
  • Second Ring Radial Width: 0.161 IN
  • Second Compression Ring Thickness: 0.0591 IN
  • Second Ring Facing Material: Chrome
  • Second Ring Shape: Taper Face, Neutral
  • Oil Ring Axial Height: 4.00 MM
  • Oil Ring Radial Width: 0.133 IN
  • Oil Ring Thickness: 0.158 IN
  • Third Ring Facing Material: Carbon Steel
  • Third Ring Material: Carbon Steel
  • Third Ring Shape: SS50U Style
  • Ring Set Thickness: 0.0591 in. Top x 0.0591 in. 2nd x 0.158 in. Oil
  • Product Type: Engine Piston Ring Set
