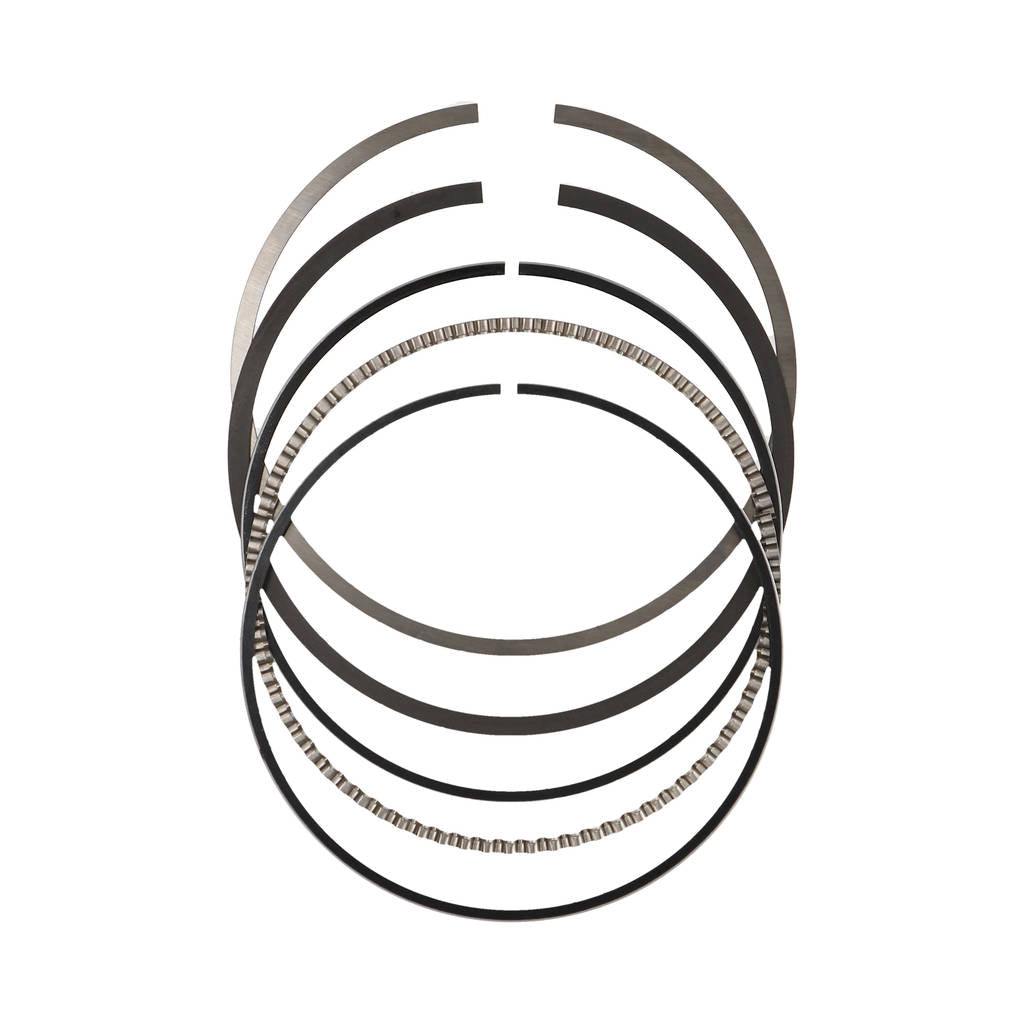

JE JG1004-3031 Piston Ring Set (3.031 in. Bore, 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil, 4 Cyl.) Photo-0

JE JG1004-3031 Piston Ring Set (3.031 in. Bore, 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil, 4 Cyl.)

AED 790.74

Tax included. Shipping calculated at checkout

JE PISTONSP/N: JG1004-3031 GTIN: 193564224248
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 23.06.2026
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE JG1004-3031 Piston Ring Set (3.031 in. Bore, 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil, 4 Cyl.)

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description JE JG1004-3031 Piston Ring Set (3.031 in. Bore, 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil, 4 Cyl.)

JE Piston Rings are designed to maximize Horsepower / HP through precision sealing of combustion pressure. They are available in a wide selection of sizes, materials, and thicknesses to suit various engines.

JE Pistons also offers custom Piston Ring services, including back cutting, Dykes cutting, lapping, grinding, and PVD coating. Used by top NHRA Pro Stock and NASCAR teams, these services are available to the public and provide increased durability, power through reduced friction, and improved Piston Ring sealing.

Specifications:

  • Bore Diameter: 3.031 in / 76.99 mm
  • File Fit: Yes
  • Top Compression Ring Thickness: 0.0394 in
  • Top Ring Facing Material: Nitride
  • Top Ring Material: Carbon Steel
  • Second Compression Ring Thickness: 0.0472 in
  • Second Ring Facing Material: Phosphate
  • Second Ring Material: Ductile Iron
  • Oil Ring Thickness: 0.110 in
  • Third Ring Facing Material: Carbon Steel
  • Third Ring Material: Carbon Steel
  • Ring Set Thickness: 0.0394 in Top x 0.0472 in 2nd x 0.110 in Oil
  • Product Type: Engine Piston Ring Set
