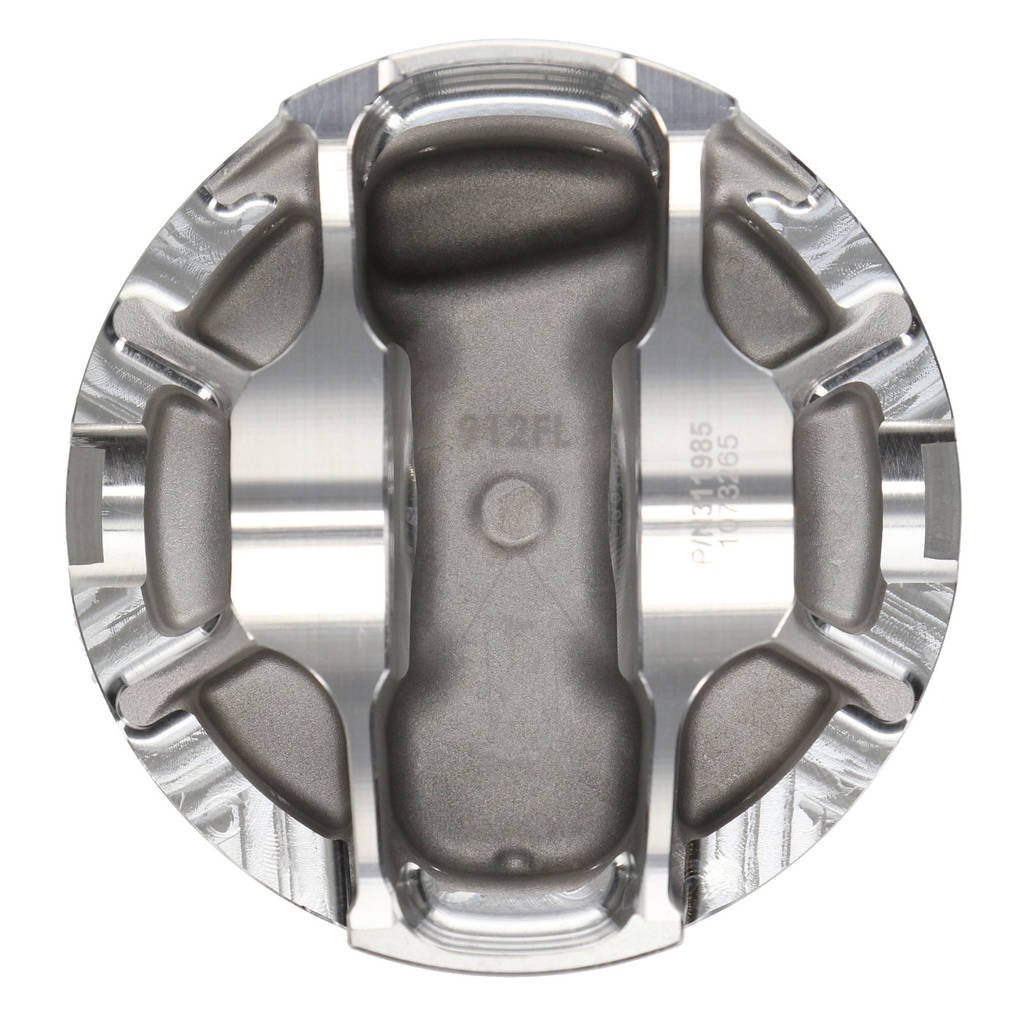

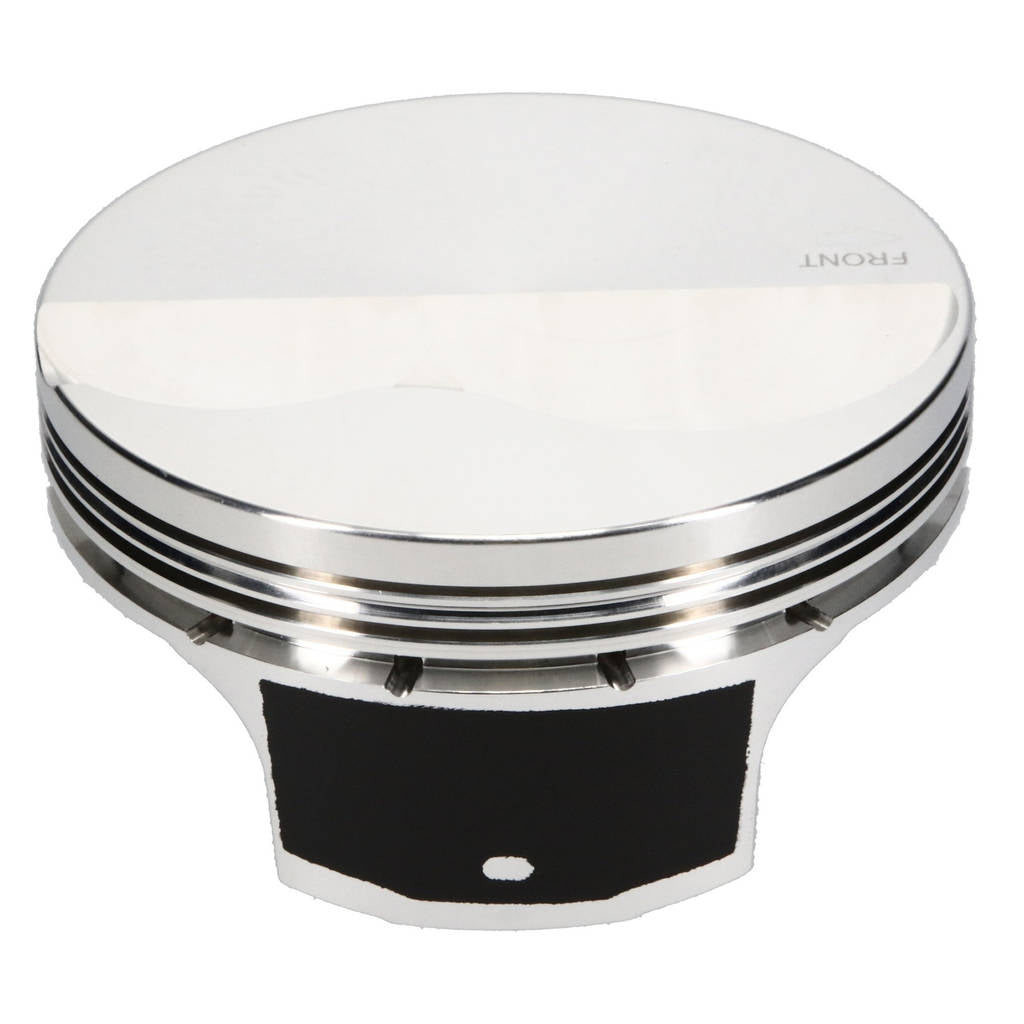

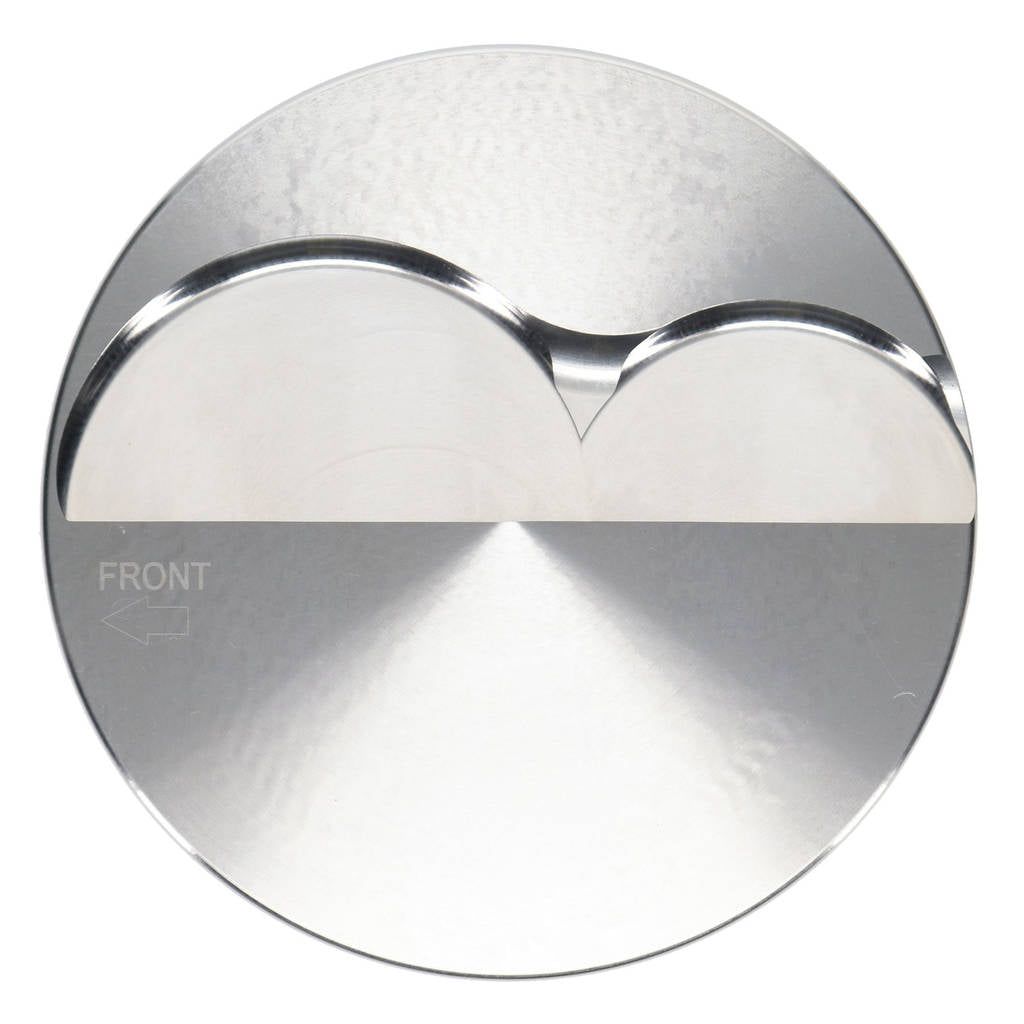

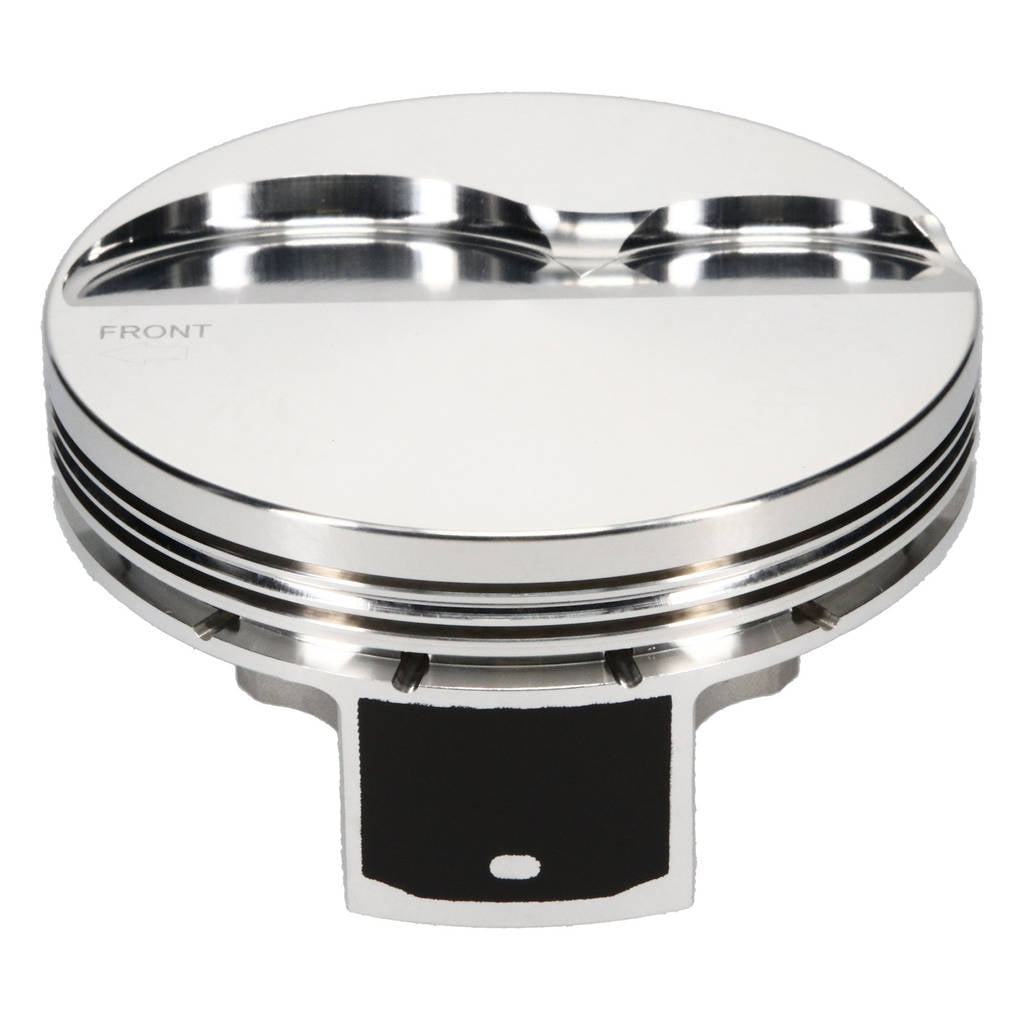

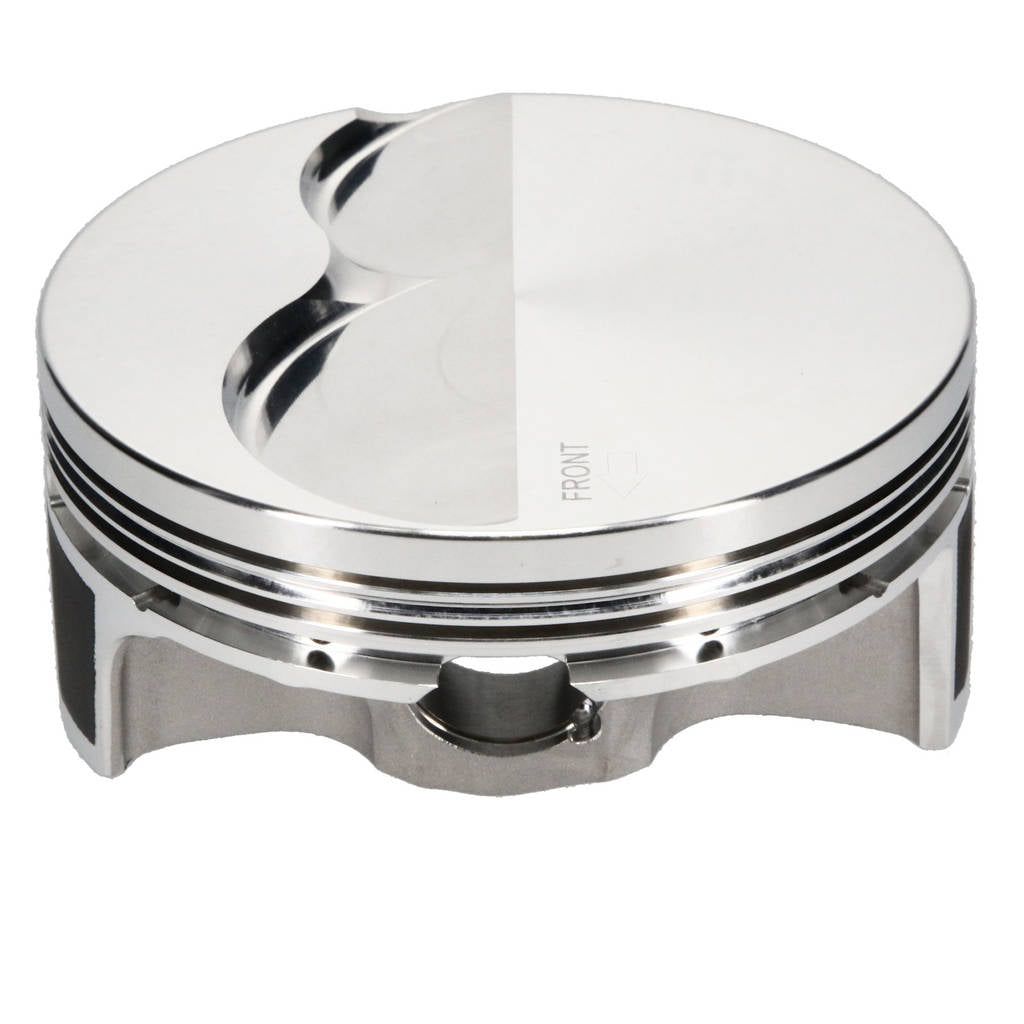

JE 371964 Piston Kit SRP Pro 4032 (4.075 in. Bore, 1.050 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine

Description JE 371964 Piston Kit SRP Pro 4032 (4.075 in. Bore, 1.050 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine

SRP Professional pistons combine forged piston durability with modern performance technology for a capable forged piston kit. Forged from 4032 aluminum, SRP Pro pistons experience minimal thermal expansion, making them suitable for reliable, high-performance engine builds from the track to the drag strip.

As with all JE Pistons products, SRP pistons are made 100% in the USA.

• 4032 forged aluminum provides tensile strength and minimal thermal expansion
• Proprietary Forged Side Relief forging design minimizes friction and power loss, reduces skirt width, and saves weight through a shorter Wrist Pin
• Low-friction skirt coating reduces wear and operating noise while optimizing performance
• Accumulator groove reduces combustion gas pressure, reducing Piston Ring flutter and improving ring seal for consistent power

Specifications:

• Piston Series: SRP Pro 4032
• Bore Diameter: 4.075 IN
• Piston Head Type: Flat Top
• Compression Height: 1.050 IN
• Piston Volume: -5.00 CC
• Piston Material: 2618
• Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
• Wrist Pin Outer Diameter: 0.927 IN
• Wrist Pin Length: 2.250 IN
• Wrist Pin Wall Thickness: 0.170 IN
• Intake Depth: .200 IN
• Intake Diameter: 2.265 IN
• Intake Angle: 15
• Exhaust Depth: .140
• Exhaust Angle: 15
• Top Groove Width: 0.04800 IN
• 2nd Groove Width: 0.06000 IN
• Oil Groove Width: 0.14900 IN
• Product Type: Engine Piston Kit
• Product Market: Domestic

Vehicle Compatibility:

• LS Gen III/IV
