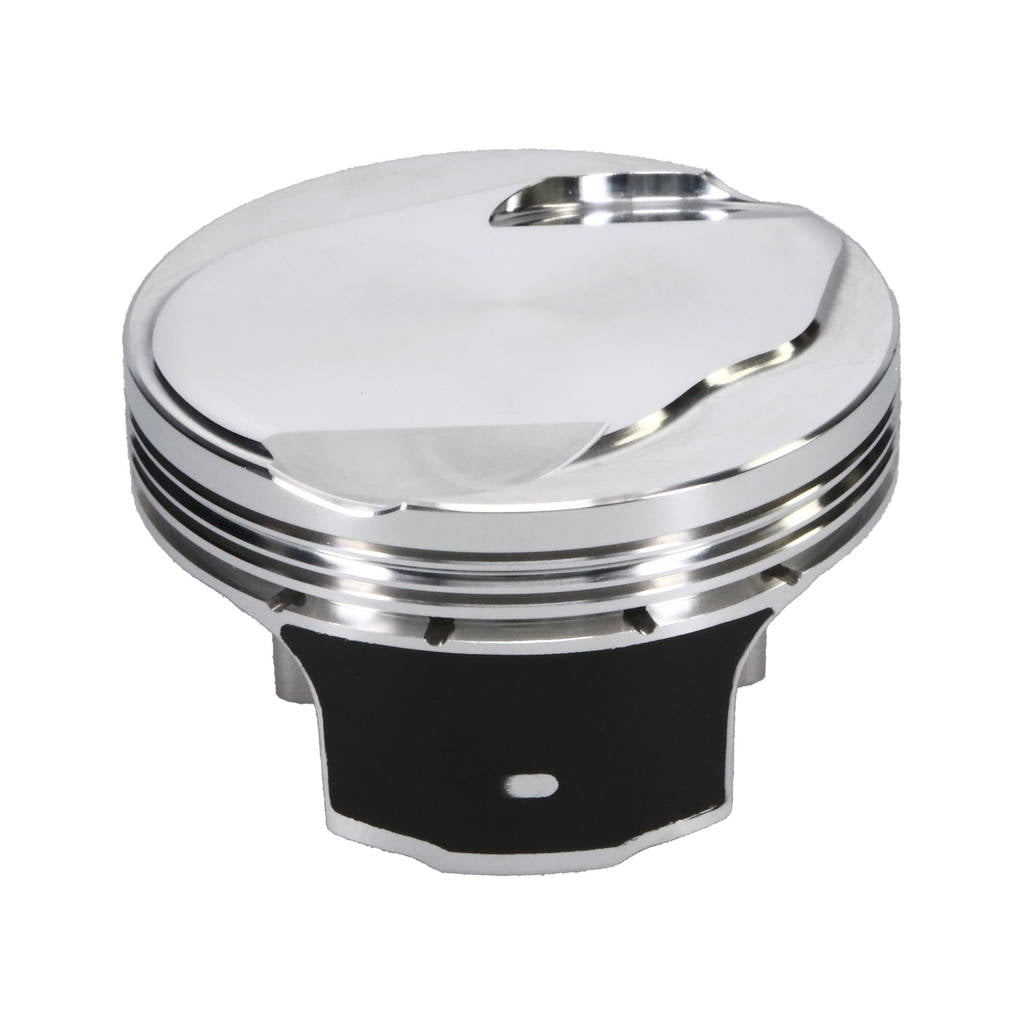

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-0

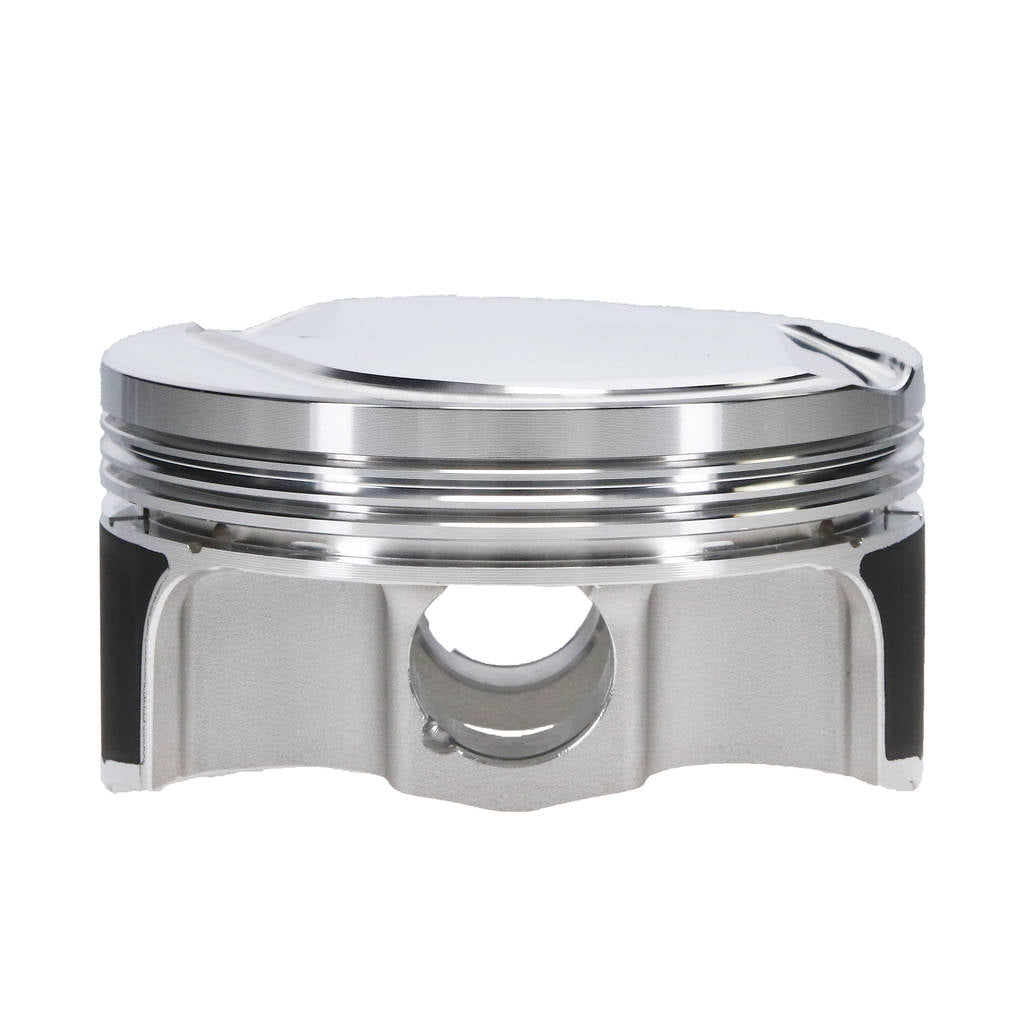

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-1

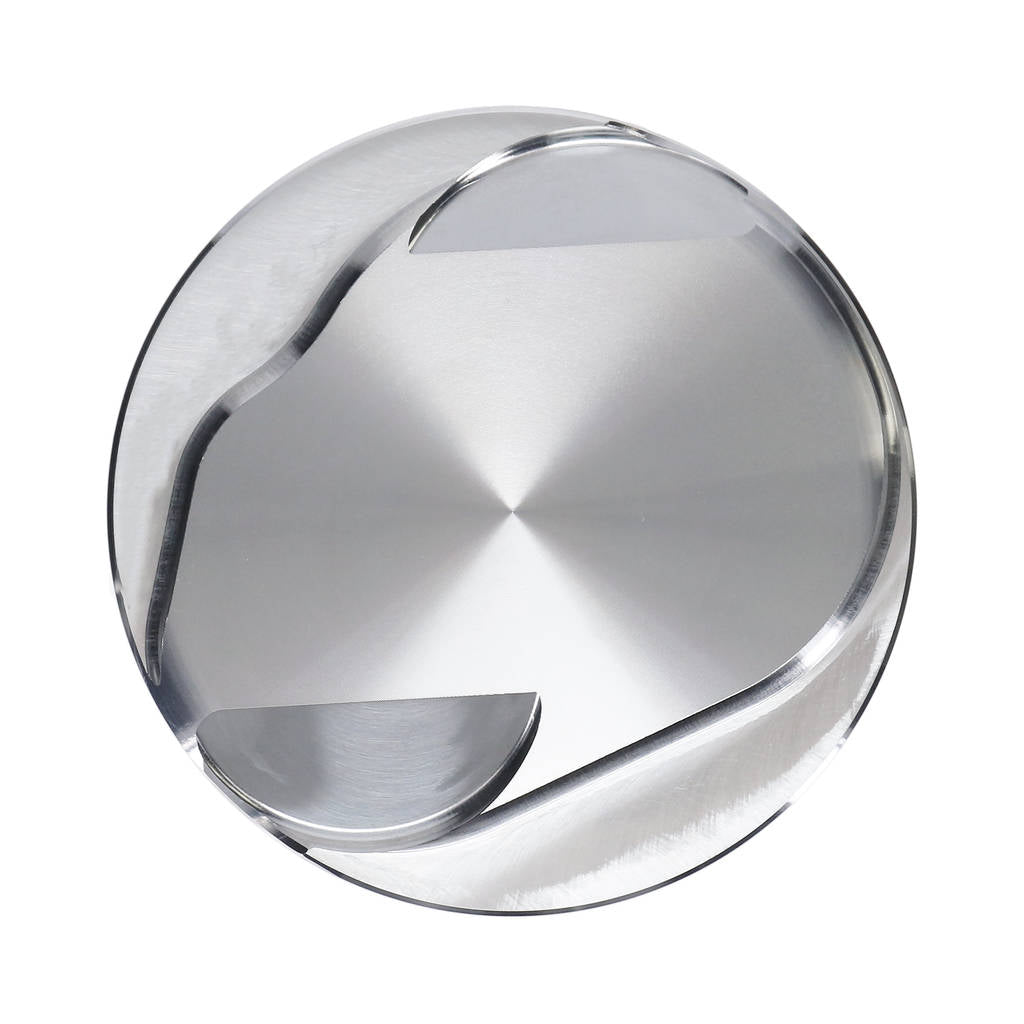

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-2

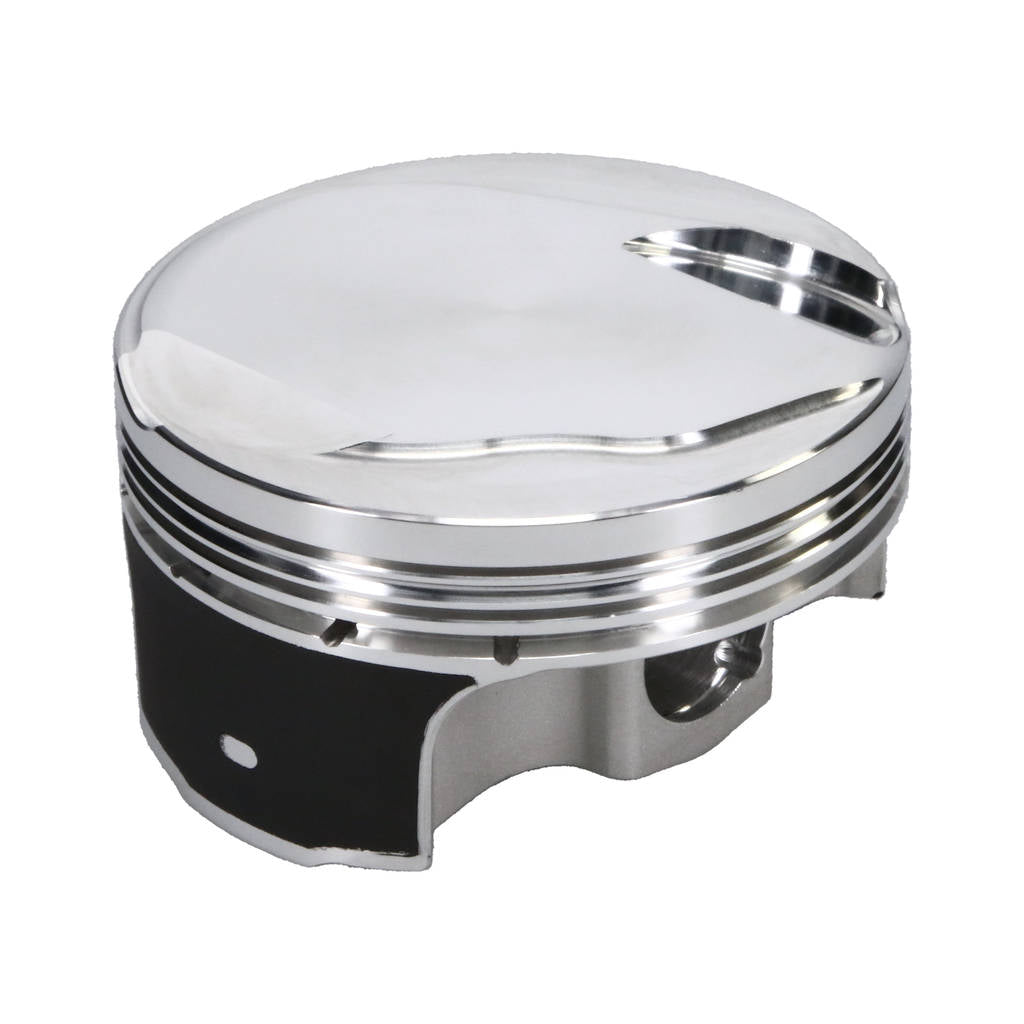

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-3
JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-4

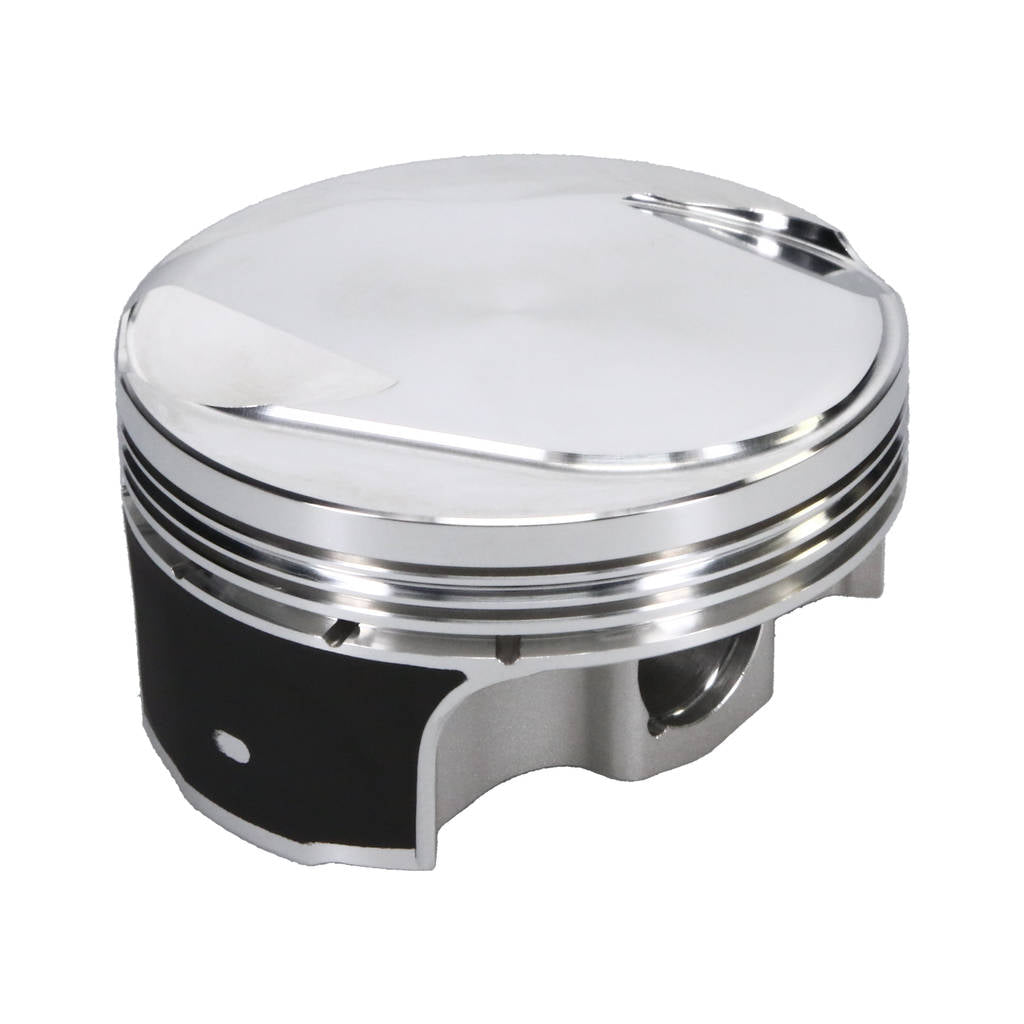

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-5

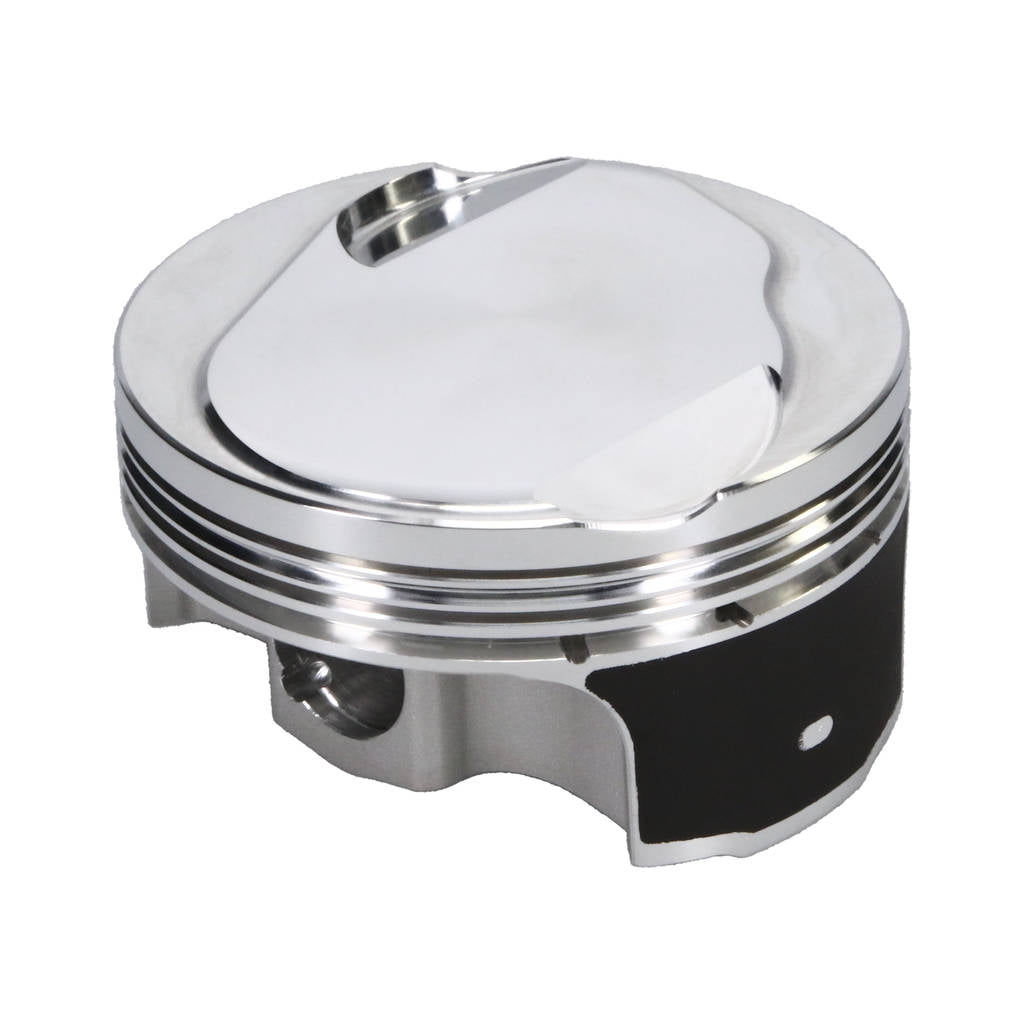

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-6

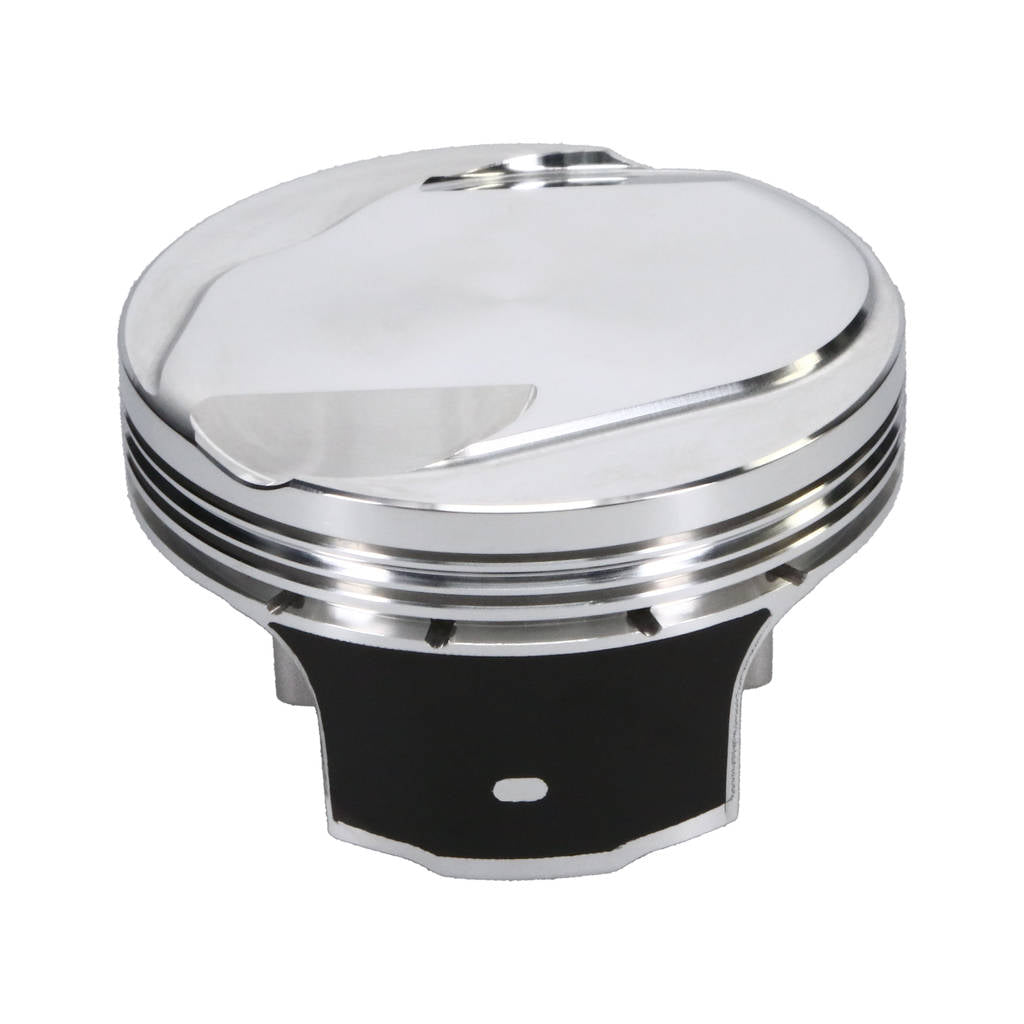

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-7

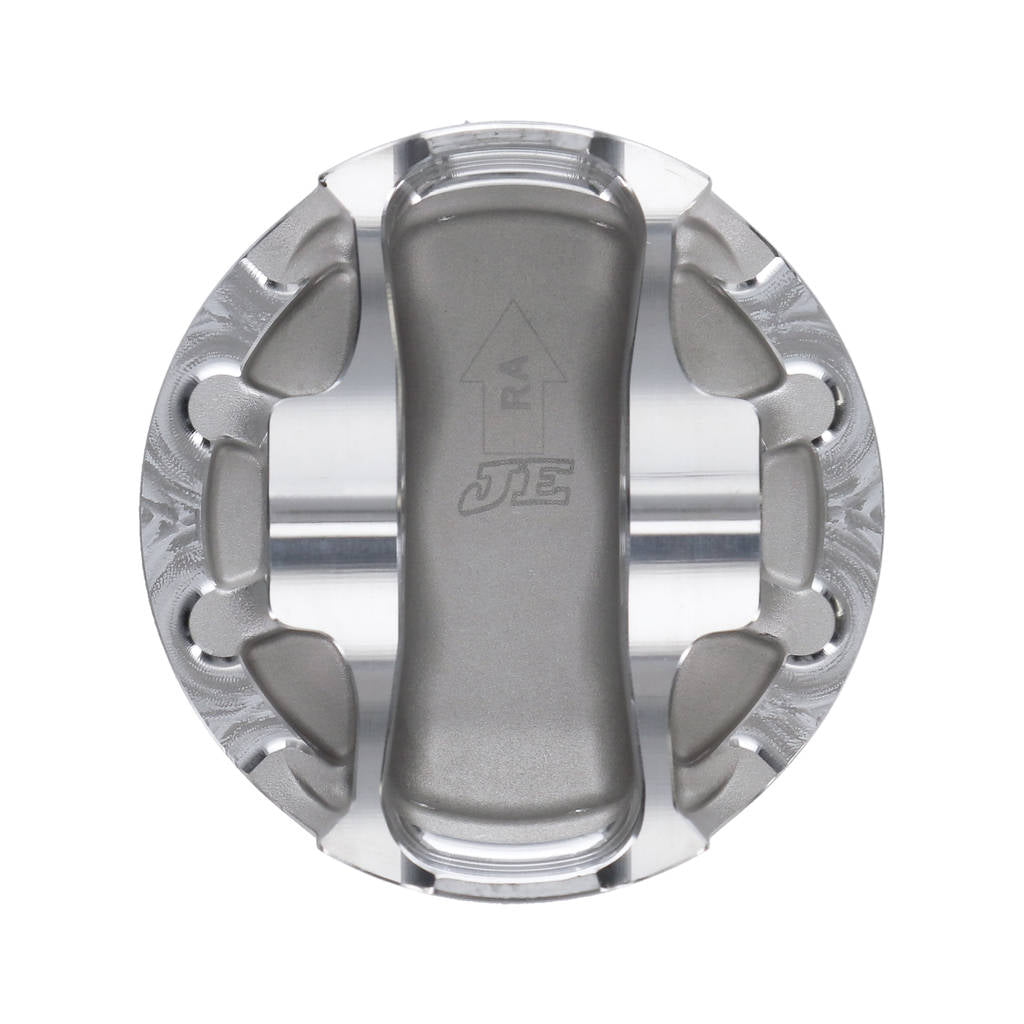

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-8

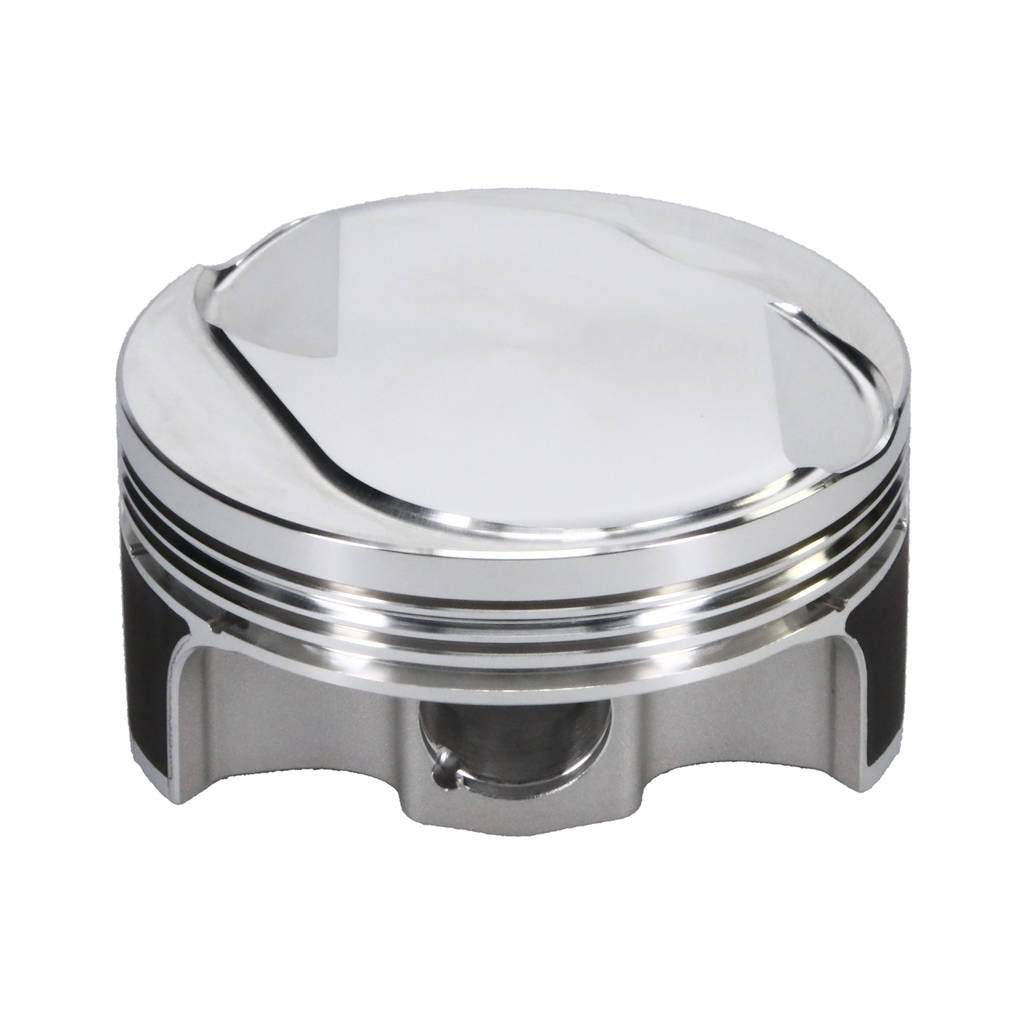

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-9

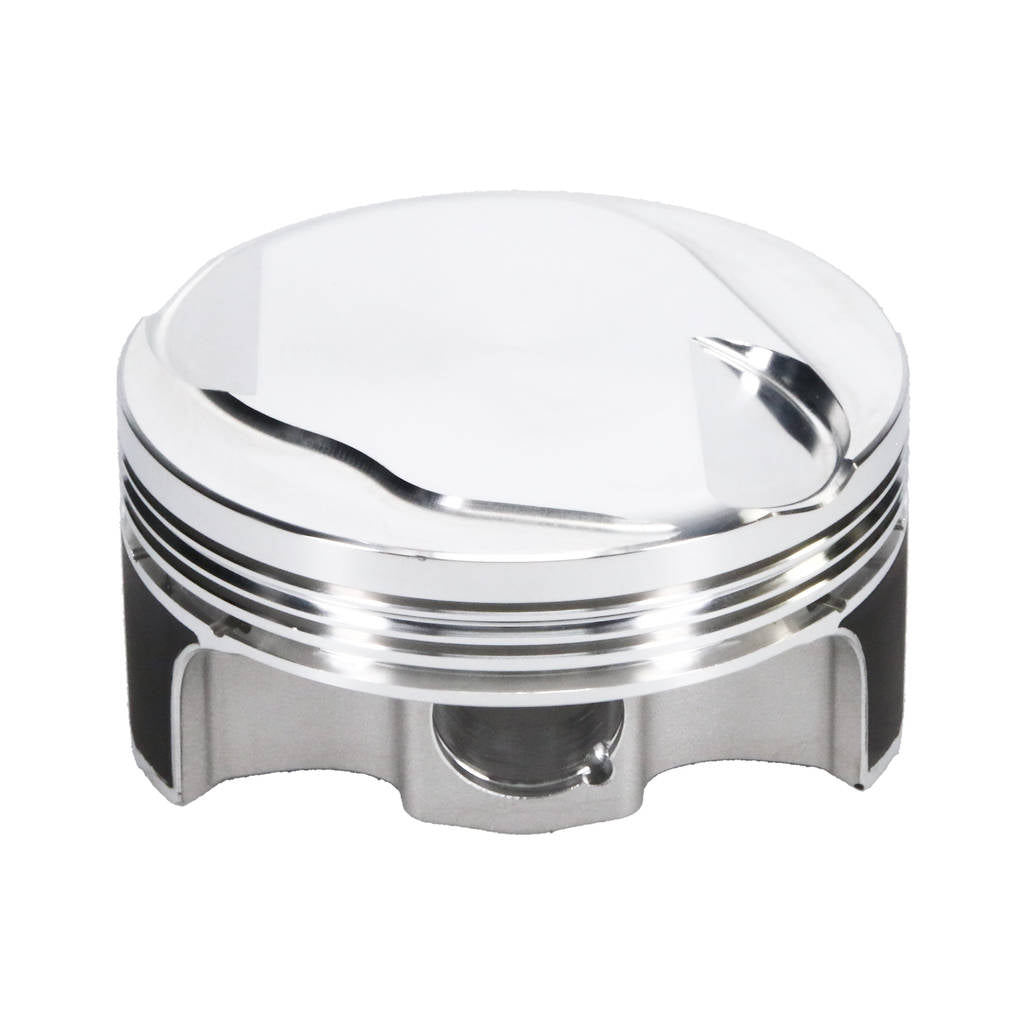

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine Photo-10

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine

AED 4,423.03

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 371785 GTIN: 193564431387
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description JE 371785 Piston Kit (4.020 in. Bore, 1.310 in. CH, -6.60 CC) for FORD Modular 6.2L Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

  • Forged from 4032 aluminum for tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
  • Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
  • Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

  • Piston Series: JE Pistons
  • Bore Diameter: 4.020 IN
  • Piston Head Type: Inv Dome/Dish
  • Compression Height: 1.310 IN
  • Piston Volume: -6.60 CC
  • Piston Material: 2618
  • Piston Quantity: 8
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Outer Diameter: 0.945 IN
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.150 IN
  • Intake Depth: .100 IN
  • Intake Diameter: 2.200 IN
  • Intake Angle: 19
  • Exhaust Diameter: 1.850
  • Exhaust Angle: 19
  • Top Groove Width: 0.04800 IN
  • 2nd Groove Width: 0.06000 IN
  • Oil Groove Width: 0.11750 IN
  • Product Type: Engine Piston Kit
  • Product Market: Domestic
  • Modular
