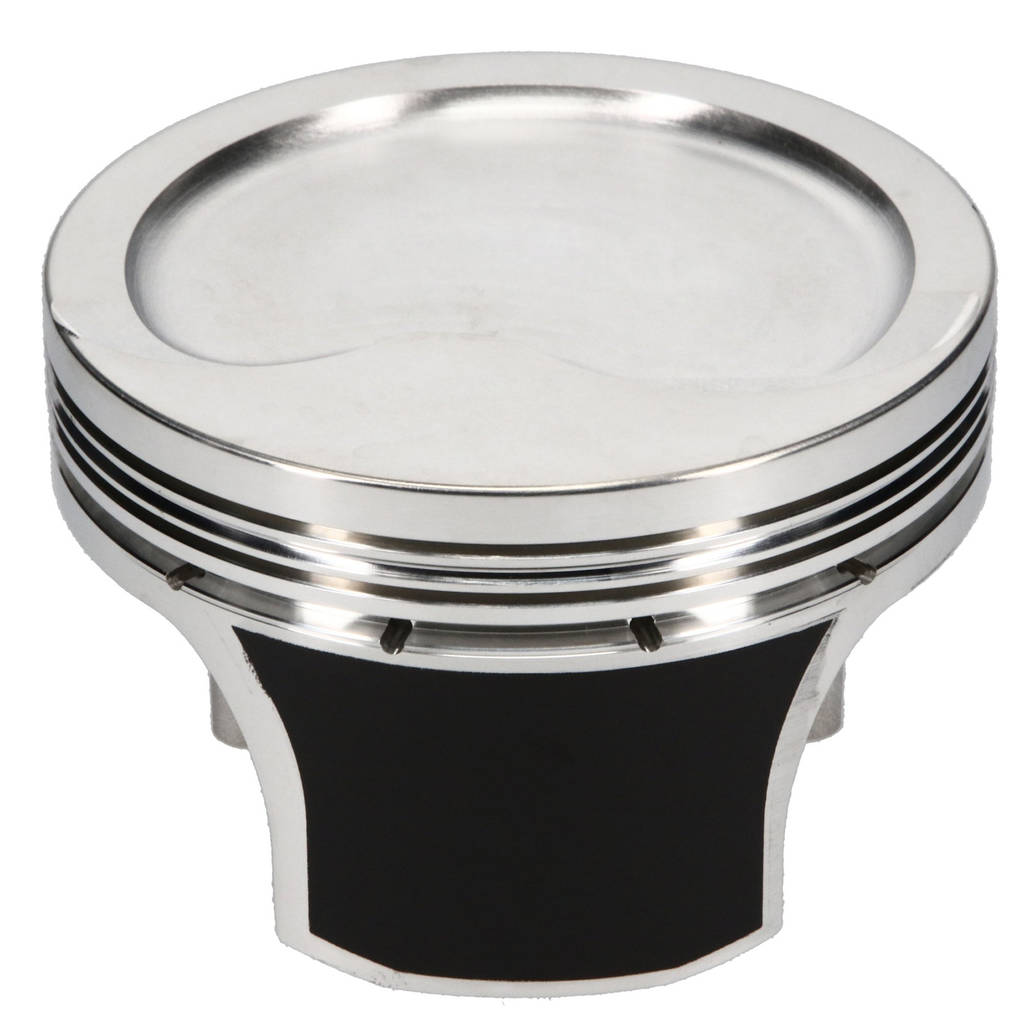

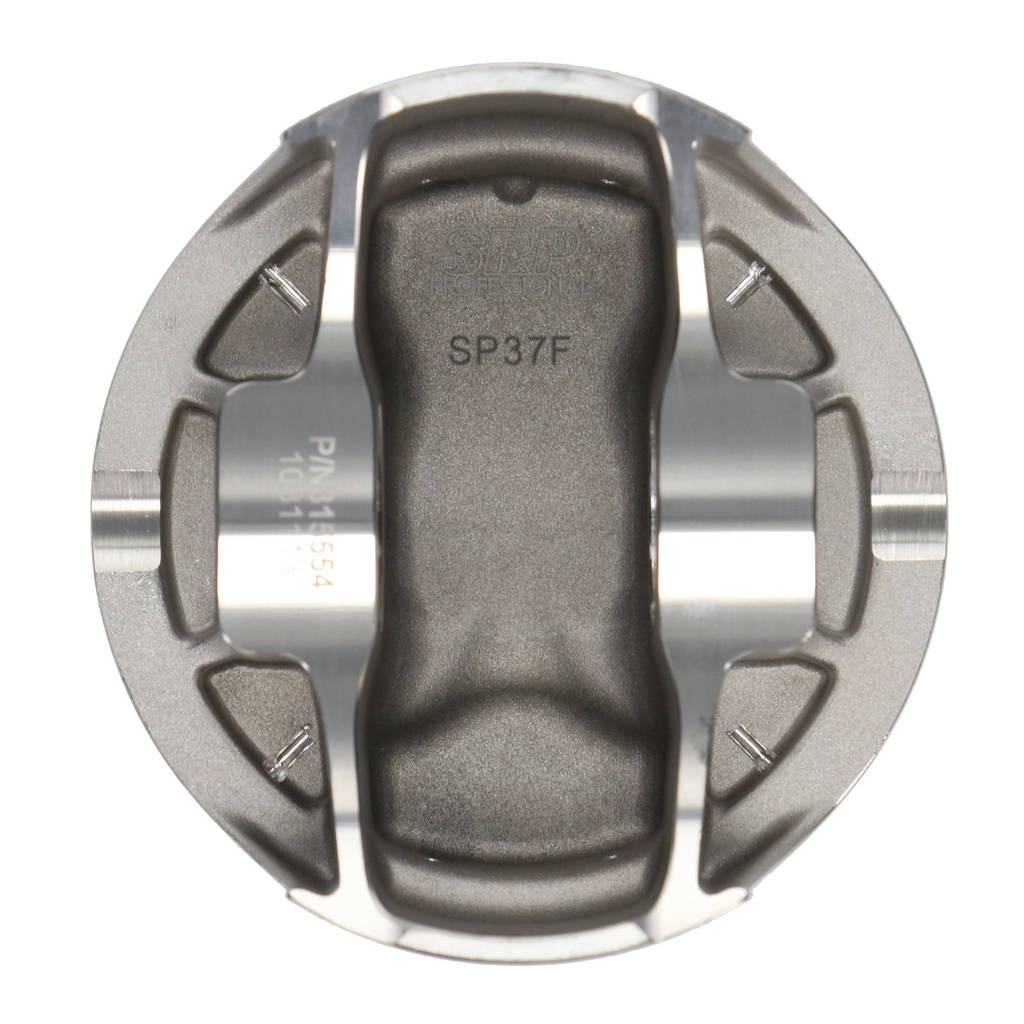

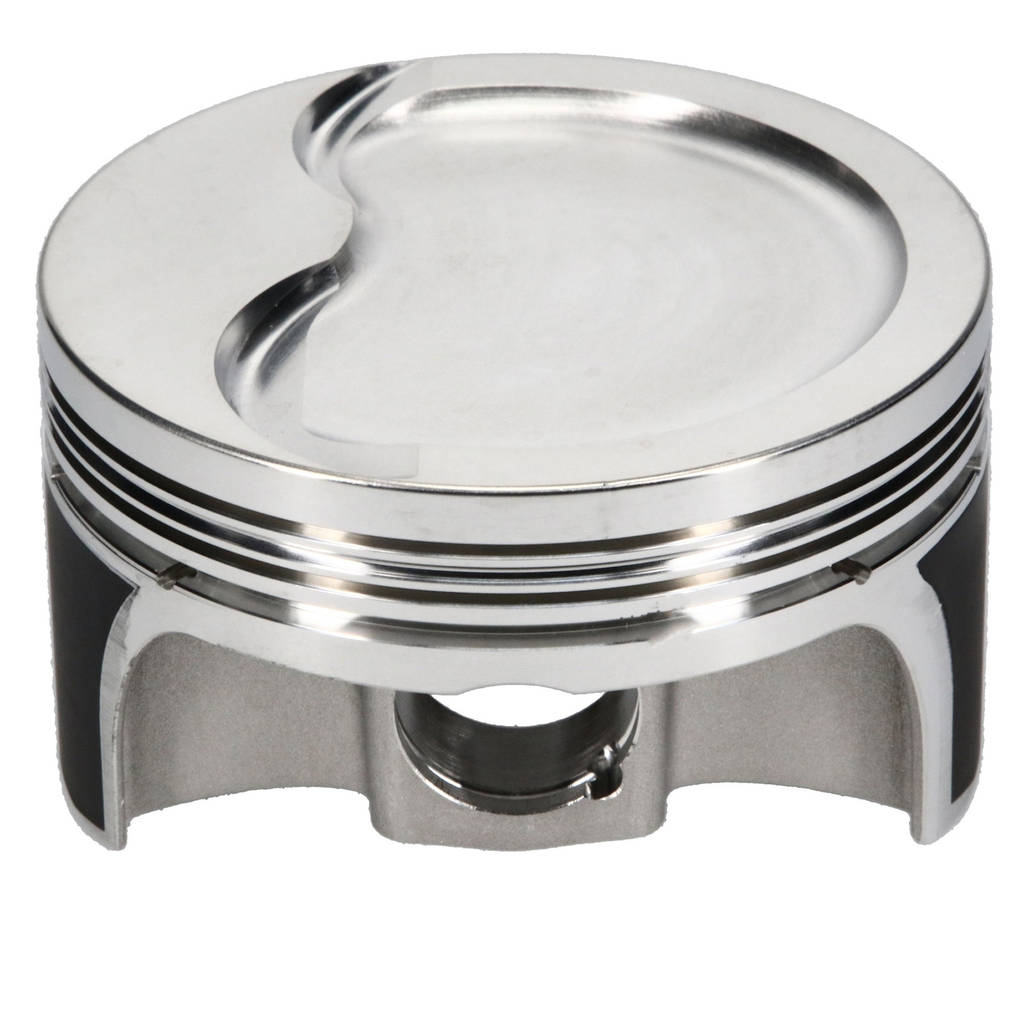

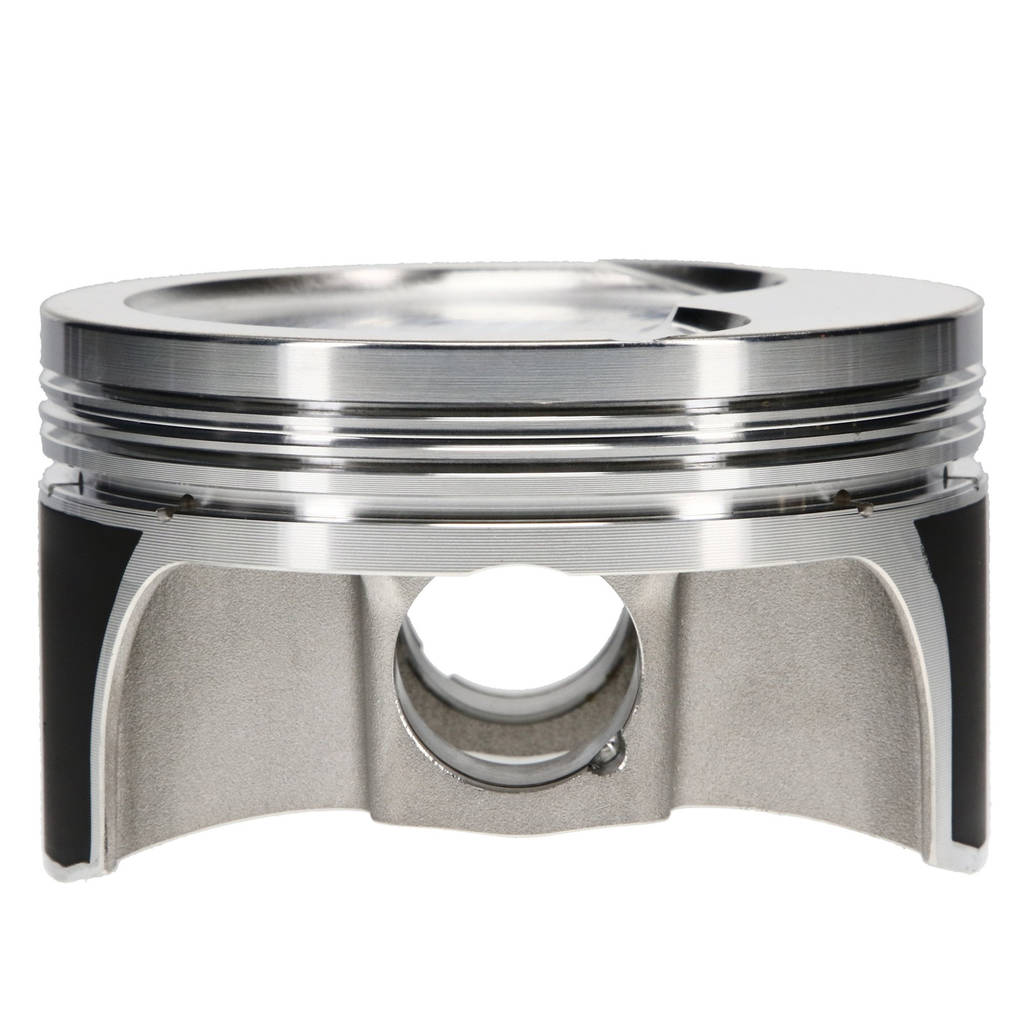

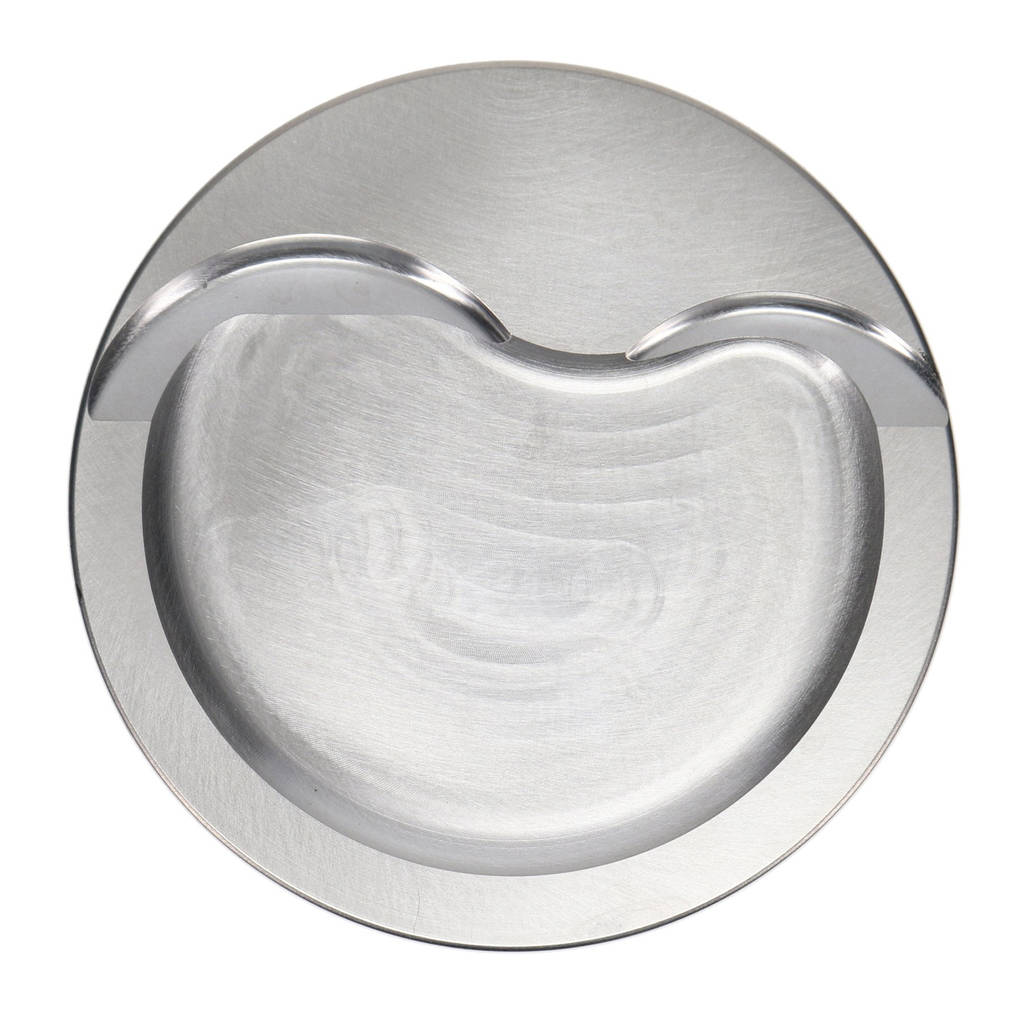

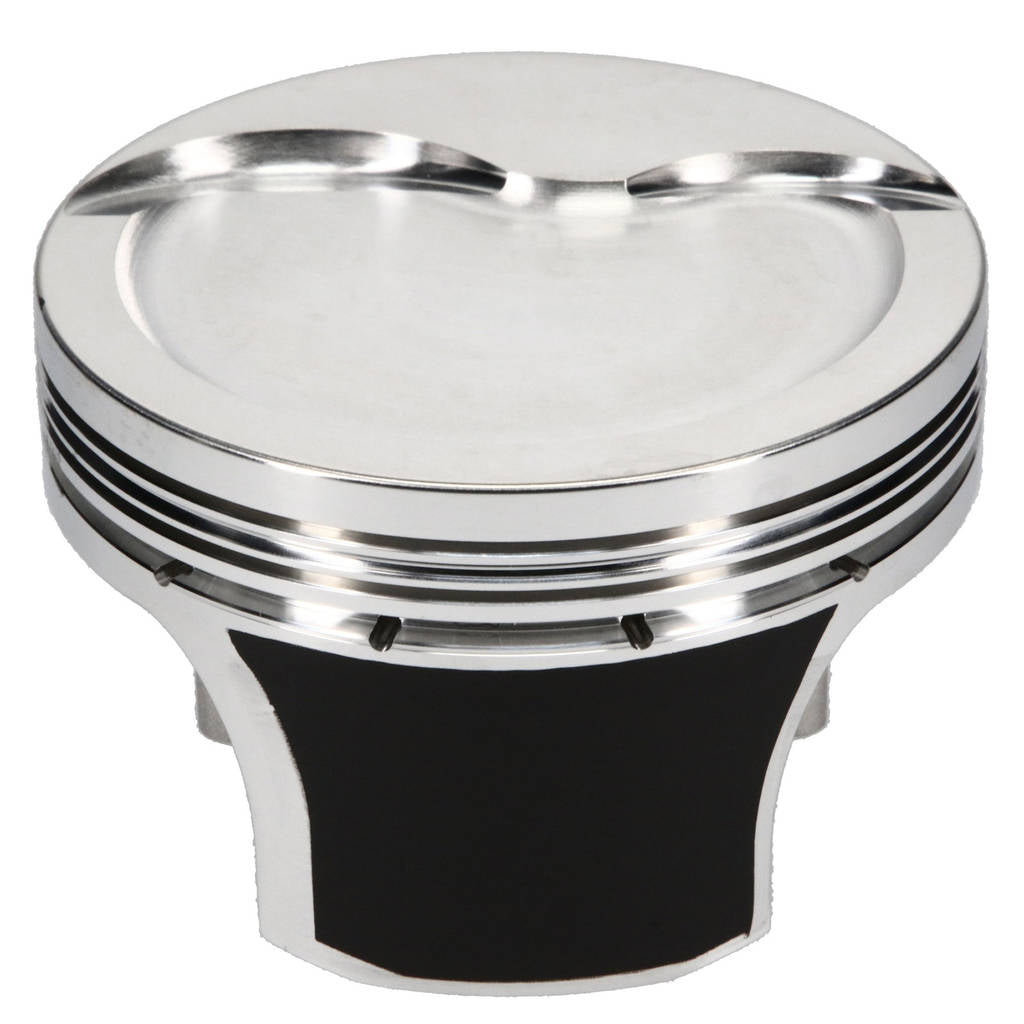

JE 366446 Piston Kit SRP Pro 2618 (3.905 in. Bore, 1.294 in. CH, -17.50 CC) for CHEVROLET LS Gen III/IV Engine

Description JE 366446 Piston Kit SRP Pro 2618 (3.905 in. Bore, 1.294 in. CH, -17.50 CC) for CHEVROLET LS Gen III/IV Engine

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro Series with extremely strong 2618 forged aluminum. The pistons maximize strength and value for small-block and big-block builds.

Forged in the USA, the 2618 aluminum provides the high tensile strength required for high-demand performance applications.

• Proprietary Forged Side Relief (FSR) design minimizes friction and power loss, reduces skirt width, and saves weight with a shorter Wrist Pin
• Ring groove placement maintains a positive seal in high-HP boosted applications, while the stout top land improves strength
• Low-friction skirt coating reduces wear and operating noise while optimizing performance
• Accumulator groove reduces combustion gas pressure and Piston Ring flutter, improving the Piston Ring seal for consistent power

Specifications:

• Piston Series: SRP Pro 2618
• Cylinder Head: GM LS1 15 DEG
• Bore Diameter: 3.905 IN
• Piston Head Type: Dish
• Compression Height: 1.294 IN
• Piston Volume: -17.50 CC
• Piston Material: 2618
• Forging Type: FSR
• Ring Set Included: Yes
• Top Compression Ring Thickness: 0.0595 IN
• Second Compression Ring Thickness: 0.0600 IN
• Oil Ring Thickness: 0.1175 IN
• Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
• Wrist Pin Outer Diameter: 0.927 IN
• Wrist Pin Wall Thickness: 0.200 IN
• Intake Depth: .180 IN
• Intake Diameter: 2.100 IN
• Intake Angle: 15
• Exhaust Depth: S
• Exhaust Diameter: 1.750
• Exhaust Angle: 15
• Top Groove Width: 0.05950 IN
• 2nd Groove Width: 0.06000 IN
• Oil Groove Width: 0.11750 IN
• Product Type: Engine Piston Kit
• Product Market: Domestic

Vehicle Compatibility:

• LS Gen III/IV
