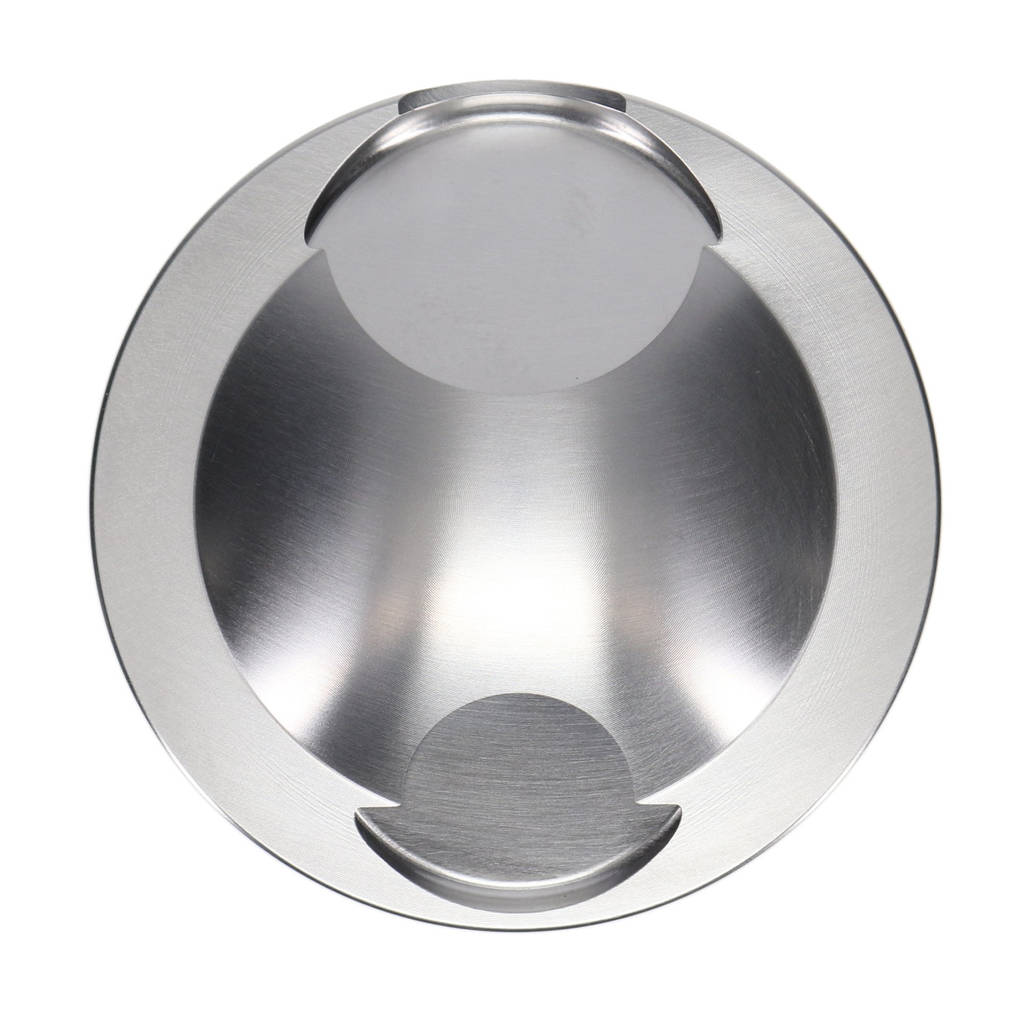

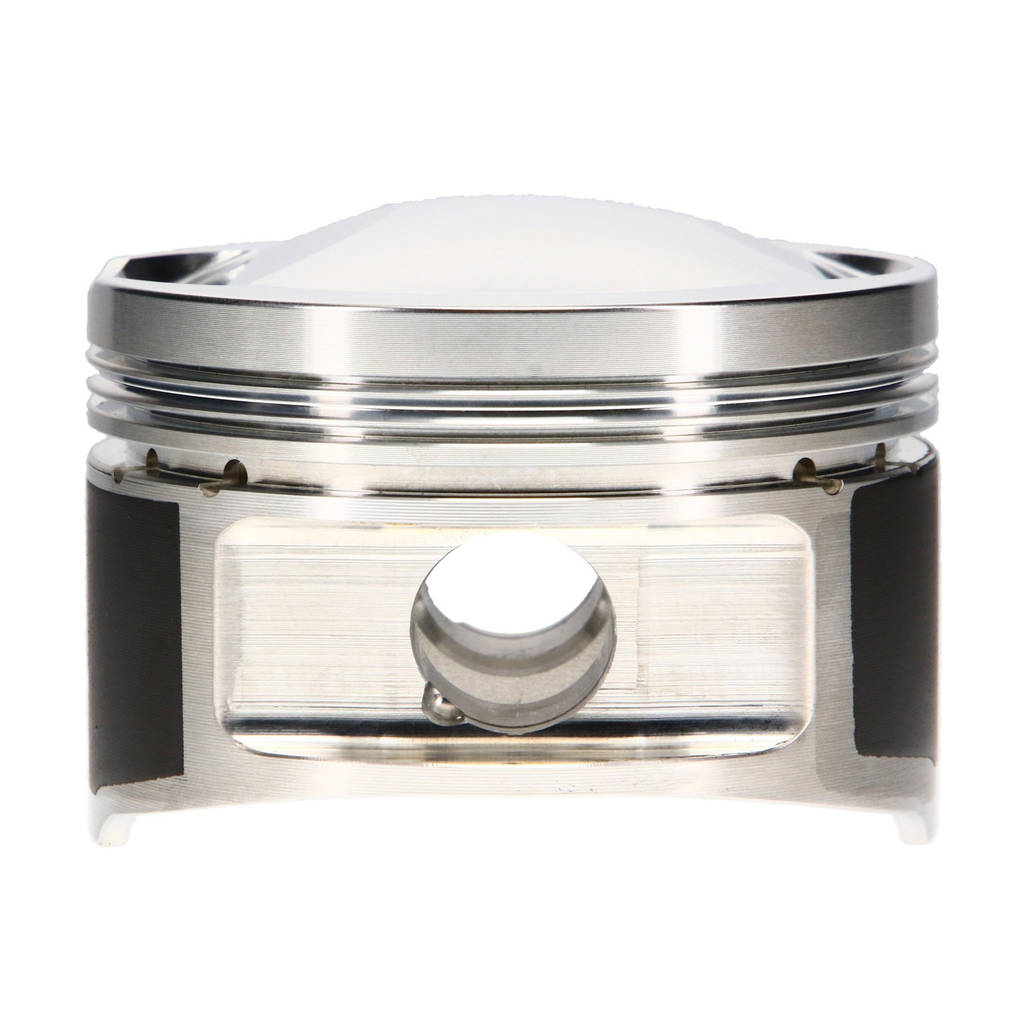

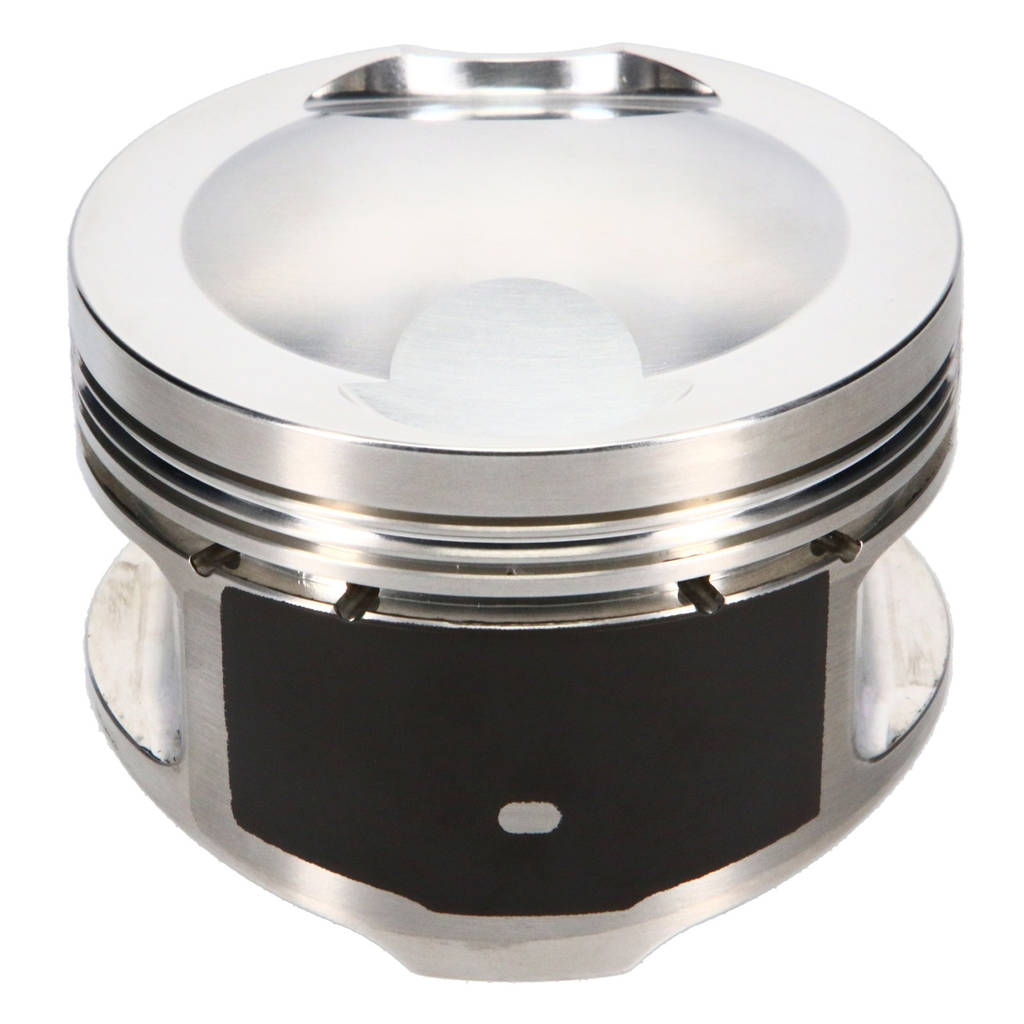

JE 362223S Piston Single (82.00 mm Bore, 1.209 in. CH, 12.60 CC) for FERRARI 2.9L 308 V8 2V Engine Photo-0
JE 362223S Piston Single (82.00 mm Bore, 1.209 in. CH, 12.60 CC) for FERRARI 2.9L 308 V8 2V Engine Photo-1
JE 362223S Piston Single (82.00 mm Bore, 1.209 in. CH, 12.60 CC) for FERRARI 2.9L 308 V8 2V Engine Photo-2
JE 362223S Piston Single (82.00 mm Bore, 1.209 in. CH, 12.60 CC) for FERRARI 2.9L 308 V8 2V Engine Photo-3
JE 362223S Piston Single (82.00 mm Bore, 1.209 in. CH, 12.60 CC) for FERRARI 2.9L 308 V8 2V Engine Photo-4
JE 362223S Piston Single (82.00 mm Bore, 1.209 in. CH, 12.60 CC) for FERRARI 2.9L 308 V8 2V Engine Photo-5

JE 362223S Piston Single (82.00 mm Bore, 1.209 in. CH, 12.60 CC) for FERRARI 2.9L 308 V8 2V Engine

AED 1,563.67

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 362223S GTIN: 193564011671
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 362223S Piston Single (82.00 mm Bore, 1.209 in. CH, 12.60 CC) for FERRARI 2.9L 308 V8 2V Engine

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description JE 362223S Piston Single (82.00 mm Bore, 1.209 in. CH, 12.60 CC) for FERRARI 2.9L 308 V8 2V Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

  • Forged from 4032 aluminum for tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
  • Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
  • Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

  • Piston Series: JE Pistons
  • Cylinder Head: 308 2V V8
  • Bore Diameter: 82.00 MM
  • Piston Head Type: Dome
  • Compression Height: 1.209 IN
  • Piston Volume: 12.60 CC
  • Piston Material: 2618
  • Piston Quantity: 1
  • Forging Type: Round
  • Piston Average Weight: 314 GR
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 0.0400 IN
  • Second Compression Ring Thickness: 0.0480 IN
  • Oil Ring Thickness: 0.111 IN
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.120 IN
