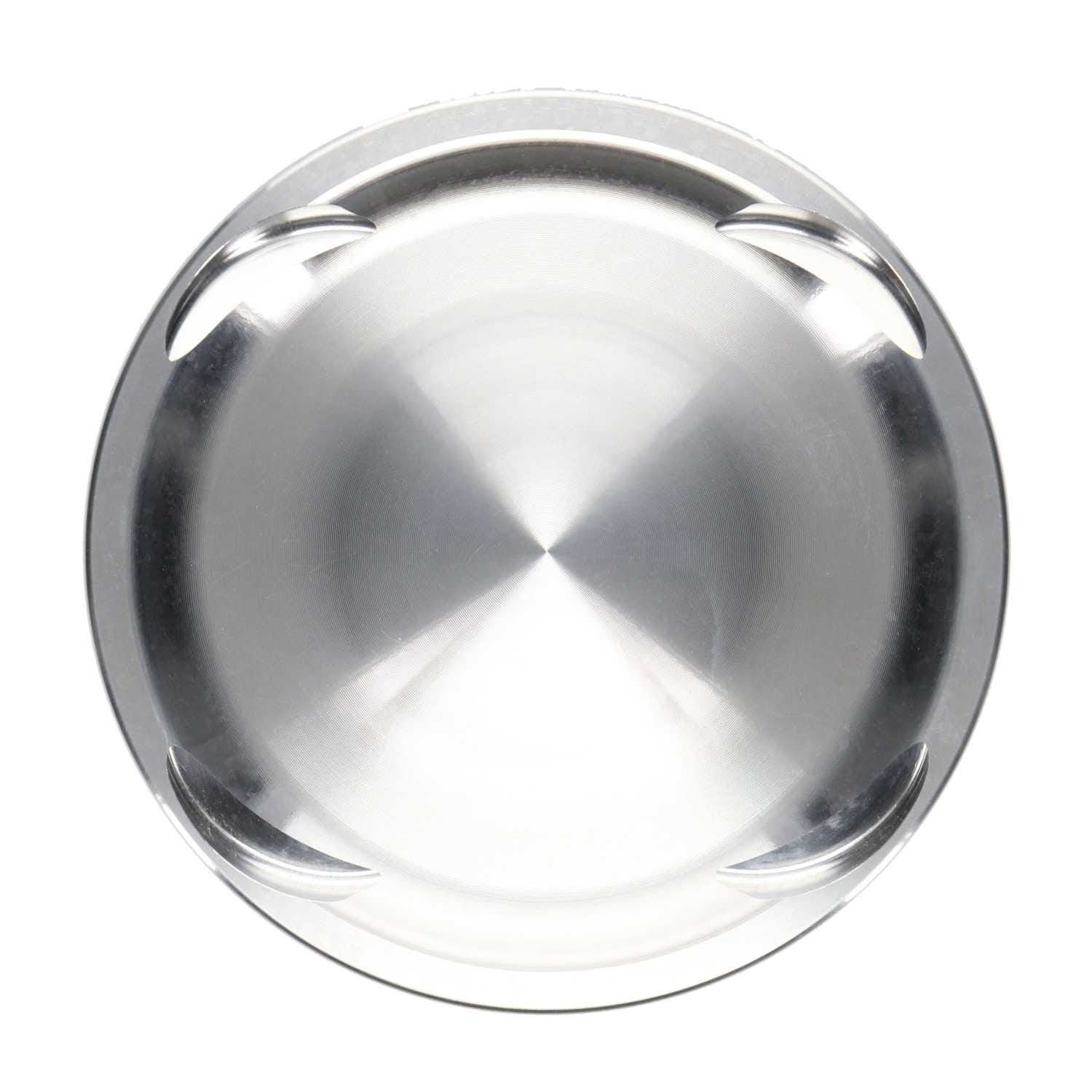

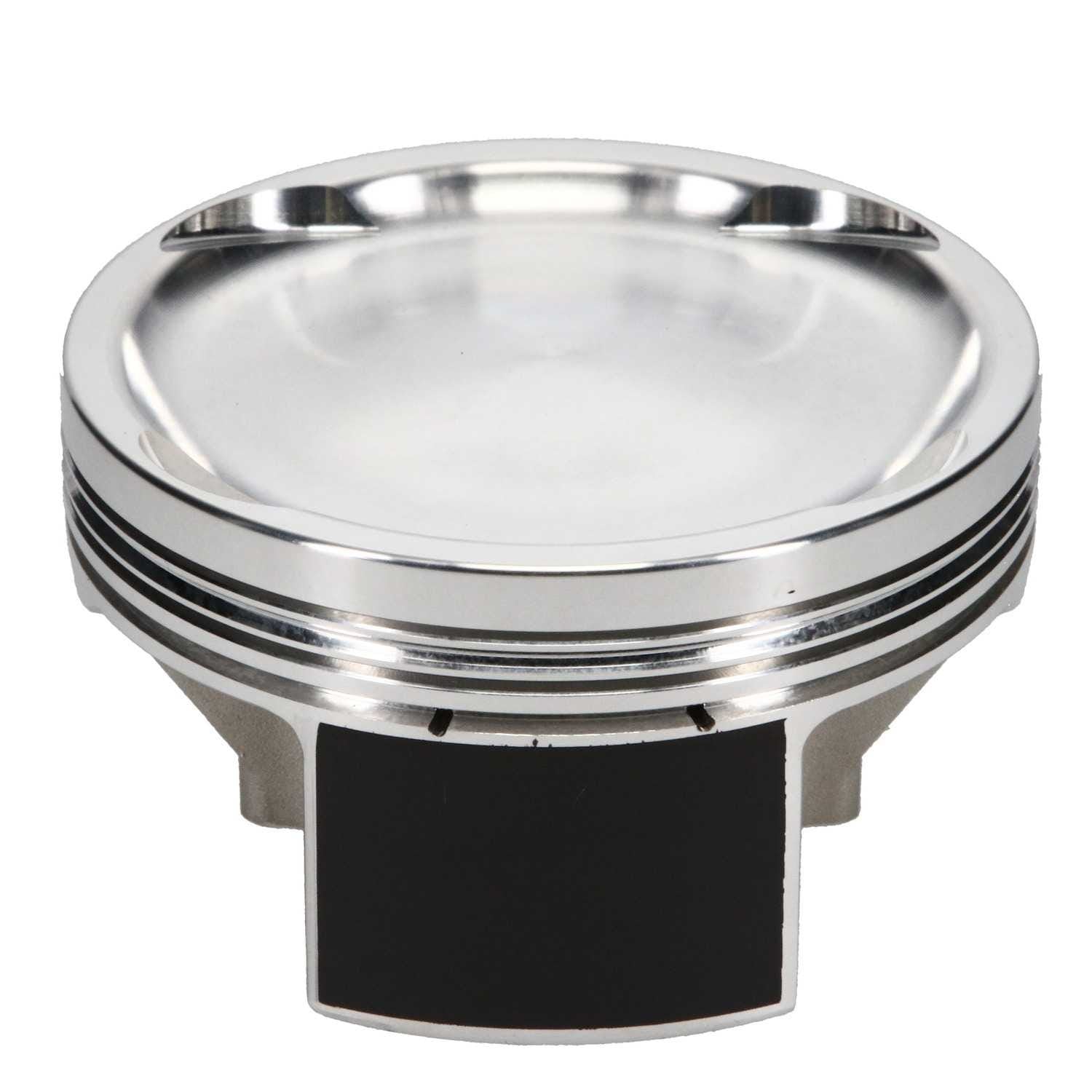

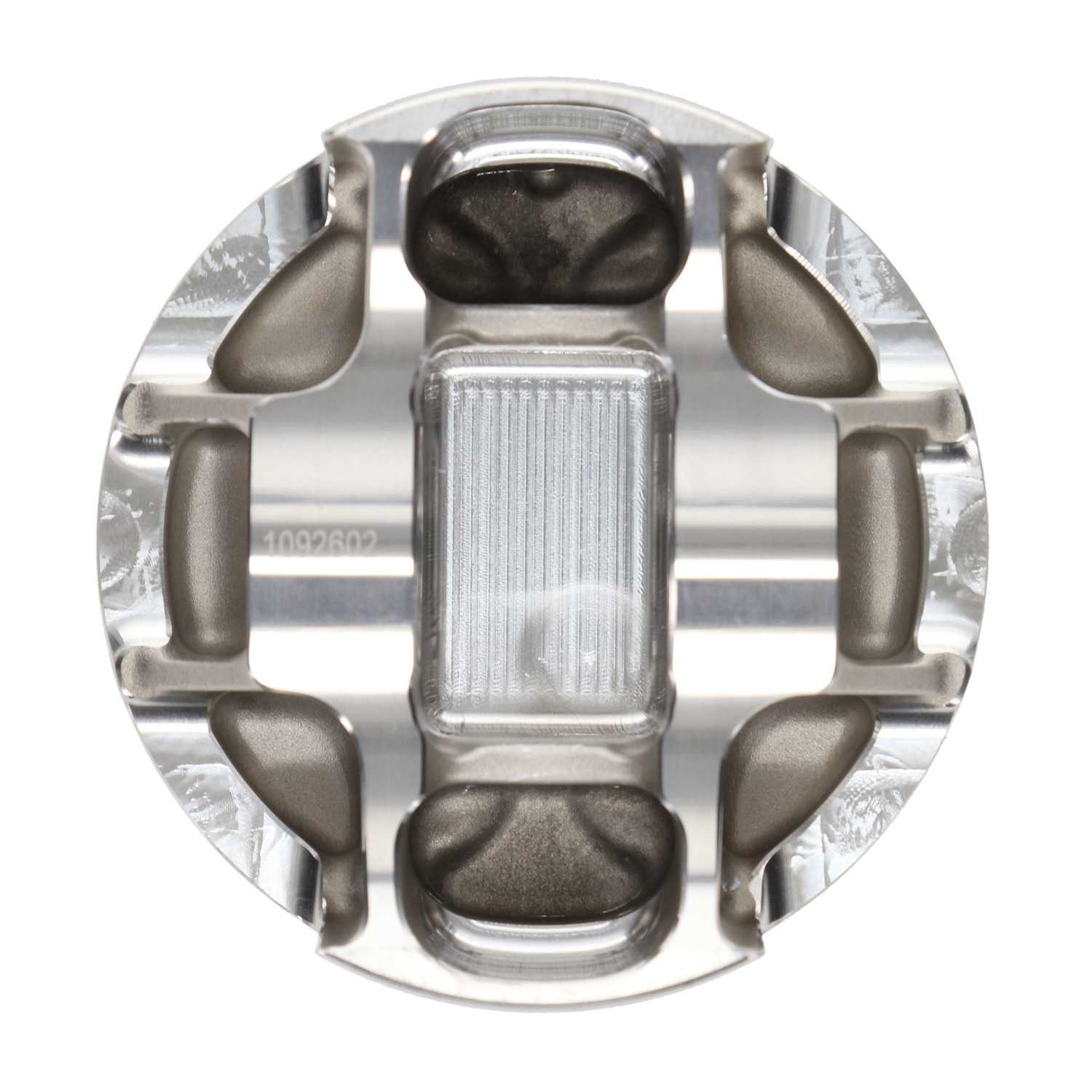

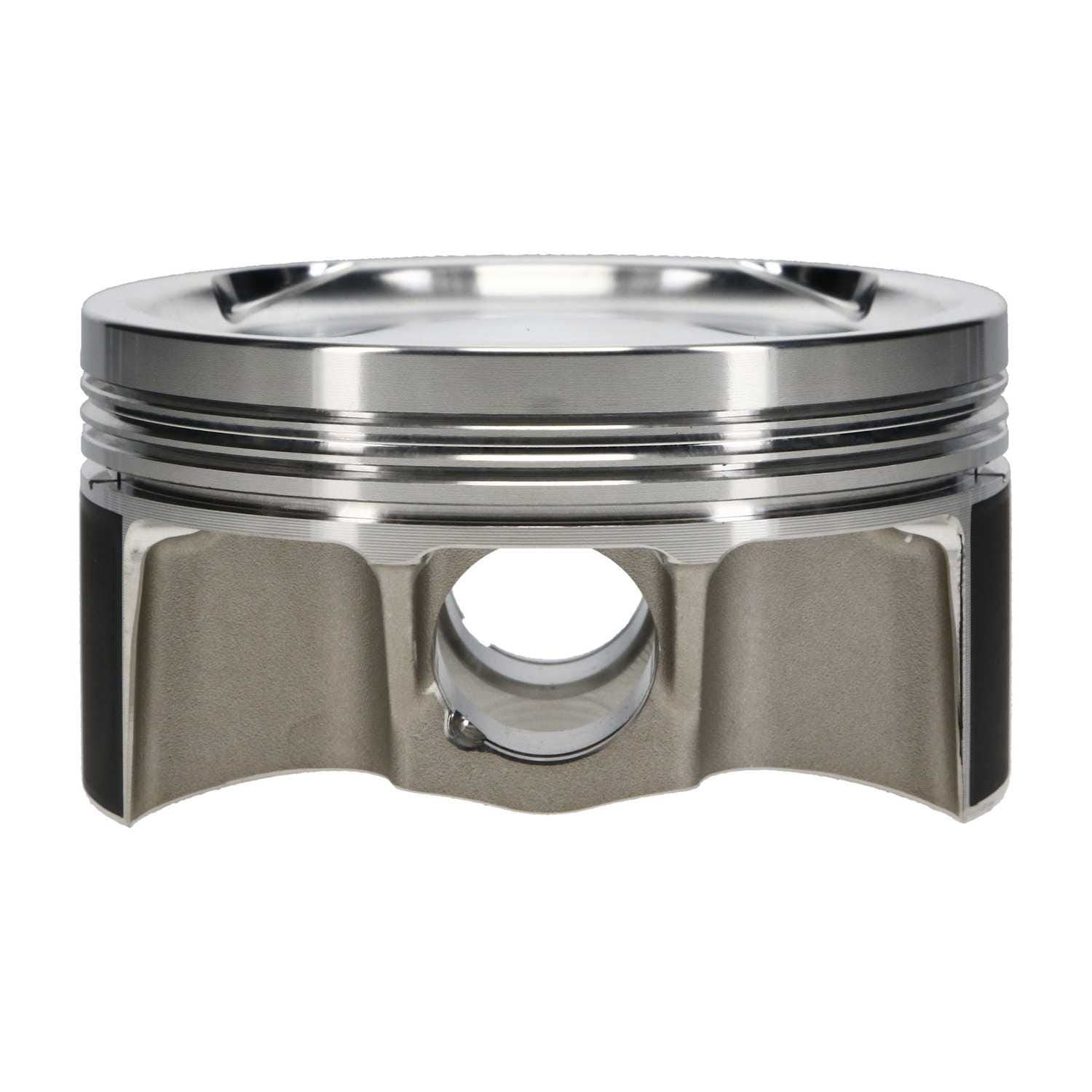

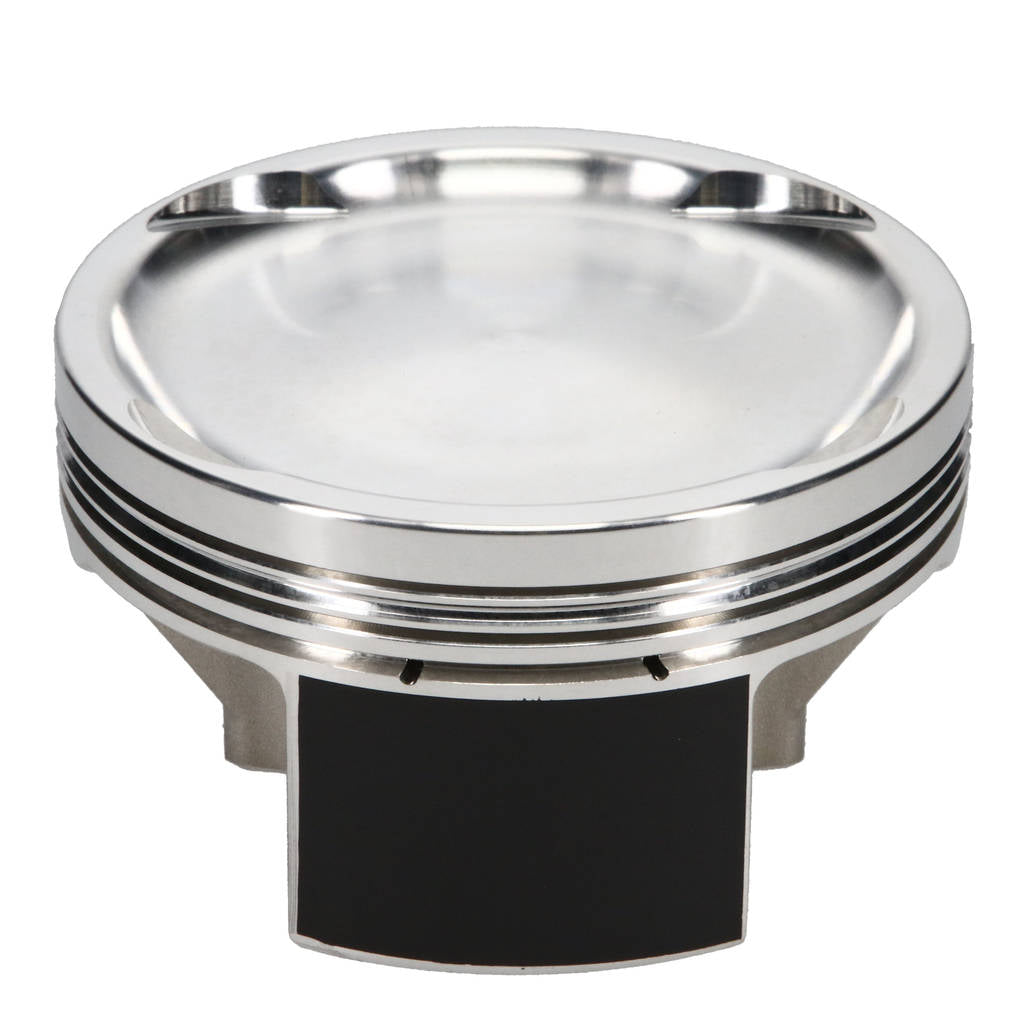

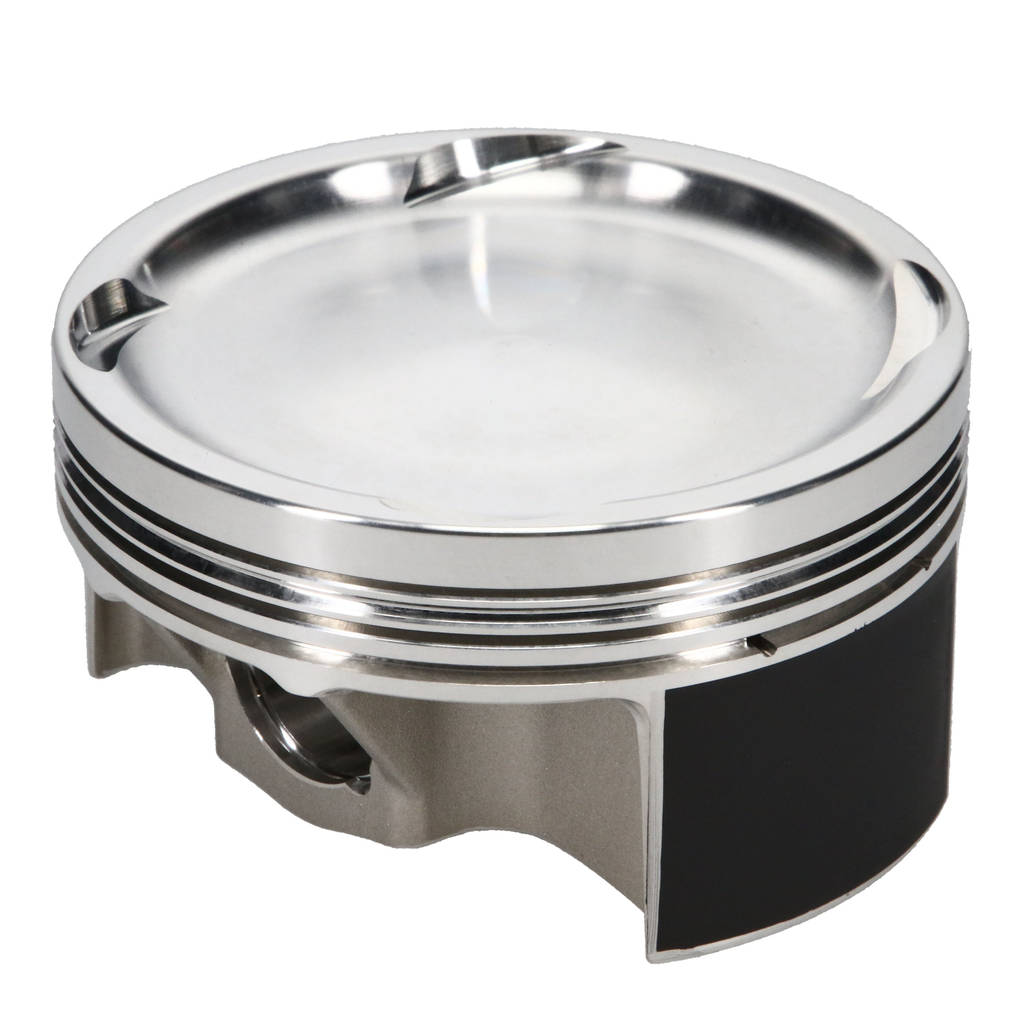

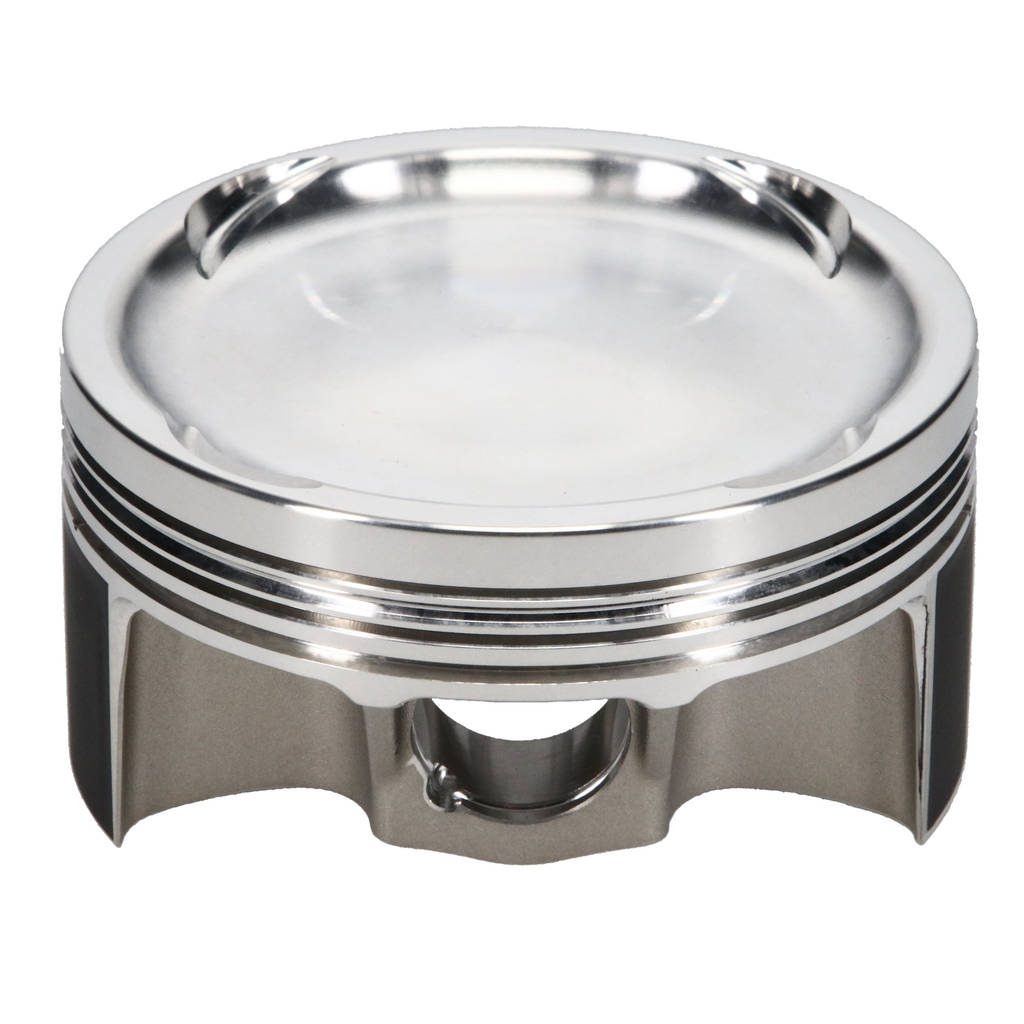

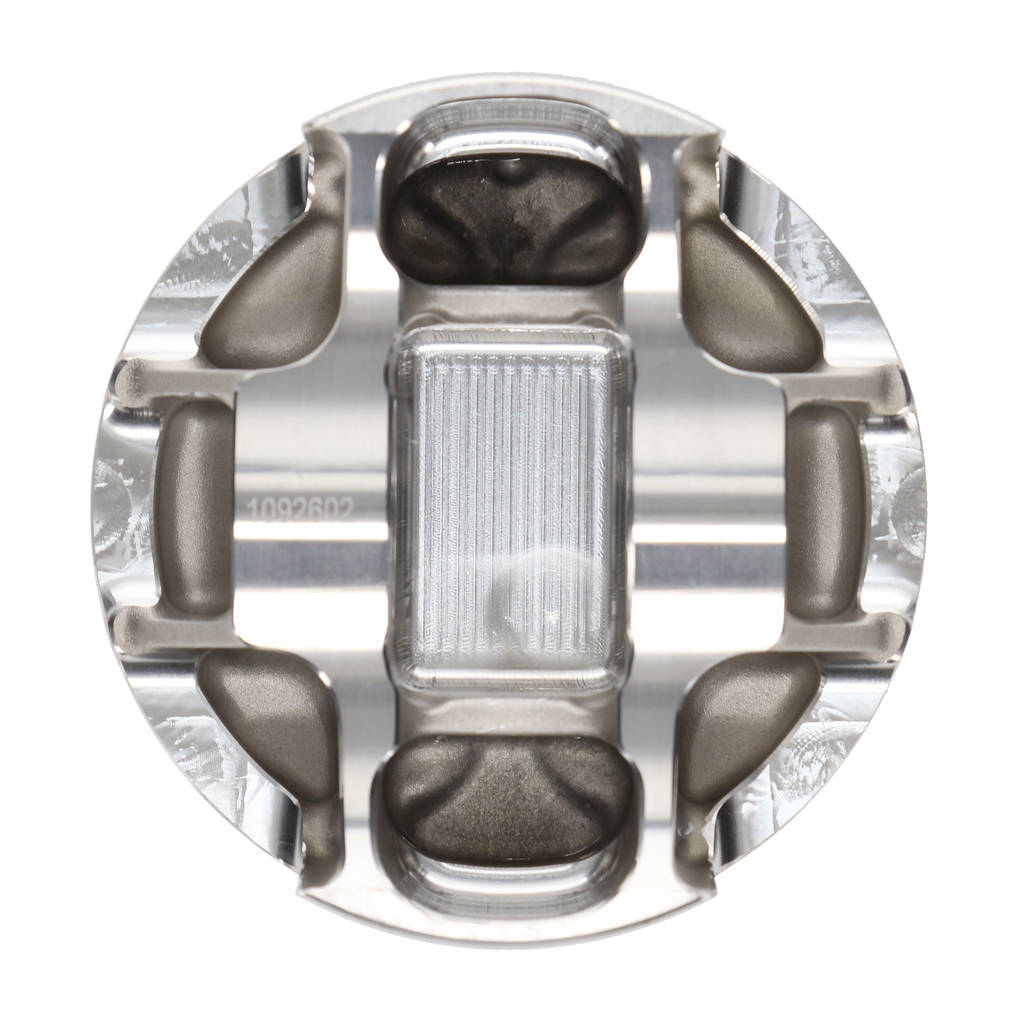

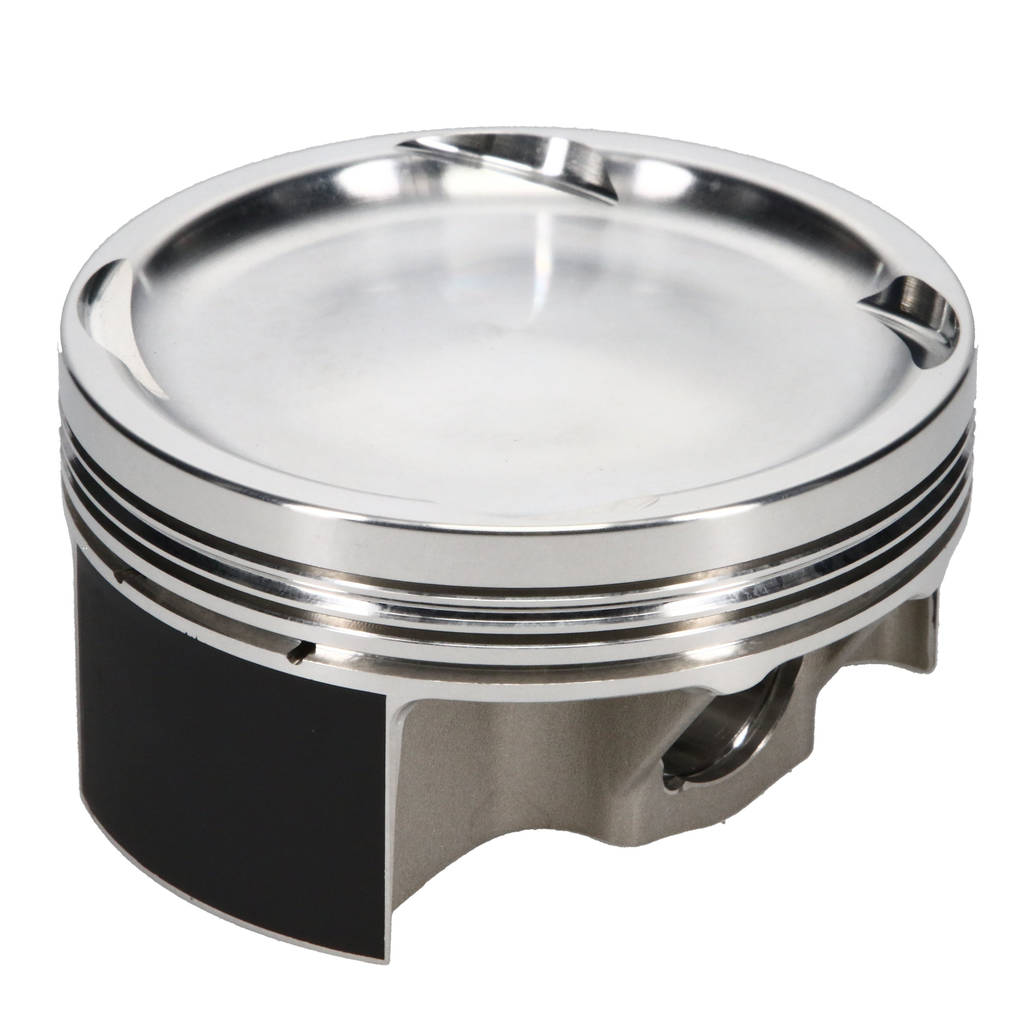

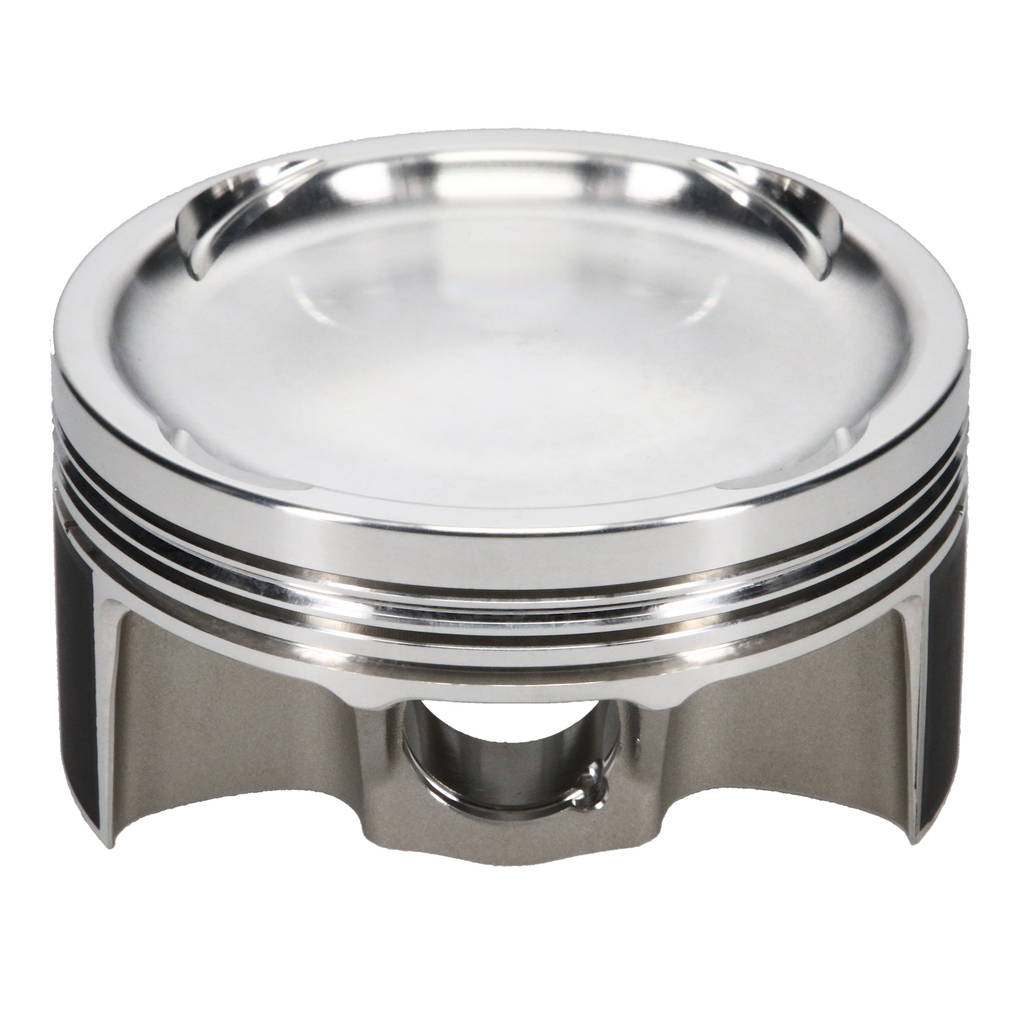

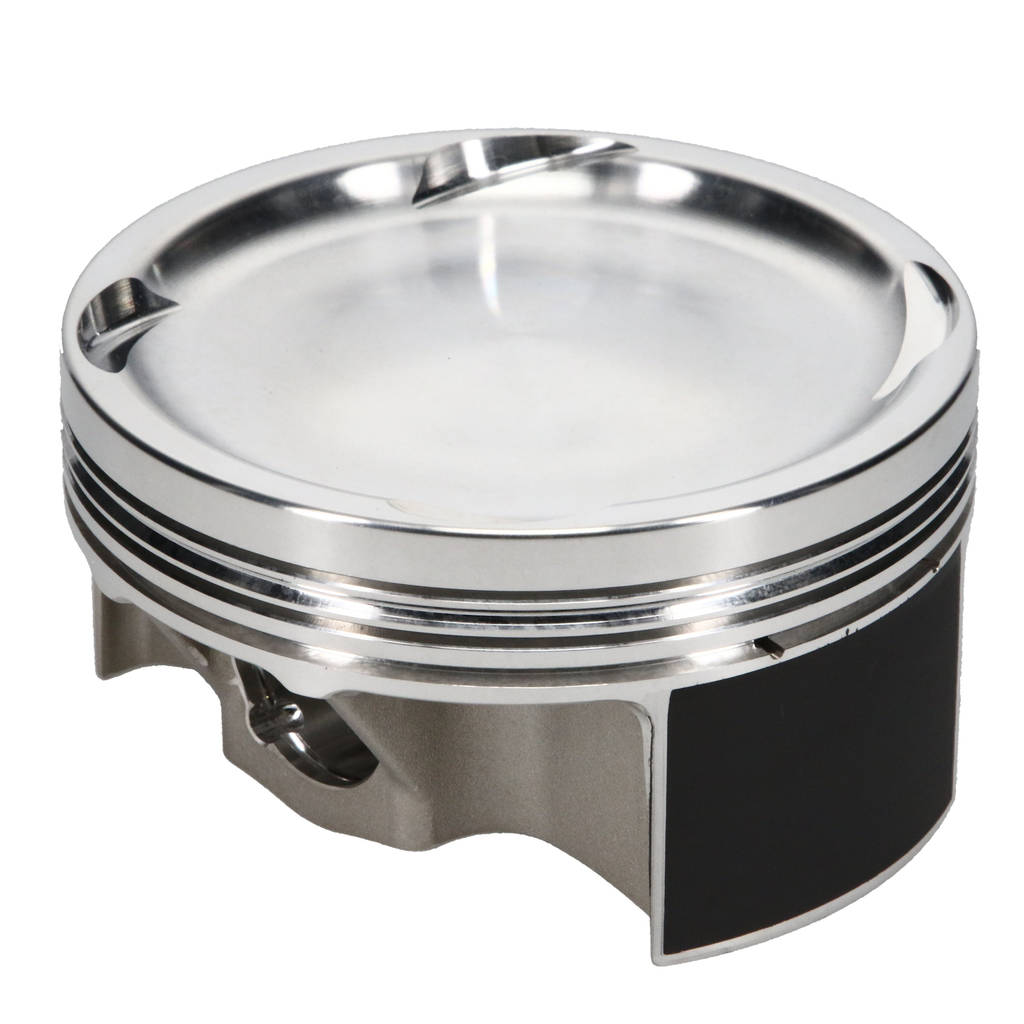

JE 362143S Piston PORSCHE M96.70/M97.70 (Single Piece Set)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
JE 362143S Piston PORSCHE M96.70/M97.70 (Single Piece Set)
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ATOMIC-SHOP UAE (RABDAN Motorsport)
14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
DESCRIPTION:
| Bore (in) | 3.937 |
|---|---|
| Bore (mm) | 100. |
| Top Compression Ring Thickness | 0.0383 |
| Second Compression Ring Thickness | 0.0480 |
| Oil Ring Thickness | 0.079 |
| Forging Type | FSR |
| Volume (cc) | -25.00 |
| Series | JE Pistons |
| Piston Head Type | Flat Top |
| Pin Diameter (IN) | 0.905 |
| Compression Height | 1.303 |
| Make | PORSCHE |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | 0.210 |
| Ringset Part Number | JG3701-3937 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.073 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 905-073-MW |
| Retainer Diameter (IN) | 0.905 |
| Replacement Single Piston | 362143S |
| Piston Pin Inside Diameter | 0.485 |
| Piston Pin Material | 9310 NICKEL CARBON STEEL ALLOY |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.250 |
| Pin Offset | No |
| Pin Brand | JE Pistons |
| Pin Part Number | 905-2250-21-93C |
| Pin Included | Yes |
| Pin Diameter (mm) | 23.00 |
| Oil Rail Support Included | No |
| Deck Clearance | 0.000 |
| Brand | JE Pistons |
