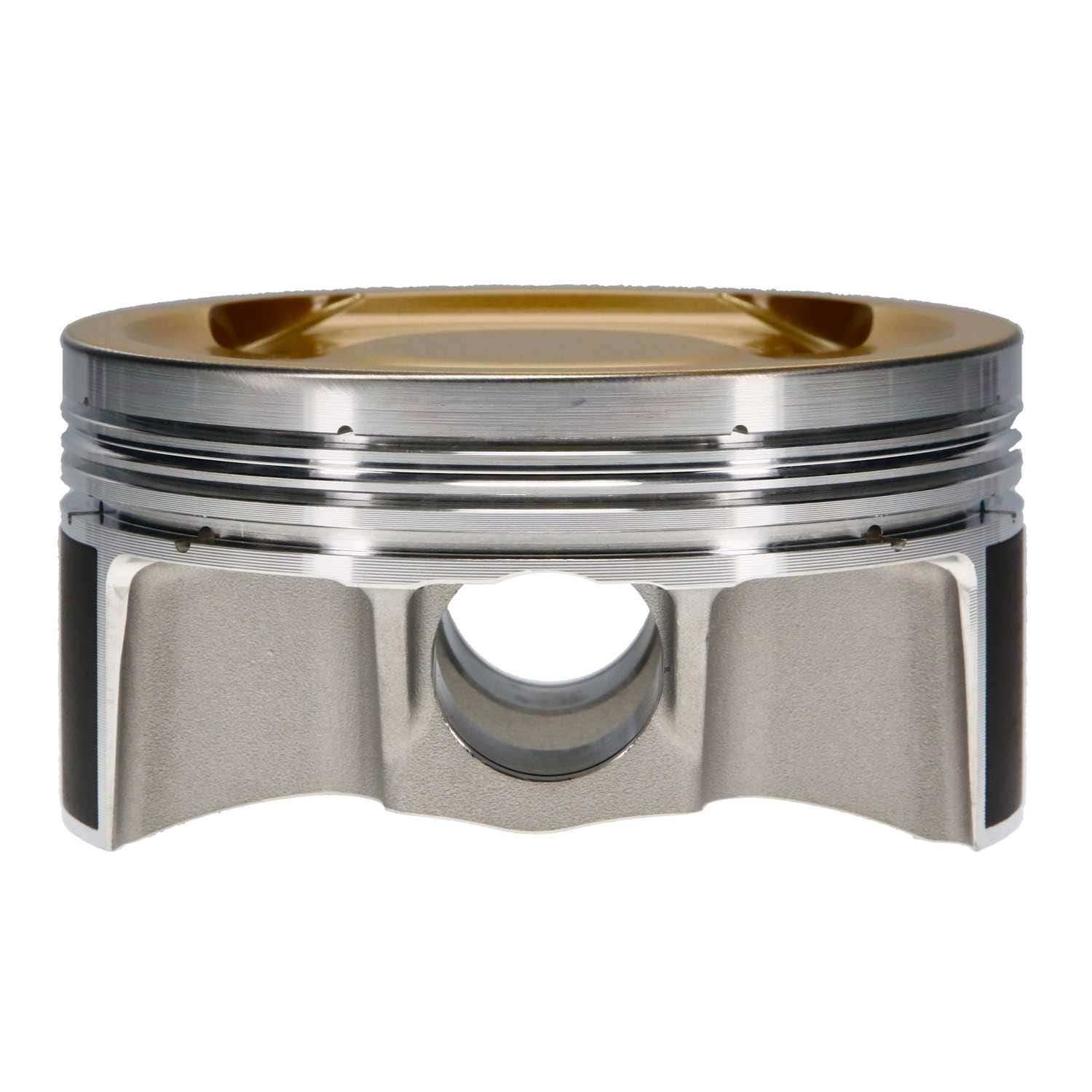

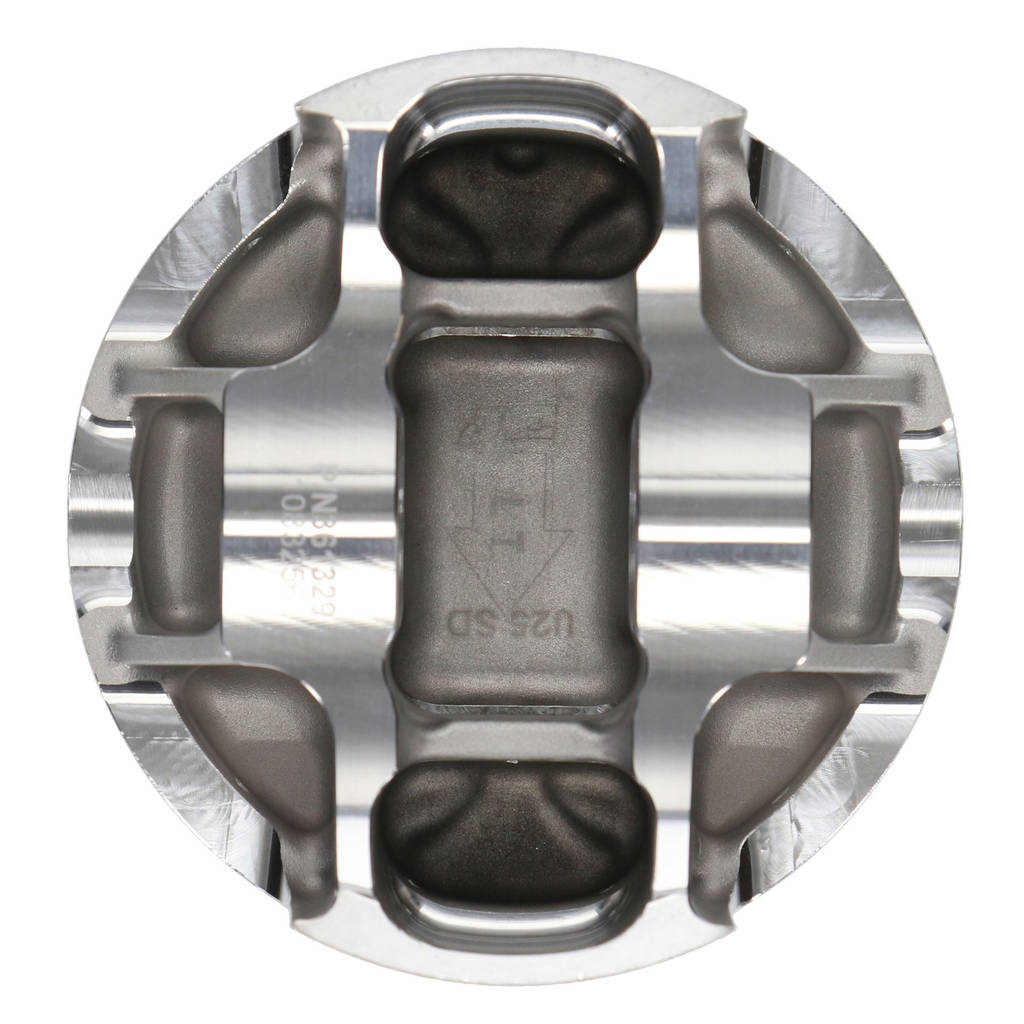

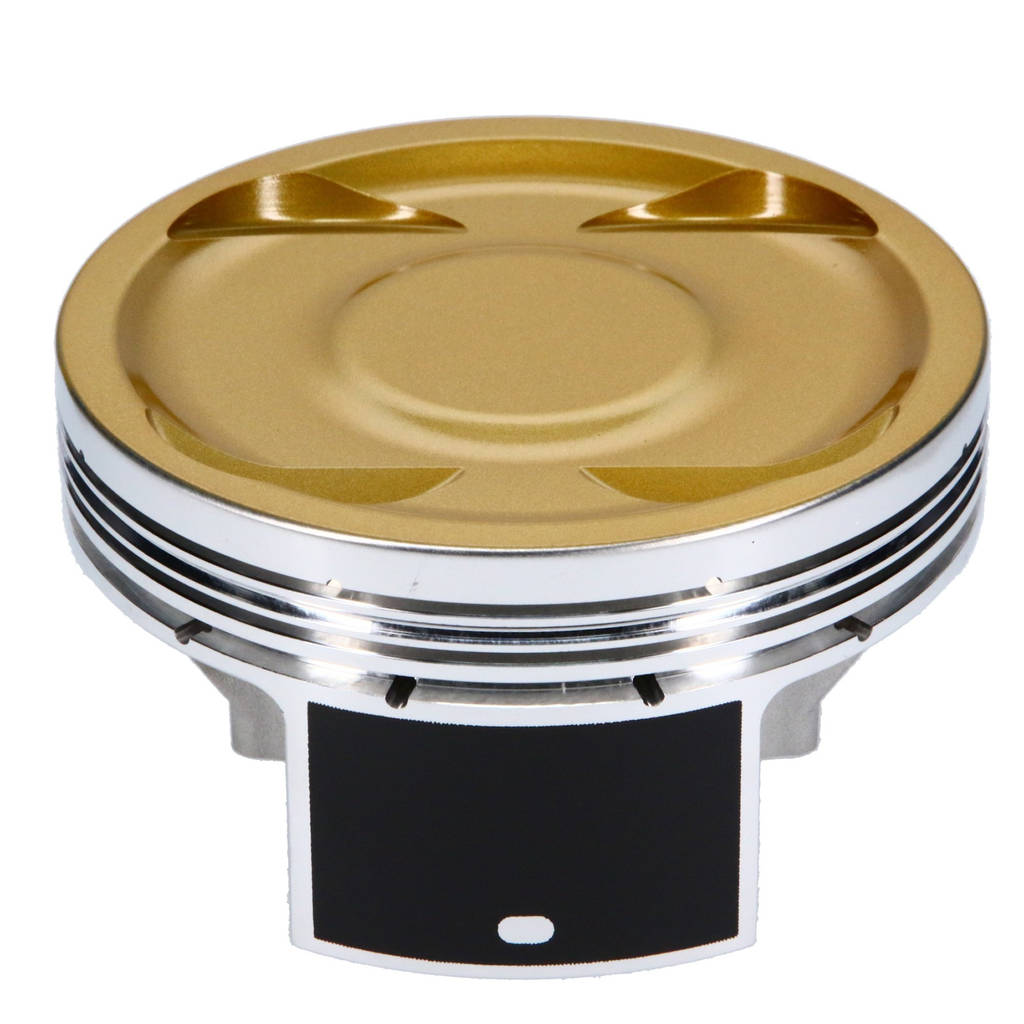

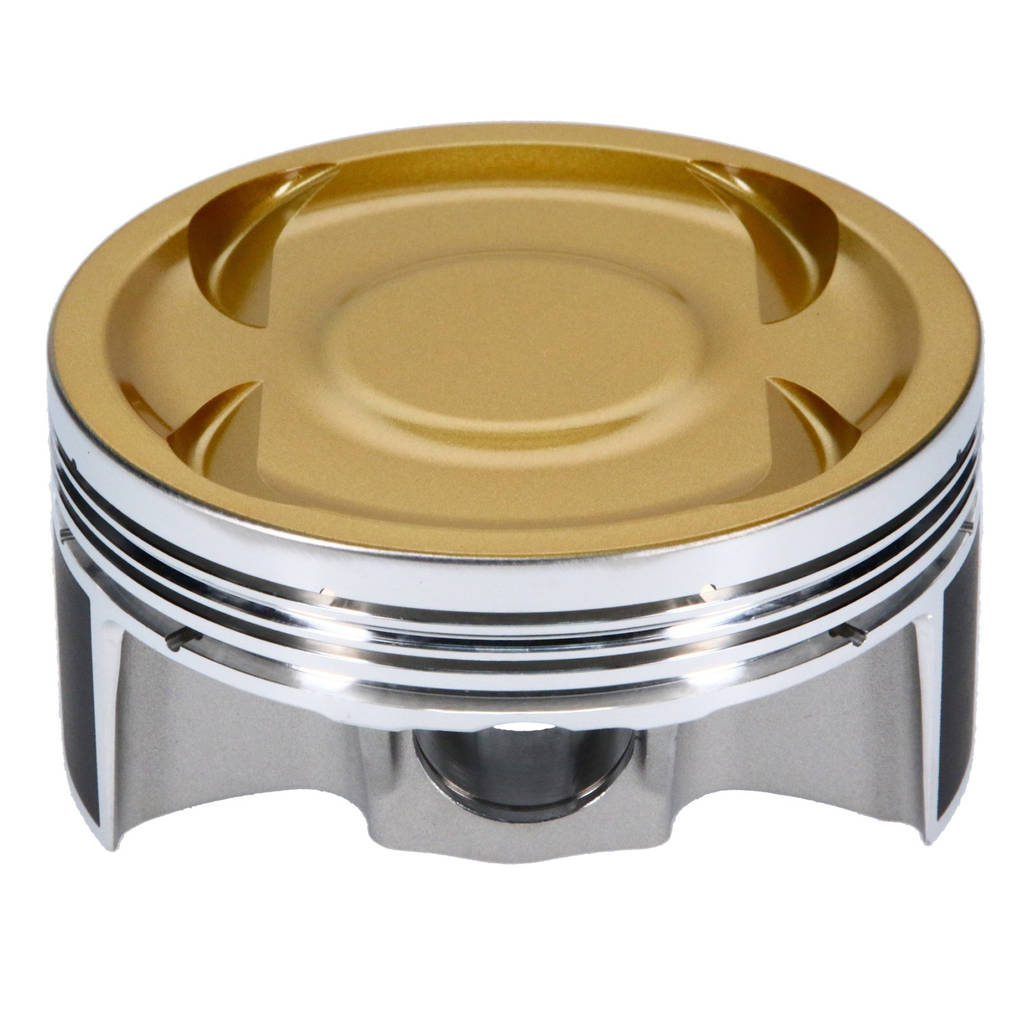

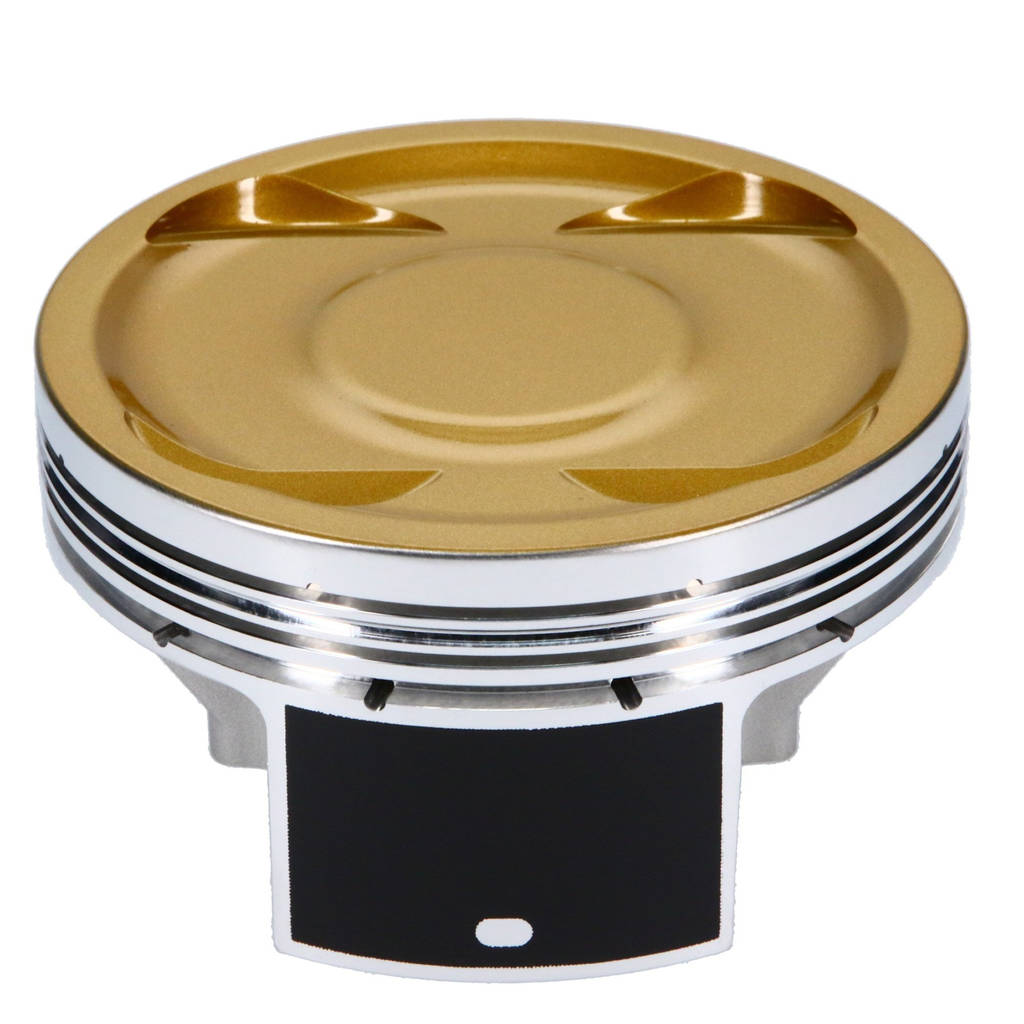

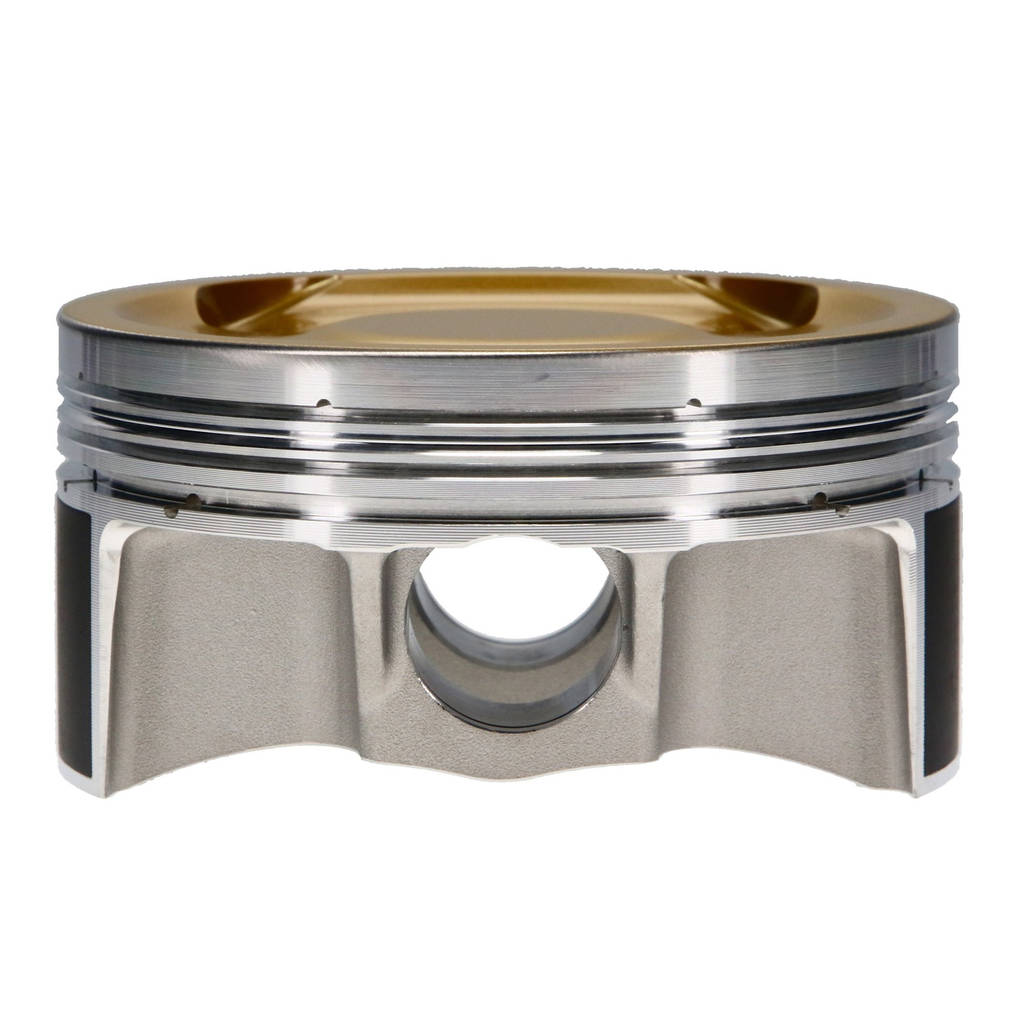

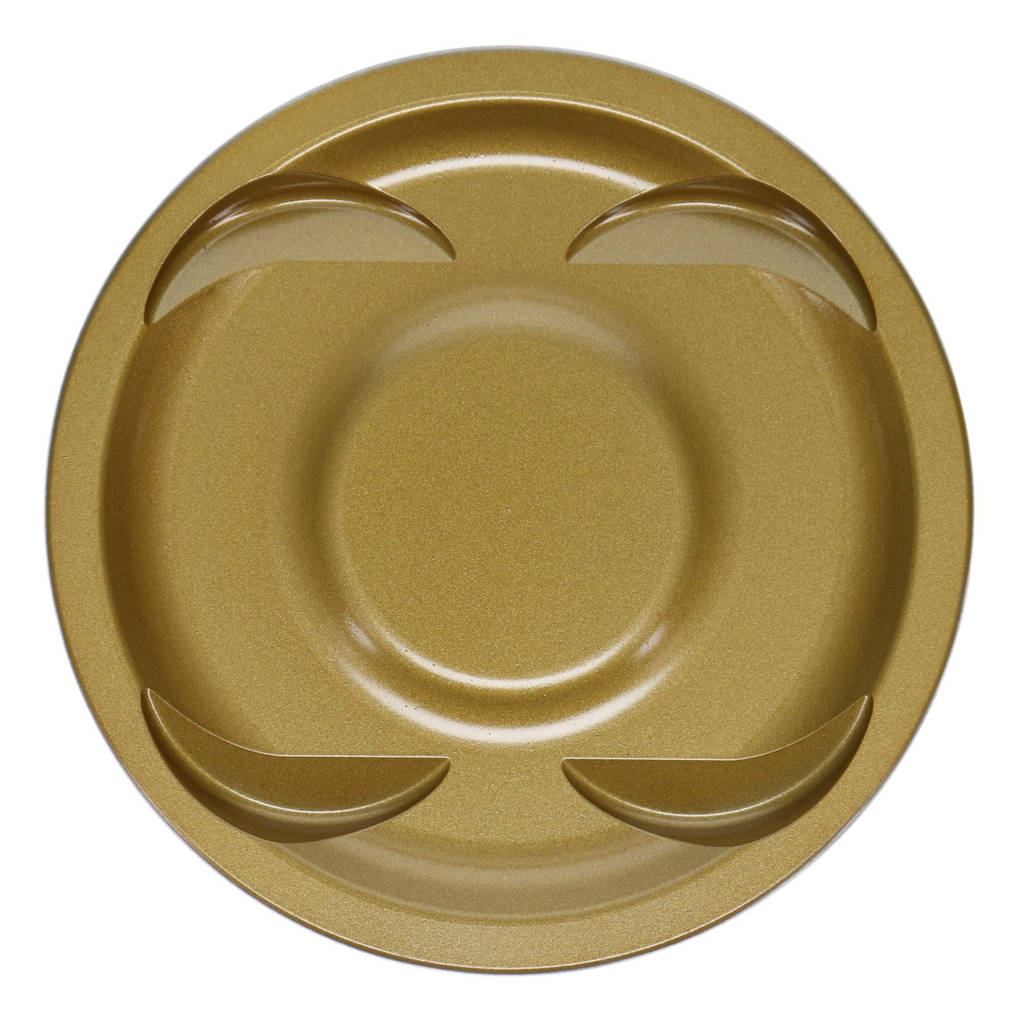

JE 361328R Piston SUBARU EJ25 ULTRA SERIES 8.5:1 (Single Piece Set)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
JE 361328R Piston SUBARU EJ25 ULTRA SERIES 8.5:1 (Single Piece Set)
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ATOMIC-SHOP UAE (RABDAN Motorsport)
14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
DESCRIPTION: Piston Set, 2618, Inv Dome/Dish, 3.927 Bore, 1.209 CD, 0.905, Pin Dia, Set of 1.
Bore (in) 3.927
Bore (mm) 99.75
Top Compression Ring Thickness 0.0475
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.100
Forging Type FSR
Volume (cc) -16.90
Series JE Ultra Series
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.905
Compression Height 1.209
Make SUBARU
Wrist Pin Style - floating or press fit Floating
Wall Type STRAIGHT
Wall Thickness (IN) 0.210
Ringset Part Number JG4901-3927
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.042
Retainer Lock Style Tru Arc Lock
Retainer Lock Part Number 905-042-CT
Retainer Diameter (IN) 0.905
Piston Pin Inside Diameter 0.485
Piston Pin Material 9310 NICKEL CARBON STEEL ALLOY
Piston Material 2618
Piston Pin Length (IN) 2.250
Piston Avg Wt 427
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 905-2250-21-93S
Pin Included Yes
Pin Diameter (mm) 23.00
Oil Rail Support Included No
Deck Clearance -0.012
Brand JE Pistons
