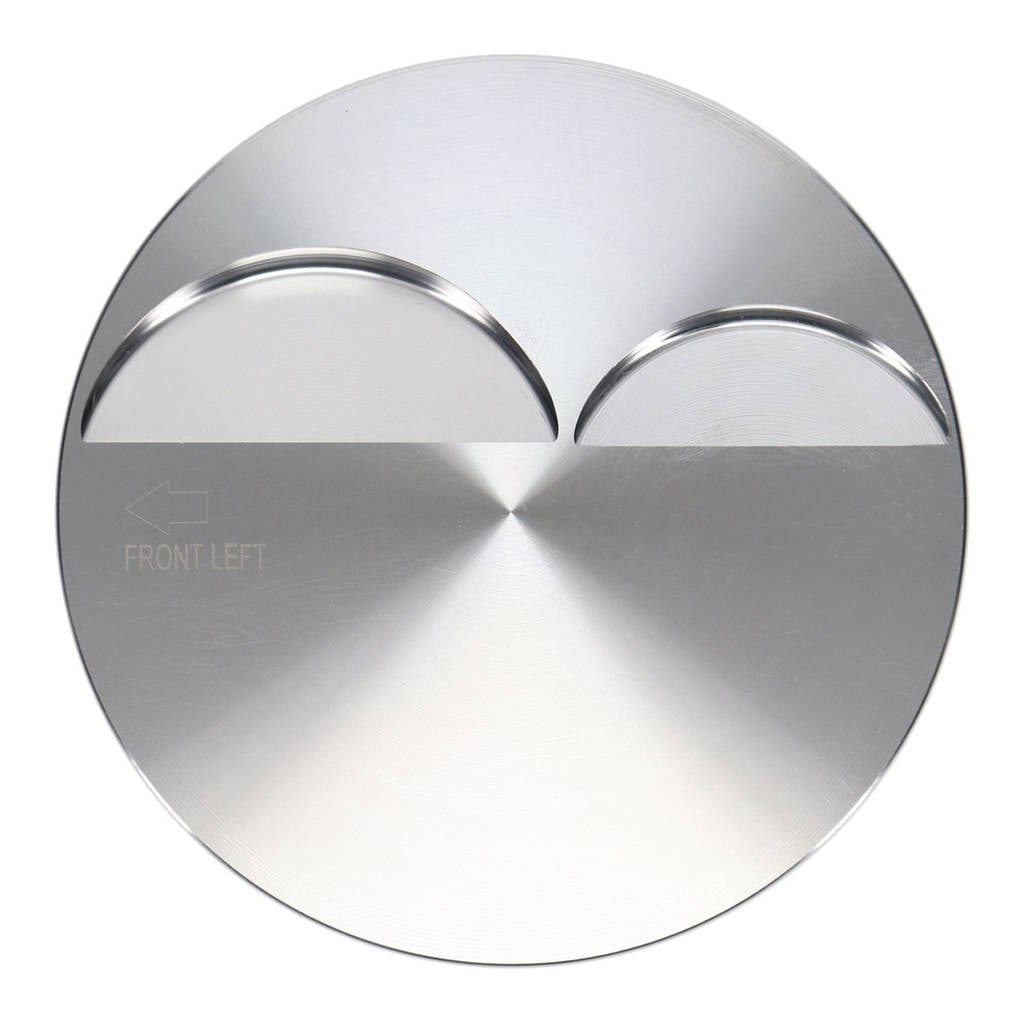

JE 361012L Piston Single SRP Pro 2618 (4.000 in. Bore, 1.330 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine Photo-0

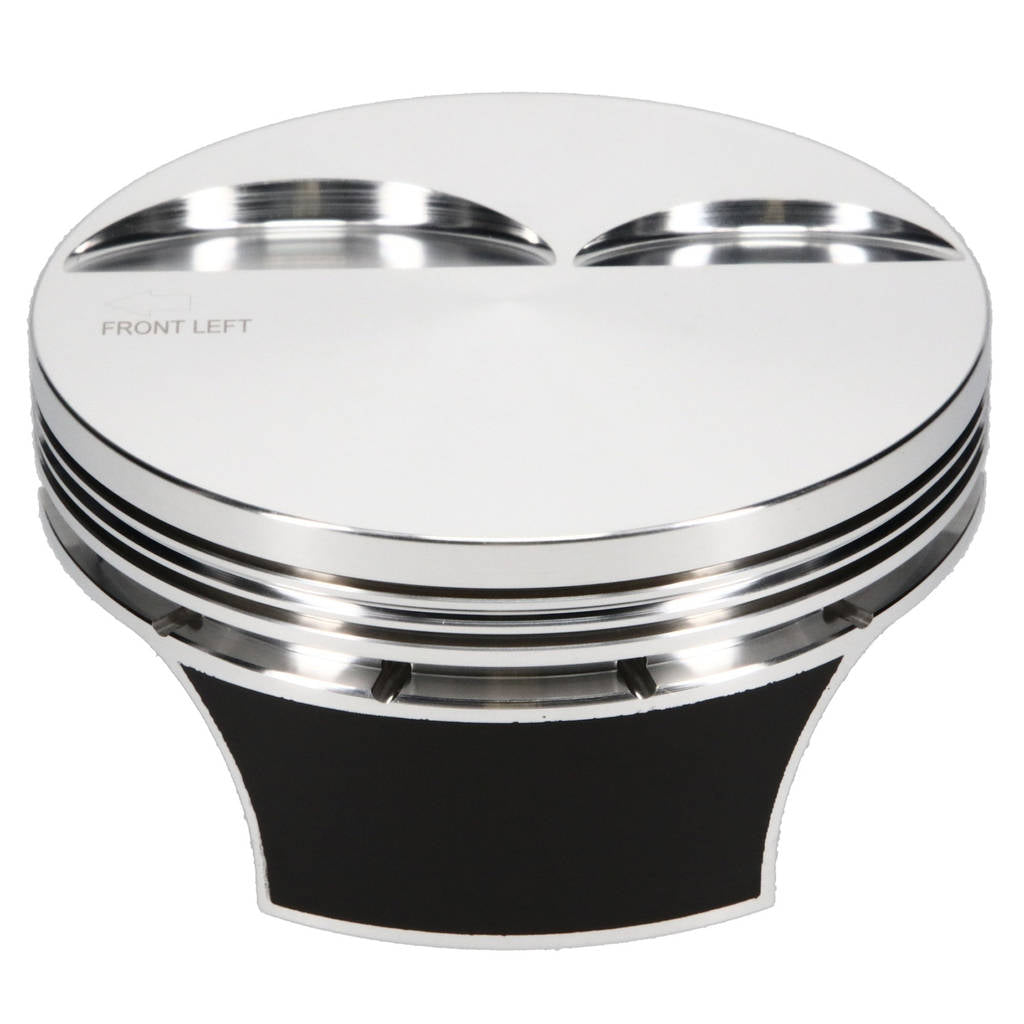

JE 361012L Piston Single SRP Pro 2618 (4.000 in. Bore, 1.330 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine Photo-1

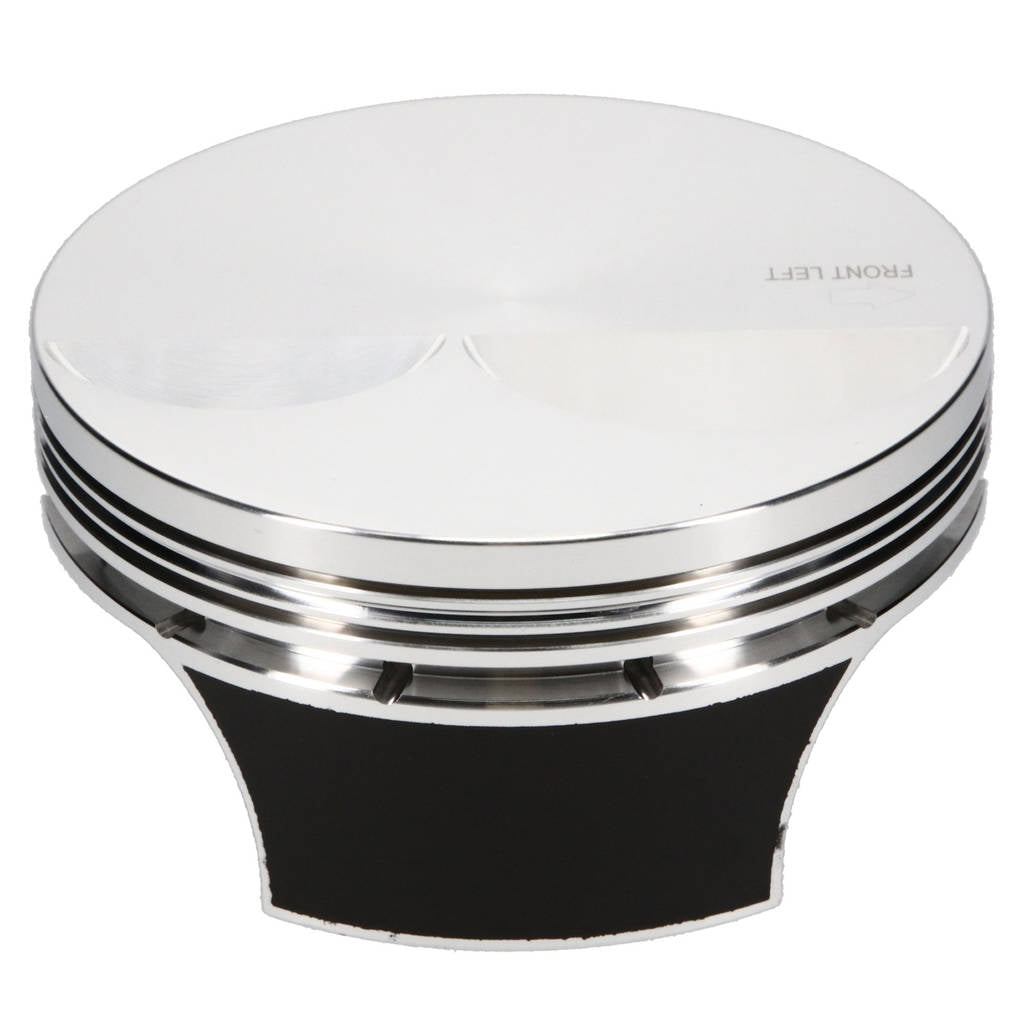

JE 361012L Piston Single SRP Pro 2618 (4.000 in. Bore, 1.330 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine Photo-2

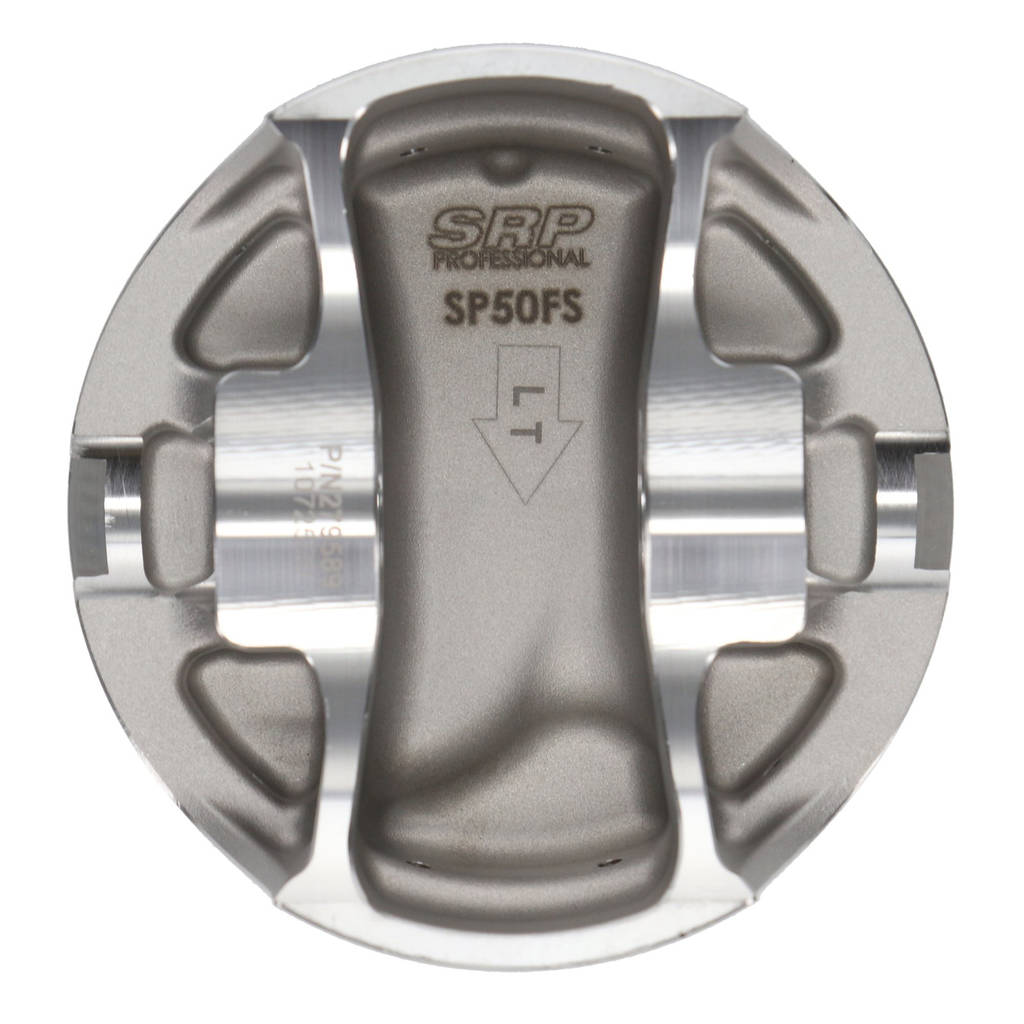

JE 361012L Piston Single SRP Pro 2618 (4.000 in. Bore, 1.330 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine Photo-3

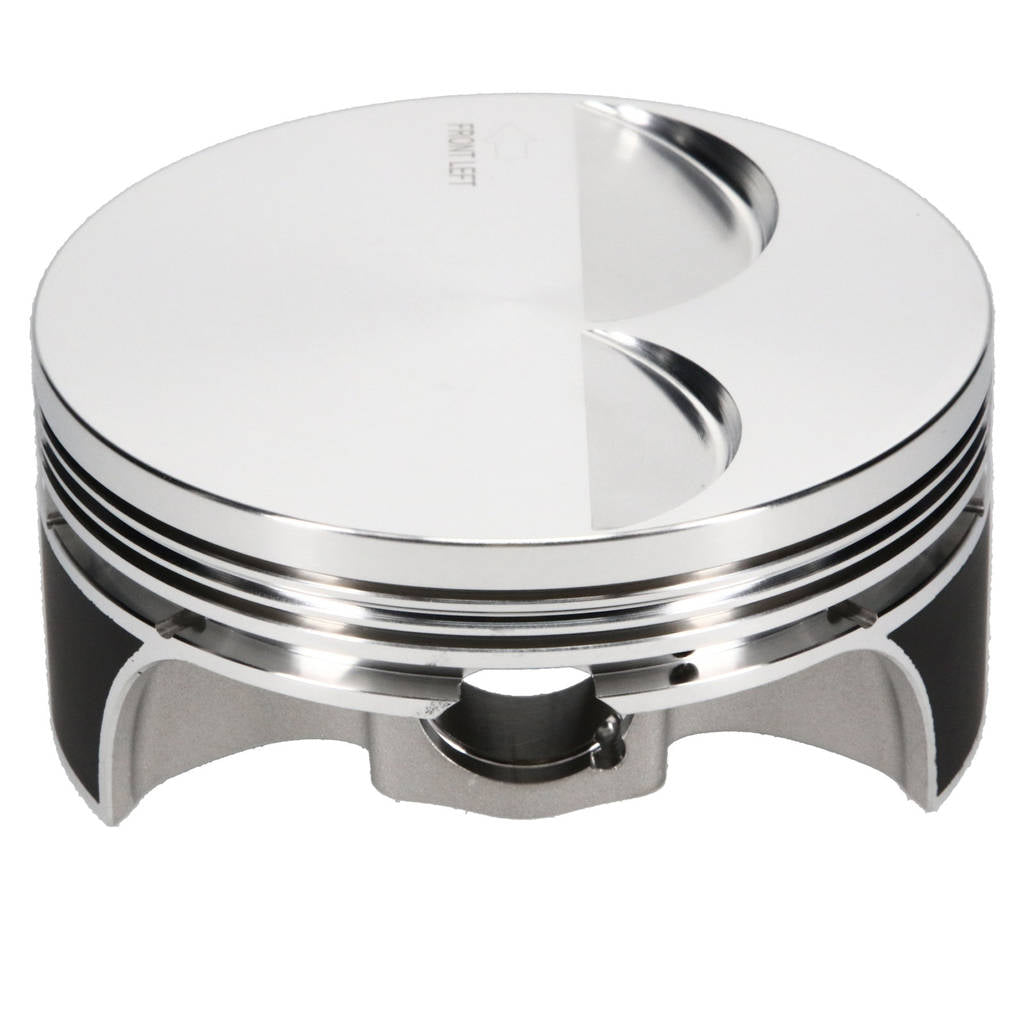

JE 361012L Piston Single SRP Pro 2618 (4.000 in. Bore, 1.330 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine Photo-4

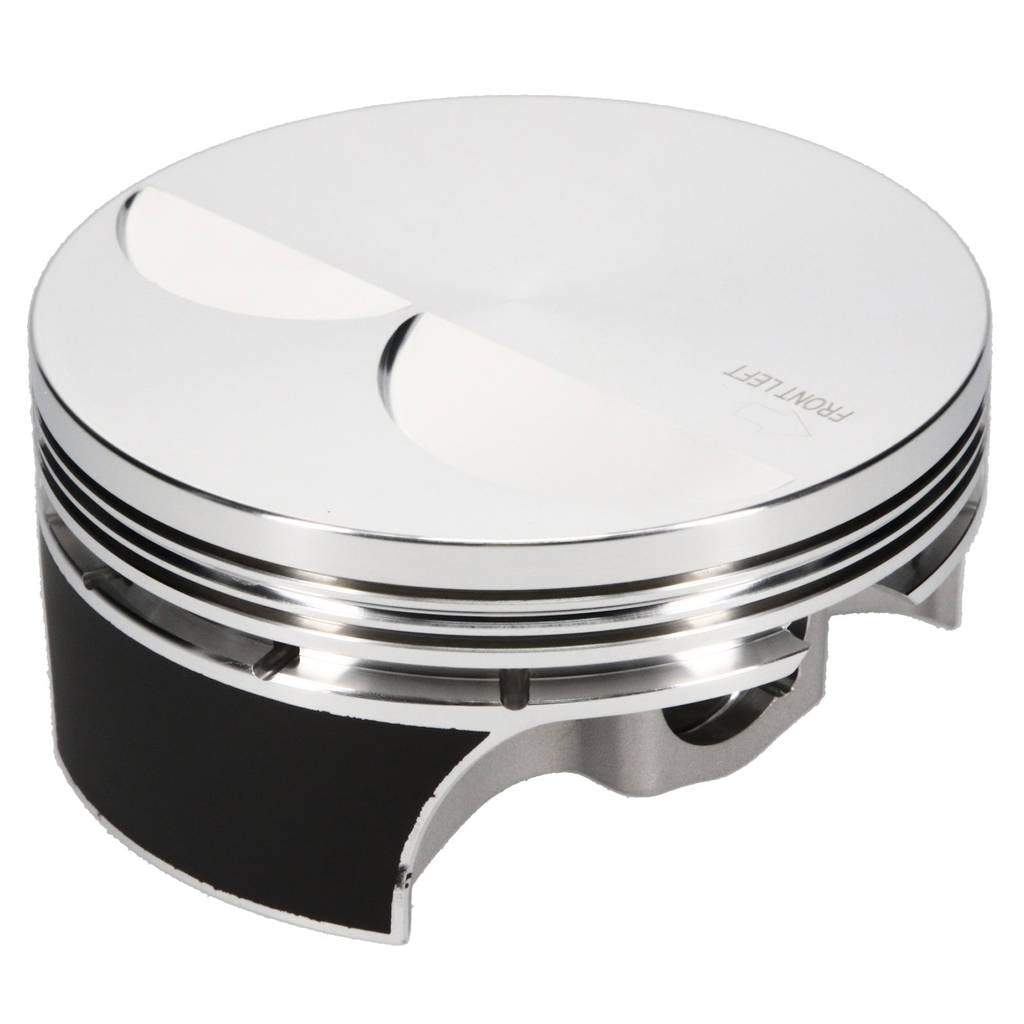

JE 361012L Piston Single SRP Pro 2618 (4.000 in. Bore, 1.330 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine Photo-5

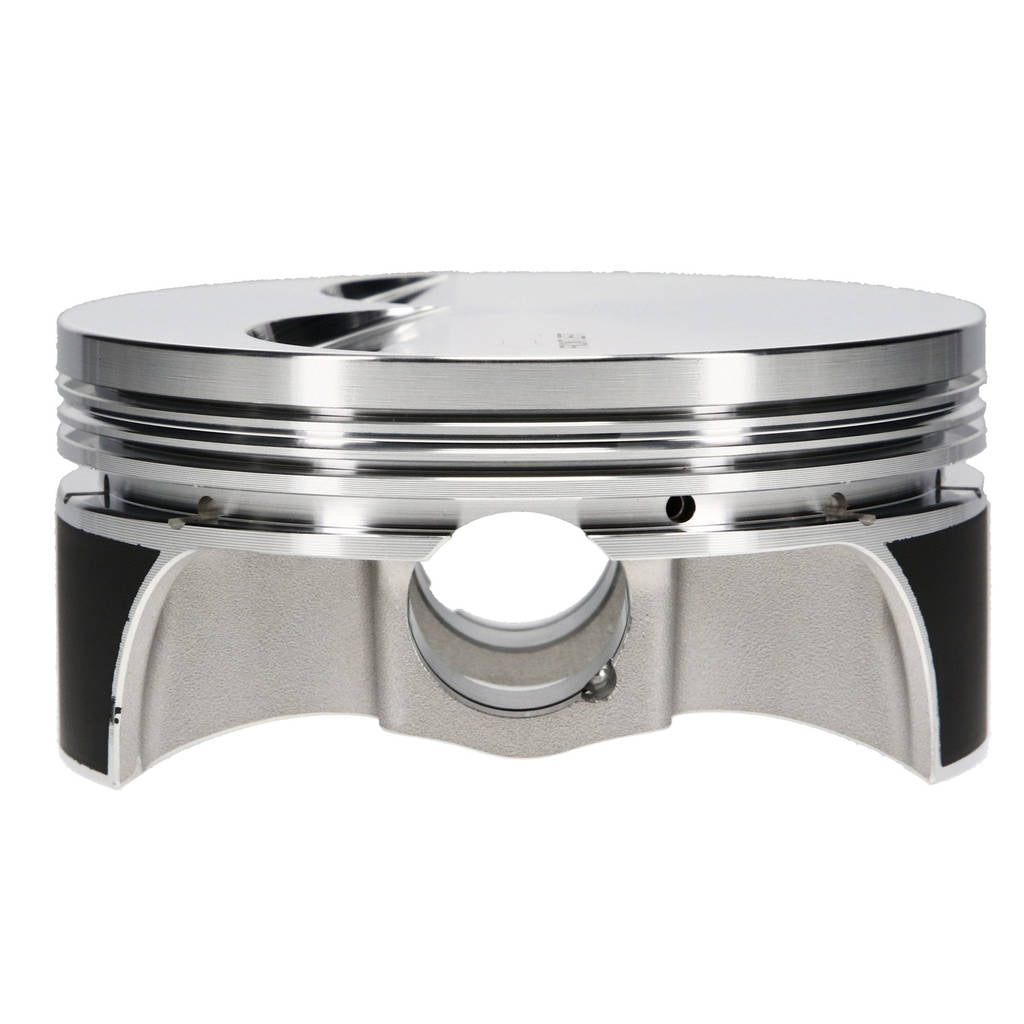

JE 361012L Piston Single SRP Pro 2618 (4.000 in. Bore, 1.330 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine Photo-6

JE 361012L Piston Single SRP Pro 2618 (4.000 in. Bore, 1.330 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine

AED 822.02

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 361012L GTIN: 193564257123
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 361012L Piston Single SRP Pro 2618 (4.000 in. Bore, 1.330 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description JE 361012L Piston Single SRP Pro 2618 (4.000 in. Bore, 1.330 in. CH, -5.00 CC) for CHEVROLET LS Gen III/IV Engine

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro Series with extremely strong 2618 forged aluminum. The pistons maximize strength and value for small-block and big-block builds.

Forged in the USA, the 2618 aluminum provides the high tensile strength required for high-demand performance applications.

  • Proprietary Forged Side Relief (FSR) design minimizes friction and power loss, reduces skirt width, and saves weight with a shorter Wrist Pin
  • Ring groove placement maintains a positive seal in high-HP boosted applications, while the stout top land improves strength
  • Low-friction skirt coating reduces wear and operating noise while optimizing performance
  • Accumulator groove reduces combustion gas pressure and Piston Ring flutter, improving the Piston Ring seal for consistent power

Specifications:

  • Piston Series: SRP Pro 2618
  • Cylinder Head: LSX/L92 12 DEG
  • Bore Diameter: 4.000 IN
  • Piston Head Type: Flat
  • Compression Height: 1.330 IN
  • Piston Volume: -5.00 CC
  • Piston Material: 2618
  • Forging Type: FSR
  • Piston Orientation: Left
  • Piston Average Weight: 420 GR
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 0.0480 IN
  • Second Compression Ring Thickness: 0.0600 IN
  • Oil Ring Thickness: 0.119 IN
  • Wrist Pin Outer Diameter: 0.945 IN
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.150 IN
