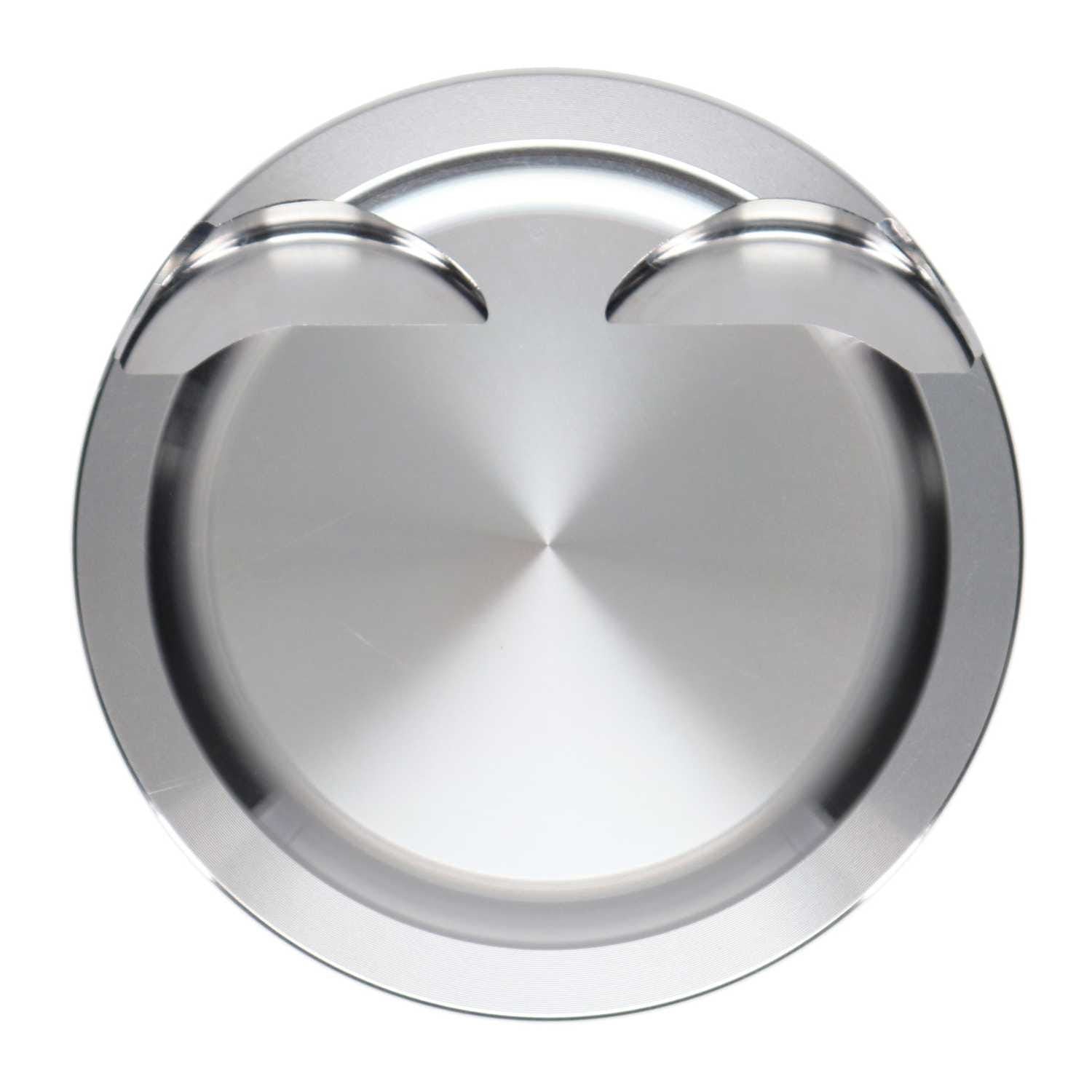

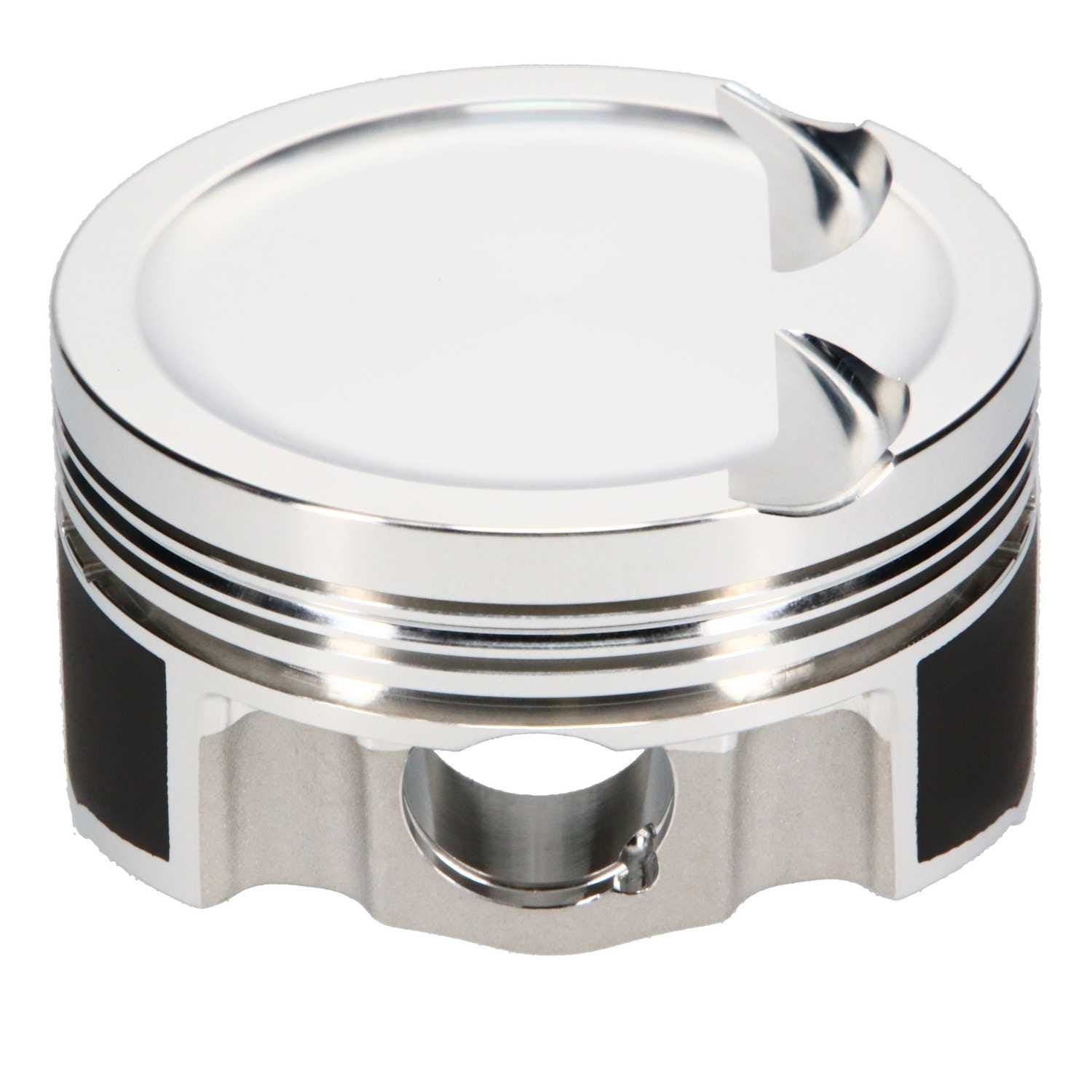

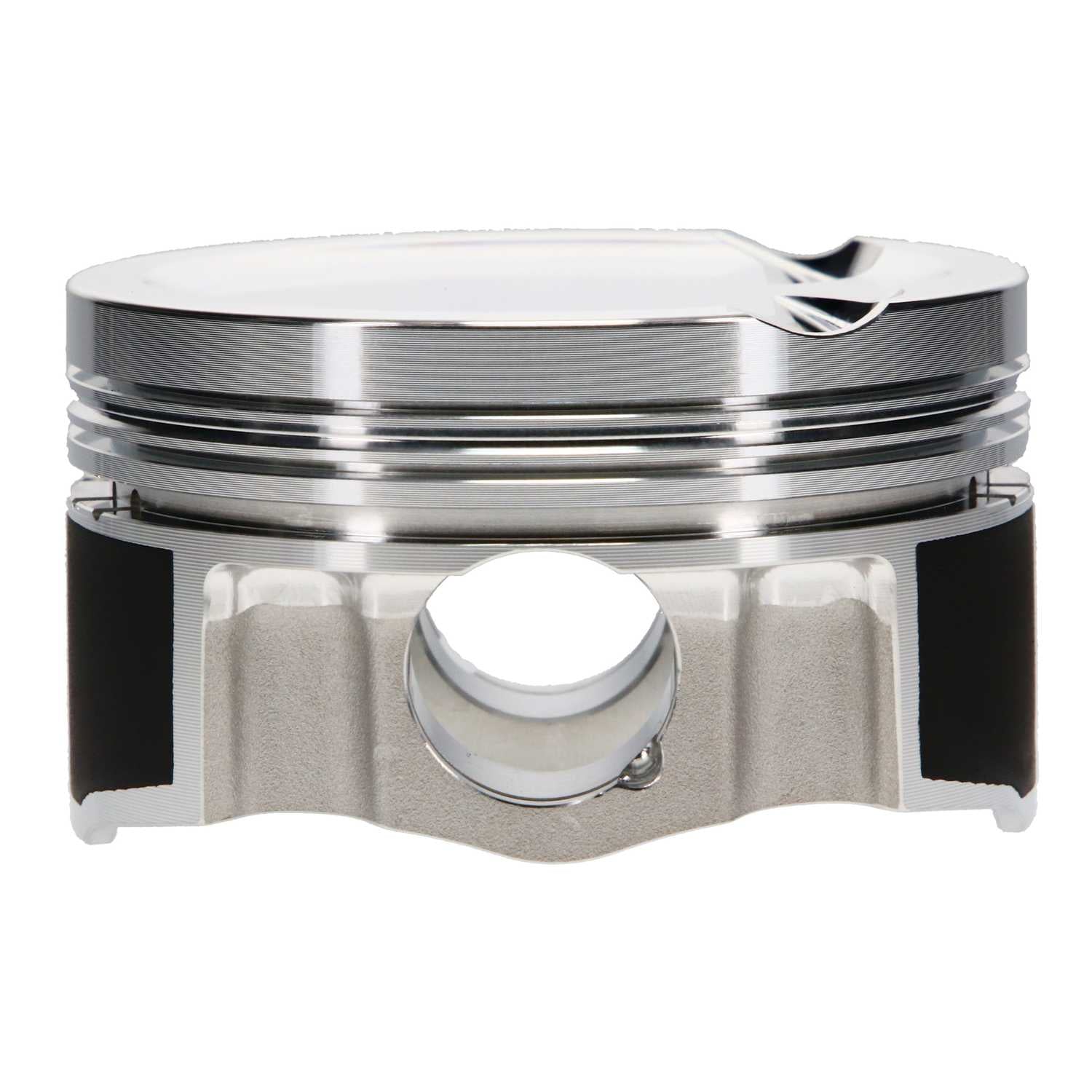

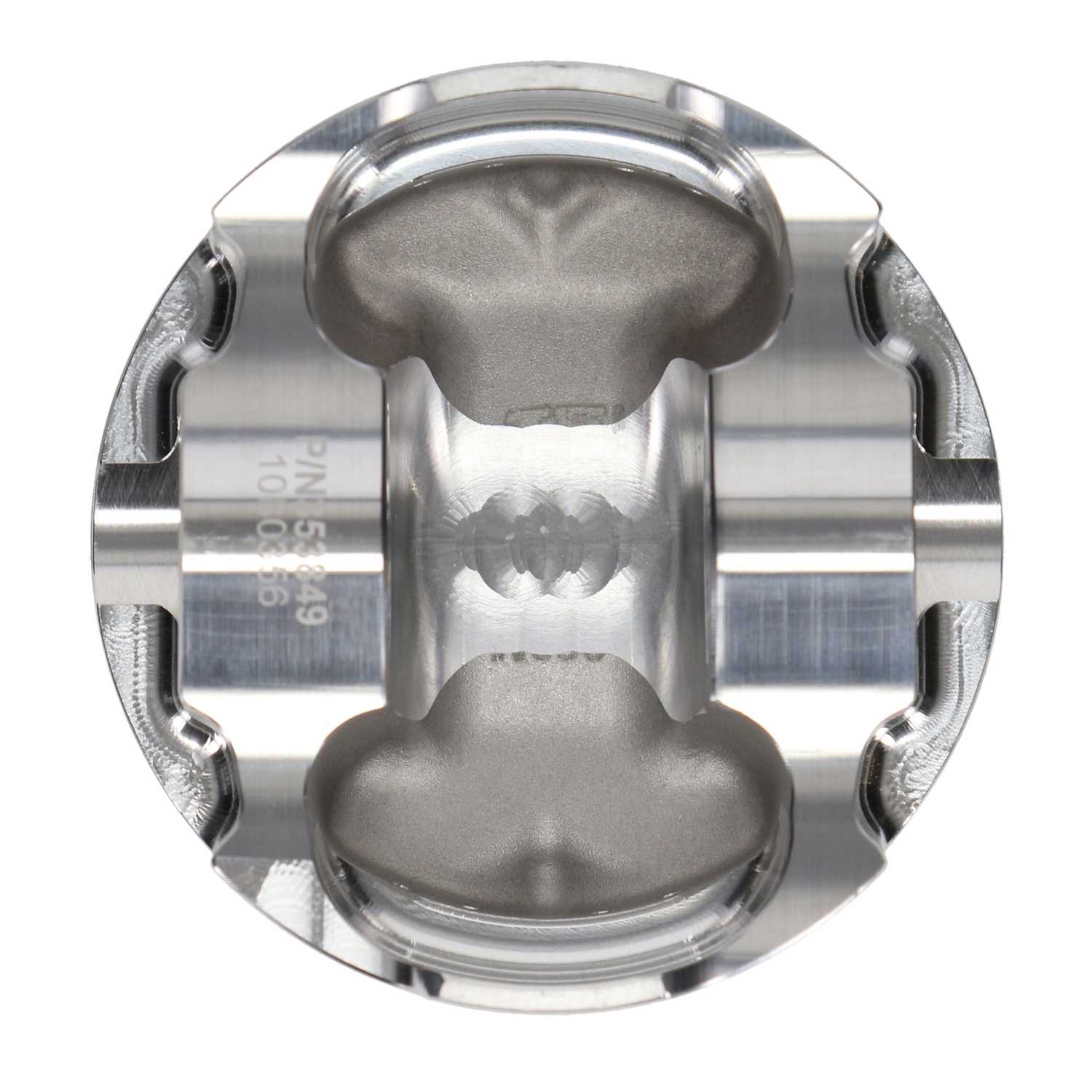

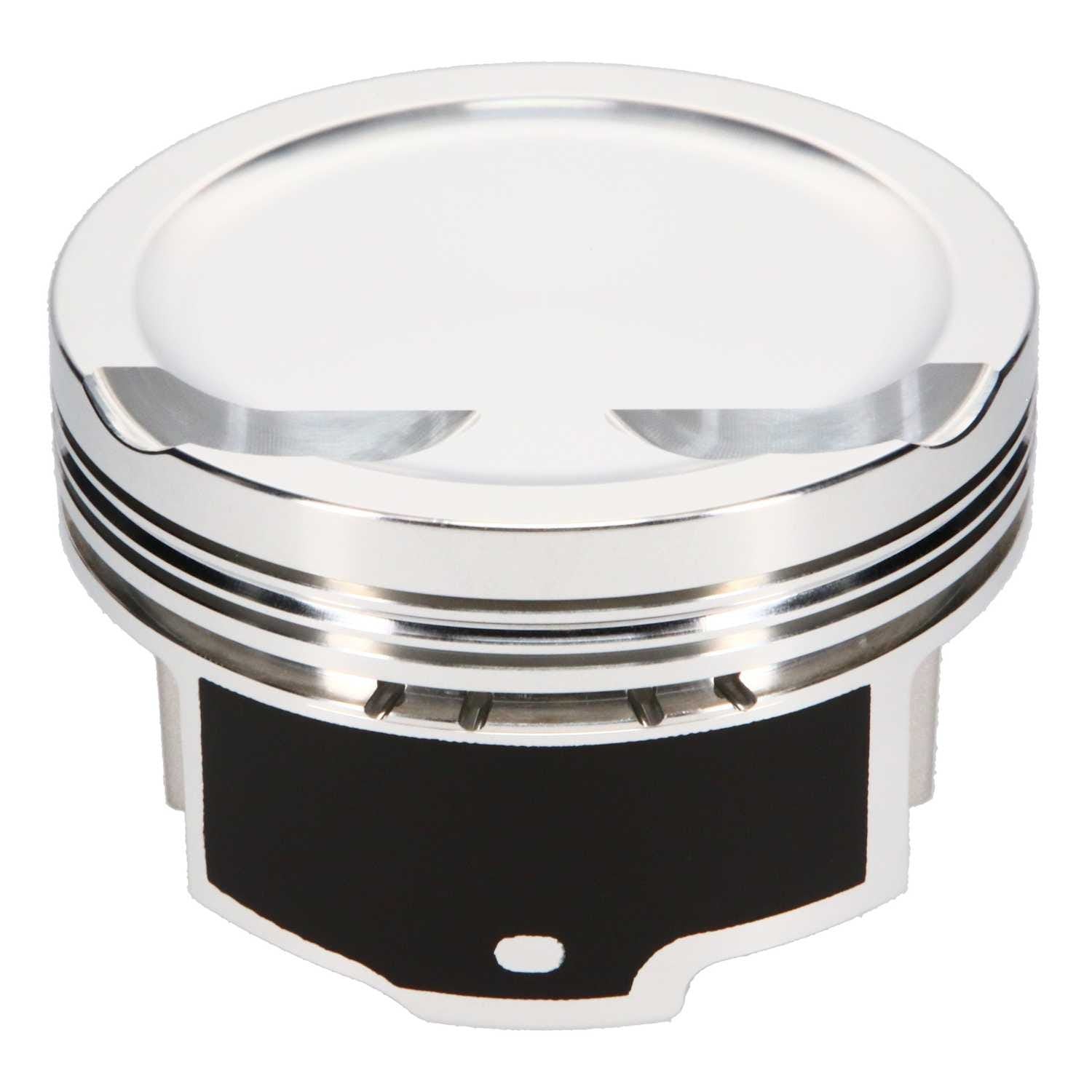

JE 353835 Pistons kit VW 2.0T FSI (Set of 4 pic) Bore 83,50 Oversize 1,00 Stroke 92,80 CR9.25:1 Photo-0
JE 353835 Pistons kit VW 2.0T FSI (Set of 4 pic) Bore 83,50 Oversize 1,00 Stroke 92,80 CR9.25:1 Photo-1
JE 353835 Pistons kit VW 2.0T FSI (Set of 4 pic) Bore 83,50 Oversize 1,00 Stroke 92,80 CR9.25:1 Photo-2
JE 353835 Pistons kit VW 2.0T FSI (Set of 4 pic) Bore 83,50 Oversize 1,00 Stroke 92,80 CR9.25:1 Photo-3
JE 353835 Pistons kit VW 2.0T FSI (Set of 4 pic) Bore 83,50 Oversize 1,00 Stroke 92,80 CR9.25:1 Photo-4

JE 353835 Pistons kit VW 2.0T FSI (Set of 4 pic) Bore 83,50 Oversize 1,00 Stroke 92,80 CR9.25:1

AED 4,020.93

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 353835 GTIN: 193564031853
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 15.09.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 353835 Pistons kit VW 2.0T FSI (Set of 4 pic) Bore 83,50 Oversize 1,00 Stroke 92,80 CR9.25:1

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

DESCRIPTION:

Piston Set, 2618, Inv Dome/Dish, 3.2874 Bore, 1.165 CD, 0.787, Pin Dia, Set of 4.


Car | 2008 | Audi | A4
Car | 2009 | Audi | A4
Car | 2007 | Audi | A4
Car | 2008 | Audi | A4 Quattro
Car | 2007 | Audi | A4 Quattro
Car | 2009 | Audi | A4 Quattro
Car | 2006 | Audi | A4 Quattro
Car | 2007 | Audi | A3 Quattro
Car | 2006 | Audi | A3 Quattro
Car | 2006 | Audi | A4
Car | 2006 | Audi | A3
Car | 2008 | Volkswagen | Passat
AUDI / VOLKSWAGEN|2.0 TURBO FSI - 20MM PIN - NEW FSR SERIES

Bore (in) 3.287
Bore (mm) 83.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -12.80
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.787
Compression Height 1.165
Make AUDI / VOLKSWAGEN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.180
Ringset Part Number JG1001-3287
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.050
Retainer Lock Style Wire Lock
Retainer Lock Part Number 787-050-MW
Retainer Diameter (IN) 0.787
Replacement Single Piston 353835S
Piston Pin Inside Diameter 0.427
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 787-2250-18-51C
Pin Included Yes
Pin Diameter (mm) 20.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons
