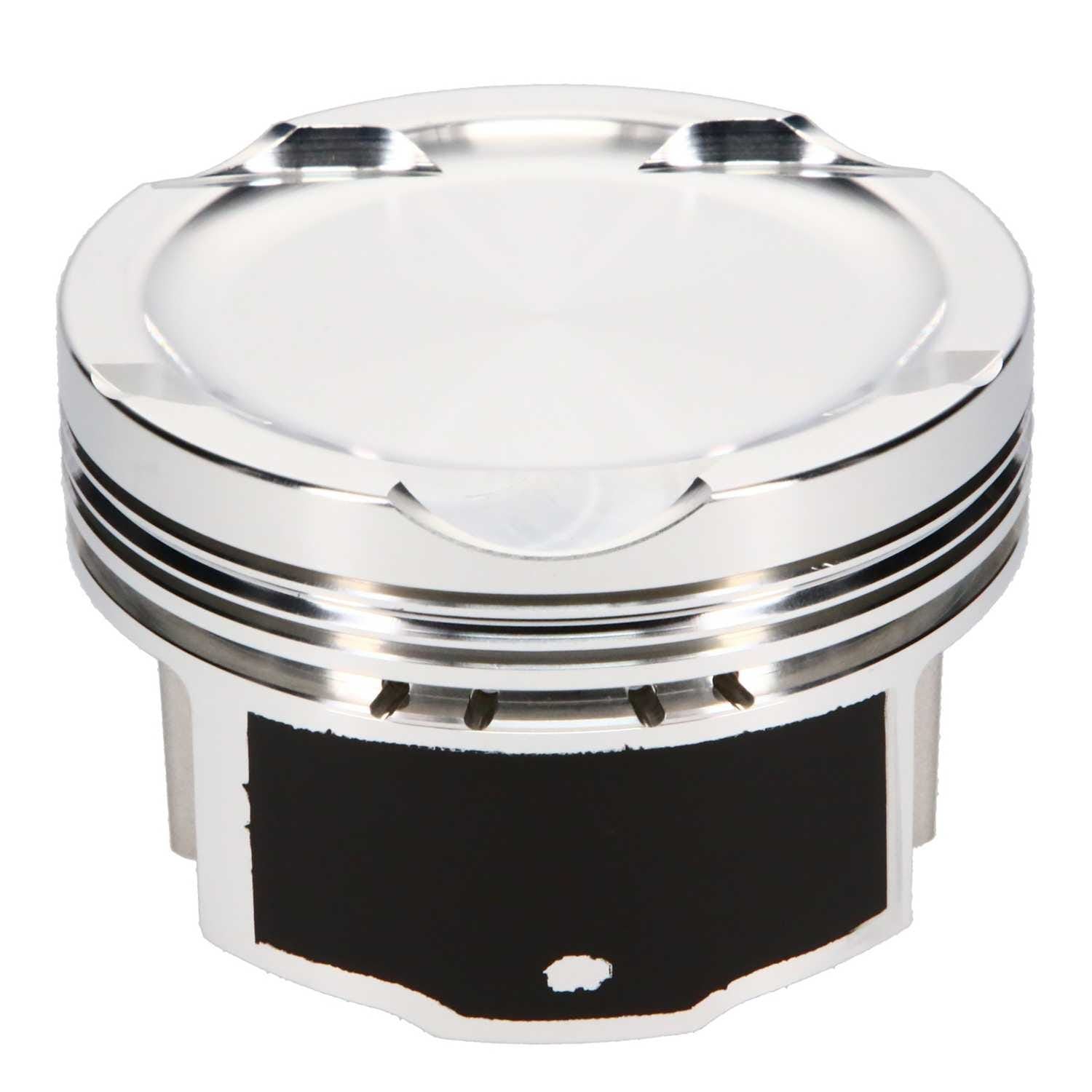

JE 353825 Pistons kit VW 1.8T 20V (Set of 4 pic) Bore 82,00 Oversize 1,00 Stroke 86,40 CR8.5:1 Photo-0
JE 353825 Pistons kit VW 1.8T 20V (Set of 4 pic) Bore 82,00 Oversize 1,00 Stroke 86,40 CR8.5:1 Photo-1
JE 353825 Pistons kit VW 1.8T 20V (Set of 4 pic) Bore 82,00 Oversize 1,00 Stroke 86,40 CR8.5:1 Photo-2
JE 353825 Pistons kit VW 1.8T 20V (Set of 4 pic) Bore 82,00 Oversize 1,00 Stroke 86,40 CR8.5:1 Photo-3
JE 353825 Pistons kit VW 1.8T 20V (Set of 4 pic) Bore 82,00 Oversize 1,00 Stroke 86,40 CR8.5:1 Photo-4

JE 353825 Pistons kit VW 1.8T 20V (Set of 4 pic) Bore 82,00 Oversize 1,00 Stroke 86,40 CR8.5:1

AED 4,020.93

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 353825 GTIN: 193564036728
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 353825 Pistons kit VW 1.8T 20V (Set of 4 pic) Bore 82,00 Oversize 1,00 Stroke 86,40 CR8.5:1

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

DESCRIPTION:

Piston Set, 2618, Inv Dome/Dish, 3.228 Bore, 1.286 CD, 0.787, Pin Dia, Set of 4.






Bore (in) 3.228
Bore (mm) 82.
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -12.70
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.787
Compression Height 1.286
Make AUDI / VOLKSWAGEN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.180
Ringset Part Number JG1001-3228
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.050
Retainer Lock Style Wire Lock
Retainer Lock Part Number 787-050-MW
Retainer Diameter (IN) 0.787
Replacement Single Piston 353825S
Piston Pin Inside Diameter 0.427
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 787-2250-18-51C
Pin Included Yes
Pin Diameter (mm) 20.00
Oil Rail Support Included No
Deck Clearance -0.005
Brand JE Pistons
