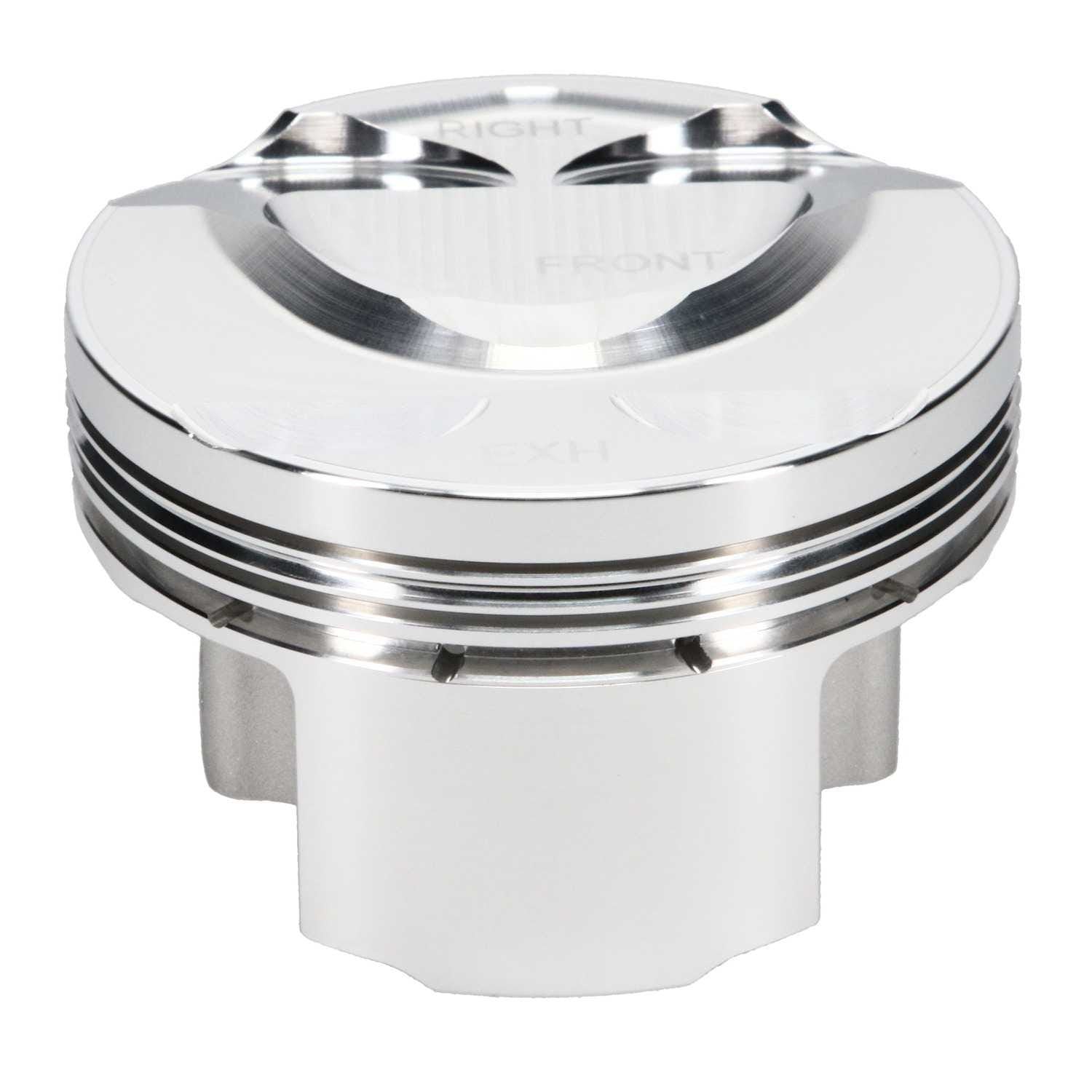

JE 346348R Piston NISSAN VR30DDTT 86MM 10.2:1 (Single Piece Set) Photo-0

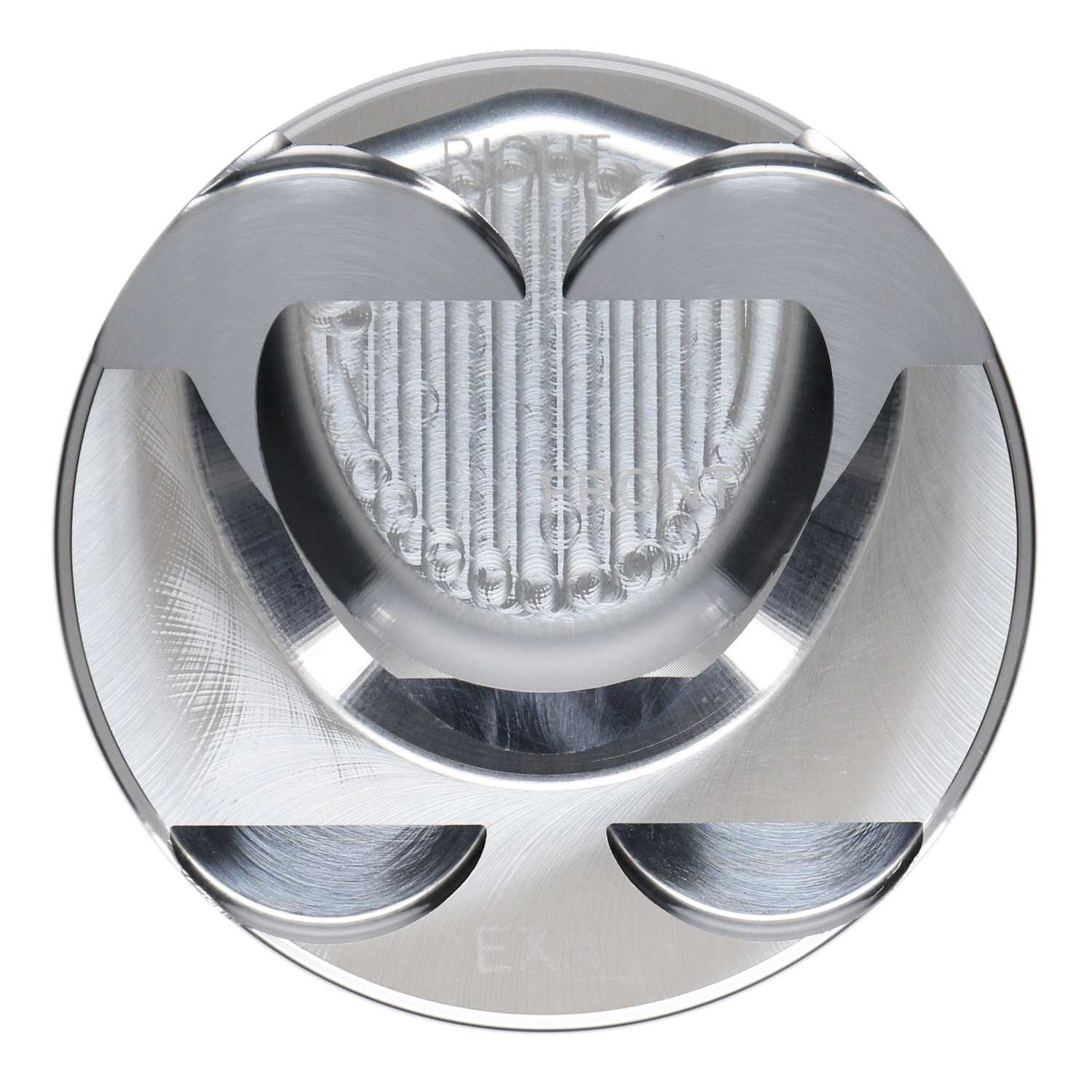

JE 346348R Piston NISSAN VR30DDTT 86MM 10.2:1 (Single Piece Set) Photo-1

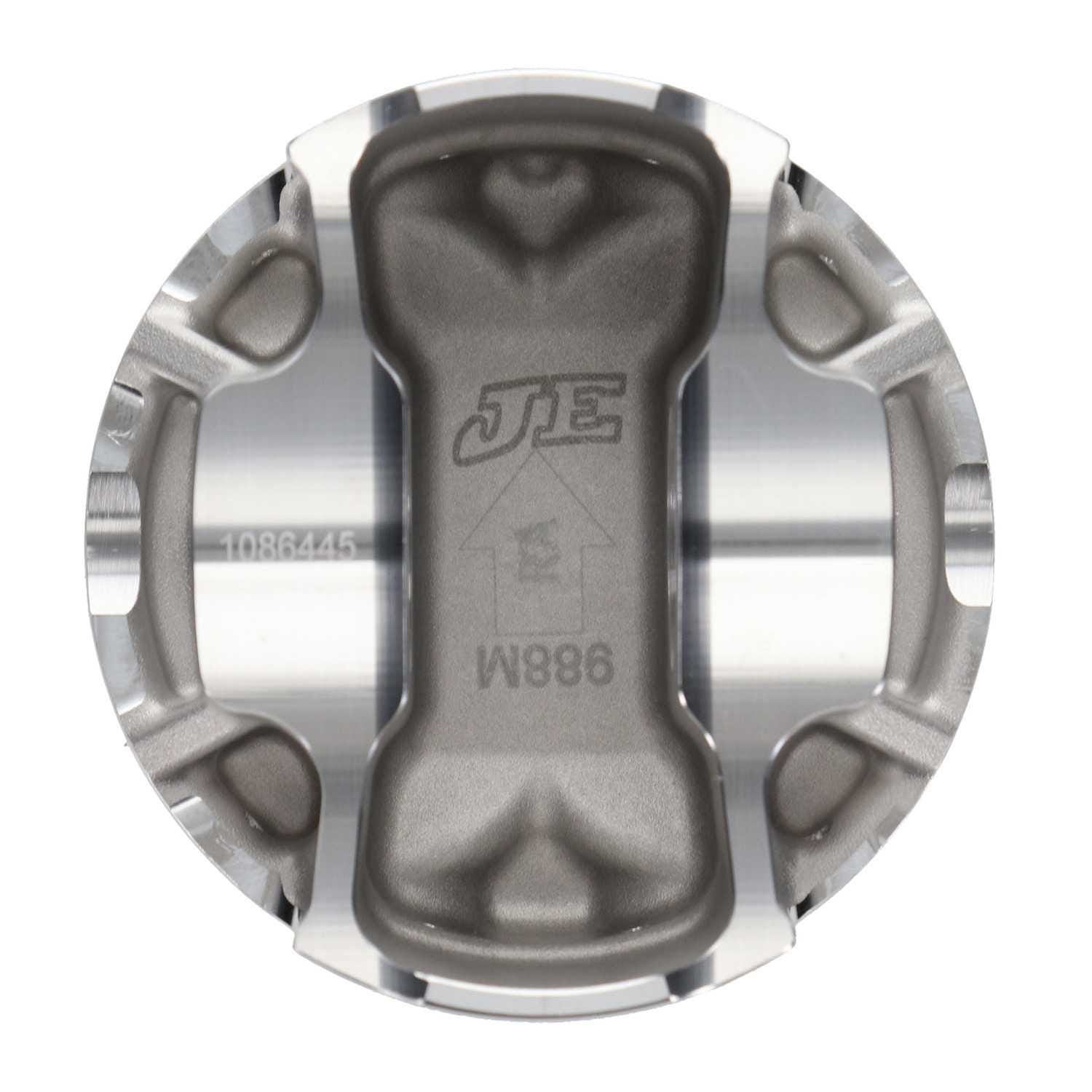

JE 346348R Piston NISSAN VR30DDTT 86MM 10.2:1 (Single Piece Set) Photo-2

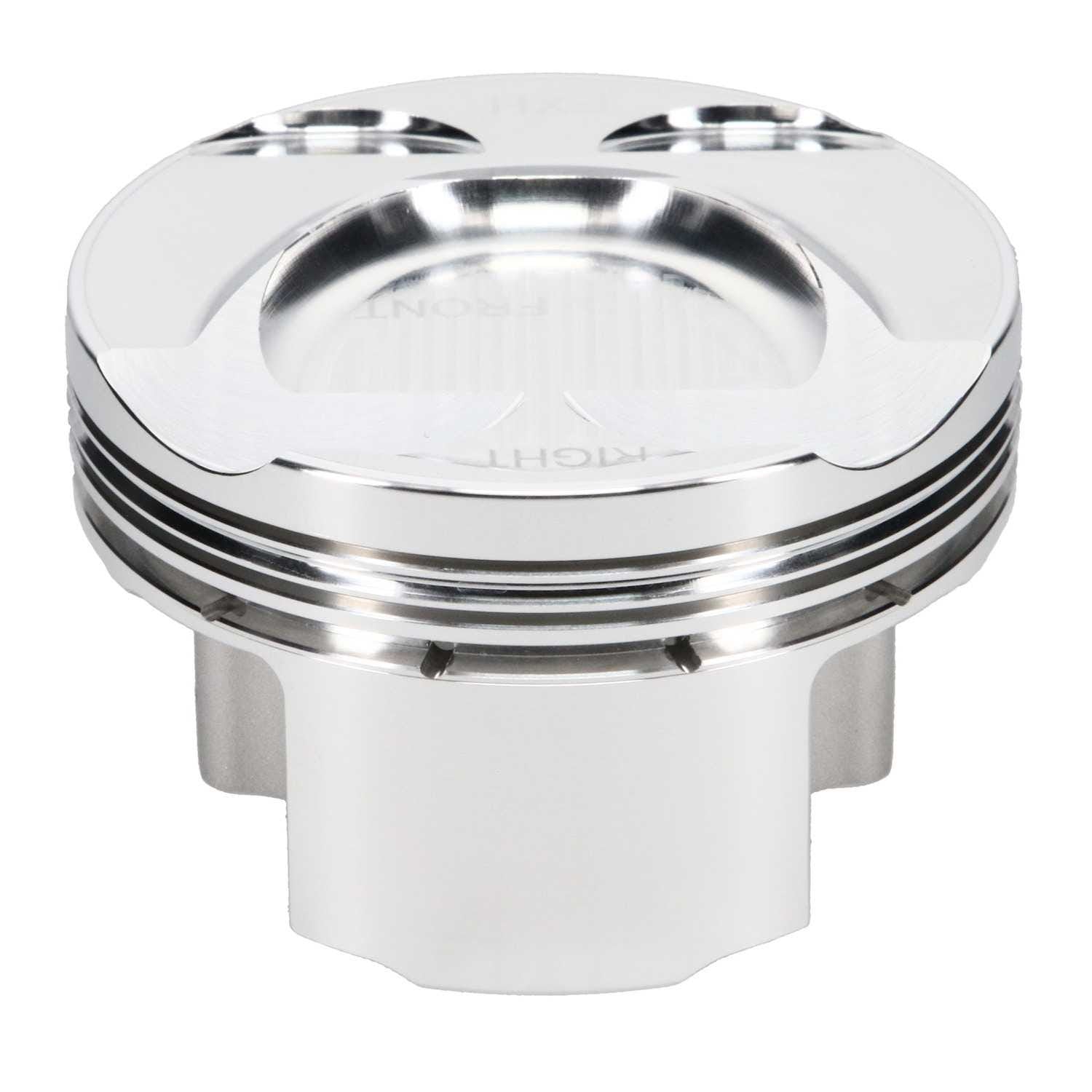

JE 346348R Piston NISSAN VR30DDTT 86MM 10.2:1 (Single Piece Set) Photo-3

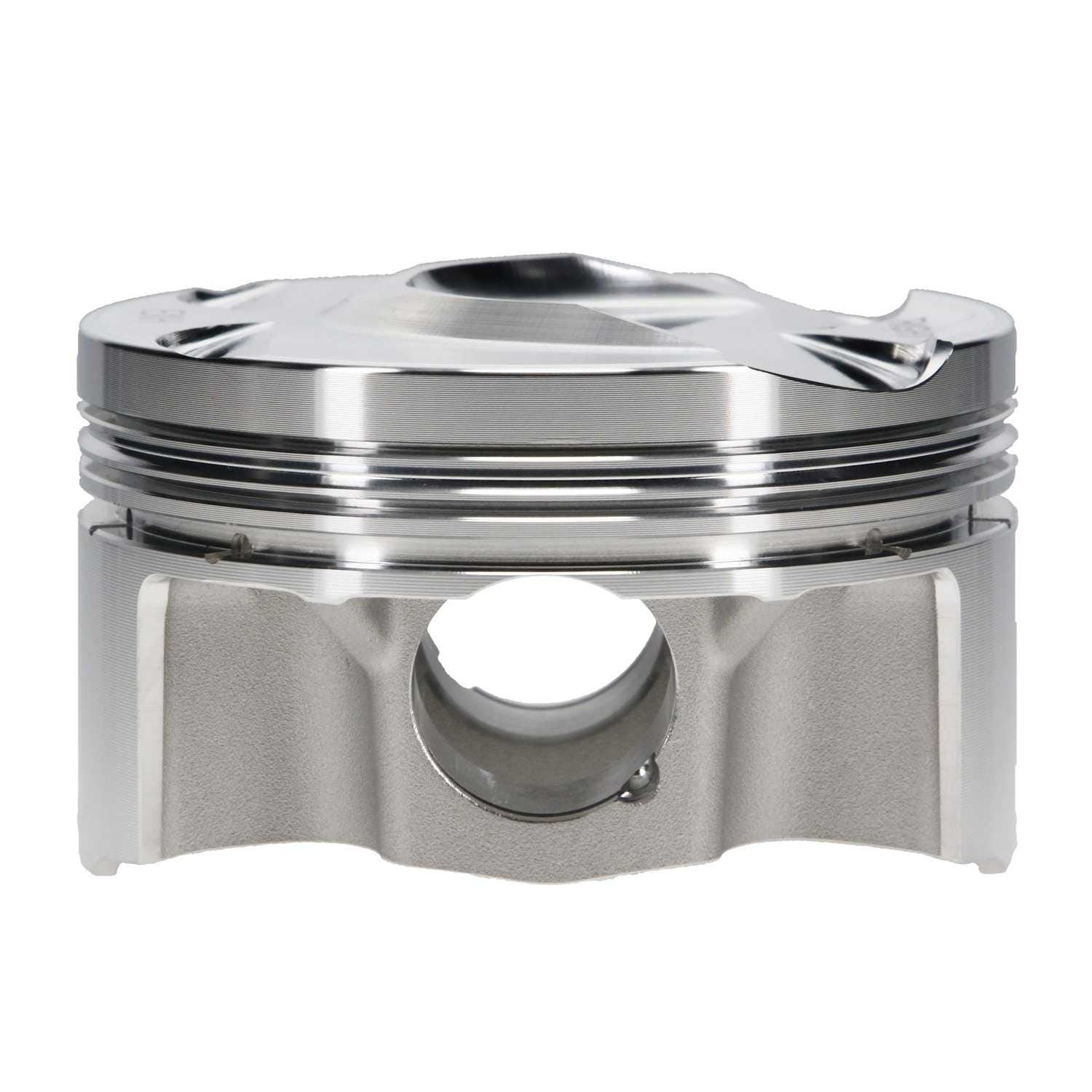

JE 346348R Piston NISSAN VR30DDTT 86MM 10.2:1 (Single Piece Set) Photo-4

JE 346348R Piston NISSAN VR30DDTT 86MM 10.2:1 (Single Piece Set)

AED 1,340.28

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 346348R GTIN: 193564016133
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 16.09.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 346348R Piston NISSAN VR30DDTT 86MM 10.2:1 (Single Piece Set)

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

DESCRIPTION:

Piston Single, 2618, Dome, 3.386 Bore, 1.158 CD, 0.905, Pin Dia, Set of 1.







Bore (in) 3.386
Bore (mm) 86.
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -3.00
Series JE Pistons
Piston Head Type Dome
Pin Diameter (IN) 0.905
Compression Height 1.158
Make NISSAN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.180
Ringset Part Number JG1001-3386
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.073
Retainer Lock Style Wire Lock
Retainer Lock Part Number 905-073-MW
Retainer Diameter (IN) 0.905
Replacement Single Piston 346348R
Piston Pin Inside Diameter 0.545
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 905-2250-18-51C
Pin Included Yes
Pin Diameter (mm) 23.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons
