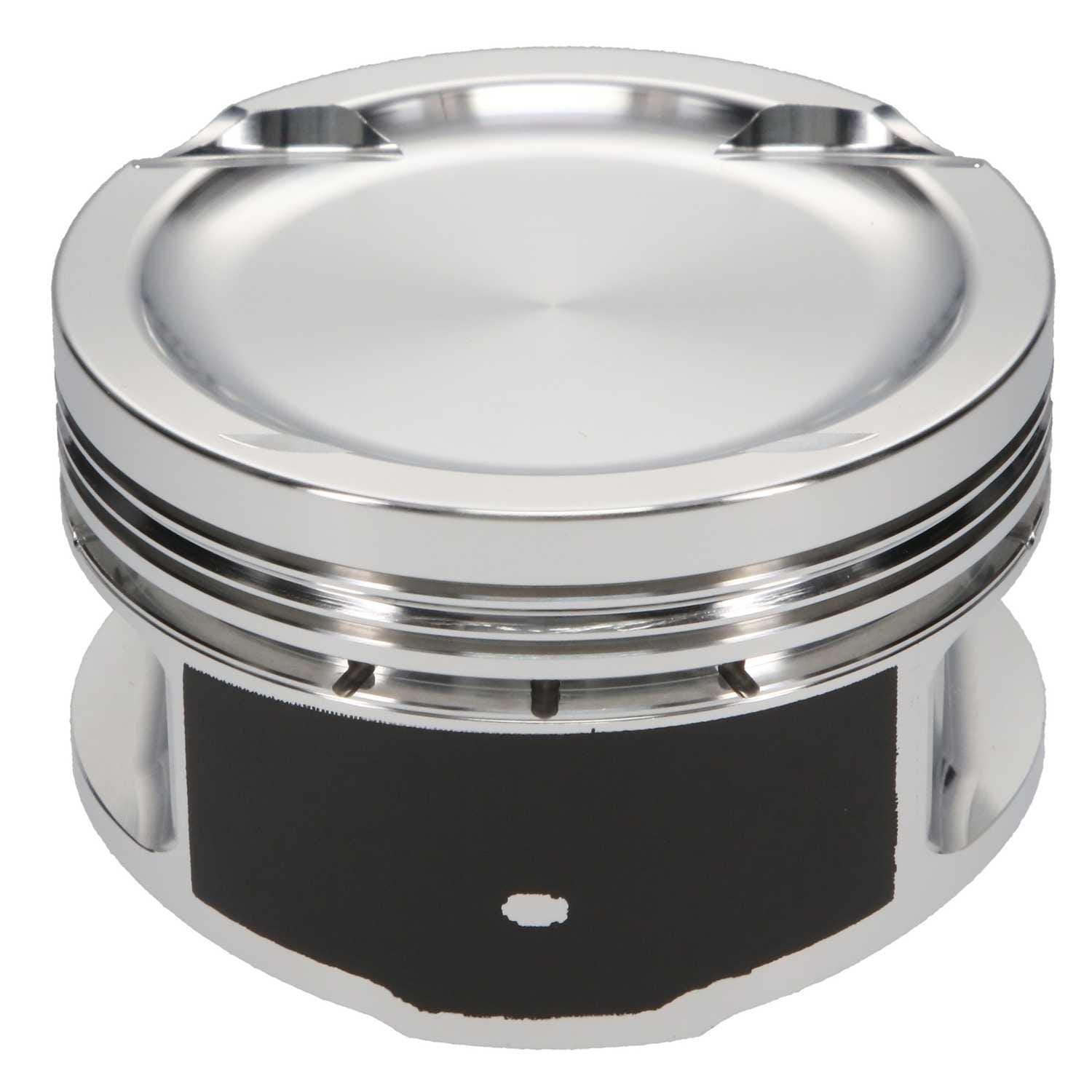

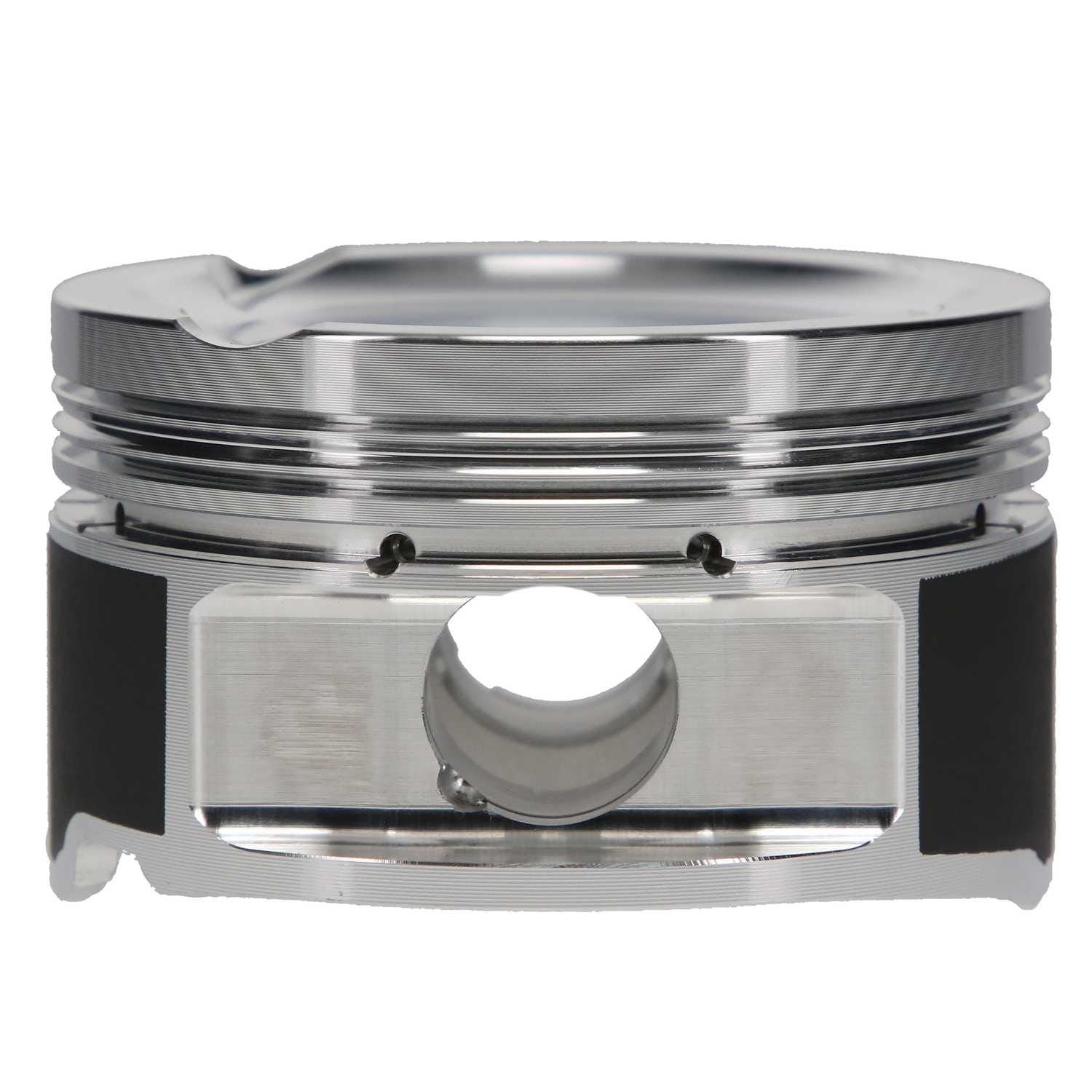

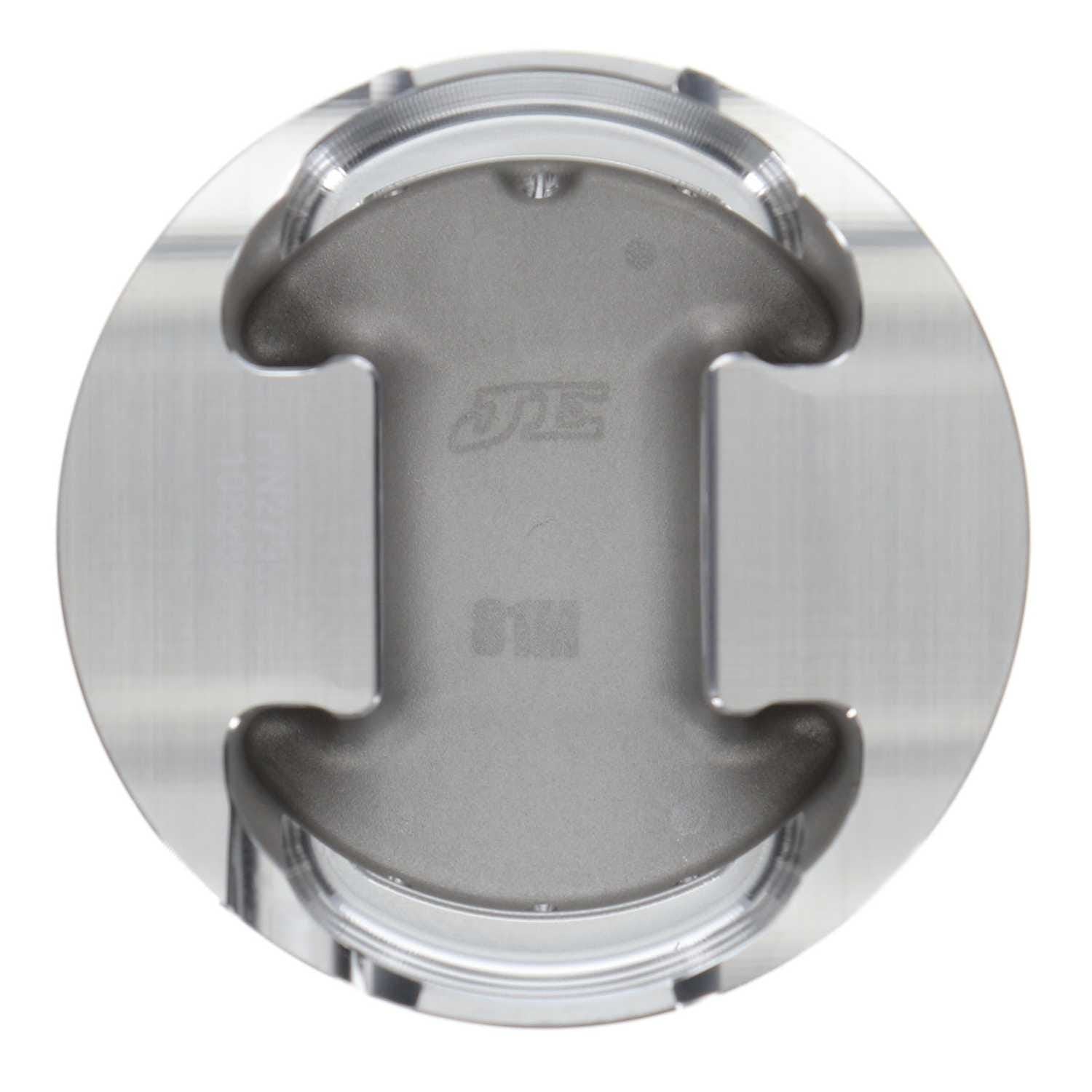

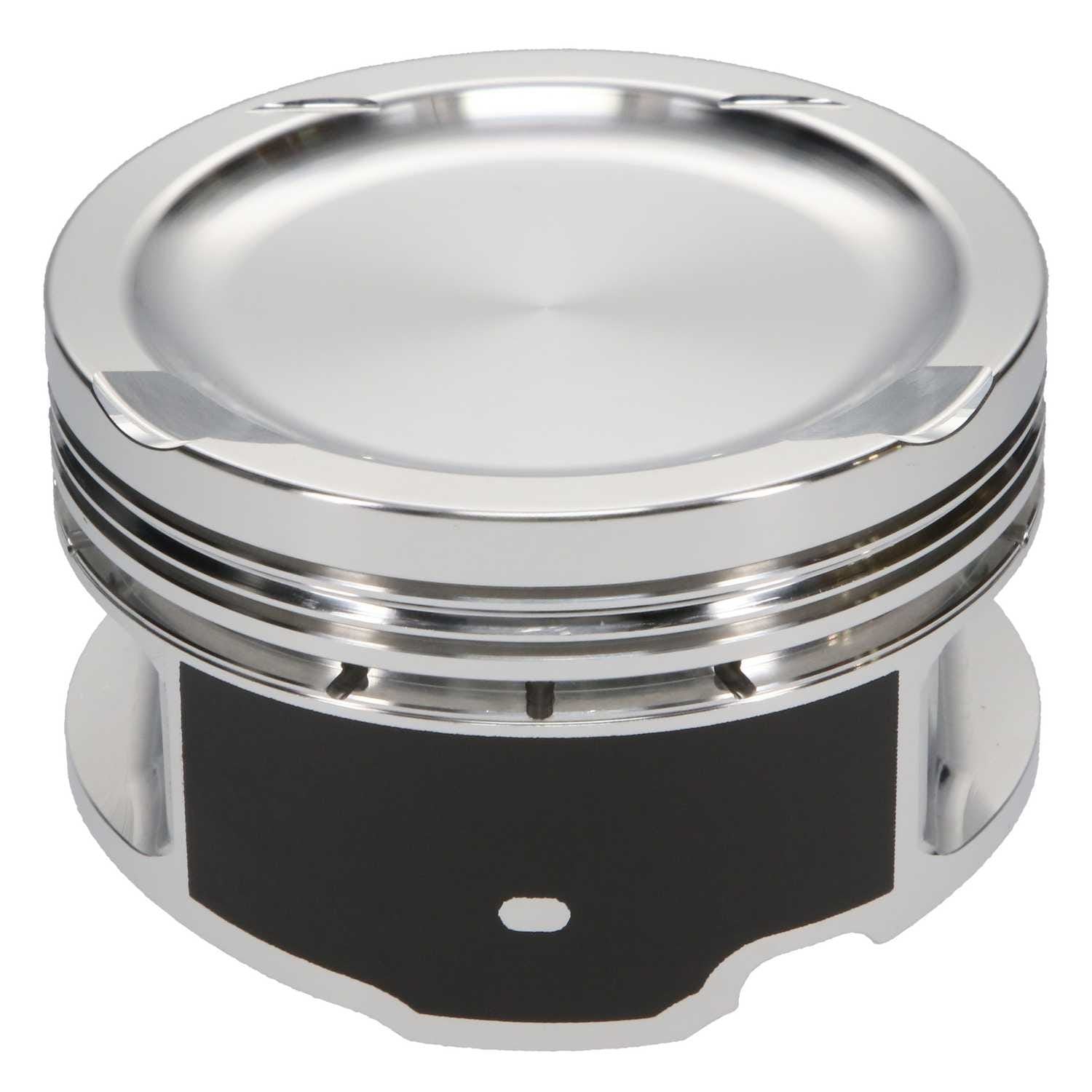

JE 345817S Piston VW TS1 2.0 TURBO 23MM PIN (Single Piece Set) Photo-0

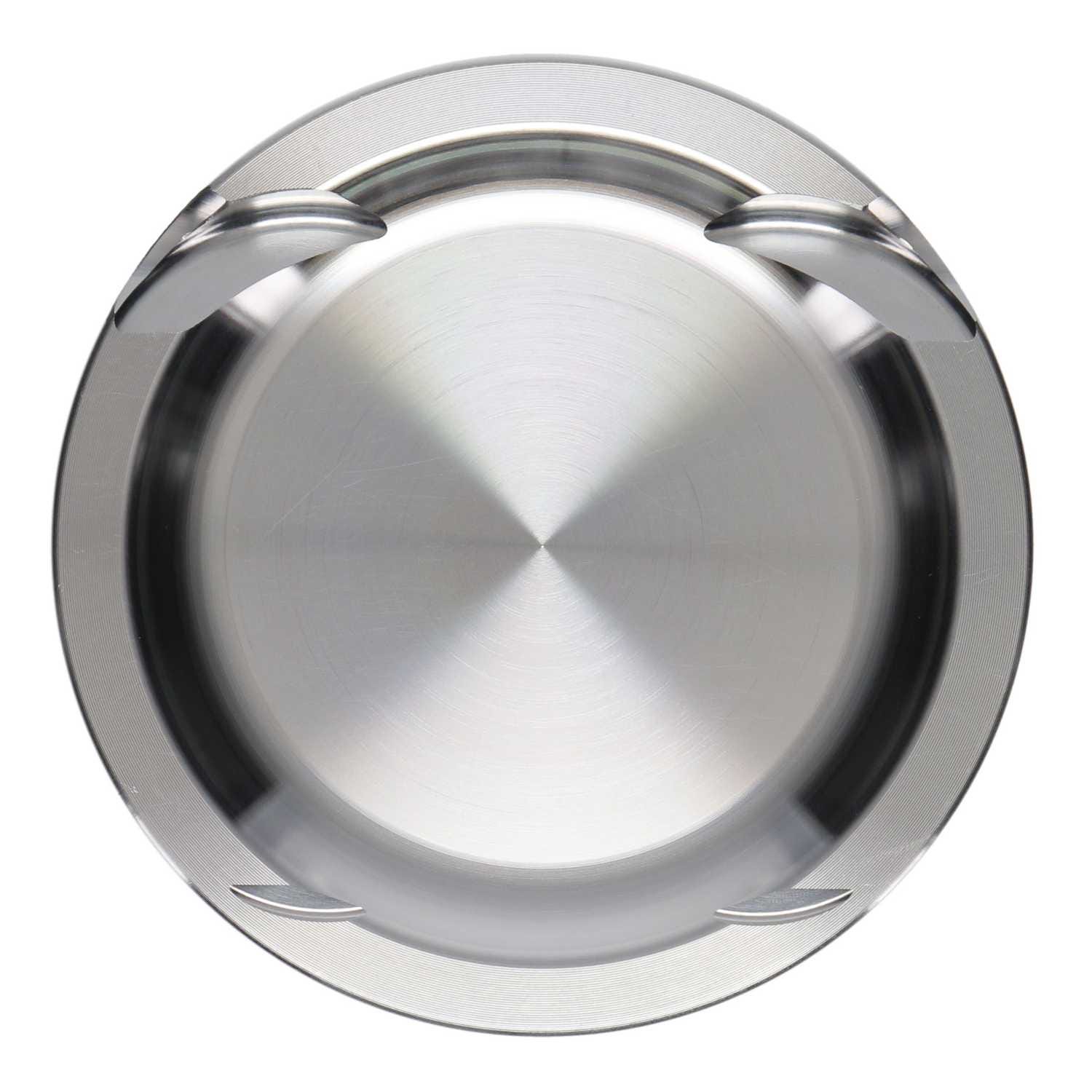

JE 345817S Piston VW TS1 2.0 TURBO 23MM PIN (Single Piece Set) Photo-1
JE 345817S Piston VW TS1 2.0 TURBO 23MM PIN (Single Piece Set) Photo-2
JE 345817S Piston VW TS1 2.0 TURBO 23MM PIN (Single Piece Set) Photo-3
JE 345817S Piston VW TS1 2.0 TURBO 23MM PIN (Single Piece Set) Photo-4

JE 345817S Piston VW TS1 2.0 TURBO 23MM PIN (Single Piece Set)

AED 1,340.28

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 345817S GTIN: 193564018076
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 16.09.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 345817S Piston VW TS1 2.0 TURBO 23MM PIN (Single Piece Set)

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650
DESCRIPTION:
Piston Set, 2618, Inv Dome/Dish, 3.248 Bore, 1.165 CD, 0.905, Pin Dia, Set of 1.


Car | 2015 | Audi | A4
Truck | 2016 | Audi | Q3
Truck | 2018 | Audi | Q3
Truck | 2017 | Audi | Q3
Car | 2015 | Audi | S3
Truck | 2016 | Audi | Q5
Truck | 2015 | Audi | Q5
Truck | 2017 | Audi | Q5
Car | 2016 | Audi | A3 Quattro
Car | 2015 | Audi | A3 Quattro
Car | 2018 | Audi | A3 Quattro
Car | 2016 | Audi | A4 Quattro
Car | 2015 | Audi | A4 Quattro
Car | 2014 | Audi | A6 Quattro
AUDI / VOLKSWAGEN|2.0T TSI - 23MM PIN - FULL ROUND SERIES
Bore (in) 3.248
Bore (mm) 82.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type Round
Volume (cc) -7.10
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.905
Compression Height 1.165
Make AUDI / VOLKSWAGEN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.150
Ringset Part Number JG1001-3250
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.073
Retainer Lock Style Wire Lock
Retainer Lock Part Number 905-073-MW
Retainer Diameter (IN) 0.905
Replacement Single Piston 345817S
Piston Pin Inside Diameter 0.605
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 905-2250-15-51C
Pin Included Yes
Pin Diameter (mm) 23.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons
