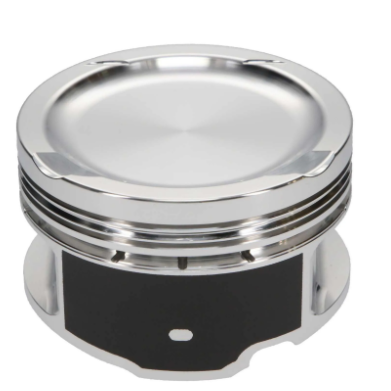

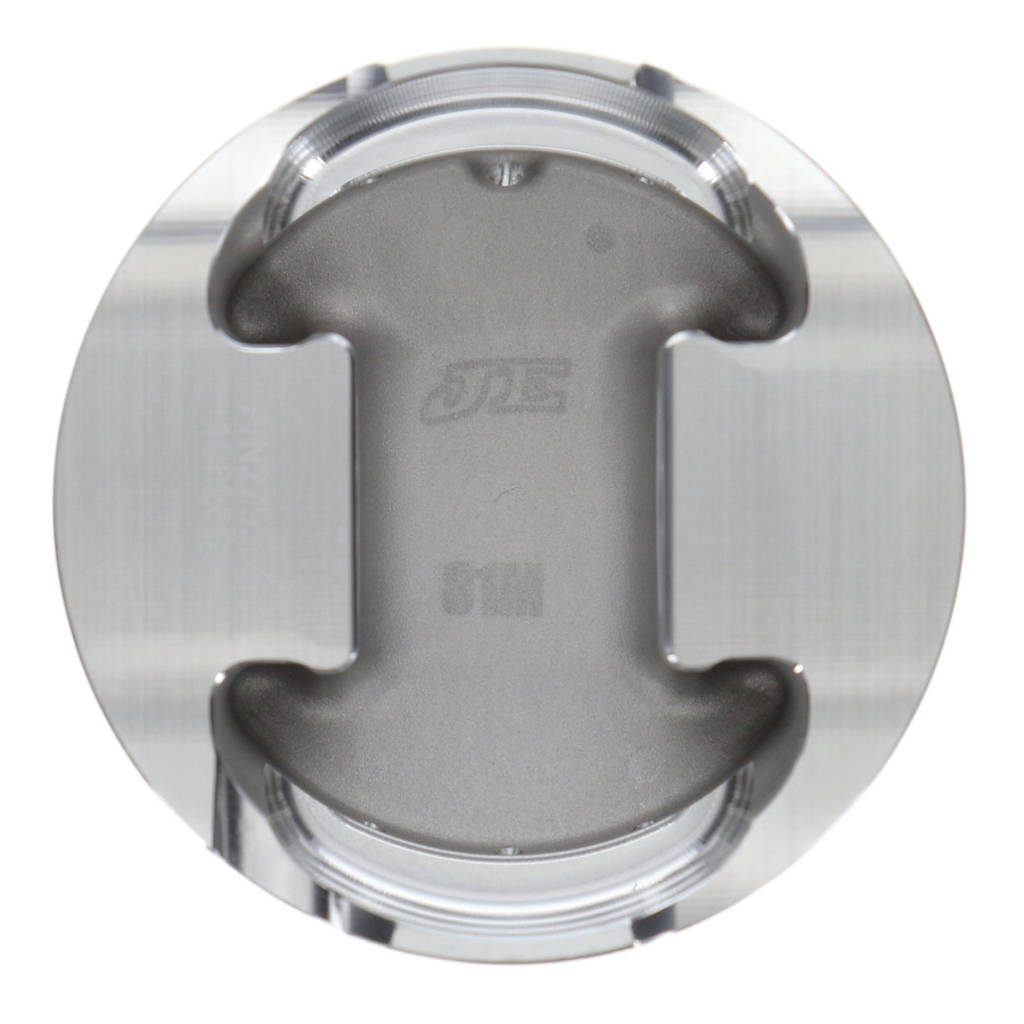

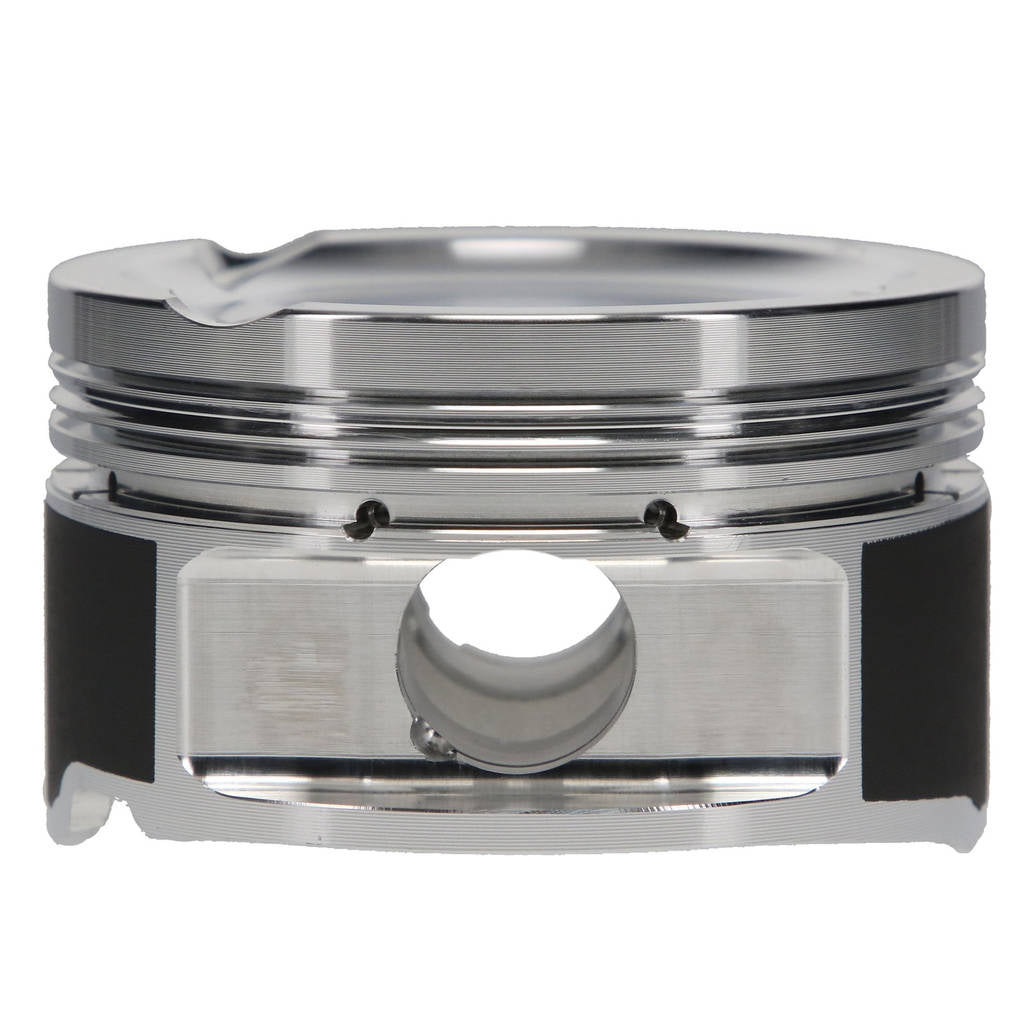

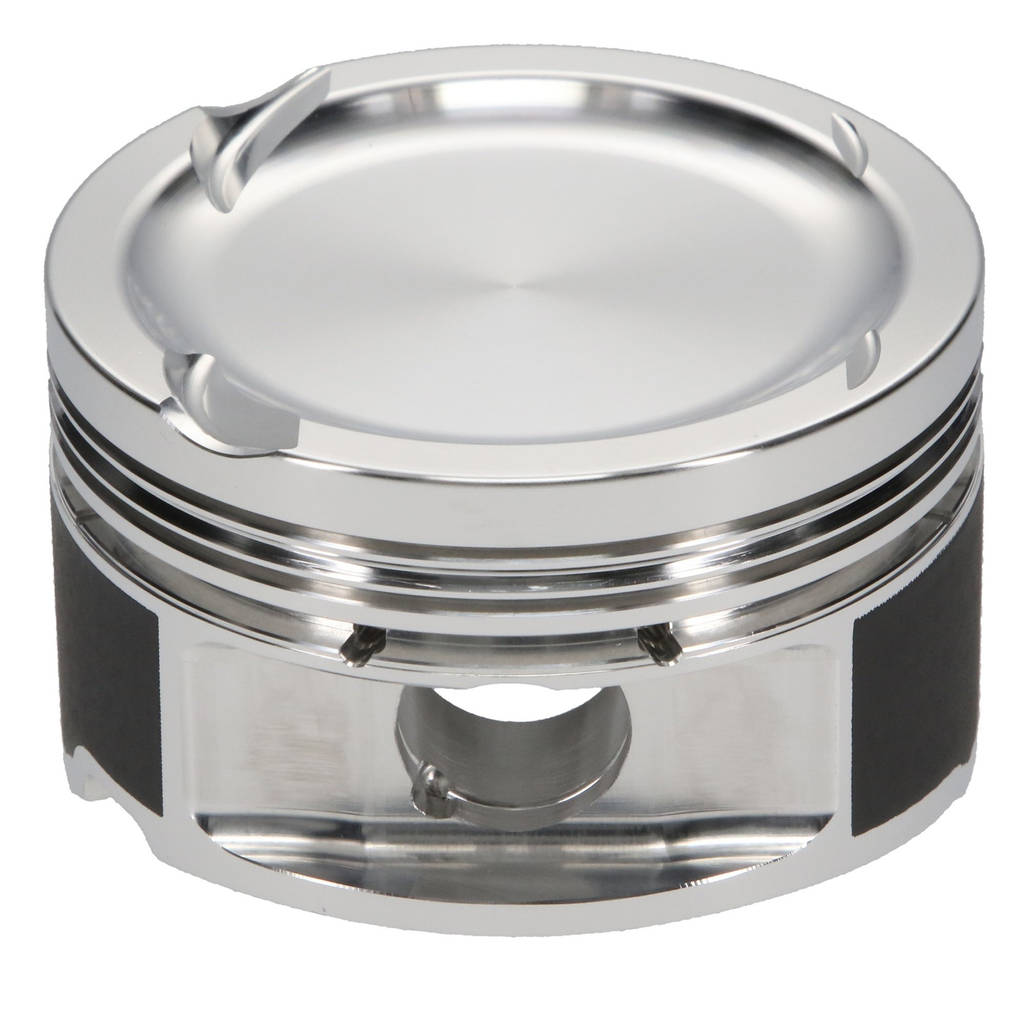

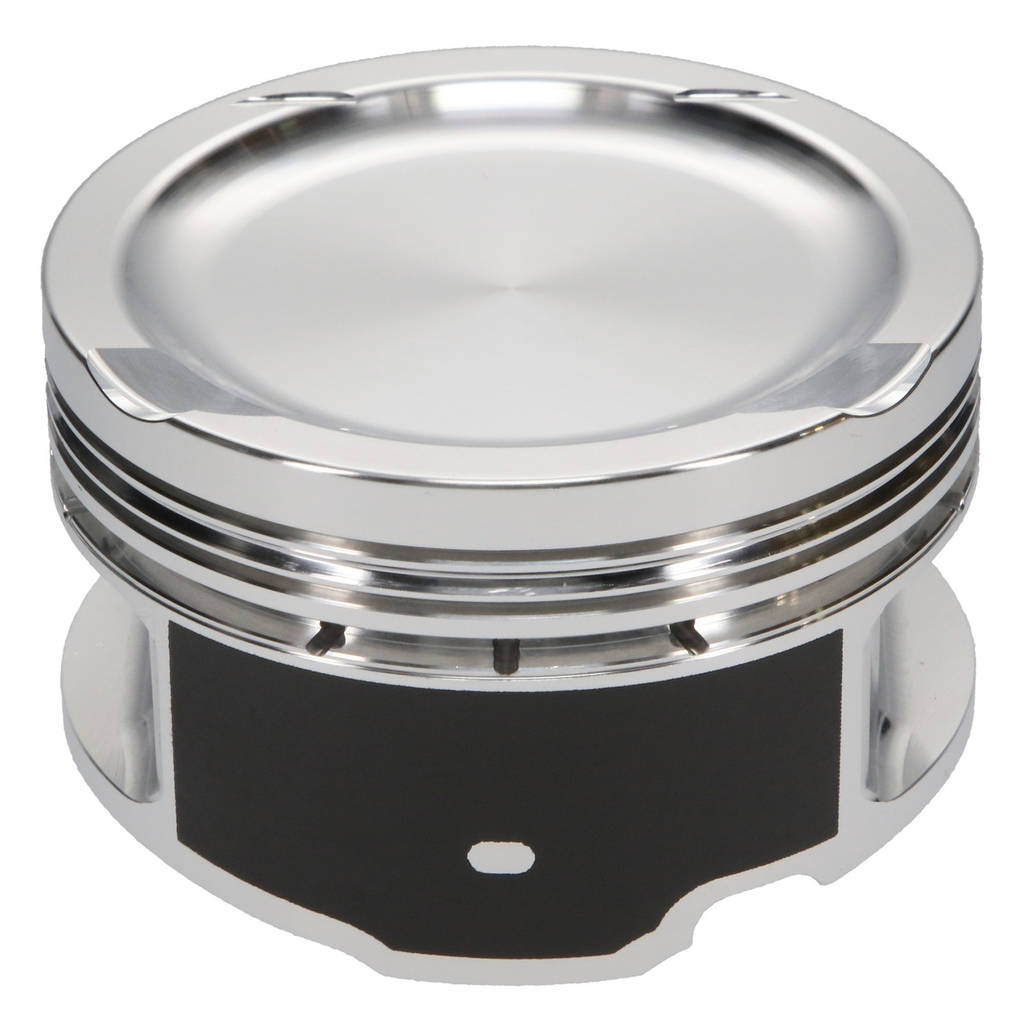

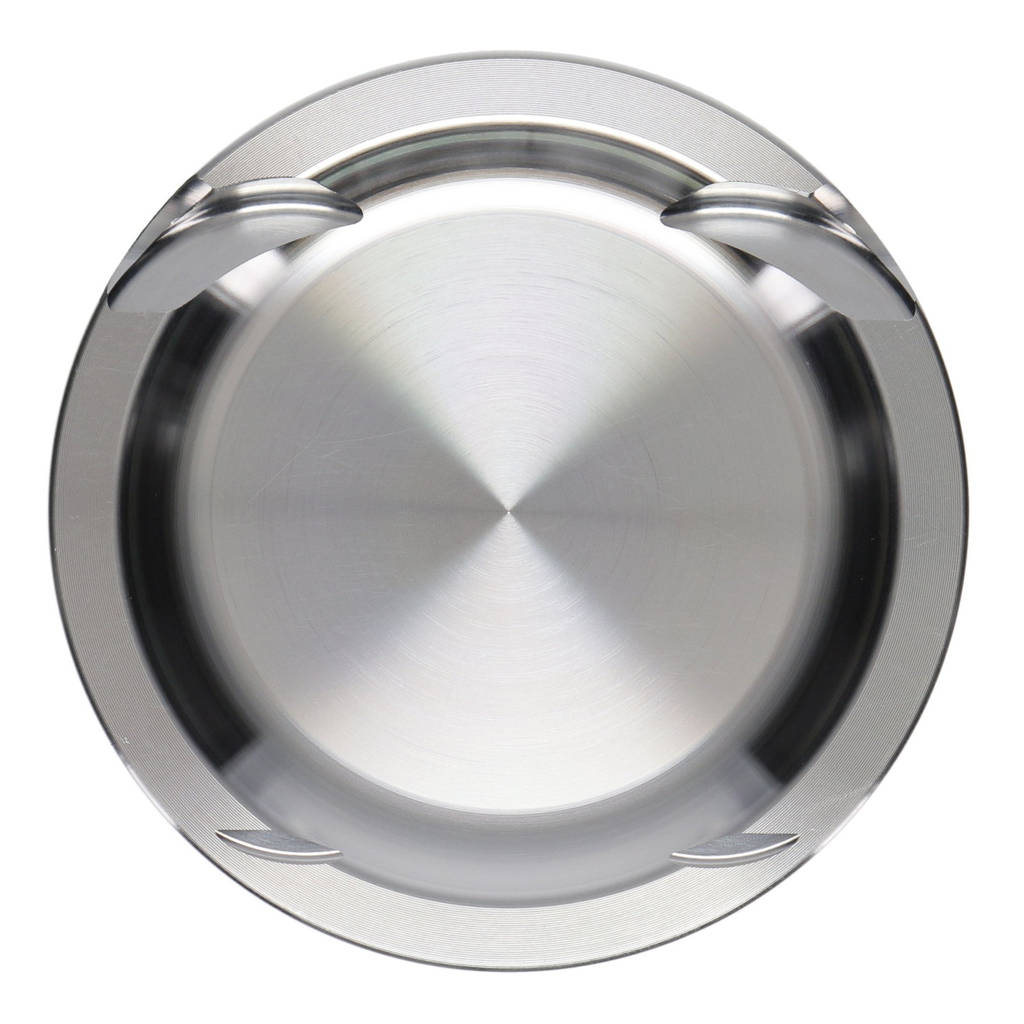

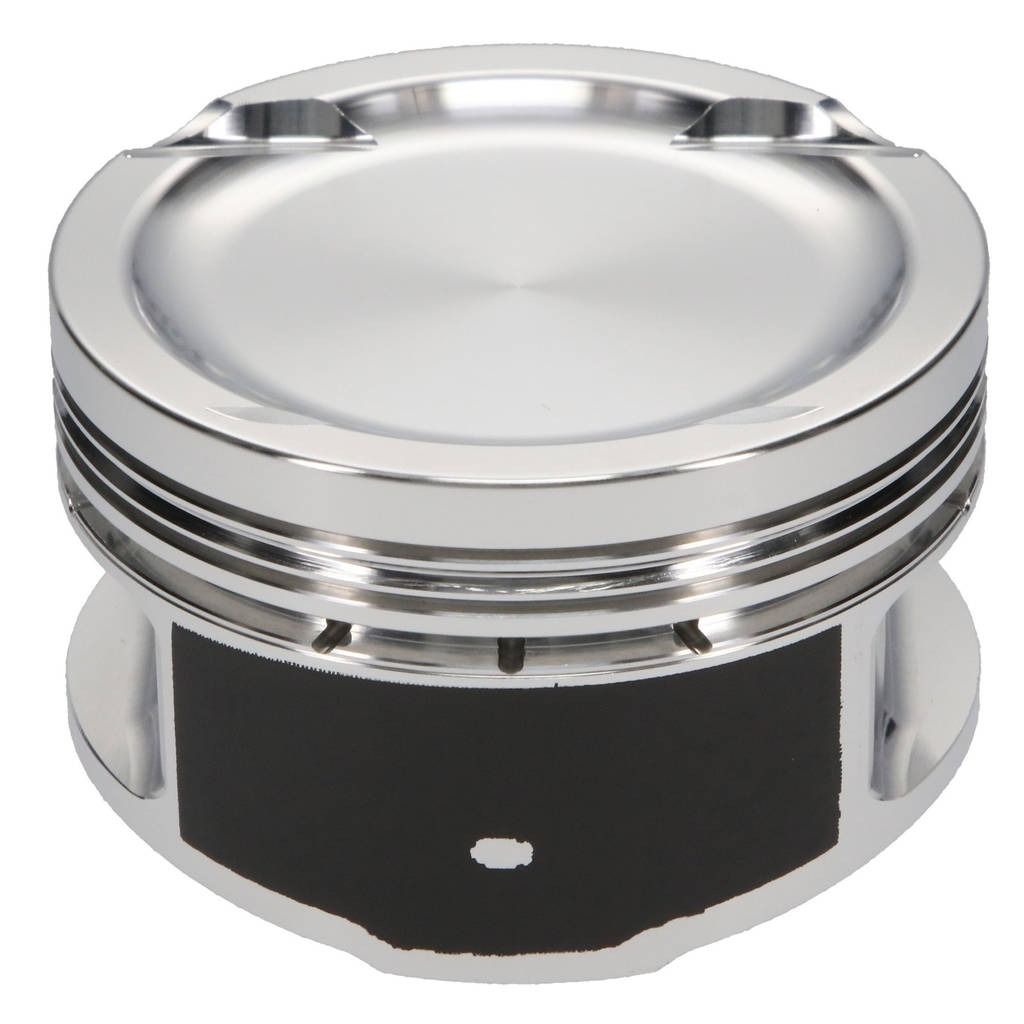

JE 345812 Pistons kit VW TSI 2.0L TURBO (Set of 4 pic) Bore 82,50 STD Stroke 92,80 CR9.6:1 Photo-0

JE 345812 Pistons kit VW TSI 2.0L TURBO (Set of 4 pic) Bore 82,50 STD Stroke 92,80 CR9.6:1

AED 4,020.93

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 345812 GTIN: 193564044747
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 18.09.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 345812 Pistons kit VW TSI 2.0L TURBO (Set of 4 pic) Bore 82,50 STD Stroke 92,80 CR9.6:1

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650
Bore (in) 3.248
Bore (mm) 82.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type Round
Volume (cc) -7.10
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.866
Compression Height 1.165
Make AUDI / VOLKSWAGEN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.150
Ringset Part Number JG1001-3250
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.063
Retainer Lock Style Wire Lock
Retainer Lock Part Number 866-063-MW
Retainer Diameter (IN) 0.866
Replacement Single Piston 345812S
Piston Pin Inside Diameter 0.566
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 866-2250-15-51C
Pin Included Yes
Pin Diameter (mm) 22.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons
