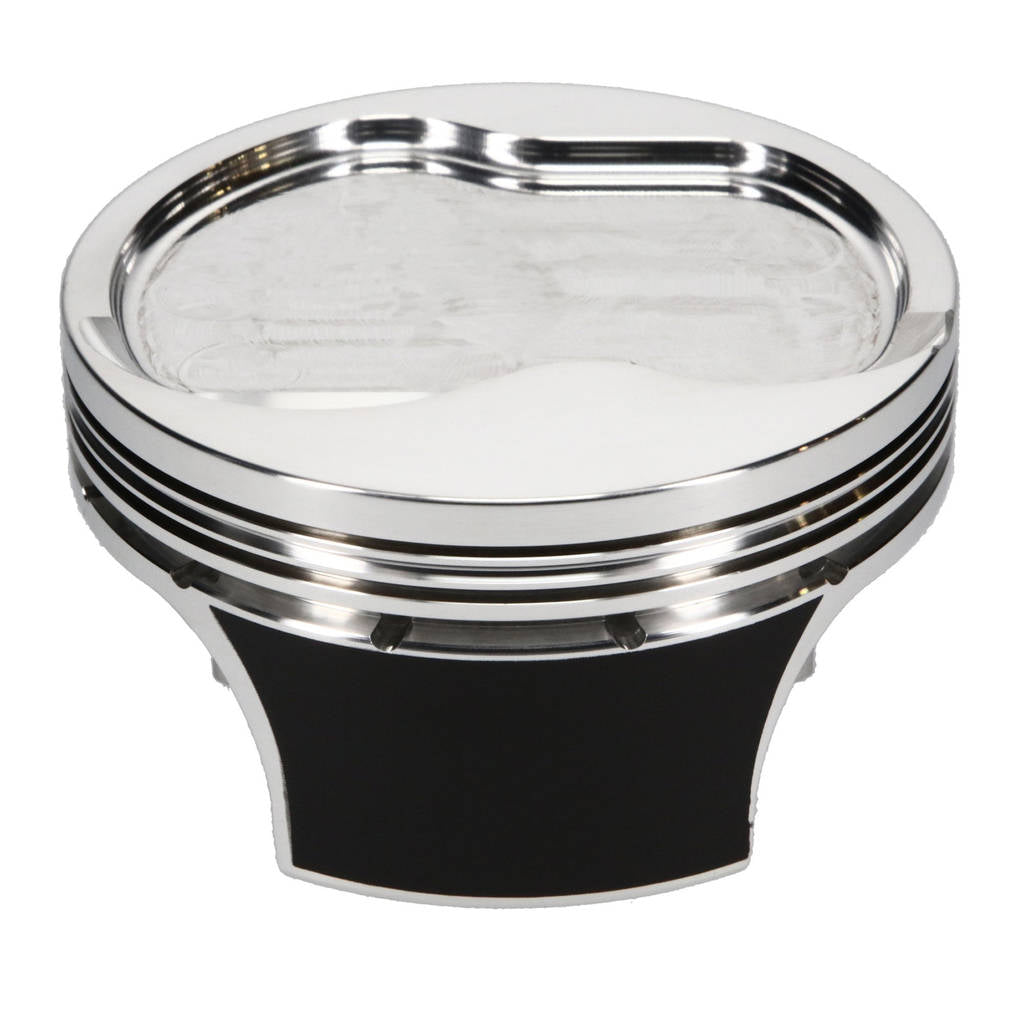

JE 329574S Piston Single SRP Pro 4032 (4.010 in. Bore, 1.230 in. CH, -19.00 CC) for FORD Small Block Engine Photo-0

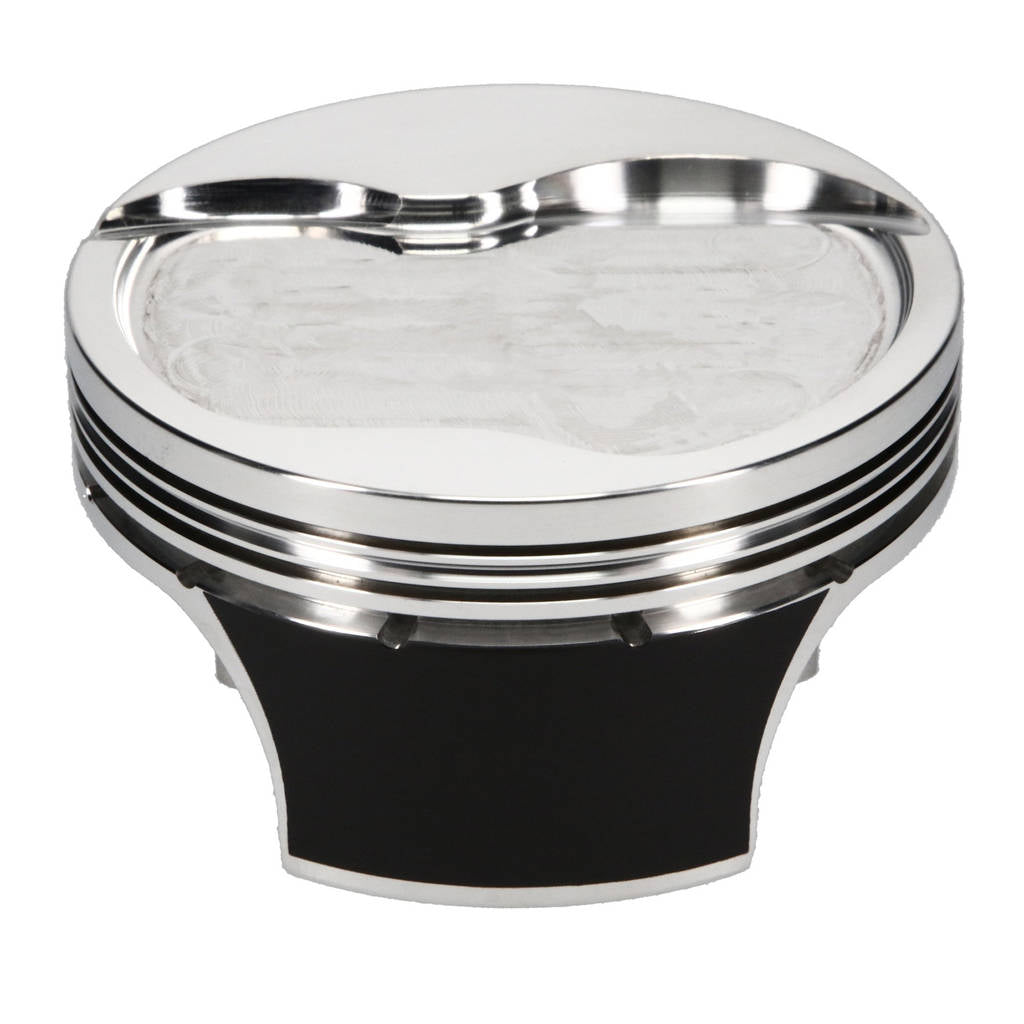

JE 329574S Piston Single SRP Pro 4032 (4.010 in. Bore, 1.230 in. CH, -19.00 CC) for FORD Small Block Engine Photo-1

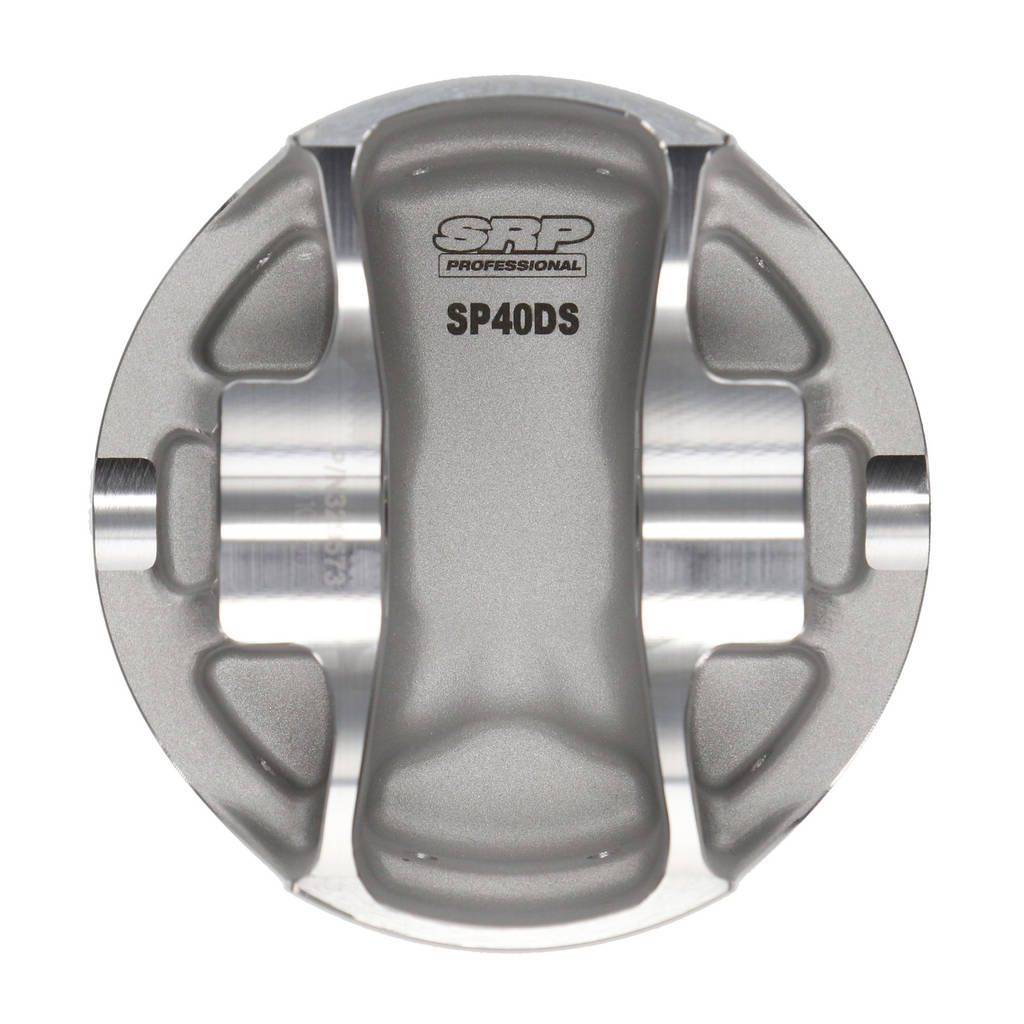

JE 329574S Piston Single SRP Pro 4032 (4.010 in. Bore, 1.230 in. CH, -19.00 CC) for FORD Small Block Engine Photo-2

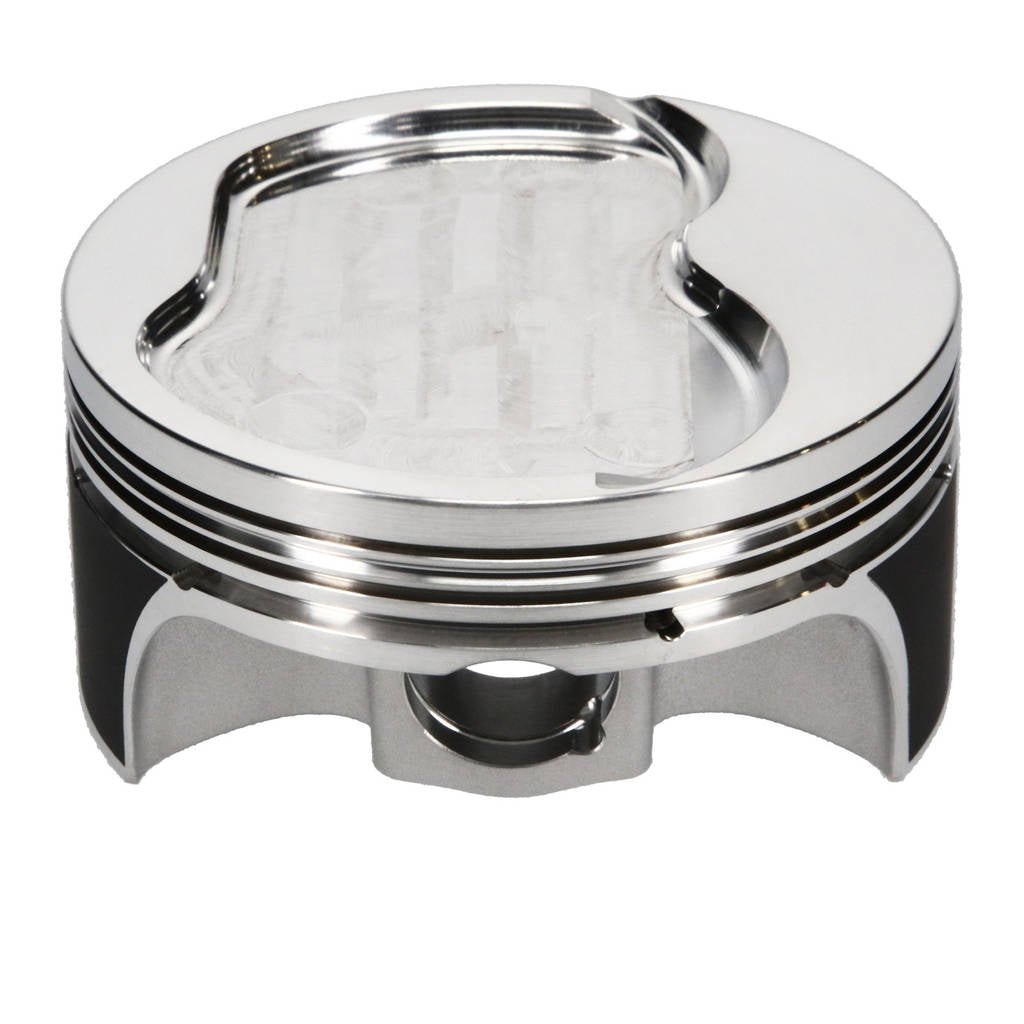

JE 329574S Piston Single SRP Pro 4032 (4.010 in. Bore, 1.230 in. CH, -19.00 CC) for FORD Small Block Engine Photo-3

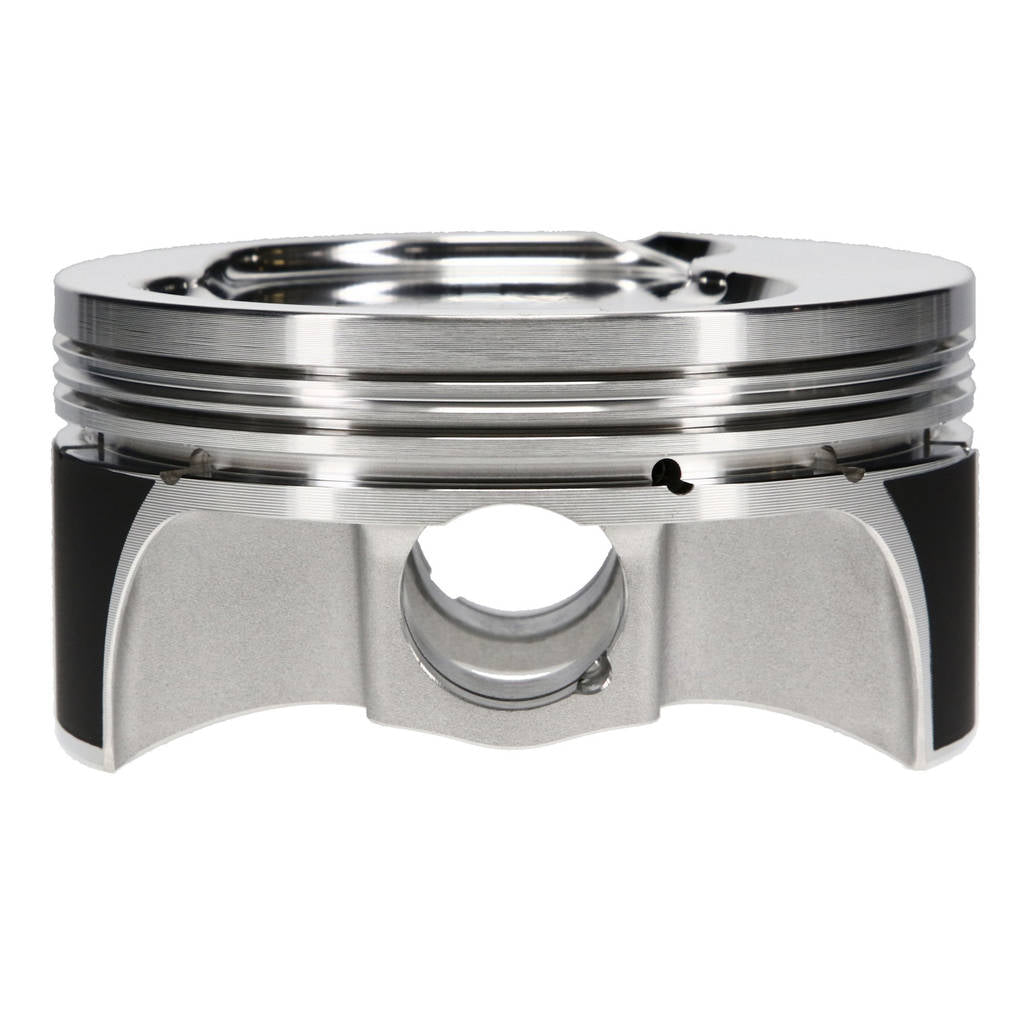

JE 329574S Piston Single SRP Pro 4032 (4.010 in. Bore, 1.230 in. CH, -19.00 CC) for FORD Small Block Engine Photo-4

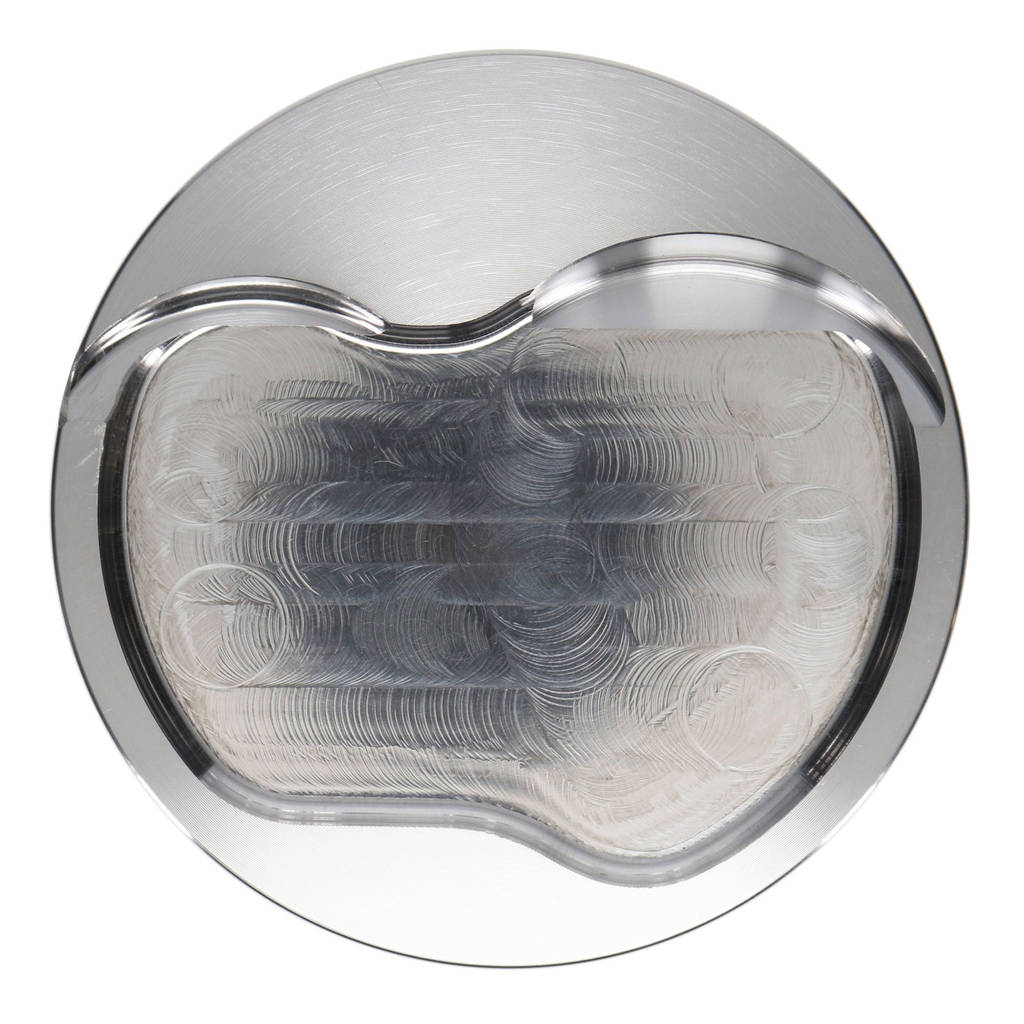

JE 329574S Piston Single SRP Pro 4032 (4.010 in. Bore, 1.230 in. CH, -19.00 CC) for FORD Small Block Engine Photo-5

JE 329574S Piston Single SRP Pro 4032 (4.010 in. Bore, 1.230 in. CH, -19.00 CC) for FORD Small Block Engine

AED 839.89

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 329574S GTIN: 193564256058
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 329574S Piston Single SRP Pro 4032 (4.010 in. Bore, 1.230 in. CH, -19.00 CC) for FORD Small Block Engine

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description JE 329574S Piston Single SRP Pro 4032 (4.010 in. Bore, 1.230 in. CH, -19.00 CC) for FORD Small Block Engine

SRP Professional pistons combine forged piston durability with modern performance technology for a capable forged piston kit. Forged from 4032 aluminum, SRP Pro pistons experience minimal thermal expansion, making them suitable for reliable, high-performance engine builds from the track to the drag strip.

As with all JE Pistons products, SRP pistons are made 100% in the USA.

  • 4032 forged aluminum provides tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief forging design minimizes friction and power loss, reduces skirt width, and saves weight through a shorter Wrist Pin
  • Low-friction skirt coating reduces wear and operating noise while optimizing performance
  • Accumulator groove reduces combustion gas pressure, reducing Piston Ring flutter and improving ring seal for consistent power

Specifications:

  • Piston Series: SRP Pro 4032
  • Cylinder Head: SMALL BLOCK FORD 20 DEG
  • Bore Diameter: 4.010 IN
  • Piston Head Type: Dish
  • Compression Height: 1.230 IN
  • Piston Volume: -19.00 CC
  • Piston Material: 4032
  • Forging Type: FSR
  • Piston Average Weight: 390 GR
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 0.0480 IN
  • Second Compression Ring Thickness: 0.0600 IN
  • Oil Ring Thickness: 0.119 IN
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.150 IN
