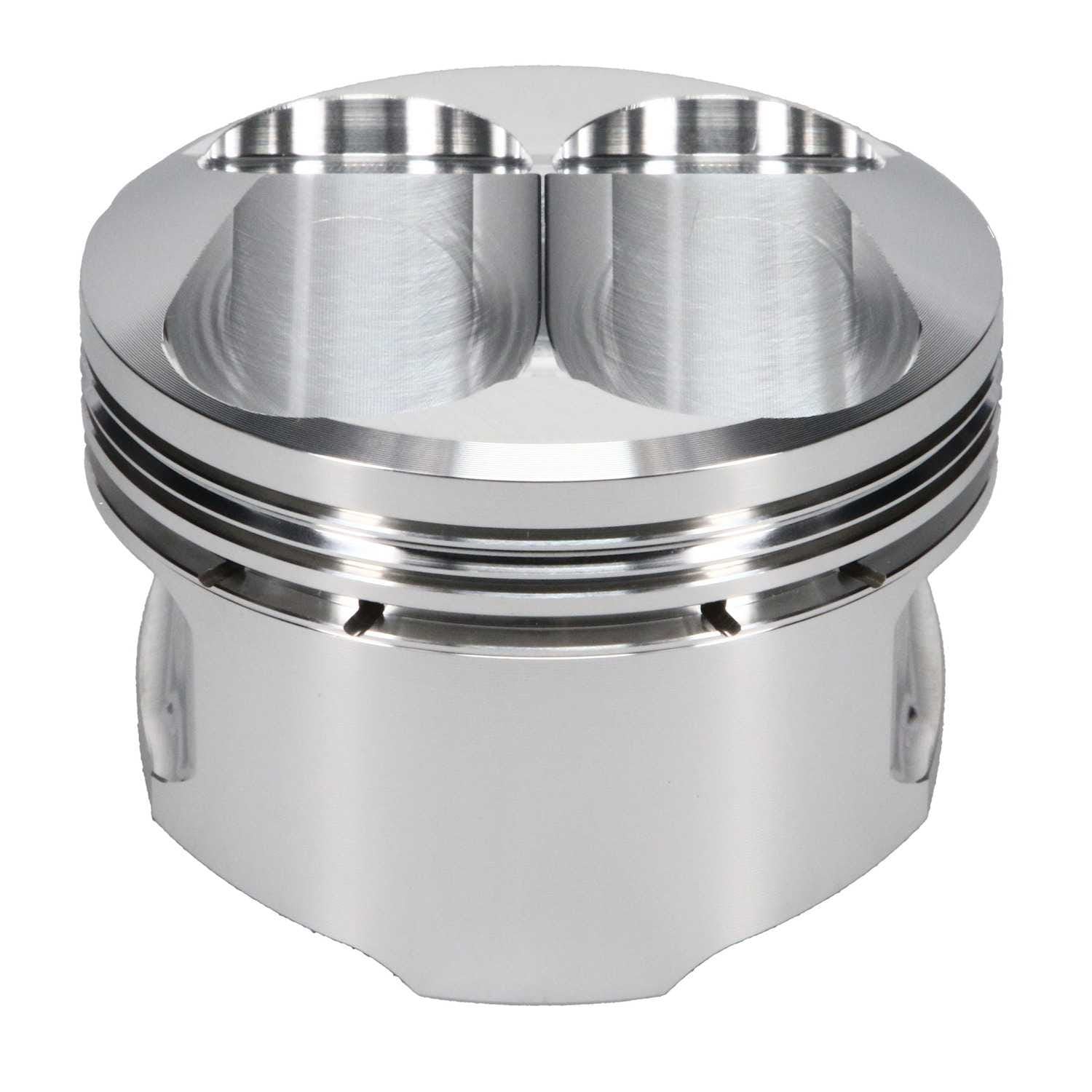

JE 312388S Piston CITROEN C2 VTS (Single Piece Set) Photo-0

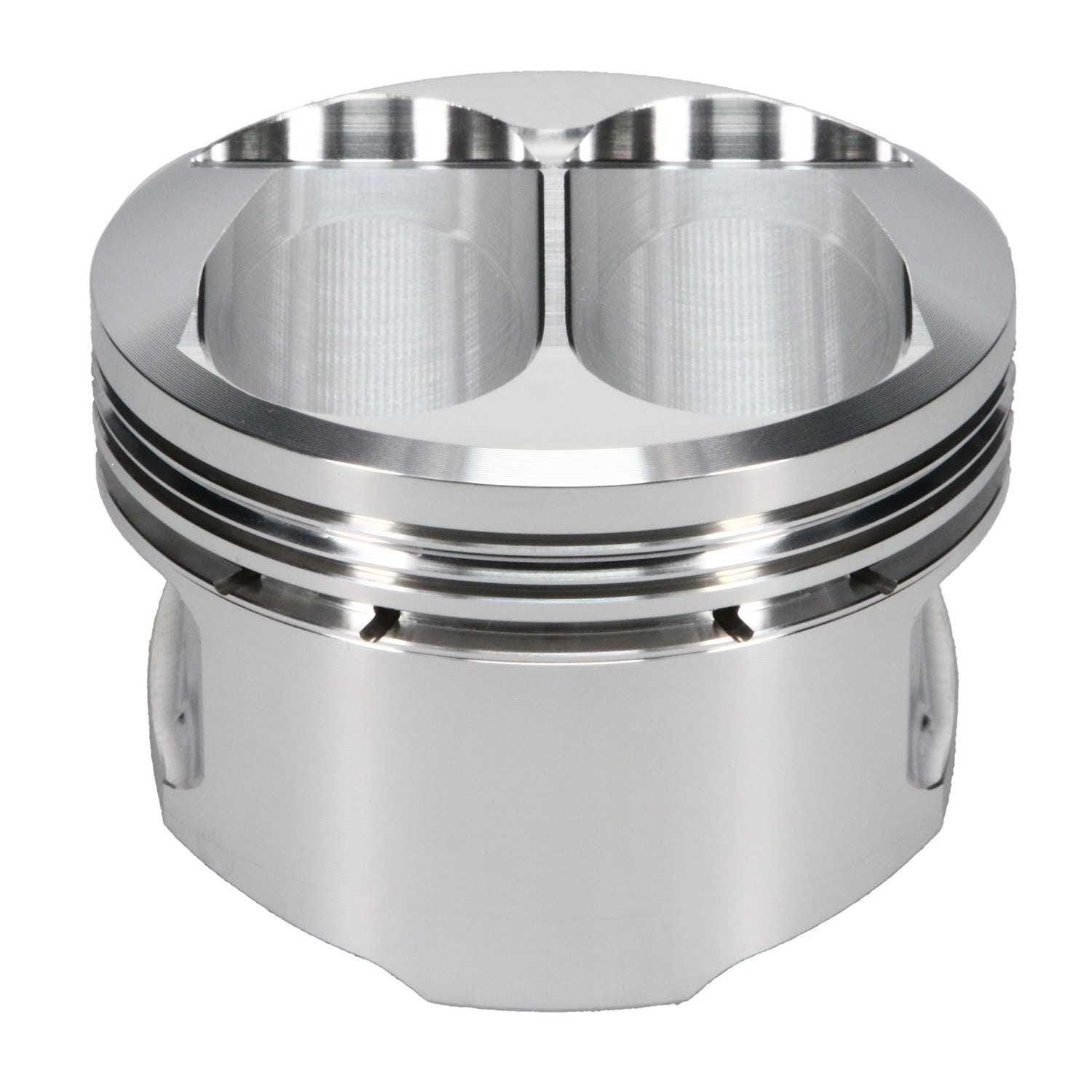

JE 312388S Piston CITROEN C2 VTS (Single Piece Set) Photo-1

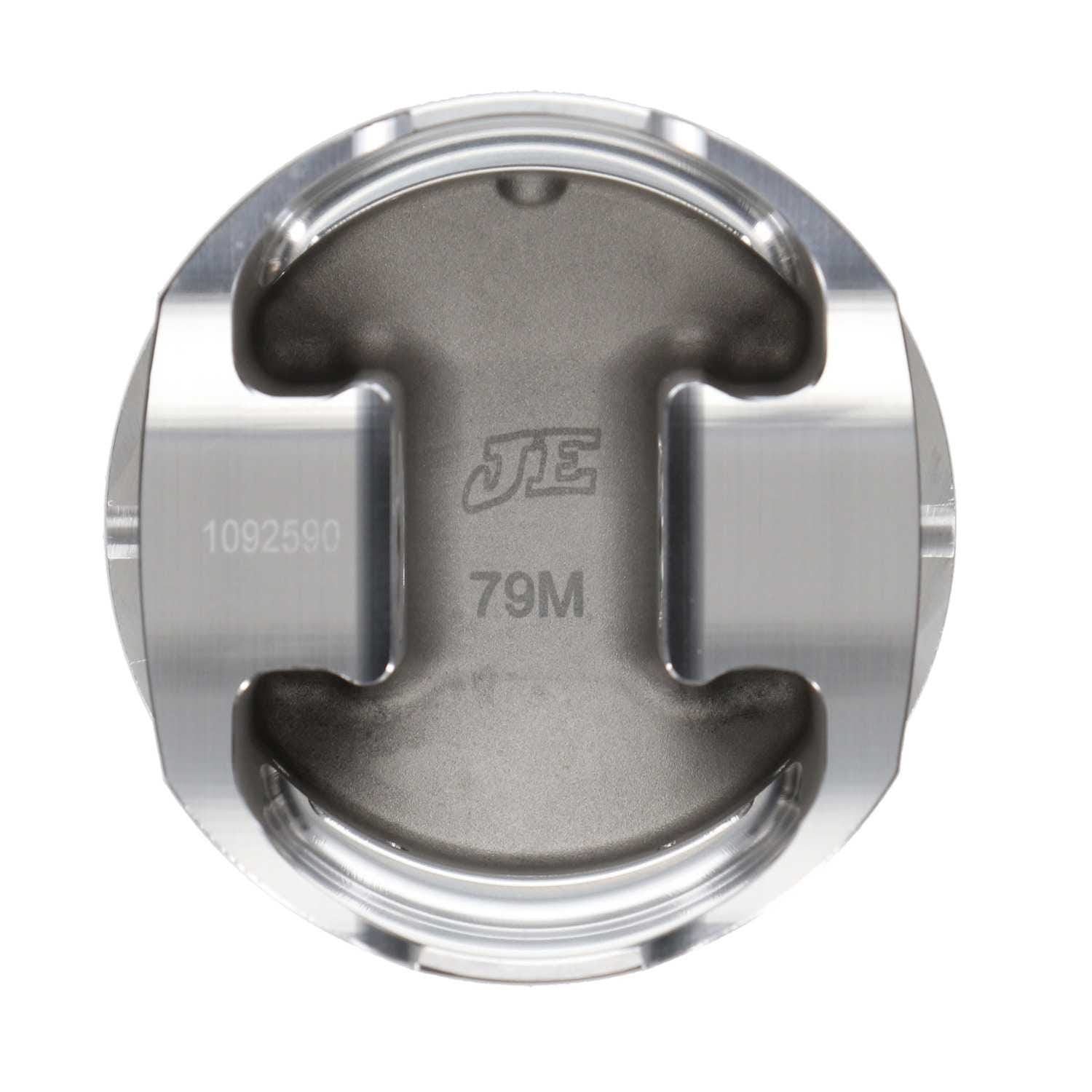

JE 312388S Piston CITROEN C2 VTS (Single Piece Set) Photo-2

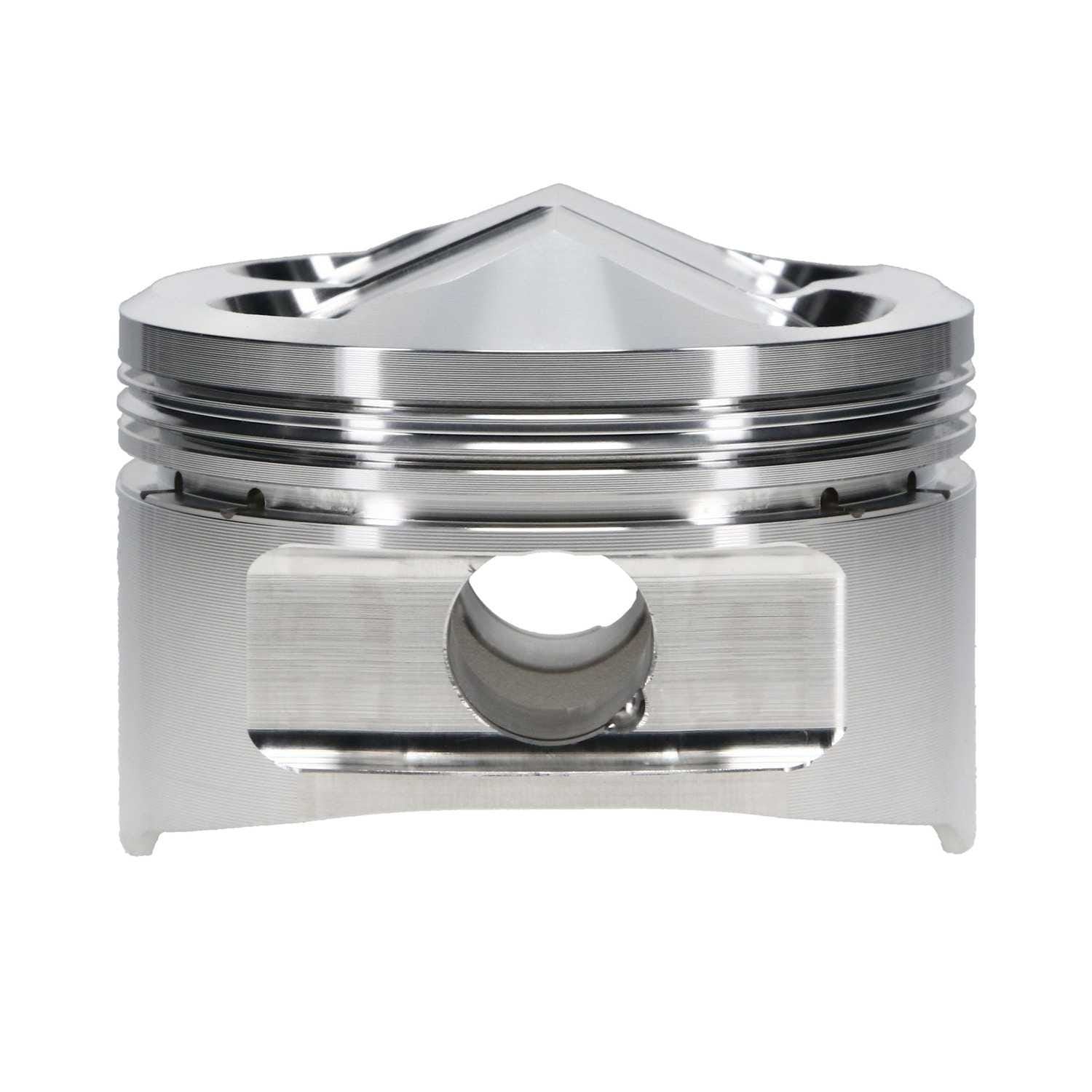

JE 312388S Piston CITROEN C2 VTS (Single Piece Set) Photo-3

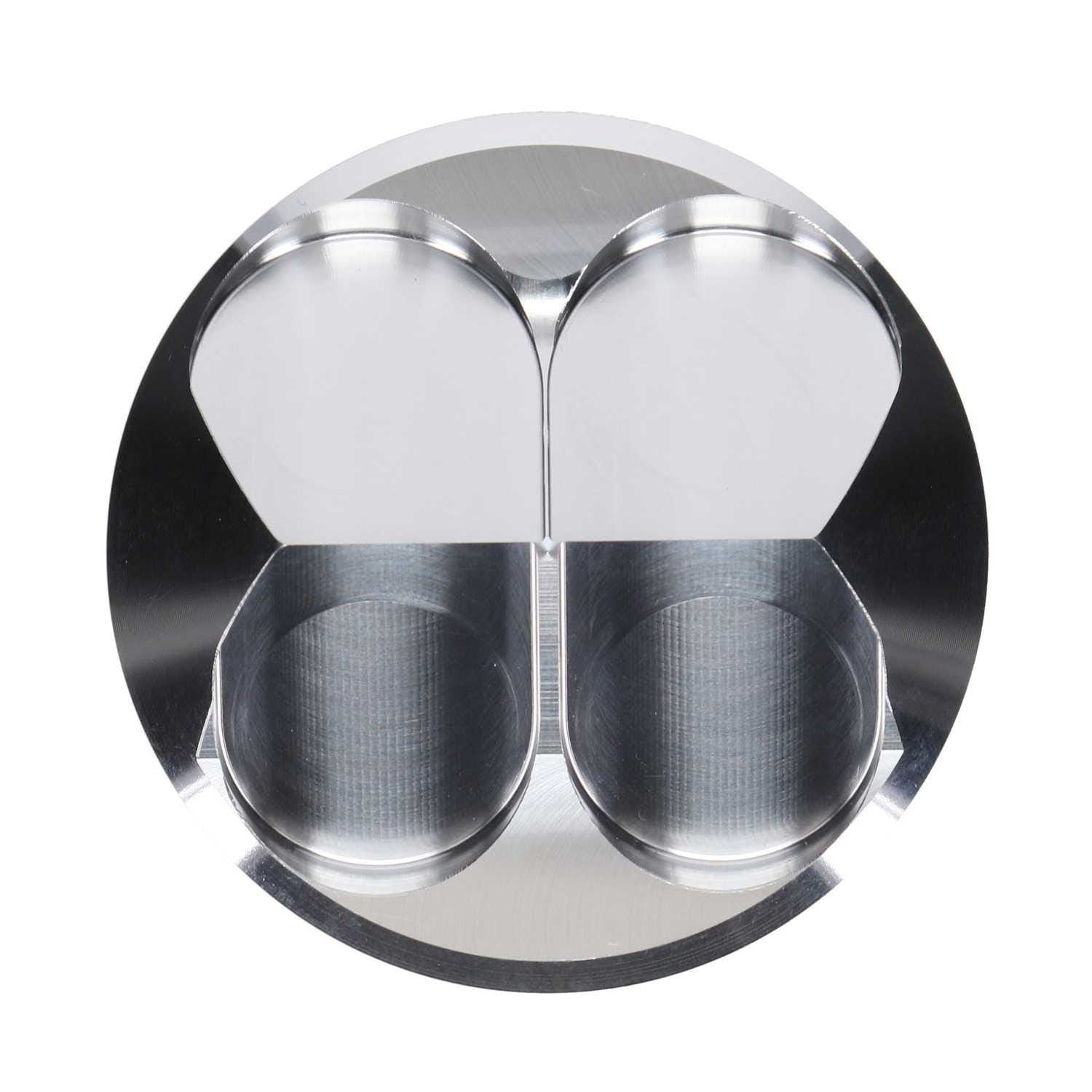

JE 312388S Piston CITROEN C2 VTS (Single Piece Set) Photo-4

JE 312388S Piston CITROEN C2 VTS (Single Piece Set)

AED 1,340.28

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 312388S GTIN: 193564011046
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 15.09.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 312388S Piston CITROEN C2 VTS (Single Piece Set)

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650
Bore (in) 3.098
Bore (mm) 78.7
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type Round
Volume (cc) 7.60
Series JE Pistons
Piston Head Type Dome
Pin Diameter (IN) 0.708
Compression Height 1.106
Make CITROEN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.120
Ringset Part Number JG1001-3110
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.050
Retainer Lock Style Wire Lock
Retainer Lock Part Number 708-050-MW
Retainer Diameter (IN) 0.708
Replacement Single Piston 312388S
Piston Pin Inside Diameter 0.468
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Piston Avg Wt 260
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 708-2250-12-51C
Pin Included Yes
Pin Diameter (mm) 18.00
Oil Rail Support Included No
Deck Clearance -0.007
Brand JE Pistons
