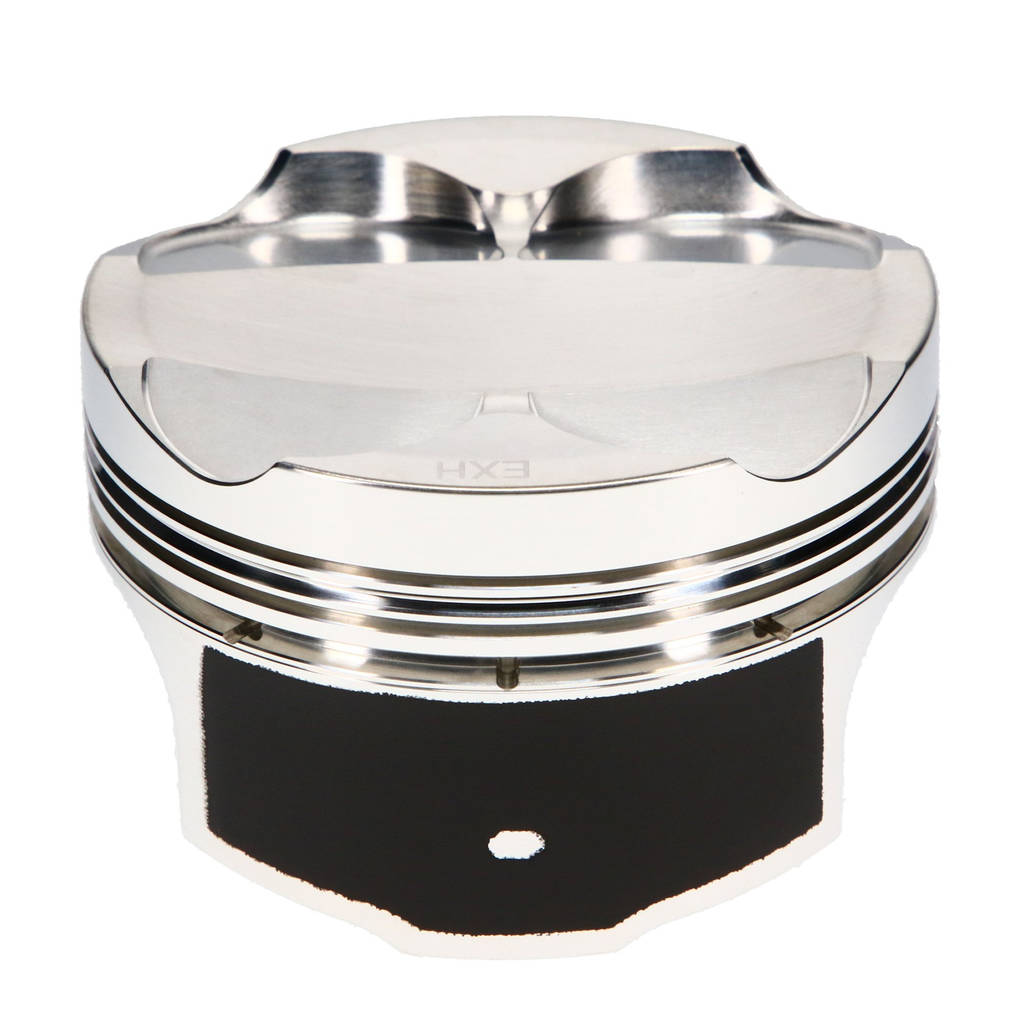

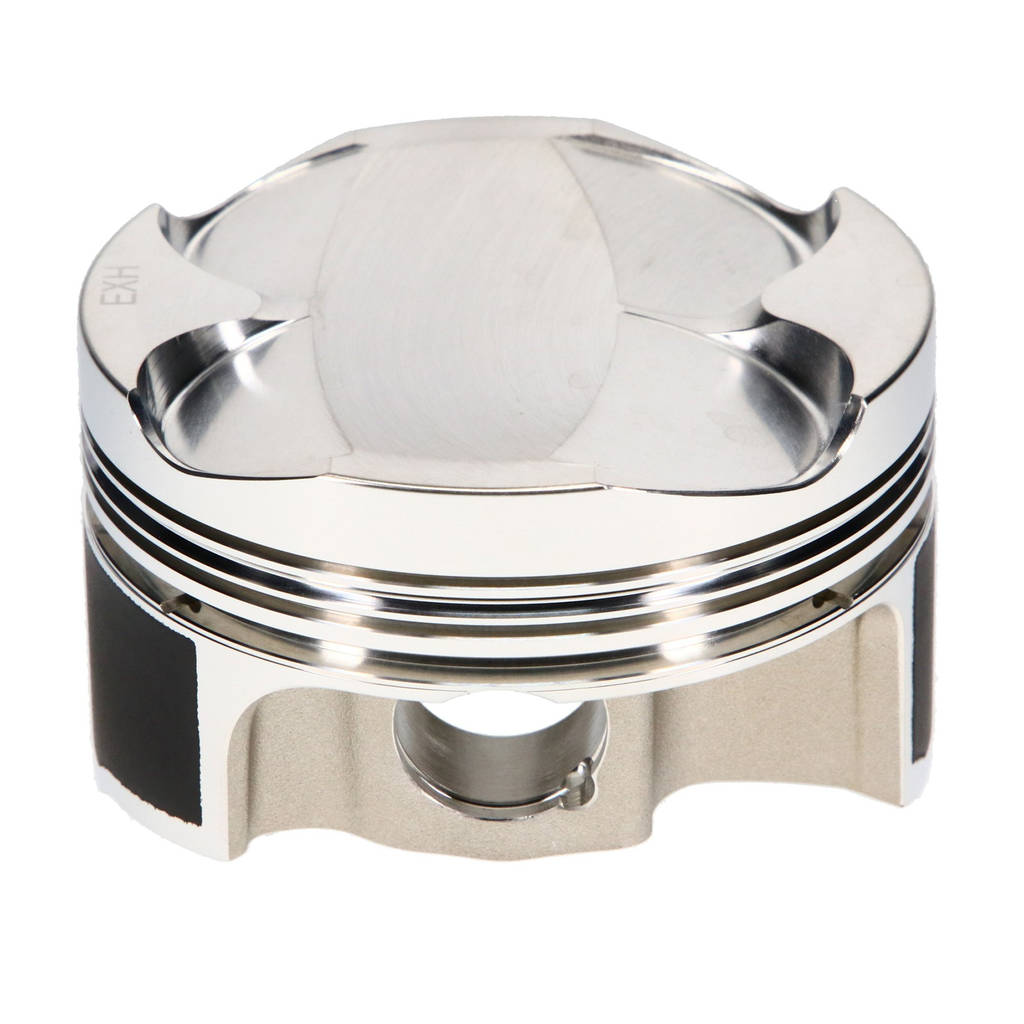

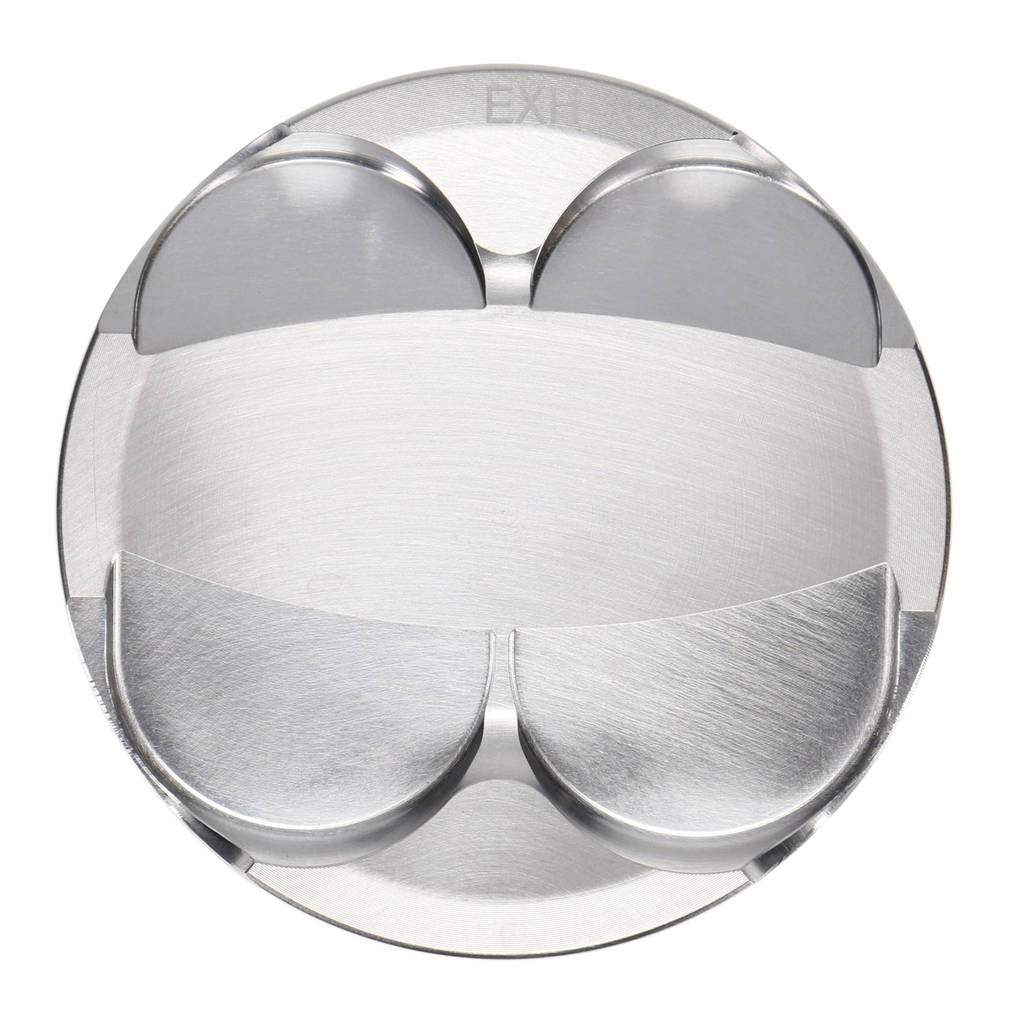

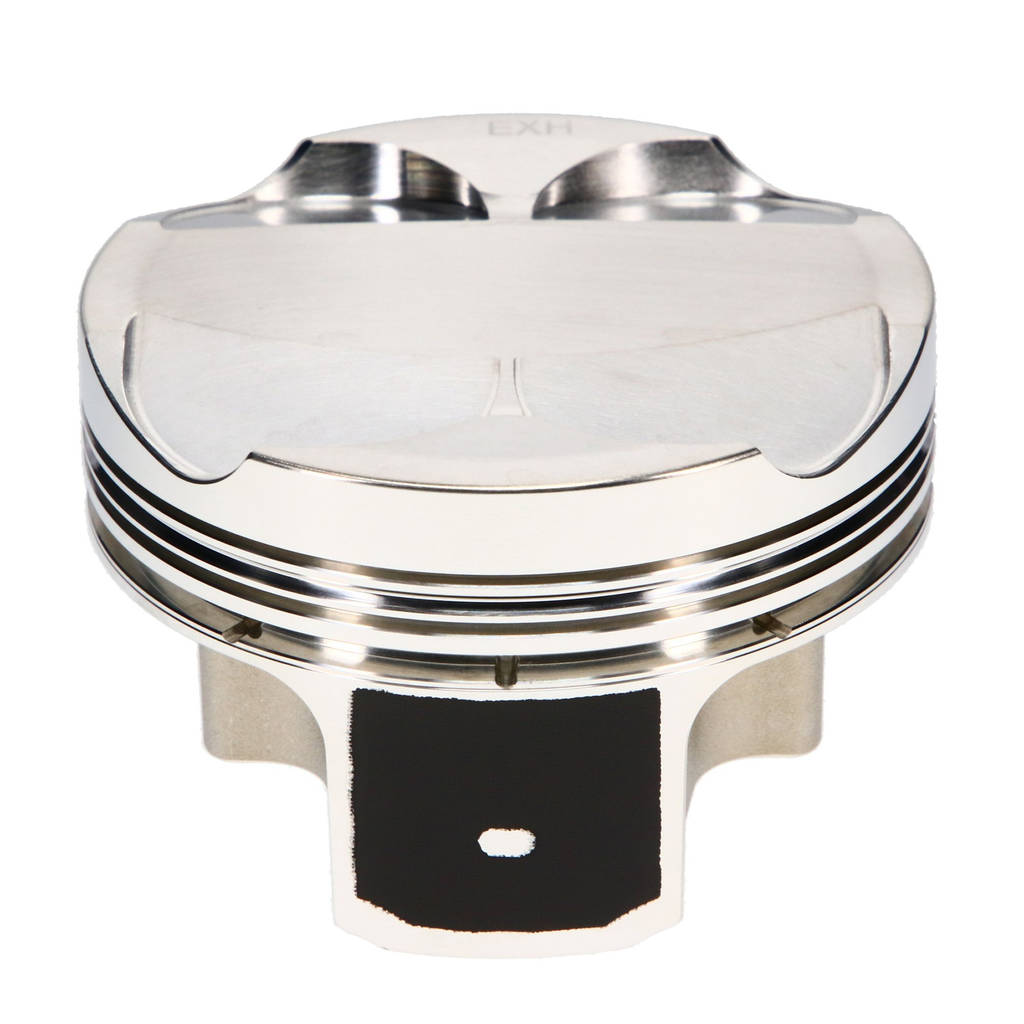

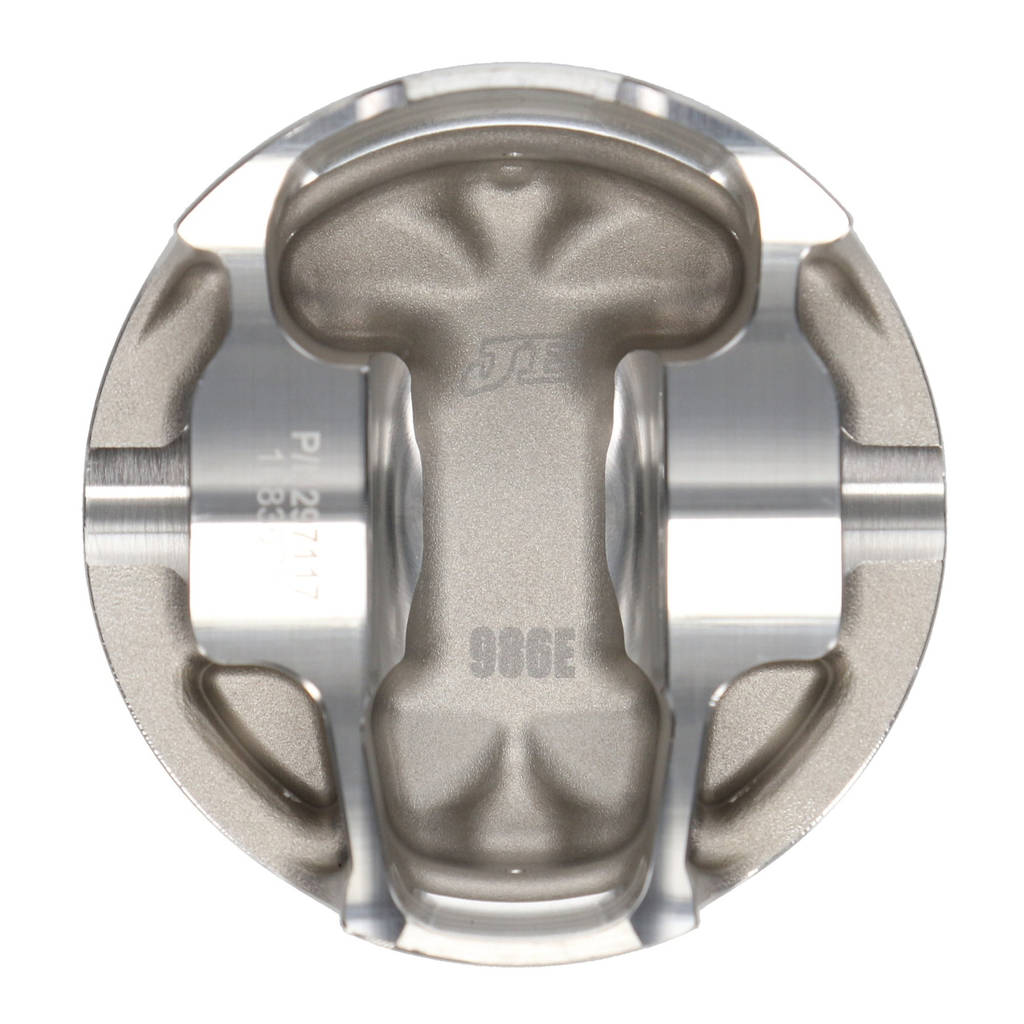

JE 289074 Piston Kit (86.50 mm Bore, 1.271 in. CH, -25.40 CC) for BMW S50B32 Euro Engine Photo-0
JE 289074 Piston Kit (86.50 mm Bore, 1.271 in. CH, -25.40 CC) for BMW S50B32 Euro Engine Photo-1
JE 289074 Piston Kit (86.50 mm Bore, 1.271 in. CH, -25.40 CC) for BMW S50B32 Euro Engine Photo-2
JE 289074 Piston Kit (86.50 mm Bore, 1.271 in. CH, -25.40 CC) for BMW S50B32 Euro Engine Photo-3
JE 289074 Piston Kit (86.50 mm Bore, 1.271 in. CH, -25.40 CC) for BMW S50B32 Euro Engine Photo-4

JE 289074 Piston Kit (86.50 mm Bore, 1.271 in. CH, -25.40 CC) for BMW S50B32 Euro Engine

AED 5,919.72

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 289074 GTIN: 193564214621
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 23.06.2026
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 289074 Piston Kit (86.50 mm Bore, 1.271 in. CH, -25.40 CC) for BMW S50B32 Euro Engine

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description JE 289074 Piston Kit (86.50 mm Bore, 1.271 in. CH, -25.40 CC) for BMW S50B32 Euro Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

  • Forged from 4032 aluminum for tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
  • Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
  • Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

  • Piston Series: JE Pistons
  • Cylinder Head: S50B32 EURO
  • Bore Diameter: 86.50 MM
  • Piston Head Type: Dish
  • Compression Height: 1.271 IN
  • Piston Volume: -25.40 CC
  • Piston Material: 2618
  • Piston Quantity: 6
  • Forging Type: Round
  • Piston Average Weight: 323 GR
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 0.0400 IN
  • Second Compression Ring Thickness: 0.0480 IN
  • Oil Ring Thickness: 0.111 IN
  • Wrist Pin Outer Diameter: 0.827 IN
  • Wrist Pin Length: 2.500 IN
  • Wrist Pin Wall Thickness: 0.150 IN
  • Intake Depth: 0.225 IN
  • Intake Diameter: 1.550 IN
  • Intake Angle: 15.5
  • Exhaust Depth: 0.225
  • Exhaust Diameter: 1.350
  • Exhaust Angle: 17.5
  • Top Groove Width: 0.04000 IN
  • 2nd Groove Width: 0.04800 IN
  • Oil Groove Width: 0.11100 IN

Vehicle Compatibility:

  • S50B32 Euro

Fitment

  • OPEL REKORD D Estate 1.7 S 1972 - 1975
  • BMW 8 (E31) 840 Ci 1996 - 1999
  • BMW 8 (E31) 850Ci 1993 - 1999
  • BMW 3 Compact (E36) 316 g 1994 - 2000
  • BMW 3 Compact (E36) 316 i 1994 - 2000
  • BMW 3 Compact (E36) 316 i 1998 - 2000
  • BMW 3 Compact (E36) 318 tds 1994 - 2001
  • BMW 3 Compact (E36) 318 ti 1994 - 1995
  • BMW 3 Compact (E36) 318 ti 1995 - 2000
  • BMW 3 Compact (E36) 323 ti 1997 - 2000
  • BMW 3 (E36) 318 tds 1995 - 1998
  • BMW 3 (E36) 323 i 2.5 1995 - 1998
  • BMW 3 (E36) M3 3.0 1994 - 1995
  • BMW 5 Touring (E34) 518 g 1995 - 1996
  • BMW 5 Touring (E34) M5 1994 - 1997
  • BMW 7 (E38) 725 tds 1996 - 2001
  • BMW 7 (E38) 728 i, iL 1995 - 2001
  • BMW 7 (E38) 730 d 1998 - 2000
  • BMW 7 (E38) 730 d 2000 - 2001
  • BMW 7 (E38) 730 i, iL 1994 - 2001
  • BMW 7 (E38) 730 i, iL 1994 - 2001
  • BMW 7 (E38) 735 i, iL 1996 - 1998
  • BMW 7 (E38) 735 i, iL 1998 - 2001
  • BMW 7 (E38) 740 d 1999 - 2001
  • BMW 7 (E38) 740 i, iL 1994 - 2001
  • BMW 7 (E38) 740 i, iL 1996 - 2001
  • BMW 7 (E38) 750 i, iL 1994 - 2001
  • BMW 3 Touring (E36) 316 i 1996 - 1999
  • BMW 3 Touring (E36) 318 i 1995 - 1999
  • BMW 3 Touring (E36) 318 tds 1995 - 1999
  • BMW 5 (E39) 520 d 2000 - 2003
  • BMW 5 (E39) 520 i 1996 - 2003
  • BMW 5 (E39) 520 i 1999 - 2003
  • BMW 5 (E39) 520 i 2000 - 2003
  • BMW 5 (E39) 523 i 1995 - 2000
  • BMW 5 (E39) 525 d 2000 - 2003
  • BMW 5 (E39) 525 i 2000 - 2003
  • BMW 5 (E39) 525 td 1997 - 2003
  • BMW 5 (E39) 525 tds 1996 - 2003
  • BMW 5 (E39) 528 i 1995 - 2000
  • BMW 5 (E39) 530 d 1998 - 2000
  • BMW 5 (E39) 530 d 1998 - 2003
  • BMW 5 (E39) 530 i 2000 - 2003
  • BMW 5 (E39) 535 i 1996 - 1999
  • BMW 5 (E39) 535 i 1999 - 2003
  • BMW 5 (E39) 540 i 1996 - 2003
  • BMW 5 (E39) M5 1998 - 2003
  • BMW 5 Touring (E39) 520 d 2000 - 2003
  • BMW Z3 Coupe (E36) 2.8 i 1997 - 2000
  • BMW Z3 Coupe (E36) 3.0 i 2000 - 2003
  • BMW Z3 Roadster (E36) 1.8 i 1995 - 1998
  • BMW Z3 Roadster (E36) 1.9 i 1995 - 1999
  • BMW Z3 Roadster (E36) 1.9 i 1998 - 2003
  • BMW Z3 Roadster (E36) 1.9 i 1999 - 2003
  • BMW Z3 Roadster (E36) 2.0 i 1999 - 2003
  • BMW Z3 Roadster (E36) 2.2 i 2000 - 2003
  • BMW Z3 Roadster (E36) 2.8 i 1997 - 2000
  • BMW Z3 Roadster (E36) 3.0 i 2000 - 2003
  • BMW Z3 Roadster (E36) M 3.2 1997 - 2001
  • BMW Z3 Roadster (E36) M 3.2 2001 - 2003
  • BMW Z8 Roadster (E52) 4.9 2000 - 2003
  • BMW X5 (E53) 3.0 d 2001 - 2003
  • BMW X5 (E53) 3.0 d 2003 - 2006
  • BMW X5 (E53) 3.0 i 2000 - 2006
  • BMW X5 (E53) 4.4 i 2000 - 2003
  • BMW X5 (E53) 4.4 i 2003 - 2006
  • BMW X5 (E53) 4.6 is 2002 - 2003
  • BMW X5 (E53) 4.8 is 2004 - 2006
  • BMW 7 (E65, E66, E67) 730 d 2002 - 2008
  • BMW 7 (E65, E66, E67) 730 d 2002 - 2005
  • BMW 7 (E65, E66, E67) 730 i, Li 2003 - 2008
  • BMW 7 (E65, E66, E67) 730 i, Li 2005 - 2008
  • BMW 7 (E65, E66, E67) 730 Ld 2005 - 2008
  • BMW 7 (E65, E66, E67) 735 i, Li 2001 - 2005
  • BMW 7 (E65, E66, E67) 740 d 2002 - 2005
  • BMW 7 (E65, E66, E67) 740 i, Li 2005 - 2008
  • BMW 7 (E65, E66, E67) 745 d 2005 - 2008
  • BMW 7 (E65, E66, E67) 745 d 2005 - 2005
  • BMW 7 (E65, E66, E67) 745 i, Li 2001 - 2008
  • BMW 7 (E65, E66, E67) 750 i, Li 2005 - 2008
  • BMW 7 (E65, E66, E67) 760 i, Li 2003 - 2008
  • BMW 5 (E60) 525 d 2004 - 2010
  • BMW 5 (E60) 525 d 2004 - 2010
  • BMW 5 (E60) 525 d 2007 - 2010
  • BMW 5 (E60) 525 d xDrive 2007 - 2009
  • BMW 5 (E60) 525 i 2003 - 2010
  • BMW 5 (E60) 525 i 2004 - 2009
  • BMW 5 (E60) 525 i 2009 - 2010
  • BMW 5 (E60) 525 i xDrive 2008 - 2010
  • BMW 5 (E60) 525 xd 2006 - 2007
  • BMW 5 (E60) 525 xi 2005 - 2010
  • BMW 5 (E60) 525 xi 2007 - 2010
  • BMW 5 (E60) 530 d 2002 - 2005
  • BMW 5 (E60) 530 d 2005 - 2007
  • BMW 5 (E60) 530 d 2007 - 2009
  • BMW 5 (E60) 530 d xDrive 2007 - 2009
  • BMW 5 (E60) 530 i 2001 - 2005
  • BMW 5 (E60) 530 i 2004 - 2007
  • BMW 5 (E60) 530 i 2006 - 2009
  • BMW 5 (E60) 530 i 2006 - 2009
  • BMW 5 (E60) 530 i xDrive 2008 - 2009
  • BMW 5 (E60) 530 xd 2005 - 2007
  • BMW 5 (E60) 530 xd 2007 - 2007
  • BMW 5 (E60) 530 xi 2004 - 2007
  • BMW 5 (E60) 530 xi 2007 - 2008
  • BMW 5 (E60) 535 d 2004 - 2010
  • BMW 5 (E60) 535 d 2007 - 2010
  • BMW 5 (E60) 540 i 2005 - 2007
  • BMW 5 (E60) M5 2004 - 2009
  • BMW 5 Touring (E61) 520 d 2005 - 2008
  • BMW 5 Touring (E61) 520 d 2007 - 2010
  • BMW 5 Touring (E61) 520 i 2007 - 2010
  • BMW 5 Touring (E61) 520 i 2007 - 2010
  • BMW 5 Touring (E61) 523 i 2004 - 2007
  • BMW 5 Touring (E61) 523 i 2007 - 2010
  • BMW 5 Touring (E61) 523 i 2007 - 2010
  • BMW 5 Touring (E61) 525 d 2004 - 2007
  • BMW 5 Touring (E61) 525 d 2004 - 2007
  • BMW 5 Touring (E61) 525 d 2007 - 2010
  • BMW 5 Touring (E61) 525 d xDrive 2008 - 2010
  • BMW 5 Touring (E61) 525 i 2004 - 2010
  • BMW 5 Touring (E61) 525 i 2005 - 2010
  • BMW 5 Touring (E61) 525 i 2007 - 2010
  • BMW 5 Touring (E61) 525 i xDrive 2008 - 2010
  • BMW 5 Touring (E61) 525 xd 2007 - 2008
  • BMW 5 Touring (E61) 525 xi 2005 - 2010
  • BMW 5 Touring (E61) 525 xi 2007 - 2010
  • BMW 5 Touring (E61) 530 d 2004 - 2005
  • BMW 5 Touring (E61) 530 d 2005 - 2007
  • BMW 5 Touring (E61) 530 d 2007 - 2010
  • BMW 5 Touring (E61) 530 d xDrive 2007 - 2010
  • BMW 5 Touring (E61) 530 i 2004 - 2007
  • BMW 5 Touring (E61) 530 i 2007 - 2010
  • BMW 5 Touring (E61) 530 i 2006 - 2010
  • BMW 5 Touring (E61) 530 i xDrive 2008 - 2010
  • BMW 5 Touring (E61) 530 xd 2005 - 2007
  • BMW 5 Touring (E61) 530 xd 2007 - 2007
  • BMW 5 Touring (E61) 530 xi 2005 - 2007
  • BMW 5 Touring (E61) 530 xi 2007 - 2010
  • BMW 5 Touring (E61) 535 d 2004 - 2010
  • BMW 5 Touring (E61) 535 d 2007 - 2010
  • BMW 5 Touring (E61) 545 i 2004 - 2010
  • BMW 5 Touring (E61) 550 i 2005 - 2010
  • BMW 5 Touring (E61) M5 2007 - 2010
  • BMW X3 (E83) 2.0 d 2003 - 2007
  • BMW X3 (E83) 2.0 d 2007 - 2009
  • BMW X3 (E83) 2.0 i 2005 - 2008
  • BMW X3 (E83) 2.5 i 2004 - 2006
  • BMW X3 (E83) 2.5 si 2006 - 2008
  • BMW X3 (E83) 3.0 d 2004 - 2005
  • BMW X3 (E83) 3.0 d 2005 - 2008
  • BMW X3 (E83) 3.0 i xDrive 2004 - 2006
  • BMW X3 (E83) 3.0 sd 2006 - 2008
  • BMW X3 (E83) 3.0 si 2006 - 2008
  • BMW X3 (E83) xDrive 18 d 2008 - 2011
  • BMW X3 (E83) xDrive 20 d 2007 - 2010
  • BMW X3 (E83) xDrive 20 d 2007 - 2010
  • BMW X3 (E83) xDrive 20 i 2008 - 2011
  • BMW X3 (E83) xDrive 25 i 2008 - 2010
  • BMW X3 (E83) xDrive 30 d 2008 - 2010
  • BMW X3 (E83) xDrive 30 d 2008 - 2010
  • BMW X3 (E83) xDrive 30 i 2008 - 2011
  • BMW X3 (E83) xDrive 35 d 2008 - 2011
  • BMW 6 (E63) 630 i 2004 - 2007
  • BMW 6 (E63) 630 i 2007 - 2010
  • BMW 6 (E63) 630 i 2007 - 2010
  • BMW 6 (E63) 635 d 2007 - 2010
  • BMW 6 (E63) 645Ci 2003 - 2005
  • BMW 6 (E63) 650i 2005 - 2007
  • BMW 6 (E63) M6 2005 - 2010
  • BMW 6 Convertible (E64) 630 i 2004 - 2007
  • BMW 6 Convertible (E64) 630 i 2007 - 2010
  • BMW 6 Convertible (E64) 630 i 2007 - 2010
  • BMW 6 Convertible (E64) 635 d 2007 - 2010
  • BMW 6 Convertible (E64) 645Ci 2003 - 2005
  • BMW 6 Convertible (E64) 650i 2005 - 2007
  • BMW 6 Convertible (E64) M6 2006 - 2010
  • BMW X5 (E70) 3.0 d 2007 - 2008
  • BMW X5 (E70) 3.0 sd 2007 - 2008
  • BMW X5 (E70) 3.0 si 2006 - 2008
  • BMW X5 (E70) 4.8 i xDrive 2007 - 2008
  • BMW X5 (E70) M 2009 - 2013
  • BMW 1 Coupe (E82) 118 d 2009 - 2013
  • BMW 1 Coupe (E82) 118 d 2009 - 2013
  • BMW 1 Coupe (E82) 120 d 2007 - 2013
  • BMW 1 Coupe (E82) 120 d 2007 - 2013
  • BMW 1 Coupe (E82) 120 i 2007 - 2013
  • BMW 1 Coupe (E82) 123 d 2007 - 2013
  • BMW 1 Coupe (E82) 125 i 2007 - 2013
  • BMW 1 Coupe (E82) 135i 2007 - 2010
  • BMW 1 Coupe (E82) 135 i 2007 - 2013
  • BMW 1 Coupe (E82) 1M 2011 - 2012
  • BMW X6 (E71, E72) ActiveHybrid 2009 - 2011
  • BMW X6 (E71, E72) ActiveHybrid xDrive 2009 - 2011
  • BMW X6 (E71, E72) M 2008 - 2014
  • BMW X6 (E71, E72) M 50 d 2011 - 2014
  • BMW X6 (E71, E72) xDrive 30 d 2010 - 2014
  • BMW X6 (E71, E72) xDrive 30 d 2010 - 2014
  • BMW X6 (E71, E72) xDrive 30 d 2008 - 2010
  • BMW X6 (E71, E72) xDrive 35 d 2008 - 2010
  • BMW X6 (E71, E72) xDrive 35 i 2007 - 2014
  • BMW X6 (E71, E72) xDrive 40 d 2009 - 2014
  • BMW X6 (E71, E72) xDrive 50 i 2007 - 2014
  • BMW 5 (F10) 518 d 2013 - 2014
  • BMW 5 (F10) 518 d 2013 - 2016
  • BMW 5 (F10) 520 d 2010 - 2014
  • BMW 5 (F10) 520 d 2013 - 2016
  • BMW 5 (F10) 520 d 2013 - 2014
  • BMW 5 (F10) 520 d 2013 - 2016
  • BMW 5 (F10) 520 d xDrive 2013 - 2014
  • BMW 5 (F10) 520 d xDrive 2013 - 2016
  • BMW 5 (F10) 520 d xDrive 2013 - 2014
  • BMW 5 (F10) 520 d xDrive 2013 - 2016
  • BMW 5 (F10) 520 i 2010 - 2016
  • BMW 5 (F10) 520 i 2010 - 2016
  • BMW 5 (F10) 523 i 2009 - 2011
  • BMW 5 (F10) 523 i 2009 - 2011
  • BMW 5 (F10) 525 d 2011 - 2016
  • BMW 5 (F10) 525 d 2011 - 2016
  • BMW 5 (F10) 525 d 2010 - 2011
  • BMW 5 (F10) 525 d xDrive 2011 - 2016
  • BMW 5 (F10) 525 d xDrive 2011 - 2016
  • BMW 5 (F10) 528 i 2010 - 2016
  • BMW 5 (F10) 528 i 2009 - 2011
  • BMW 5 (F10) 528 i xDrive 2010 - 2016
  • BMW 5 (F10) 530 d 2011 - 2016
  • BMW 5 (F10) 530 d 2009 - 2011
  • BMW 5 (F10) 530 d 2010 - 2016
  • BMW 5 (F10) 530 d xDrive 2011 - 2016
  • BMW 5 (F10) 530 d xDrive 2010 - 2016
  • BMW 5 (F10) 530 i 2011 - 2013
  • BMW 5 (F10) 530 i 2009 - 2013
  • BMW 5 (F10) 535d LCI 2014 - 2016
  • BMW 5 (F10) 535 d 2010 - 2011
  • BMW 5 (F10) 535d xDrive 2014 - 2016
  • BMW 5 (F10) 535i 2010 - 2013
  • BMW 5 (F10) 535i 2014 - 2016
  • BMW 5 (F10) 535i xDrive 2011 - 2013
  • BMW 5 (F10) 535i xDrive 2014 - 2016
  • BMW 5 (F10) 550 i 2009 - 2013
  • BMW 5 (F10) 550 i 2012 - 2016
  • BMW 5 (F10) 550i xDrive 2010 - 2013
  • BMW 5 (F10) 550i xDrive 2014 - 2016
  • BMW 5 (F10) ActiveHybrid 2010 - 2016
  • BMW 5 (F10) ActiveHybrid 2010 - 2016
  • BMW 5 (F10) M 550 d xDrive 2011 - 2016
  • BMW 5 (F10) M5 2011 - 2016
  • BMW 5 (F10) M5 Competition 2013 - 2016
  • BMW 5 (F10) M5 Edition 30 2014 - 2016
