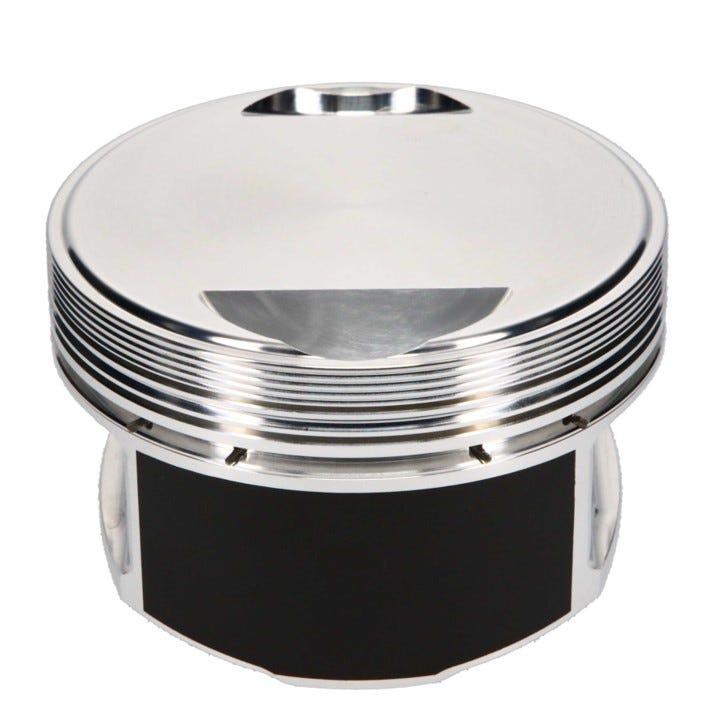

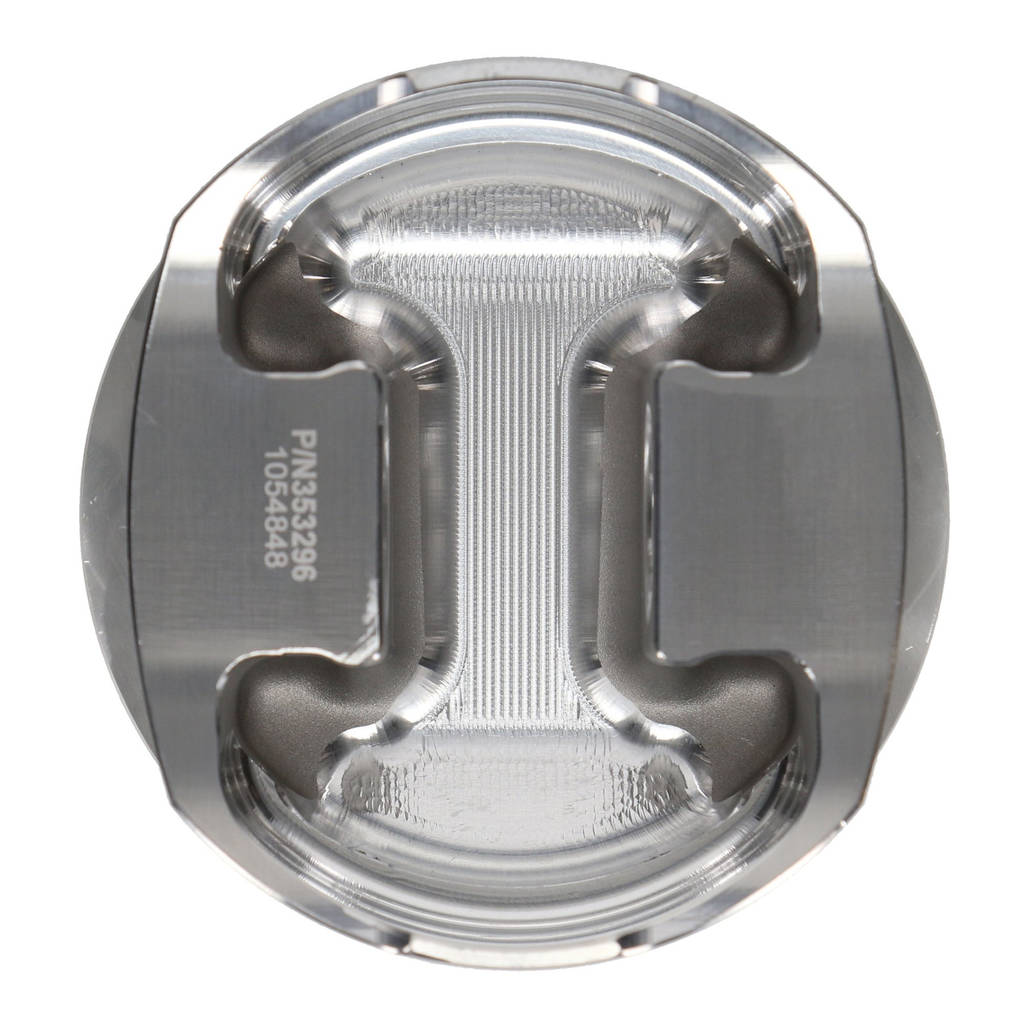

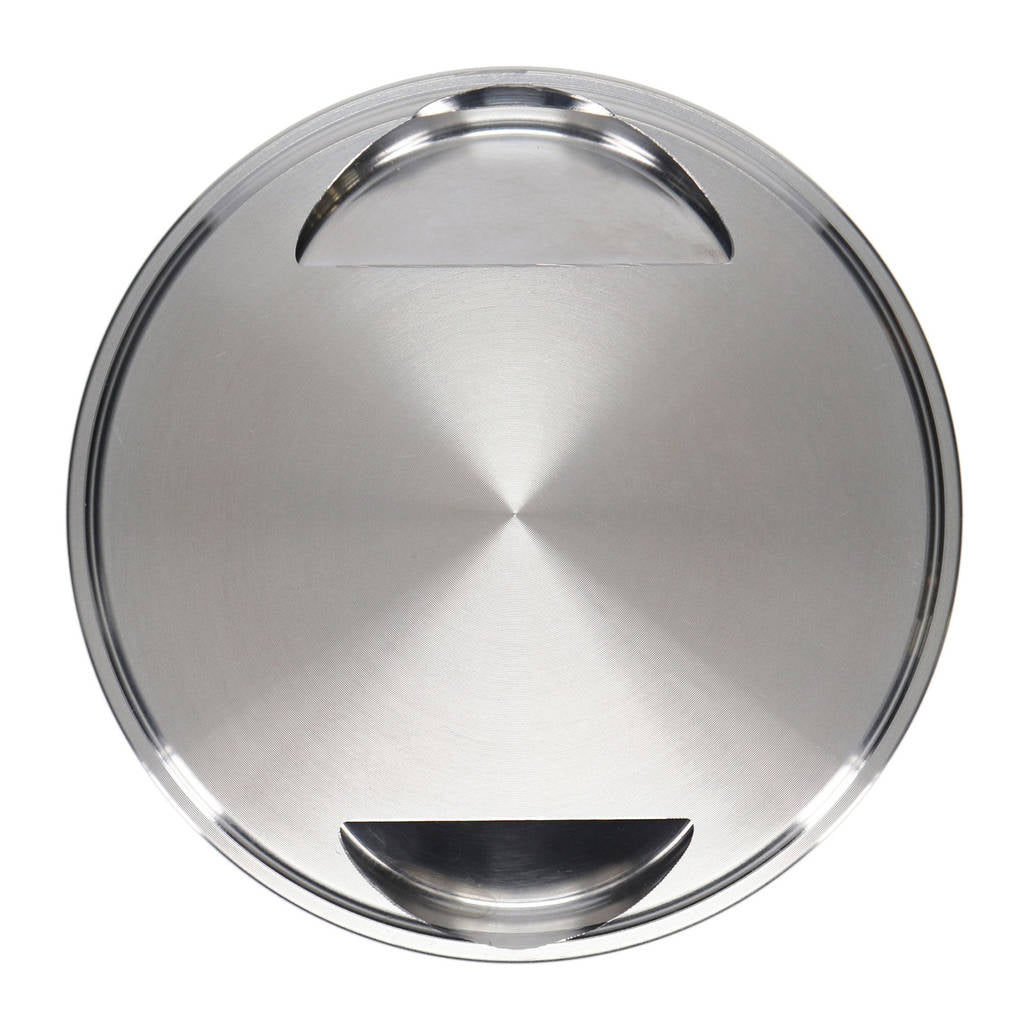

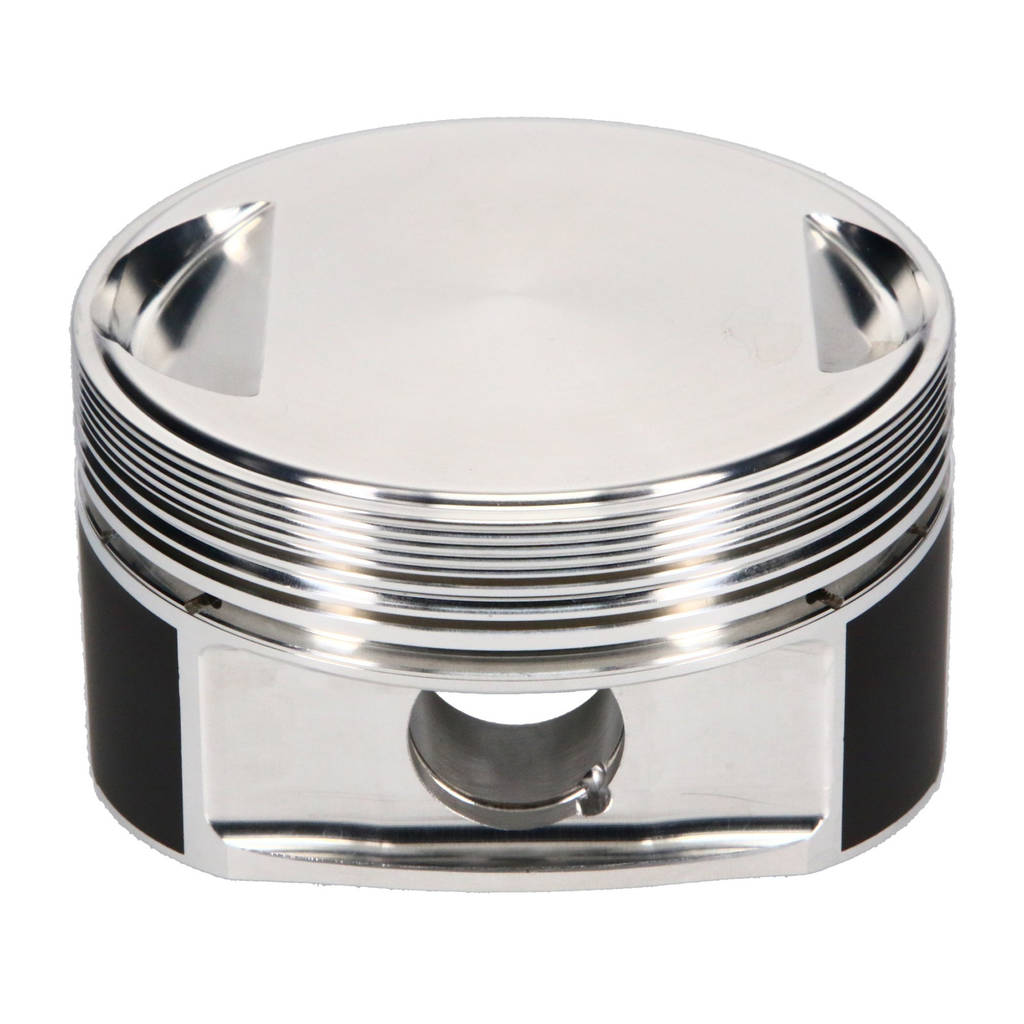

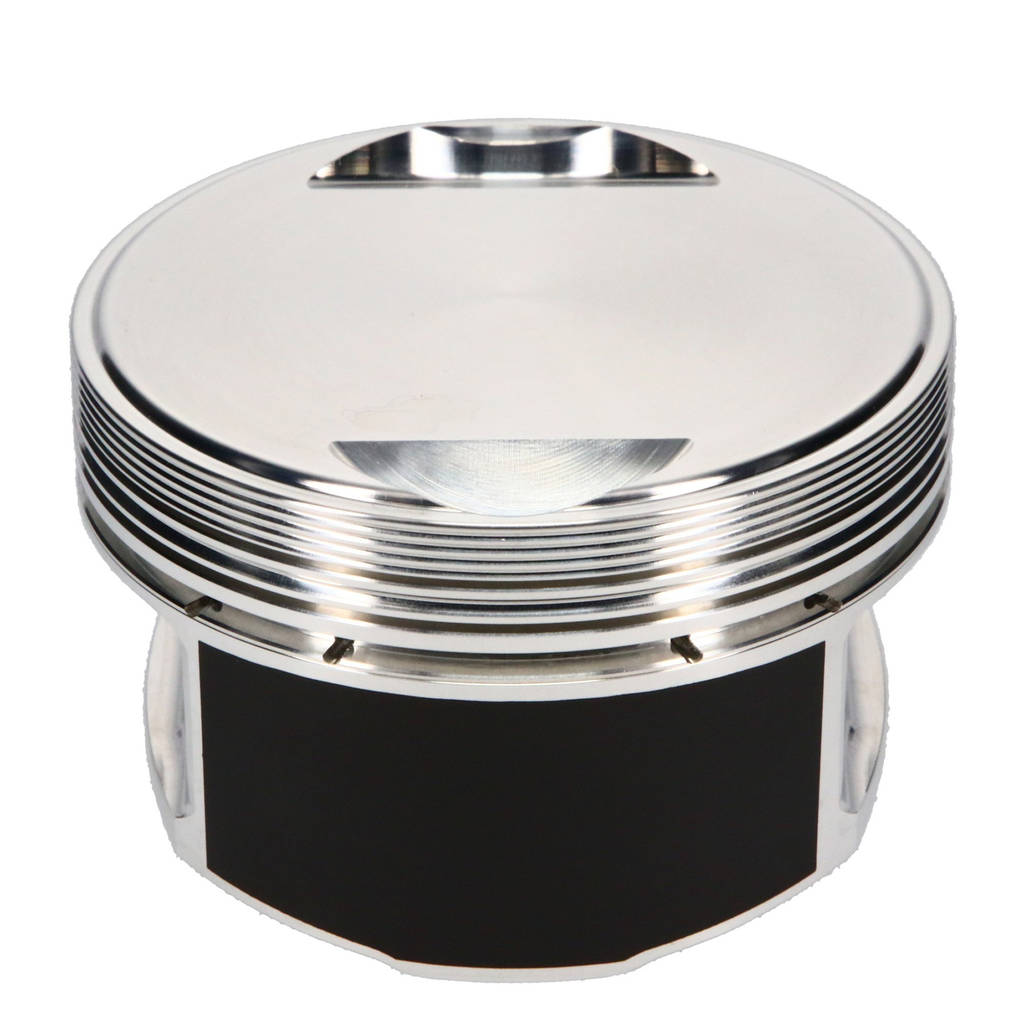

JE 274046 Pistons kit PORSCHE 3.8L DM (Set of 6 pic)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
JE 274046 Pistons kit PORSCHE 3.8L DM (Set of 6 pic)
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ATOMIC-SHOP UAE (RABDAN Motorsport)
Pickup available, usually ready in 1 hour
14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates
DESCRIPTION:
Piston Set, 2618, Dome, 4.0157 Bore, 1.250 CD, 0.905, Pin Dia, Set of 6.
| Bore (in) | 4.016 |
|---|---|
| Bore (mm) | 102. |
| Top Compression Ring Thickness | 0.0595 |
| Second Compression Ring Thickness | 0.0700 |
| Oil Ring Thickness | 0.119 |
| Forging Type | Round |
| Volume (cc) | 38.80 |
| Series | JE Pistons |
| Piston Head Type | Dome |
| Pin Diameter (IN) | 0.905 |
| Compression Height | 1.250 |
| Make | PORSCHE |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | 0.150 |
| Ringset Part Number | J660U1-4016 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.073 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 905-073-MW |
| Retainer Diameter (IN) | 0.905 |
| Replacement Single Piston | 274046S |
| Replaced By | 212446 |
| Piston Pin Inside Diameter | 0.605 |
| Piston Pin Material | 52100 HIGH CARBON STEEL, THROUGH HARDENED |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.500 |
| Piston Avg Wt | 494 |
| Pin Offset | No |
| Pin Brand | JE Pistons |
| Pin Part Number | 905-2500-15-52C |
| Pin Included | Yes |
| Pin Diameter (mm) | 23.00 |
| Oil Rail Support Included | No |
| Deck Clearance | 0.000 |
| Brand | JE Pistons |
