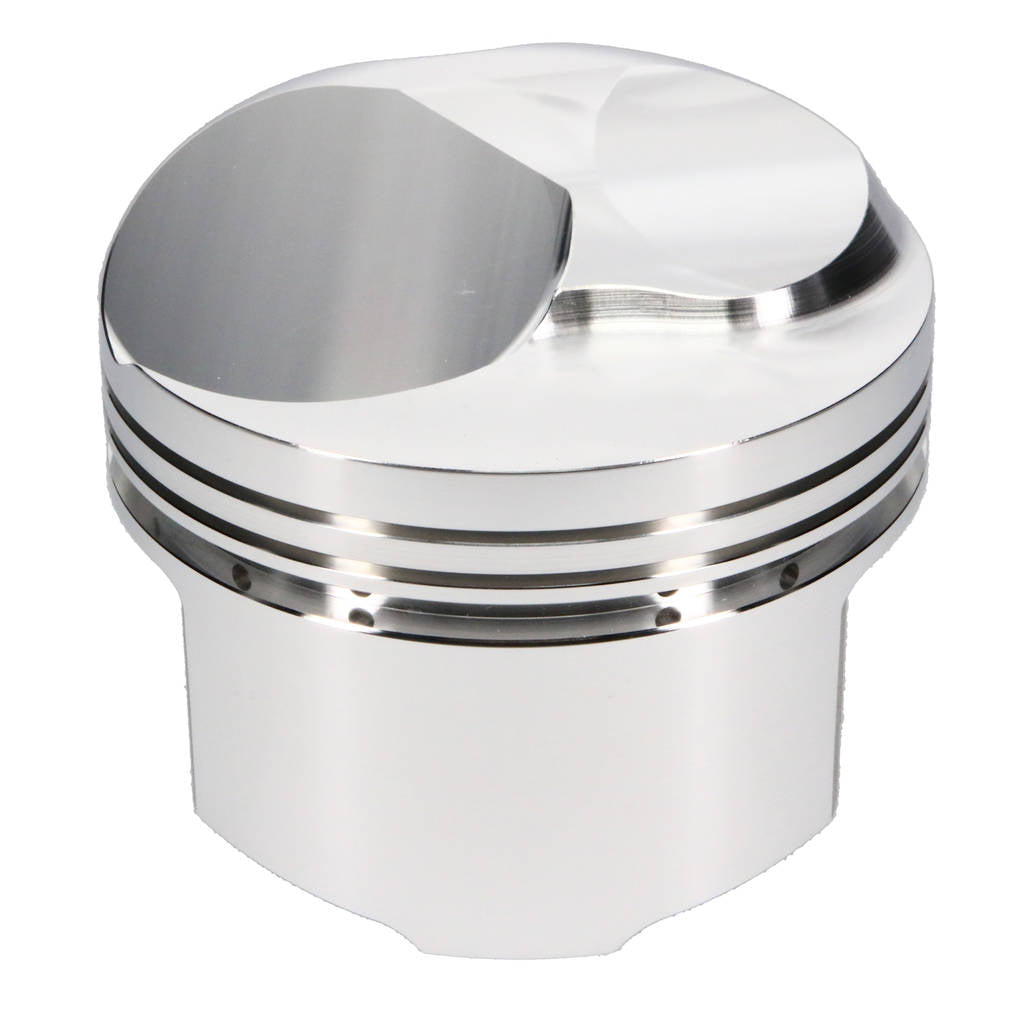

JE 162840 Piston Kit SRP (4.310 in. Bore, 1.765 in. CH, 48.00 CC) for CHEVROLET Big Block Engine Photo-0

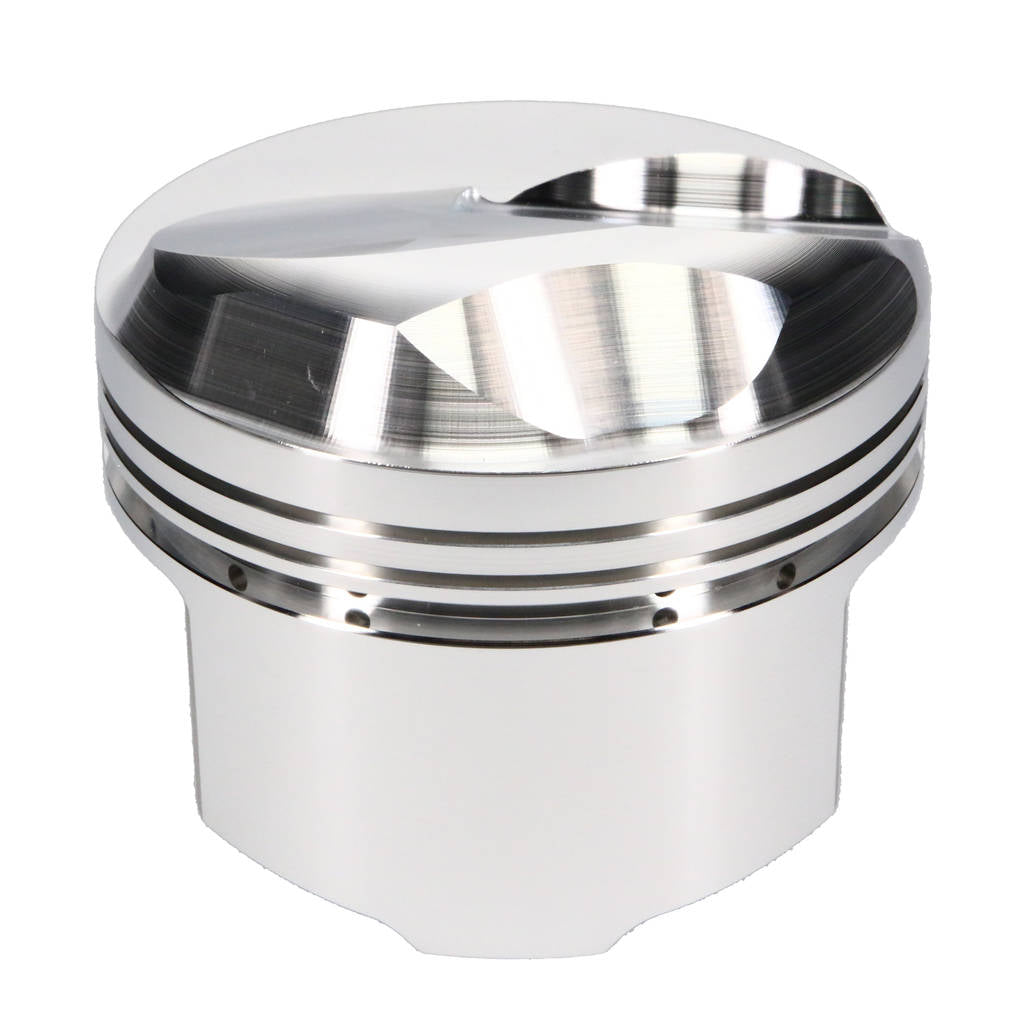

JE 162840 Piston Kit SRP (4.310 in. Bore, 1.765 in. CH, 48.00 CC) for CHEVROLET Big Block Engine Photo-1

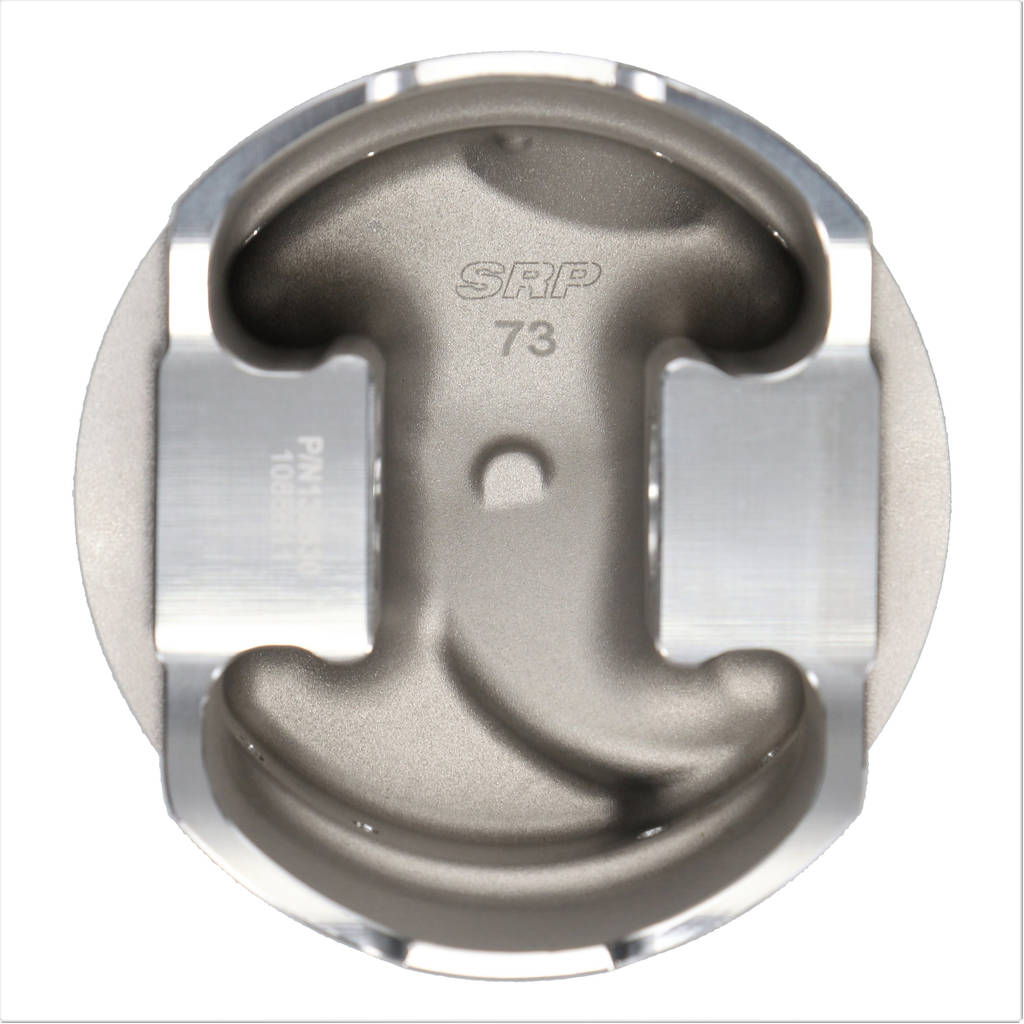

JE 162840 Piston Kit SRP (4.310 in. Bore, 1.765 in. CH, 48.00 CC) for CHEVROLET Big Block Engine Photo-2

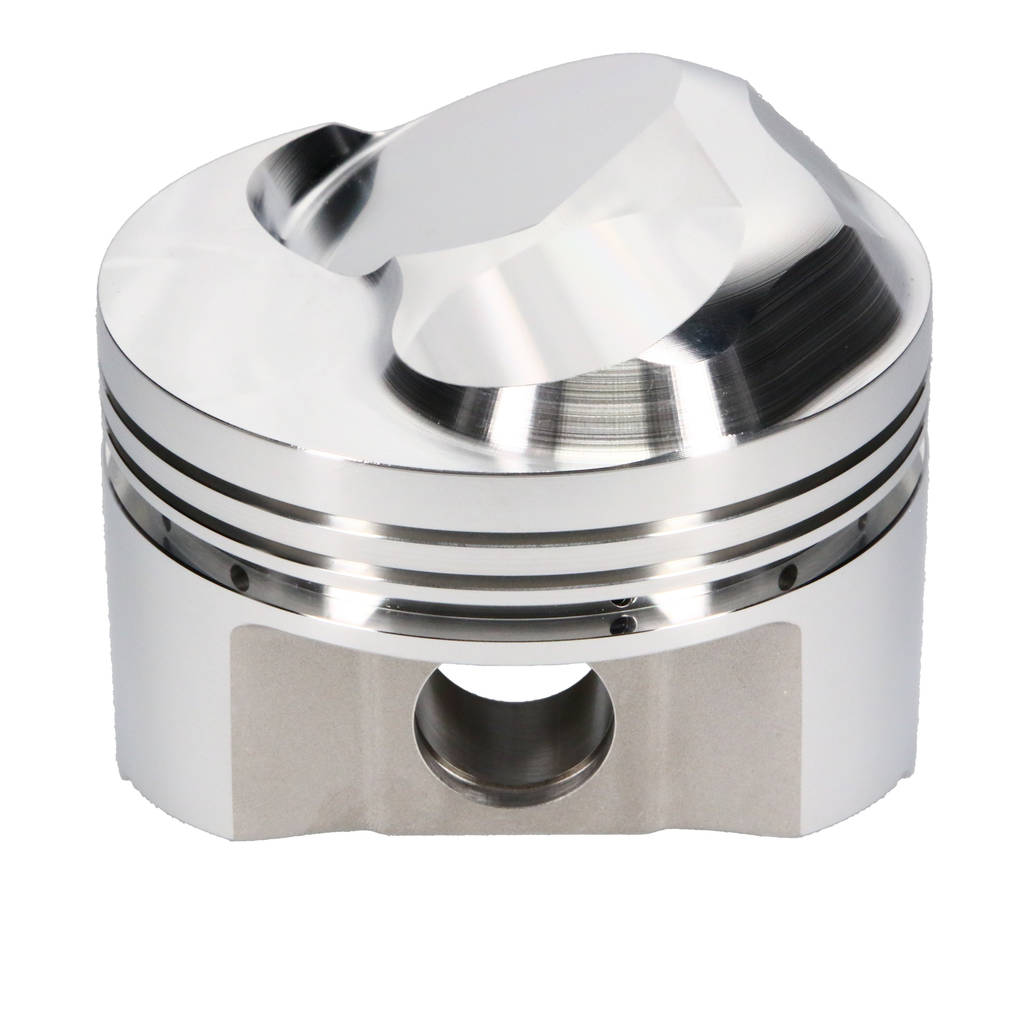

JE 162840 Piston Kit SRP (4.310 in. Bore, 1.765 in. CH, 48.00 CC) for CHEVROLET Big Block Engine Photo-3

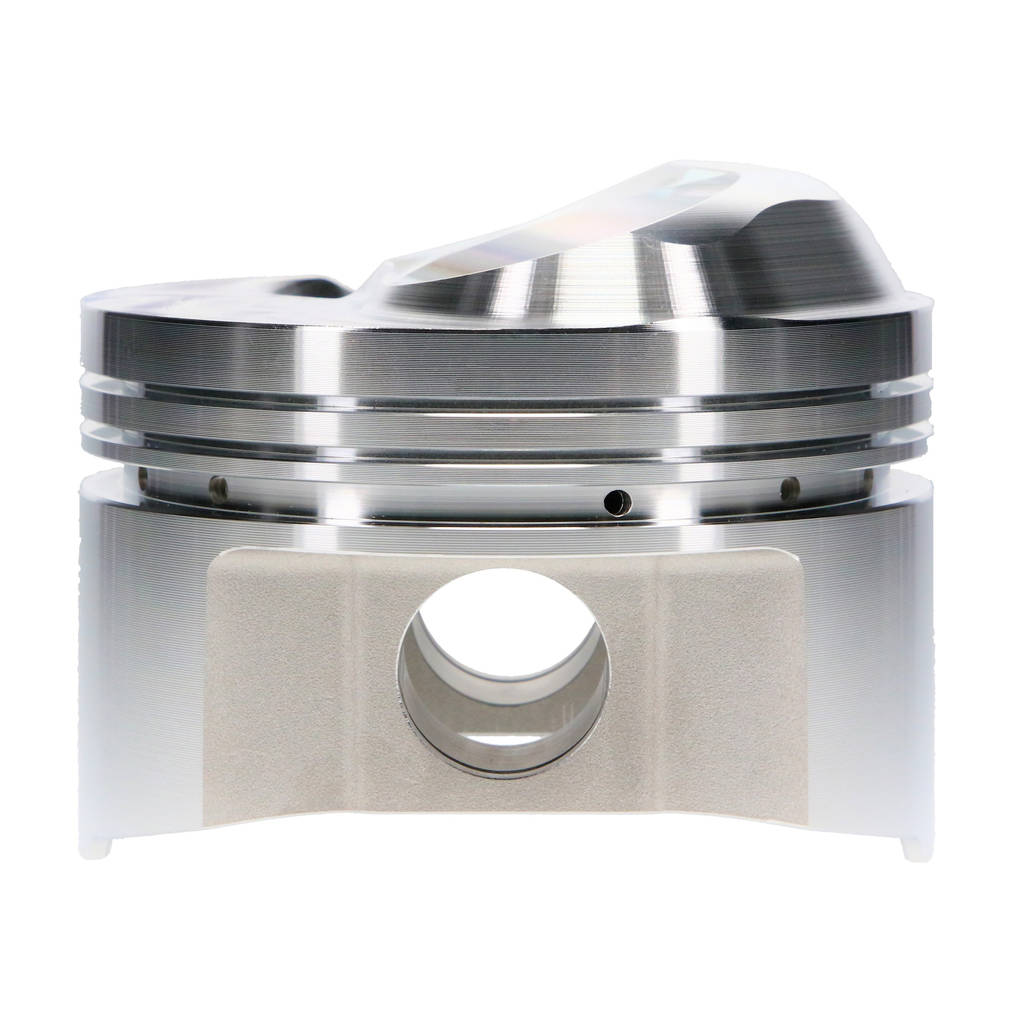

JE 162840 Piston Kit SRP (4.310 in. Bore, 1.765 in. CH, 48.00 CC) for CHEVROLET Big Block Engine Photo-4

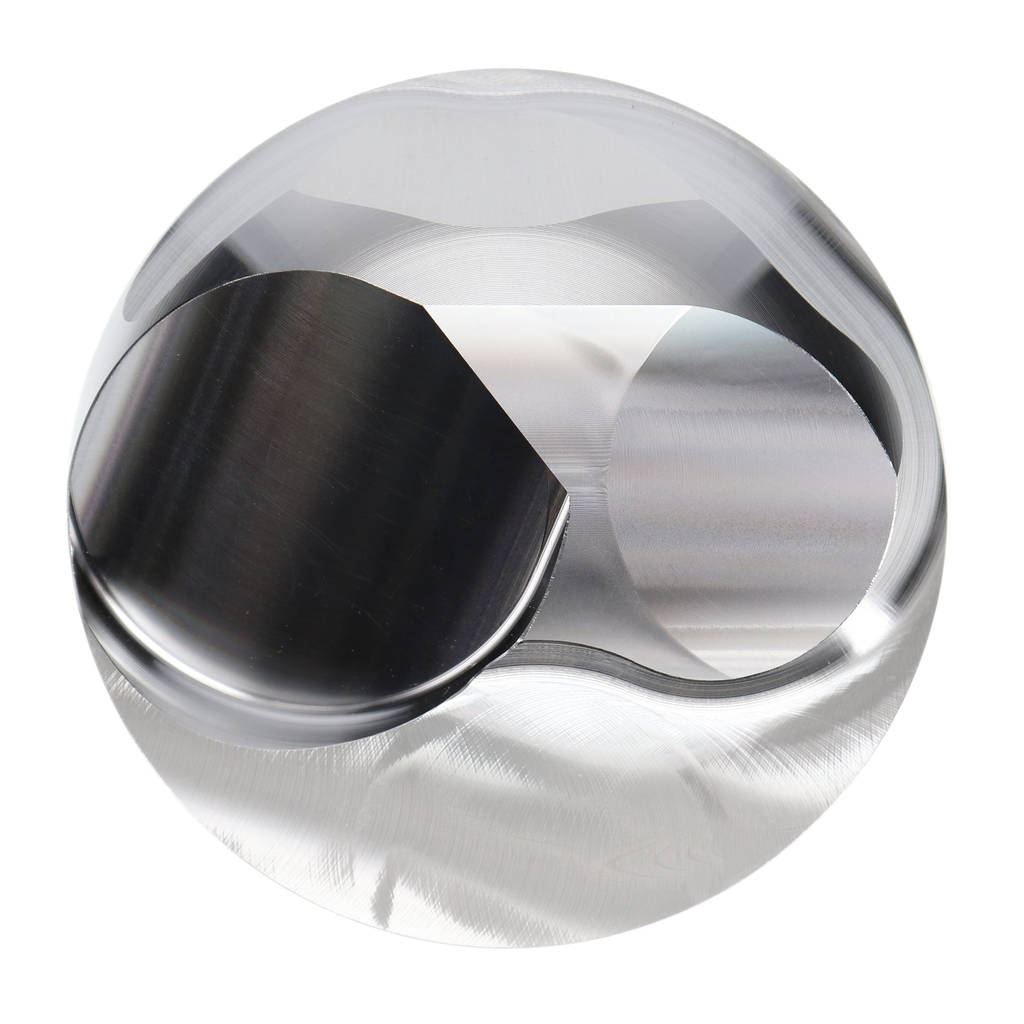

JE 162840 Piston Kit SRP (4.310 in. Bore, 1.765 in. CH, 48.00 CC) for CHEVROLET Big Block Engine Photo-5

JE 162840 Piston Kit SRP (4.310 in. Bore, 1.765 in. CH, 48.00 CC) for CHEVROLET Big Block Engine

AED 3,587.56

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 162840 GTIN: 193564250483
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 162840 Piston Kit SRP (4.310 in. Bore, 1.765 in. CH, 48.00 CC) for CHEVROLET Big Block Engine

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description JE 162840 Piston Kit SRP (4.310 in. Bore, 1.765 in. CH, 48.00 CC) for CHEVROLET Big Block Engine

Born from the racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line bridges the gap between high-quality forged piston performance and affordability.

Forged from strong 4032 aluminum alloy, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance. They are suitable for mild to moderate performance engines on a sportsman budget.

  • Forged in the USA from 4032 aluminum for tensile strength and minimal thermal expansion
  • Dedicated forging optimizes strength and weight throughout the piston design
  • Suitable for street/strip applications
  • Forced pin oiling improves pin lubrication

Specifications:

  • Piston Series: SRP
  • Cylinder Head: OPEN CHAMBER
  • Bore Diameter: 4.310 IN
  • Piston Head Type: Dome
  • Compression Height: 1.765 IN
  • Piston Volume: 48.00 CC
  • Piston Material: 2618
  • Forging Type: FSR
  • Piston Average Weight: 733 GR
  • Ring Set Included: No
  • Top Compression Ring Thickness: 1/16 IN
  • Second Compression Ring Thickness: 1/16 IN
  • Oil Ring Thickness: 3/16 IN
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Length: 2.930 IN
  • Wrist Pin Wall Thickness: 0.150 IN
  • Top Groove Width: 1/16 IN
  • 2nd Groove Width: 1/16 IN
  • Oil Groove Width: 3/16 IN
  • Product Type: Engine Piston Kit
  • Product Market: Domestic
  • Big Block
