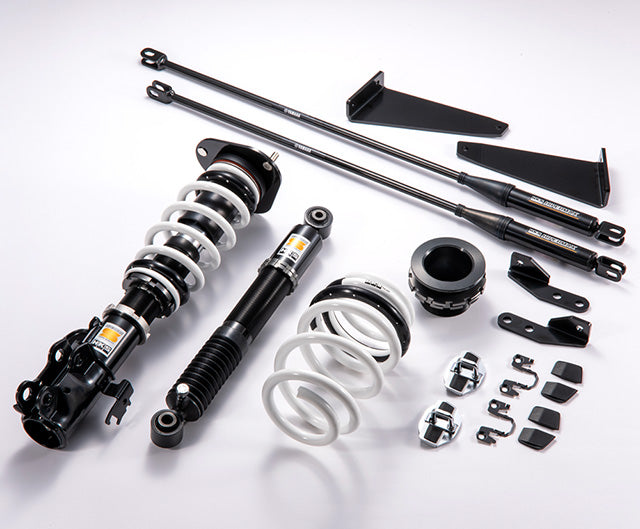

HKS 80320-AT210S Suspension kit HIPERMAX PERFORMANCE PACKAGE (S) GGH30W for TOYOTA Alphard / Vellfire
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
HKS 80320-AT210S Suspension kit HIPERMAX PERFORMANCE PACKAGE (S) GGH30W for TOYOTA Alphard / Vellfire
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ALPHARD GGH30W
Code No. 80320-AT210S
- This is the first package product in the history of HKS suspension that includes the HKS HIPERMAX S which provides a new value of driving comfort, "PERFORMANCE DAMPER ®" from Yamaha Motor Co., Ltd., and "Door Stabilizer" from AISIN CORPORATION.
- "PERFORMANCE DAMPER ®" and "HIPERMAX S" have been specially designed only for this package product. It cannot make a high-quality ride comfort just by combining those products. It can be achieved a new level of ride comfort that could not be reached with conventional products thanks to the best tuned parts while combining each great 3 parts.
- "HIPERMEX S" surely absorbs the strong shake of the vehicle. "Performance Damper®" instantly reacts to small vibrations and noises, realizing a clear ride. In addition, the door stabilizer improves the body rigidity and produces the solid steering feeling and the responsiveness.
- It provides ride comfort that is out of this world by achieving improvement of the body rigidity and the absorption of the slight vibrations that were impossible to tune only by the damper.
Our obsession point
The spring rate is set softer (rate down) on the front and harder (rate up) on the rear compared to the regular HIPERMAX S.
Made the damping force improve totally. As a result, it enables tuning even in difficult areas where it is challenging to be compatible with ride comfort and prompt responsiveness.
It's an unprecedented ride comfort that can only be achieved with this package product. It is exclusively designed for this package product.
Door Stabilizer
It was a concern that insufficient rigidity of an opening section of the large front door, especially for a large-sized minivan when tightening up the damping force only adjusting by the damper.
However, it improves the rigidity of the front door opening section by installing the door stabilizer that is manufactured by AISIN CORPORATION.
You can feel the solid steering feeling and prompt responsiveness with a natural feeling that is not too sharp.
PERFORMANCE DAMPER 🄬
"Performance Damper®" tuned with the cooperation of Yamaha Motor Co., Ltd. is installed on the frame under the radiator on the front and on the bracket inside the bumper on the rear.
Large and small vibrations are generated by the input from the tires on the vehicle body while running the vehicle.
It can be possible to obtain excellent ride comfort by installing this damper that can absorb the various vibrations quickly on the frame.
In addition, suppressing unnecessary movement of the body exerts a tremendous effect on handling and provides a different dimension of driving comfort by providing a smooth and deep steering feel and being able to trace the driving line as desired.
It can be achieved high-quality ride comfort by absorbing vibrations rather than settling with reinforcing parts. The mounting bracket has also been carefully designed for its thickness, shape, and mounting direction.
■Development Test
We use equipment such as gyro sensors and high-precision GPS to measure vehicle motion.
In addition to the sensory evaluation, we are conducting experiments to measure the movement of the vehicle and capture it in numerical, and are refining our vehicle tuning technology by combining various parts.
Application
| Engine | 2GR-FE |
|---|---|
| Model Year | 15/01 - |
| Remarks |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | 〇 | 〇 |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Impossible | Impossible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) | - | - |
Ride Heightmm
| Factory *2 | Test data | Adjustable range High - Low *3 | Drivable range High - Low *4 | ||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 709 | ← | 751 ～ 676 | 751 ～ 692 |
| Against stock | -42 | ← | 0 ～ -75 | 0 ～ -59 | |
| REAR | Ride height *1 | 712 | ← | 742 ～ 682 | 742 ～ 682 |
| Against stock | -38 | ← | -8 ～ -68 | -8 ～ -68 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 59 ( 6.0 ) | 98 ( 10.0 ) |
| Free height (mm) | 250 | - |
| Spring type | Straight Barrel type | Special shape |
| Recommended range to change spring rate N/mm(kgf/mm) | - | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 535 / 427 | 633 / 520 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 70 / 56 | 64 / 50 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * | Drivable limit Low * | Default | Test | Drivable limit High * | Drivable limit Low * | |
| Length of case (mm) | 350 | ← | 388 | 343 | 275 | ← | 285 | 265 |
| Spring Set length(mm) | 241 | ← | 237 | 251 | - | - | - | - |
| Length to ride hight adjuster (mm) | 41 | ← | 83 | 24 | 40 | ← | 62 | 18 |
| Lever ratio | 1.00 | 1.36(spg) , 1.48(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | - (1150) | - (940) | |
| Tire size (Air pressure) kPa | 245 / 40 - 20 ( 240 ) | 245 / 40 - 20 ( 240 ) | |
| Wheel size | 9.5 JJ × 20 inset 40 | 9.5 JJ × 20 inset 45 | |
| Alignment (Toe/Camber) | Test data | 0 mm / -1°00' | in 5 mm / -2°10' |
| Standard value | in 1 ± 2 mm / -0°15' ± 45' | in 3 ± 2 mm / -0°45' ± 45' | |
* Test data at HKS.
■Parts List
* It may be changed without prior notice.
PERFORMANCE DAMPER ®
Door Stabilizer
