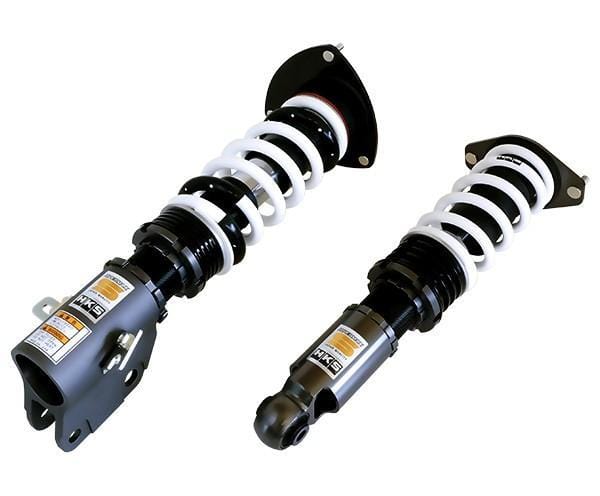

HKS 80300-AN010 Hipermax S Coilover kit for NISSAN 350Z Z33 VQ35DE
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
HKS 80300-AN010 Hipermax S Coilover kit for NISSAN 350Z Z33 VQ35DE
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Adjustability: Dampening and Height Adjustable
SPECIFICATIONS:
Z33 VQ35HR
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 98(10)
- Rear: 88(9)
Free Height (mm):
- Front: 220 (Barrel)
- Rear: Special
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±20 ( 2 )
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 1015/432
- Rear: 579/319
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Normal
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: Yes
Helper Spring (Spring Rate N/mm):
- Front: 19.8
- Rear: N/A
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: -1 ～ -46
-- Rear: -1 ～ -50
-Drivable Range High - Low (mm):
-- Front: -1 ～ -46
-- Rear: -1 ～ -50
COMPATIBILITY NOTES:
- Z33: Not compatible with Fairlady Z Roadster
This set of suspension is designed to replace the factory suspension related shock absorber / dampers and springs. Building upon the 3 decades of suspension development and 9 years since the last version of Hipermax IV GT release this series has unified the many different street based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit specific HIpermax IV SP series all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high level performance on circuit as well. With massive adjustability in ride height and damper settings these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance.
