HKS 80260-AT005 Suspension kit HIPERMAX-G ZRR80G Full kit for TOYOTA Voxy / Esquire / Noah
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
HKS 80260-AT005 Suspension kit HIPERMAX-G ZRR80G Full kit for TOYOTA Voxy / Esquire / Noah
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Code No. 80260-AT005
~ For Obsession with High Quality ~
Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design.
for NOAH/VOXY/ESQUIRE (ZR80G/ZRR80W/ZWR80G)

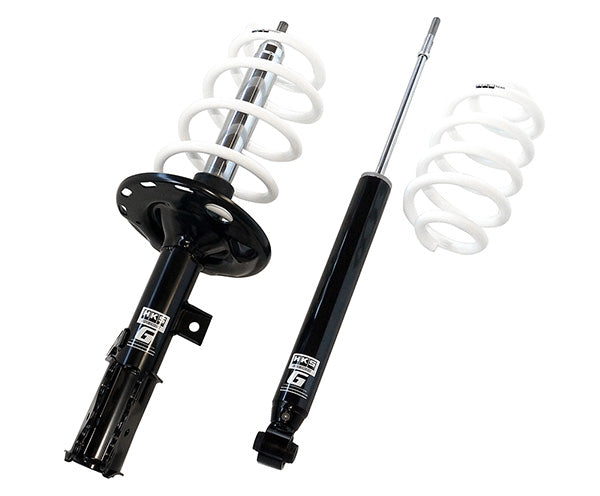

＜Product Basic Structure＞
●Single Tube Damper Assembly
●Special Low-down Style Spring
※The stock upper mounts are used.
■Features
- Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height.
- The front stock design inverted mono tube damper delivers high rigidity and reliable handling performance.
- Setting was performed to ensure better ride quality and comfort so a driver won't be tired even in long time driving.
■Kit Parts
| Vehicle | Model | Engine | Model Year | Series | Full Kit Spring Rate F/R | Free Height | Damping Force Piston Speed 0.1m/sec Damping Force N | Vehicle Height (Highest - Lowest) | Code No. | Remarks | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F: Rebound/Compression | R: Rebound/Compression | |||||||||||
| ESQUIRE | ZRR80G | 3ZR-FAE | 14/10 -21/12 | G | F=28(2.9)/R=60(6.1) | Special/Special | 206/88 | 265/88 | -30 | -35 | 80260-AT005 | The vehicle data is based on a 2WD gasoline car. |
