HKS 80260-AF003 Suspension kit HIPERMAX-G VMG Full kit for SUBARU Levorg
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
HKS 80260-AF003 Suspension kit HIPERMAX-G VMG Full kit for SUBARU Levorg
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
LEVORG VM4
Code No. 80260-AF003
~ For Obsession with High Quality ~
Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design.
for LEVORG (VMG/VM4)

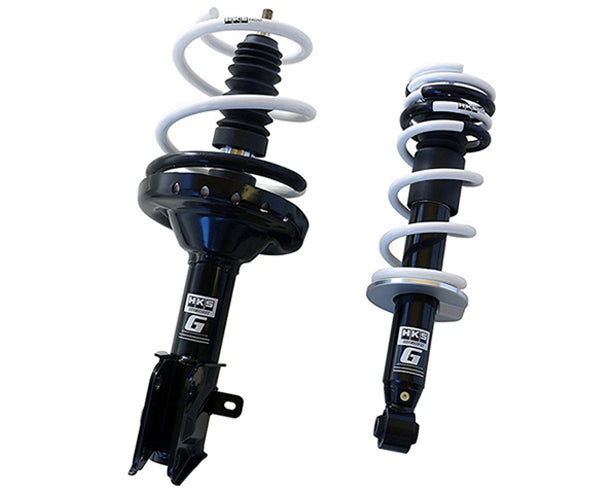

＜Product Basic Structure＞
●Single Tube Damper Assembly
●Special Low-down Style Spring
※The stock upper mounts are used.
■Features
- Stock damper’s long stroke and front offset springs are utilized to deliver better ride performance.
Similarly to Hipermax series, the front inverted damper delivers higher rigidity.
The vehicle height is lowered casually to addresses the ease of driving and usability in daily use even with the optional aero parts.
■Kit Parts
| Vehicle | Model | Engine | Model Year | Series | Full Kit Spring Rate F/R | Free Height | Damping Force Piston Speed 0.1m/sec Damping Force N | Vehicle Height (Highest - Lowest) | Code No. | Remarks | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F: Rebound/Compression | R: Rebound/Compression | |||||||||||
| LEVORG | VM4 | FB16(TURBO) | 14/06 -20/10 | G | F=49(5)/R=52.4(5.4) | Special/Special | 726/226 | 363/206 | -5 | -4 | 80260-AF003 | Replacing the rear bump rubber with the provided 50mm bump rubber reduces the body roll and delivers sporty driving performance. Select per your preference. |
