HKS 71008-AS014 Blow-Off Valves SUPER SQV4 (return kit incl.) for SUZUKI Alto Turbo RS (R06A)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
HKS 71008-AS014 Blow-Off Valves SUPER SQV4 (return kit incl.) for SUZUKI Alto Turbo RS (R06A)
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
HKS Super SQV (Sequential Blow Off Valve) uses a unique sequential valve structure and a differential pressure control system, which allows for a broad operating range from low boost to high boost. Its Pull-Type relief design ensures stable operation regardless of the amount of boost pressure. The Super SQV will support new generations of turbocharged vehicles.
-

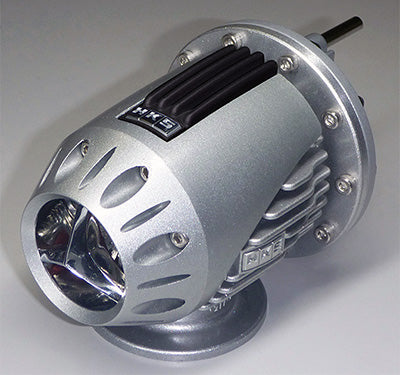

High Quality Aluminum Die-Cast Body
Silver-coated aluminum die-cast body. Combines the ultimate in looks and durability in the engine compartment. -
High Stiffness Metal Die-Cast Valve
Secondary valve main portion is made of die cast metal. Reliable operation with beautiful looking. -
Triple Fin design produces "Super Sound"
Triple Fins set at the center of the funnel produces a dynamic and aggressive sound. An optional special Round Fin can be purchased separately for sound tuning.

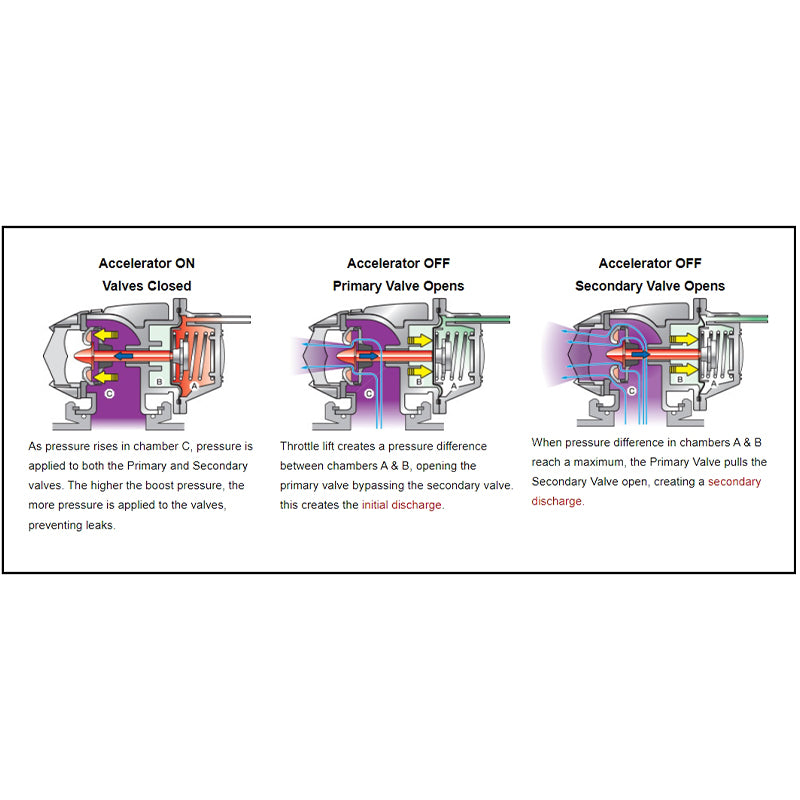

Dual Valve Structure, Sequential System
At low boost ranges the Primary Valve opens, and at high boost ranges the Secondary Valve also opens, resulting in linear response and optimal blow-off operation at all boost levels.

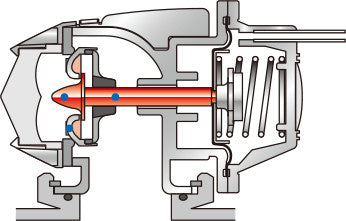

1.Pull-Type Relief Valve Operation
The Pull-Type valve operation offers more precise relief of excess boost and is compatible for a wider range of boost pressure compared to typical push-type blow off valves.
2.Primary Valve (Small)
Lift off the throttle, and the primary valve instantly opens, quickly discharging initial excess boost pressure.
3.Secondary Valve (Large)
This valve combined with the Primary Valve from the sequential dual valve structure. Optimal blow-off operation from how to high boost ranges without leaking.
Pull-Type blow off valves will work for any turbocharged vehicle, from stock to highly tuned.
Typical push-type blow off valves require spring load settings for each vehicle specification. If the spring load setting is too low, the valve may leak under high boost and the desired boost setting may not be reach. If the spring load setting is too strong, it may not open at low boost. The Super SQV will operate under any boost pressure setting without leaking.
SUCTION RETURN KIT
- With Super SQV Kit, blow-off air will return to suction like stock air bypass valve to be street legal.
- Although blow off sound will be reduced, more sound will come out from air cleaner.
