HKS 42018-AS001 Power Editor SUZUKI SWIFT Sport (ZC33S)

HKS 42018-AS001 Power Editor SUZUKI SWIFT Sport ZC33S

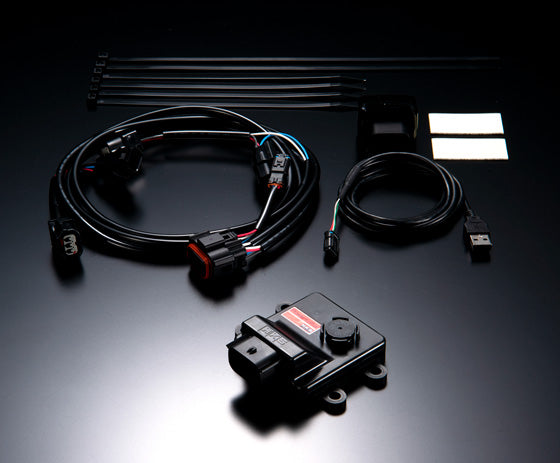

■ Overview

You can easily boost up with the coupler on.

Even after this product is installed (after wiring), it can be returned to the normal state by using the return connector included with the product.

Boost Updater can be changed by using Easy Writer for Power Editor.

* Easy Writer for Power Editor (free) is not included in the product.

You can download it from the HKS website.

* Use the USB connection harness included with the product to connect to the computer.







Main functions

Boost boost of turbo vehicles: Function to boost up genuine vehicles (vehicles equipped with genuine turbines)

Status confirmation LED: A function that confirms the status of the main unit using the LED

Boost updater rewrite: Function to change to user's original boost updater * Windows PC (Windows10, 8.1, 8, or 7) is required.

■ Main features

Boosting can be done by inserting the Power Editor between the vehicle's “pressure sensor” and “pressure sensor harness”.

For customers who are not satisfied with the preset data in the main unit, we have prepared an Easy Writer for Power Editor that changes the boost data.

You can connect the Power Editor main unit to a computer using the USB connection harness that comes with the product, and change to boost update data edited with Easy Writer for Power Editor.

By connecting the “Return Connector” included with the product in place of the Power Editor itself, you can return to the normal state.

This allows you to easily check the difference between the normal state and boost-up state.





Easy Writer for Power Editor (free)



ZC33S

■ Preset data overview

● HKS data preset product for SUZUKI SWIFT Sport [ZC33S] (Japanese specification)



■ Performance & Graph

● Stock (actual value) 102.9kw (140ps) 215.8Nm (22kgf ・ m)

● When Power Editor is installed 110.1kw (149.6ps) 234.4Nm (23.9kgf ・ m)

The power in the high rotation range, which is slightly unsatisfactory for thick low and medium speed torque, is supplemented, and a pleasant feeling is obtained.





---

Recommended position of Power Editor and pressure sensor position



■ Notes

• Compatible with normal vehicles and vehicles equipped with HKS products.
• This product boosts a vehicle with a genuine turbine. Please note that the combination with a turbine exchange vehicle is not assumed and the performance may not be achieved.
• Compatible with genuine ECU data. Custom data such as ReFlash tool is not supported.
