HKS 34002-AK019 Optional Tail Tip Cover HI-POWER SPEC-L II (CARBON) for TOYOTA Yaris Cross (MXPJ10/MXPB10)

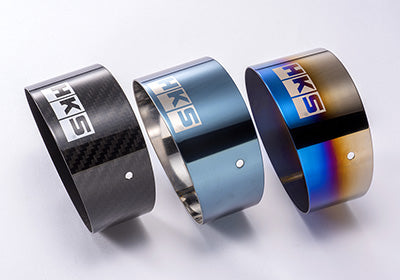

The new Hi-Power SPEC-L II is compatible with optional tail tip covers. There are three types of optional tail tip cover available.

• Option finisher cover is the option part for Hi-Power SPEC-L II.
  Not compatible with the Hi-Power SPEC-L and Touring SPEC-L because the press-fitting nut for fixing the finisher cover might come off.
• Please use the threadlocker (medium strength) when you attach the option finisher cover.
  (Recommended product: Loctite 243 Medium Strength Threadlockers)

How to replace the option finisher cover

• Use the bolt of M4, P=0.7, L=6 (Material: SUS304) for attaching the finisher cover.
• Attaching bolts are included with the finisher cover.
• The width across flats of the hexagon socket is 2.5 mm.
• We recommend to remove the muffler when you attach the option finisher cover.
  * There are cases in which can be attached without removing the muffler, depending on the vehicle.
• Remove the bolt after the threadlocker agent is softened when removing the finisher cover.
  Note: Heat the bolt from the inside of the bolt.
• When a bolt got stripped, catch the bolt head by plier then, turn it.

SIZE: D=75, L=76
