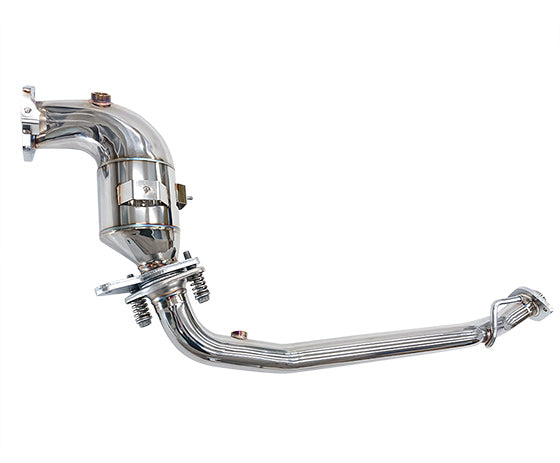

HKS 33005-AS002 Metal Catalyzer JB64W for R06A(Turbo) SUZUKI Jimny
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
HKS 33005-AS002 Metal Catalyzer JB64W for R06A(Turbo) SUZUKI Jimny
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Code No. 33005-AS002
Greatly expanded the capacity from the turbocharger outlet to the catalytic cell
Expanded the pipe diameter from φ43 to φ45. Furthermore,
the exhaust efficiency is improved by eliminating the second catalyst.
Ultimate exhaust efficiency
HKS designed a new original shape for the outlet part. It greatly expands the capacity compared to the stock catalyzer and improves exhaust efficiency. Furthermore, instead of two catalyzers HKS uses one large, allowing to achieve a low exhaust pressure of minus 35% compared to the factory setup.
Complies with Japanese exhaust gas regulations.
The internal structure of the catalyzer has a low density, but it has passed the Japanese exhaust regulations by adopting HKS unique technologies. The product has obtained a certificate from a third party test organization for compliance with 2018 exhaust gas regulation (WLTC mode test).
Emission test facilities for WLTC mode
Flow bench data
| Main material | SUS304 |
| Diameter of pipe | φ45 (Front Pipe) |
| Close noise level Stock | 77dB (Idling : 53dB) |
| Close noise level HKS | 80dB (Idling : 53dB) |
| About road clearance | 270mm (Front Pipe) |
| Remarks | Comparison shows difference as tested with stock exhaust. |
Details
Our flow bench test showed that the resistance value of HKS product is lower than that of stock catalyzer/front pipe. As a result of testing exhaust pressure, power, and torque in various combination including factory specifications, we confirmed the effect of HKS metal catalyzer and the importance of total tuning approach for intake and exhaust.
● No.1_Stock Catalyzer＋Stock Muffler
● No.2_Stock Catalyzer＋Stock Muffler＋Racing Suction
● No.3_Stock Catalyzer＋Super Turbo Muffler＋Racing Suction
● No.4_HKS Metal Catalyzer＋Super Turbo Muffler＋Racing Suction
● No.5_HKS Metal Catalyzer＋Super Turbo Muffler＋Racing Suction＋Power Editor
1st back Pressure (turbo inlet)
It can be seen that the 1st back pressure is suppressed by selection proper intake and exhaust as for the factory spec (No.1). If total tuning is applied, exhaust back Pressure can be suppressed to a level of equivalent to factory spec (No. 5) even if boost is increased.
On the other hand, if setting a boost is performed without tuning of the intake and exhaust, it is expected that the extra load on the engine and the turbine may increase.
2nd back Pressure (exhaust back Pressure)
Only install the intake parts (No.1) become increasing the 2nd exhaust pressure. Replacing the exhaust system (No.3) and the HKS metal catalyzer (No.4) support the 2nd exhaust pressure reduction. It means total balanced tuning is important to reducing exhaust backpressure.
Also, install all from the intake system to the exhaust system, you can see that the 2nd exhaust pressure reduces even when boosted up (No. 5), and the vehicle can exert the potential effectively
The power editor at the time of the test uses the default data (No.5). Even with the boost pressure adjustments using the Easy Writer, there is no further performance improvement.
Further improvement require ECU tuning.
