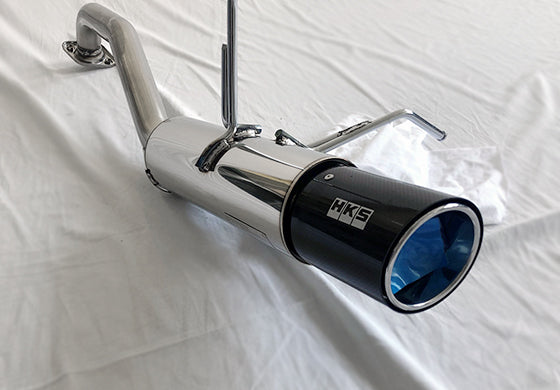

HKS 32016-KH001 Exhaust System HI-POWER for HONDA Fit (GK5)

High performance for stock to high performance vehicles with upgraded turbines, sound quality, are the JASMA standard are implemented together. This had been impossible in a long exhaust tuning history.

To maintain the exhaust efficiency, enlargement of the exhaust pipe is usually required; the sound level tends to be increased and low-tone. The exhaust system with a cannon ball-shaped shell usually has lower silencer capacity than an oval-shaped shell; therefore, to reduce the sound level, the pipe diameter is narrowed. However, a narrow pipe diameter also reduces the exhaust efficiency and increase the exhaust pressure.
HKS utilized original unique technology to maintain the exhaust capacity and sound level to meet the JASMA standard which is more severe than the regular safety standard. Inner structure of the silencer was redesigned so the unwanted low exhausts resonance was eliminated, and the sound quality was improved.

Powerful rear view with the cannon ball-shaped & modern titanium color tips improve the appearance.
Tuning cars race in circuits for a time attack have improved the appearance more stylish.
To maintain large exhaust capacity, the pipe diameter of the exhaust pipe installed on the bottom of a vehicle must be enlarged, and the ground clearance must be narrow. HKS Hi-Power Muffler was designed to maintain sufficient ground clearance with redesigned flanges and layout.

• Shape of muffler: HP(Carbon) (Hi-Power)
• Main material: SUS304
• Diameter of tip: 94
• Diameter of center pipe : 50.8 (*1)
• Close noise level: Stock: 81, HKS: 87
• Clearance:
• Portion of the kit:

Remarks

Rear piece only. Compatibility confirmed by the US and Chinese vehicle specifications only.

About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.
