HKS 31029-AN007 Super Turbo Muffler Ti for NISSAN Skyline GT-R (R32)

"High-dimensional Super Turbo Muffler Debut"

Exhaust Efficiency & Sound Pressure Reduction are implemented together.
The turbo engine master HKS challenged to implement the following 3 characteristics together to develop Super Turbo Muffler.

• Effective on stock to high performance vehicles w/ upgraded turbines.
• The performance exhaust sound meets the JASMA standard.
• Unique exhaust sound designed specifically for the engine.

The ultimate muffler that having quietness, low back-pressure with weight saving
Changing the overall materials from stainless to titanium based on the existing Super Turbo Muffler that features low back-pressure and legalized sound.
It succeeded in 9kg weight saving and also can be used in cars that modified displacement upgrade (up to 2,800 ccs) or increased the horsepower (up to 650 ps).

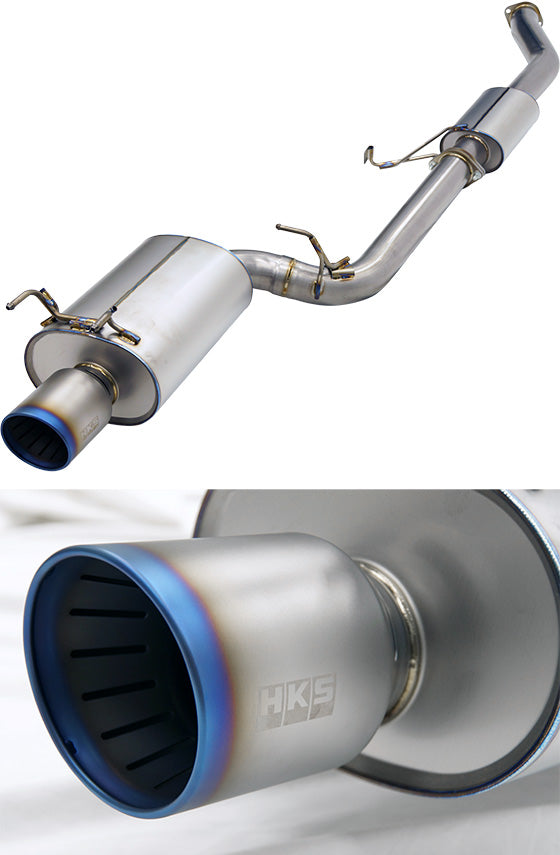

The exhaust tip changed to a burnt blue gradation with the HKS logo compared to the previous 45th limited model titanium mufflers.

• Shape of muffler: SSR
  (Super Turbo Muffler Ti)
• Main material: Titan
• Diameter of tip: 124
• Diameter of center pipe : 85 (*1)
• Close noise level: Stock: 93, HKS: 93
• Clearance: 114mm

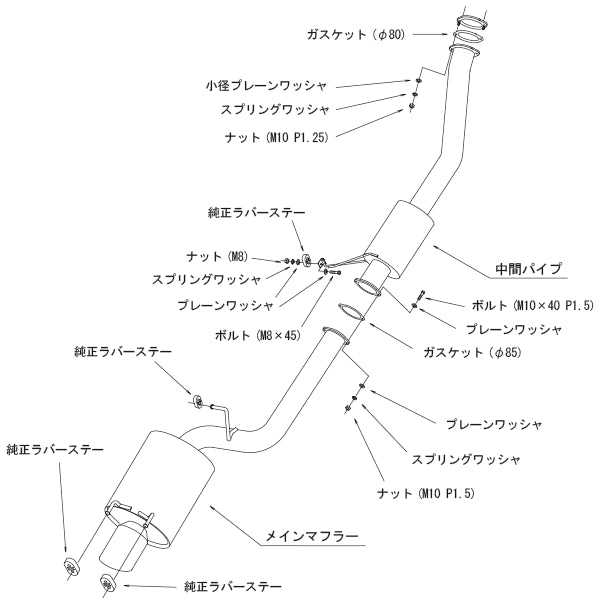

• Portion of the kit: Front Pipe

Remarks

About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.
