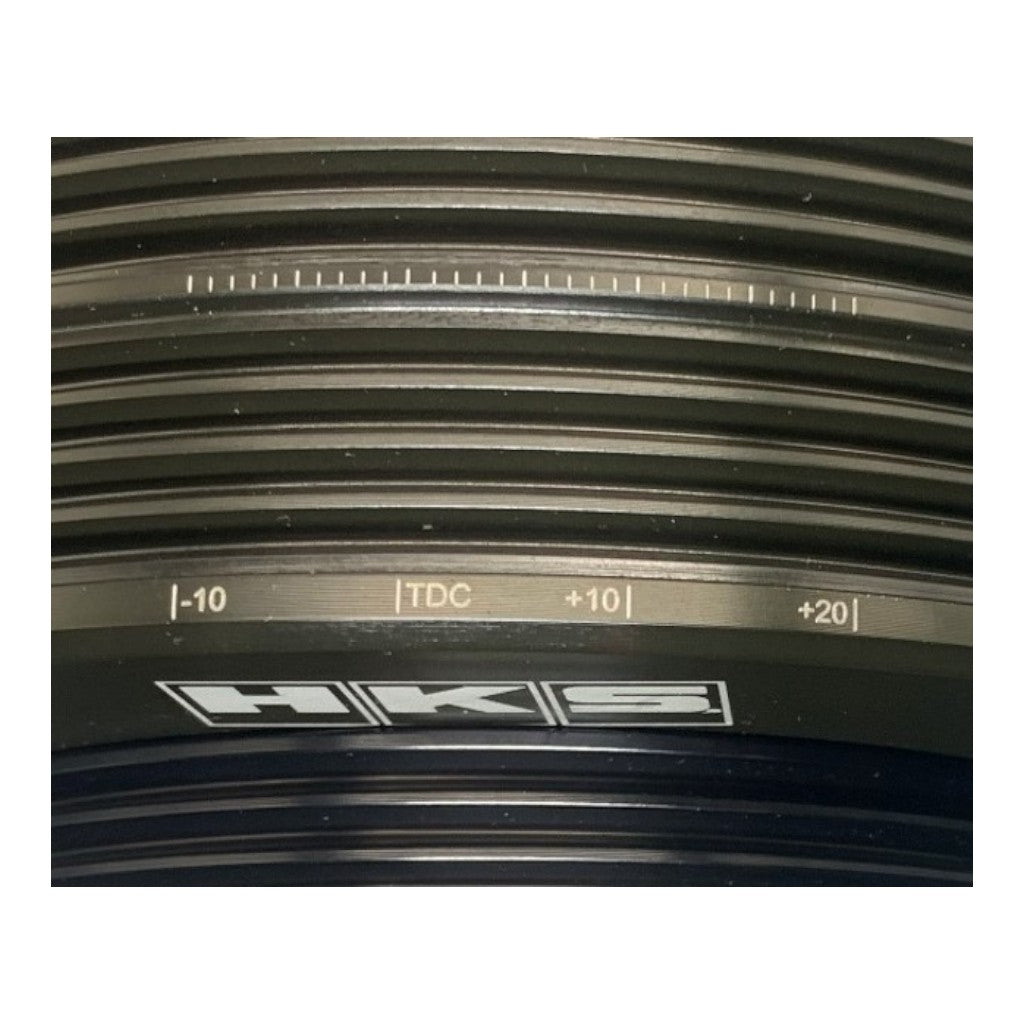

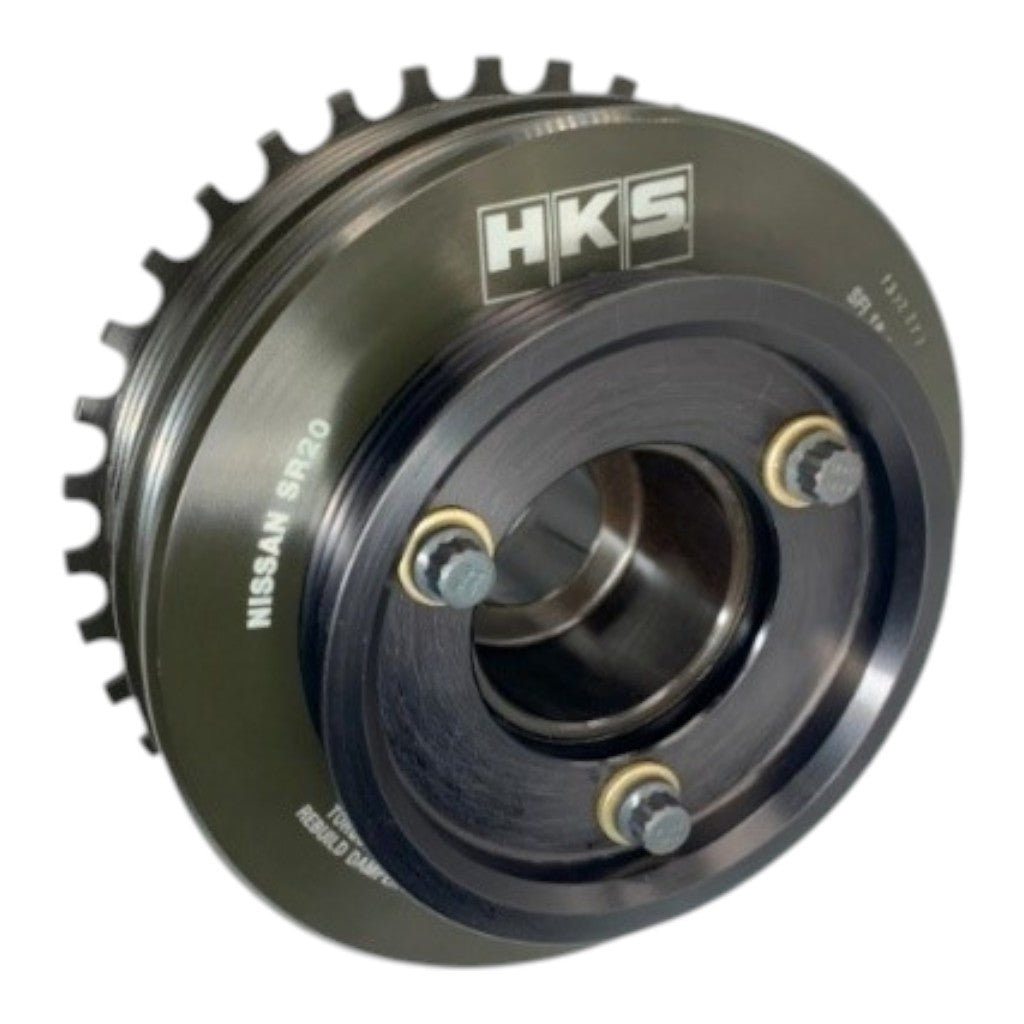

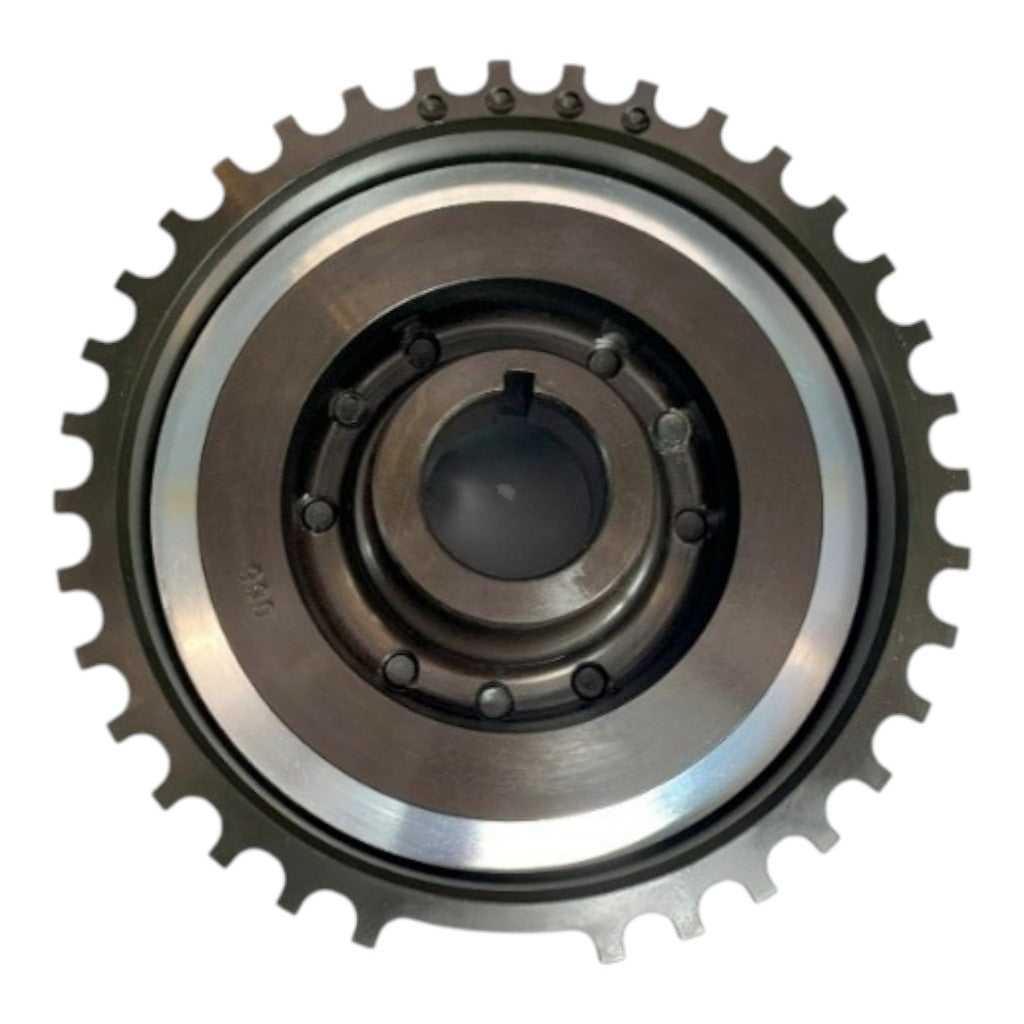

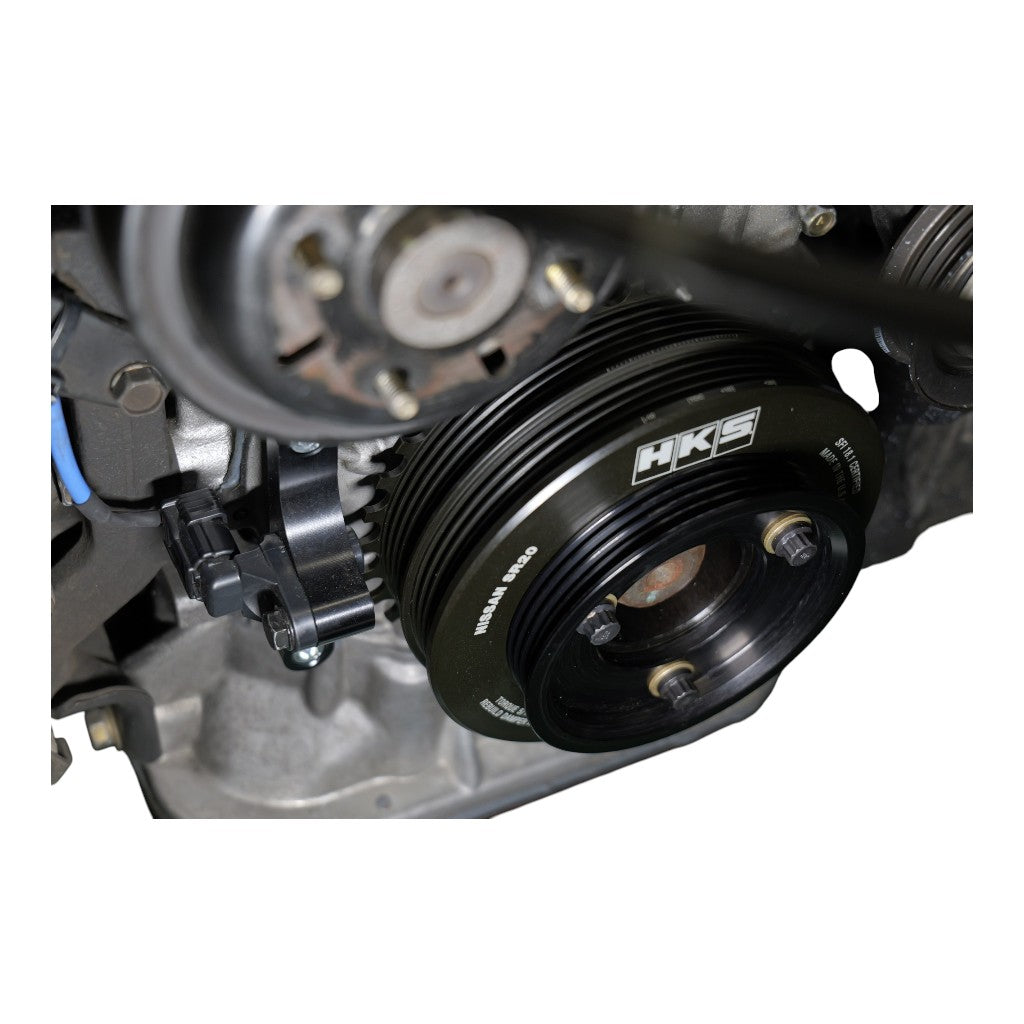

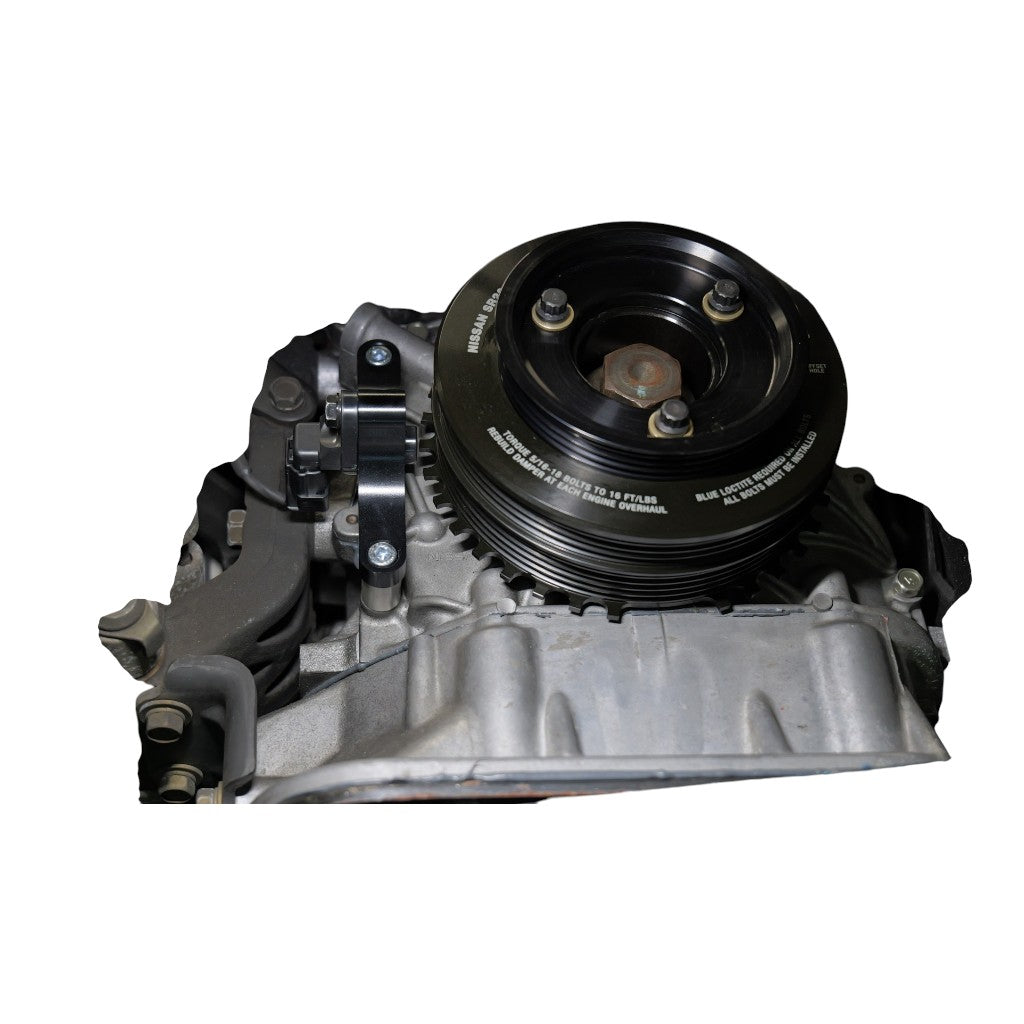

HKS 24998-AN005 Crank Damper Pulley SR20 (RWD) for NISSAN 180SX RPS13 (SR20DET Engine) / Silvia S13 / S14 / S15 (SR20DET Engine)

Description HKS 24998-AN005 Crank Damper Pulley SR20 (RWD) for NISSAN 180SX RPS13 (SR20DET Engine) / Silvia S13 / S14 / S15 (SR20DET Engine)

The HKS 24998-AN005 Crank Damper Pulley is designed for rear-wheel-drive Nissan vehicles equipped with the SR20DET engine. It is intended for use as part of the dedicated SR20 crankshaft and camshaft position sensing system, supporting independent signal management for more accurate crank angle detection and expanded engine tuning capabilities.

The dedicated crank damper pulley was jointly developed with ATI Performance Products and incorporates an integrated trigger wheel. Its configuration enables the crankshaft position signal to be detected independently from the camshaft position signal, reducing the influence of timing chain fluctuation on engine speed recognition.

• Designed for rear-wheel-drive SR20DET applications
• Supports independent crankshaft and camshaft position signal management
• Enables highly accurate crank angle signal detection
• Expands engine management and tuning capabilities
• Jointly developed with ATI Performance Products
• Integrated trigger wheel configuration
• Compatible with NISSAN 180SX RPS13 and Silvia S13 / S14 / S15 equipped with the SR20DET engine

Specifications:

• Compatible Engine: SR20DET
• Drivetrain Configuration: RWD
• Trigger Wheel Configuration: 36-2
• Trigger Wheel Phase: 180 degrees out of phase

Compatibility Notes:

• Compatibility with SR20DE applications has not been confirmed
• Not compatible with transverse-engine vehicles
