HKS 23011-AT006 Complete Engine FA20 2.1L STEP-0 HIGH-COMP for TOYOTA GT86, SUBARU BRZ
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
HKS 23011-AT006 Complete Engine FA20 2.1L STEP-0 HIGH-COMP for TOYOTA GT86, SUBARU BRZ
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
HIGH-COMP complete engine handcrafted by the artisans with high-skills in FA20 2.1L kit for NA & SUPERCHARGER users
- More durable benefit from forged High Comp piston
- Withstand more torque by forged I-Beam connecting rod
- Stroke and strength increased by forged crankshaft

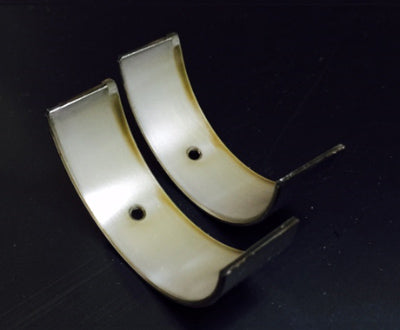

- Superior resistance connecting rod bearing
- Prevent gasket failure with strengthened bolts and metal gasket
- High RPM revving up improved by IN 260°/EX 266° camshafts
- Built with strengthened parts targeting torque up to 600 N-m
* HKS Racing Pro 10W50 engine oil is recommended
- Wide angel crankshaft for revving up in high RPM
- Strengthened connecting rod bearing able to withstand high torque

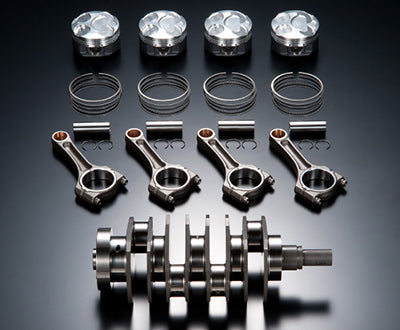

- Forged High Comp Piston
- Forged I-Beam Connecting Rod
- Forged Crankshaft
Engine Specifications
| HKS C/E FA20 2.1L STEP0 | Stock | |
|---|---|---|
| Bore | 86.0mm | 86.0mm |
| Stroke | 90.0mm | 86.0mm |
| Compression (t=0.7) | 12.0 | - |
| Capacity | 2,091cc | 1,998cc |
COMPLETE ENGINE FA20 2.1L STEP0
| Main Bolt | ARP |
|---|---|
| Piston | HKS Forged High Comp φ86 |
| Connecting Rod | HKS Forged I-beam |
| Crankshaft | HKS Forged |
| Main Bearing | FACTORY + WPC* |
| Connecting Rod Bearing | ACL |
| Head Stud | ARP |
| Head Gasket | HKS stopper type (t=0.7) |
| Camshaft | HKS IN 260°, EX 266° |
* WPC = Wide Peening and Cleaning
