HKS 23011-AN027 Short Block RB26 3.0L STEP3
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
HKS 23011-AN027 Short Block RB26 3.0L STEP3
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
- The exclusive 3.0L crank is machined from high-end race grade nitride steel that is ion plasma treated to increase surface strength and toughness.

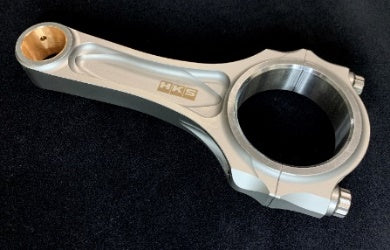

- A dedicated I-beam connecting rod has been adopted to increase buckling strength by 36%, in preparation for higher torque. The piston pin thickness has also been increased by 22mm.
- Various design changes were made to countermeasure against heat generated during higher output, such as, changes to valve guide and seat materials, adoption of sodium-filled EX valves, and pistons with cooling channels.
- Dedicated 36-tooth crank angle sensor and crank angle sensor for V-cam improve signal accuracy in the high-RPM range.

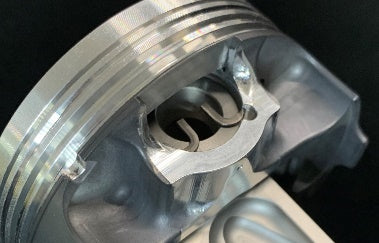

The two-piece piston has a higher pin position making it possible to reduce the compression height. The extremely lightweight 313 g pistons, which have cooling channels for oil cooling.
| SHORT BLOCK RB26 3.0L STEP3 | |
| Block (24U) Modifications | Block deck Resurfacing (Parallel to the crankshaft), Waterhole Machining, Head bolt hole chamfering (to prevent cracking), Deburring lower end of cylinder, Boring |
| Piston | HKS 2-piece machined |
| Piston Pin | Dia. 22 Enhanced product |
| Connecting Rod | HKS I-Beam Center Distance: 127.5 mm |
| Crankshaft | HKS Billet Full Counter (Ion plasma treated nitriding steel) |
| Main Bearing | ACL |
| Conrod Bearing | ACL |
|
| HKS 3.0L | Stock |
| Bore | 87.0 mm | 86.0 mm |
| Stroke | 84.0 mm | 73.7 mm |
| Compression Ratio (t=1.2) | 8.7 | - |
| Max RPM | 9,000 rpm | 7,600 rpm |
| Displacement | 2,996 cc | 2,568 cc |
