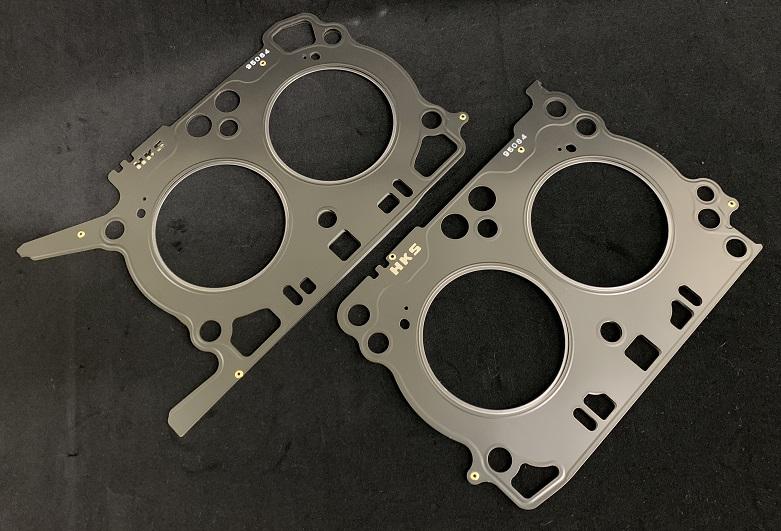

HKS 23002-AT005 Grommet Type Head Gasket t=1.2 for FA24
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
HKS 23002-AT005 Grommet Type Head Gasket t=1.2 for FA24
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
A grommet-type head gasket that supports the tuning of a vehicle with a turbocharger.
- It improves the sealing limit by securing the surface pressure of the gasket sealing surface by employing the grommet structure.
- We also have the gasket with a thickness of t = 1.2 mm, which can lower the compression ratio for dimensional correction during overhaul and for those who use it at high boost pressure.
- Buckling may cause between the cylinder head and the sealing surface of the cylinder block due to applying increased surface pressure.
Compression ratio at the cylinder head without resurfacing
| Gasket Thickness (mm) | OEM 2.4L | HKS 2.5L KIT |
| 0.6 mm (OEM) | 12.5 | 12.2 |
| 0.8 mm (HKS) | 12.2 | 11.8 |
| 1.2 mm (HKS) | 11.6 | 11.3 |
Note: The compression ratio comes from using the HKS Piston Full Kit FA24 2.5L HIGH COMP STEP 1 or 2.
