HKS 23002-AN006 Grommet Type Head Gasket Kit Super Cooling 1.0 mm for RB26
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
HKS 23002-AN006 Grommet Type Head Gasket Kit Super Cooling 1.0 mm for RB26
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Grommet type head gasket kit specialized for engine cooling. (including exhaust/intake manifold and throttle gaskets)
Concept
Reviewing the cooling of the cylinder head side makes it possible to advance the ignition timing while increasing the knock limit.
The grommet structure helps to prevent the removal of the gasket, and it is perfect for high-output or circuit driving.

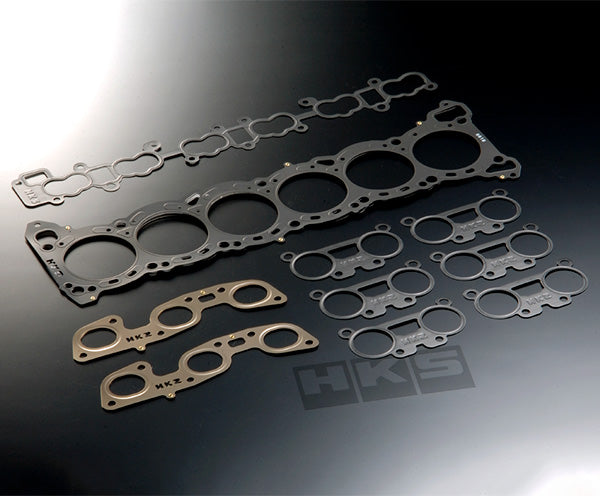

Kit includes
- Grommet type Head Gasket x 1
- Exhaust Manifold Gasket x 2
- Intake Manifold Gasket x 1
- Throttle Gasket x 6
- A 1.0 mm thickness gasket for increasing the compression ratio has newly arrived.

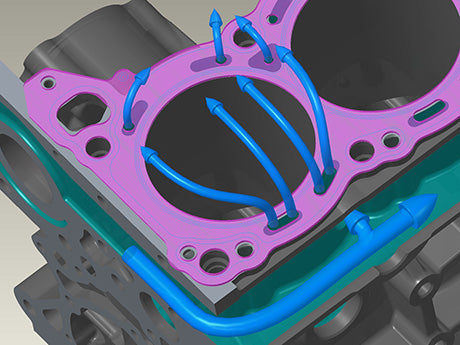

- While retaining the sealing effect, the holes for water to pass through were widened to the maximum extent possible to increase the amount of cooling water passing through the cylinder head.
- It makes it possible to lower the temperature around the combustion chamber and reduce the temperature variation between the cylinders by increasing the amount of cooling water flowing through the cylinder head.

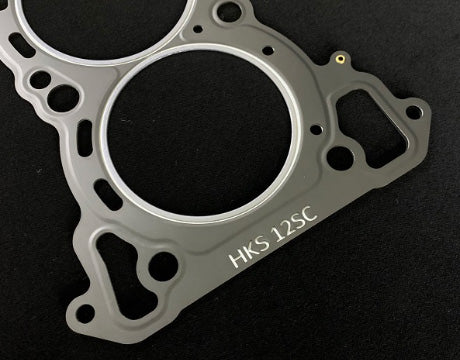

- It improves the sealing limit by securing the surface pressure of the gasket sealing surface by employing the grommet structure.
- Even a higher sealing effect can be obtained by using separately sold strengthened head bolts.
Thickness (mm)- 1.0
Compression Ratio- 8.9
Bore- Φ88
