HKS 22007-AN020 V-CAM System STEP-1 (VALCON LESS Kit) for NISSAN Skyline GT-R (R34/RB26) Photo-0

HKS 22007-AN020 V-CAM System STEP-1 (VALCON LESS Kit) for NISSAN Skyline GT-R (R34/RB26)

AED 14,206.50

Tax included. Shipping calculated at checkout

HKSP/N: 22007-AN020
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

HKS 22007-AN020 V-CAM System STEP-1 (VALCON LESS Kit) for NISSAN Skyline GT-R (R34/RB26)

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

The favored HKS V-CAM system for RB26 without VALCON type is newly launched.

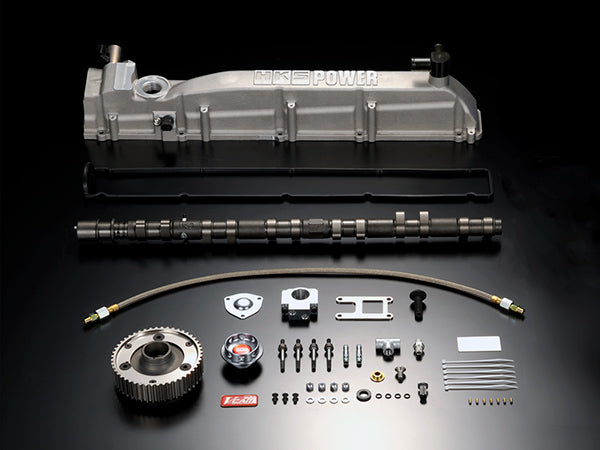

Kit includes

* HKS V-CAM system with VACLON type for RB26 sold separately.

  • Special V-CAM shaft
  • Variable valve timing unit (Vane type controller for high torque. Pulley with nickel plating.)
  • Intake side special cylinder head cover. (HKS original casting product. No paint. Includes special logo plate.)
  • V-CAM sensor harness. (F-CON V Pro 3.4 connected terminal)
  • Oil control valve (Electromagnetic)
  • Cam angle sensor (Highly accurate type)
  • Oil lines (between the hydraulic take-out section of the engine side and the cylinder head cover.)
  • Other short parts

Precautions for Use

  STEP 1 STEP 2 Step Pro
Variable Valve Timing Control Unit F-CON V Pro ver. 3.4 or VALCON type RB26
CAM Shaft (EX) STEP 1 (256° or 264°) STEP 1 (272°) STEP 2 (272° or above)
Valve Spring Stock Recommends HKS enhanced parts
(If increasing allowable rotating speed)		 needs HKS enhanced parts
Allowable rotating speed 8000 rpm 8000 rpm or
8500 rpm in using with the HKS valve spring		 8800 rpm
Cylinder head Modification No No Yes, a process to secure the clearance
of the cam lobe is needed.
Piston Stock HKS Piston
(To secure the clearance between the valve and the piston)
Oil Pump Recommends HKS enhanced parts
Engine Oil Recommend
HKS SUPER TURBO RACING 15W50 or HKS Racing Pro 10W50
Timing Belt Inspect the wear or tension each drive 10,000 km. Adjust them if necessary.
Other The valve timing may not reach the target value due to insufficient hydraulic pressure when the viscosity is low.
It cannot have an advanced angle when the water temperature of 60 degrees or lower.
